Subaru Legacy IV (2008 year). Service manual - part 1081

BS-12

Datum Dimensions

BODY STRUCTURE

NOTE:

• All reference points are left-right symmetrical.
• The dimensions are the actual dimensions between the reference points.

Point of measurement

Datum dimension mm (in)

(20) — (26)

1,232 (48.50)

(20) — (29)

1,034 (40.71)

(20 — (30)

1,066 (41.97)

(21) — (29)

1,080 (42.52)

(22) — (30)

1,055 (41.54)

(23) — (31)

1,070 (42.13)

(27) — (27)

1,448 (57.01)

(28) — (28)

1,523 (59.96)

(29) — (35)

863 (33.98)

(30 — (35)

1,002 (39.45)

(30) — (37)

753 (29.65)

(31) — (37)

679 (26.73)

(36) — (36)

1,506 (59.29)

Ft

(20)

(21)

BS-01453

Ft

(22)

(23)

BS-01454

Ft

(27)

(29)

(28)

(30)

(31)

BS-01493

Ft

(26)

BS-01456

Ft

(36)

(35)

BS-01457

Ft

(37)

BS-01458

BS-13

Datum Dimensions

BODY STRUCTURE

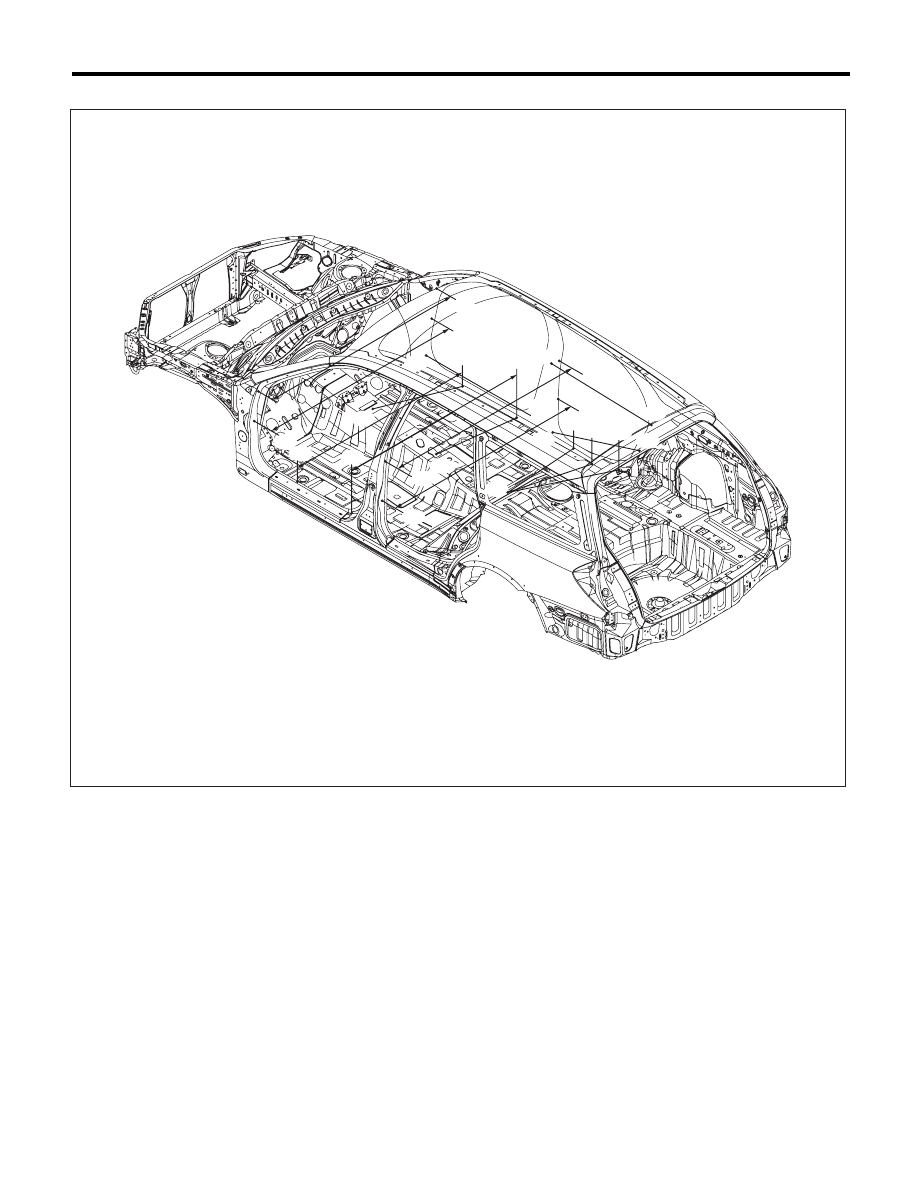

• Common for wagon and sedan model, 2

(24)

Weatherstrip mounting hole
(symmetrical)

(43)

Harness clip mounting hole
(symmetrical)

(50)

Side sill cover mounting hole
(symmetrical)

(25)

Front door checker mounting hole
(symmetrical)

(45)

Trim clip mounting hole
(symmetrical)

(51)

Gauge hole (symmetrical)

(52)

Trim clip mounting hole
(symmetrical)

(32)

Weatherstrip mounting hole
(symmetrical)

(46)

Trim clip mounting hole
(symmetrical)

(65)

Airbag unit mounting hole
(body center)

(33)

Rear door checker mounting hole
(symmetrical)

(47)

Harness clip mounting hole
(symmetrical)

(66)

Side sill cover mounting hole
(symmetrical)

(41)

Side sill cover mounting hole
(symmetrical)

(48)

Harness clip mounting hole
(symmetrical)

(67)

Floor mat mounting hole
(body center)

(42)

Harness clip mounting hole
(symmetrical)

(49)

Harness clip mounting hole
(symmetrical)

(24)

(25)

(42)

(41)

(43) (45)

(32)

(46)

(47)

(48)

(33)

(49) (50)

(52)

(51)

(67)

(66)

(32)

(33)

(42)

(25)

(24)

(65)

(43)

BS-01414

BS-14

Datum Dimensions

BODY STRUCTURE

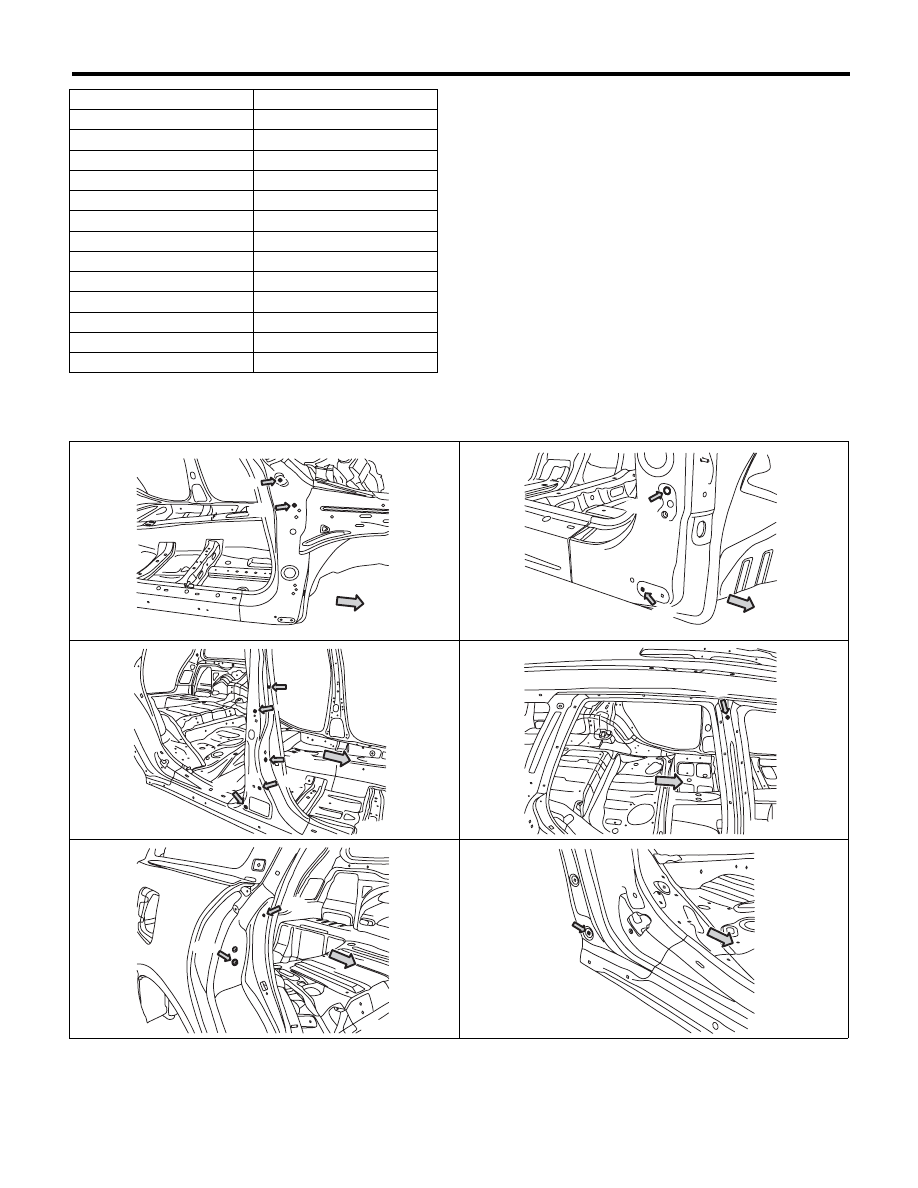

NOTE:

• The reference points (65), (66), and (67) are at the body center, while the other points are left-right sym-
metrical.
• The dimensions are the actual dimensions between the reference points.

Point of measurement

Datum dimension mm (in)

(24) — (24)

1,482 (58.35)

(25) — (25)

1,476 (58.11)

(32) — (32)

1,448 (57.01)

(33) — (33)

1,464 (57.64)

(41) — (46)

863 (33.98)

(42) — (42)

1,373 (54.06)

(42) — (65)

706 (27.80)

(43) — (43)

1,373 (54.06)

(43) — (66)

693 (27.28)

(45) — (52)

838 (32.99)

(47) — (51)

740 (29.13)

(48) — (67)

711 (27.99)

(49) — (67)

649 (25.55)

(50) — (67)

704 (27.72)

BS-15

Datum Dimensions

BODY STRUCTURE

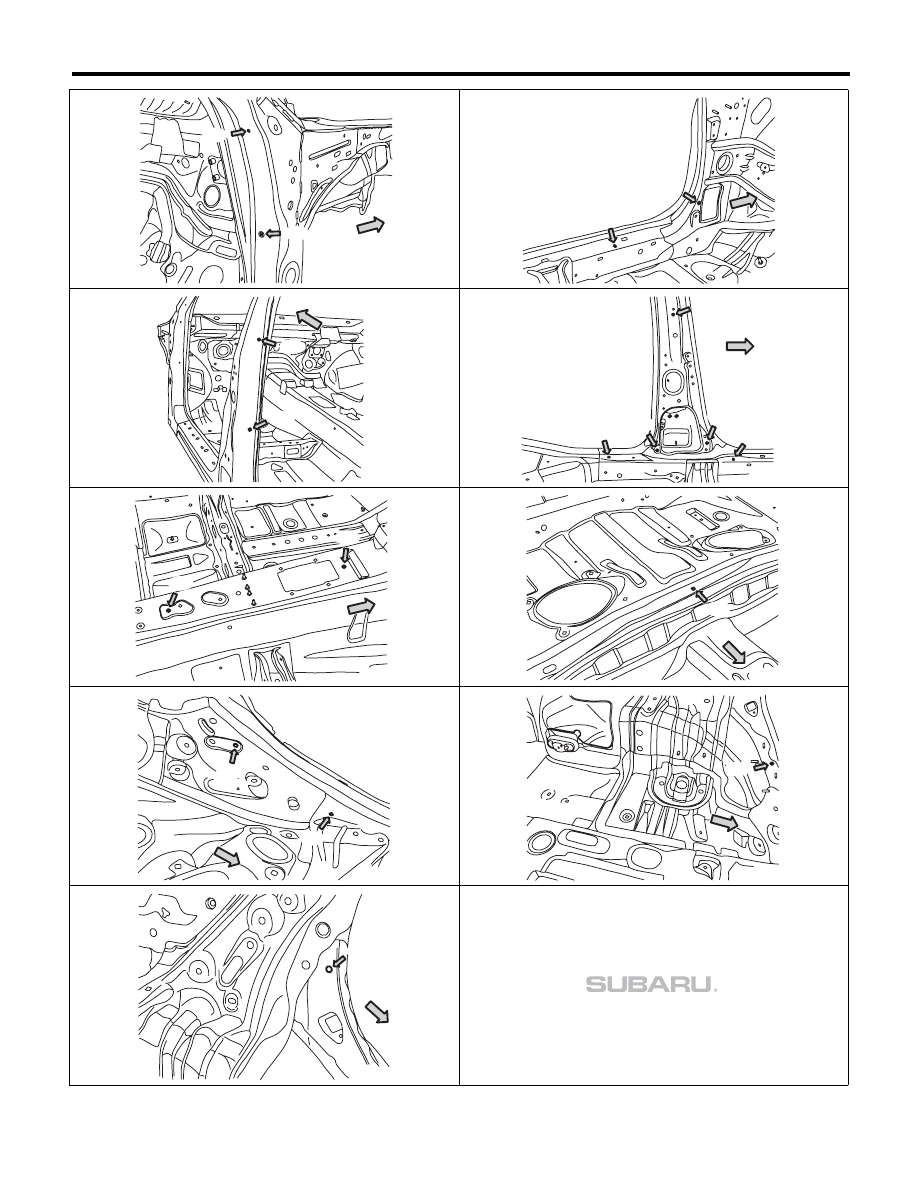

Ft

(24)

(25)

BS-01459

Ft

(41)

(42)

BS-01460

Ft

(32)

(33)

BS-01494

Ft

(45)

(48)

(47)

(46)

(43)

BS-01462

Ft

(66)

(65)

BS-01463

Ft

(67)

BS-01464

Ft

(50)

(49)

BS-01465

Ft

(51)

BS-01466

Ft

(52)

BS-01467
