OD(diag)-9

General Description

OCCUPANT DETECTION SYSTEM (DIAGNOSTICS)

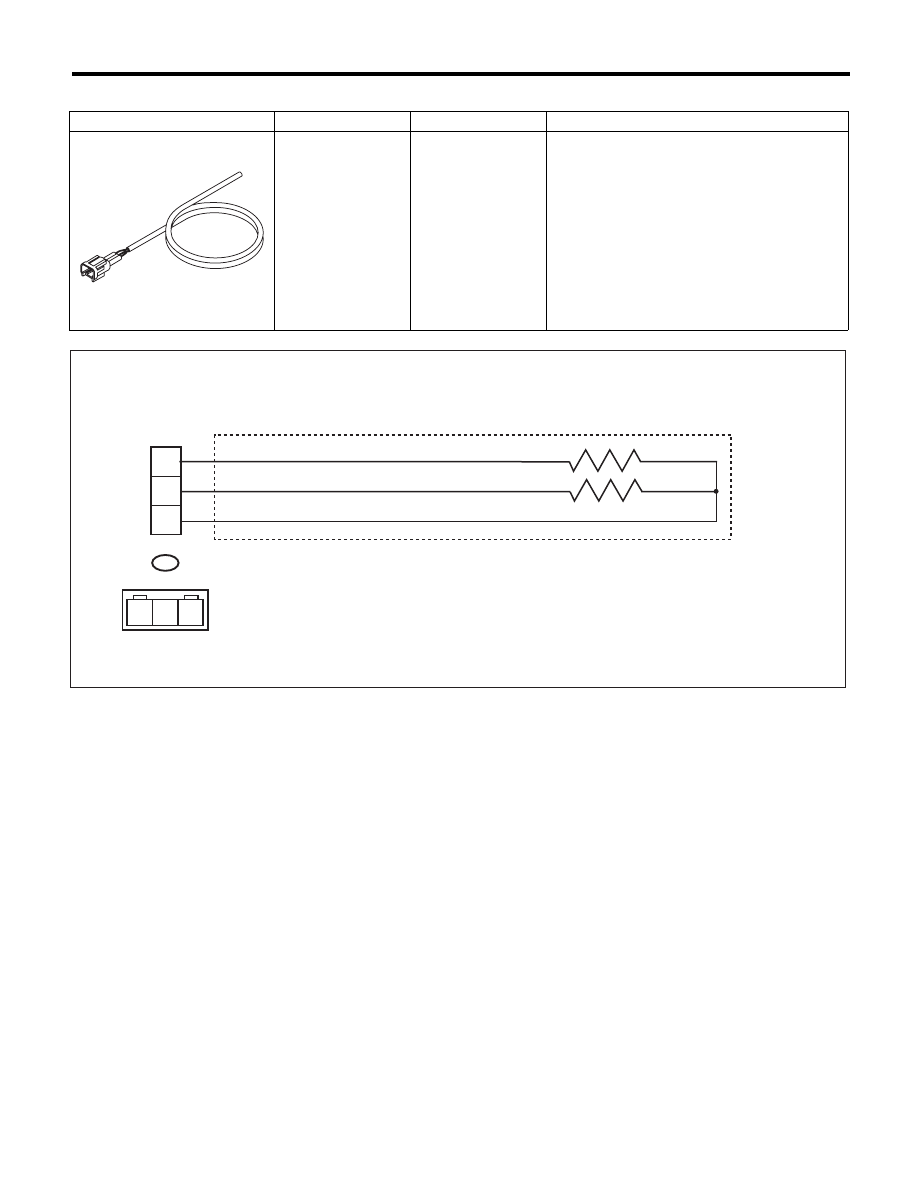

• TEST HARNESS AC

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

98299XA010

TEST HARNESS
AC

Used for troubleshooting seat belt tension sen-
sor.

ST98299XA010

OD-00027

A

B

C

A

C

B

AC

OD(diag)-10

General Description

OCCUPANT DETECTION SYSTEM (DIAGNOSTICS)

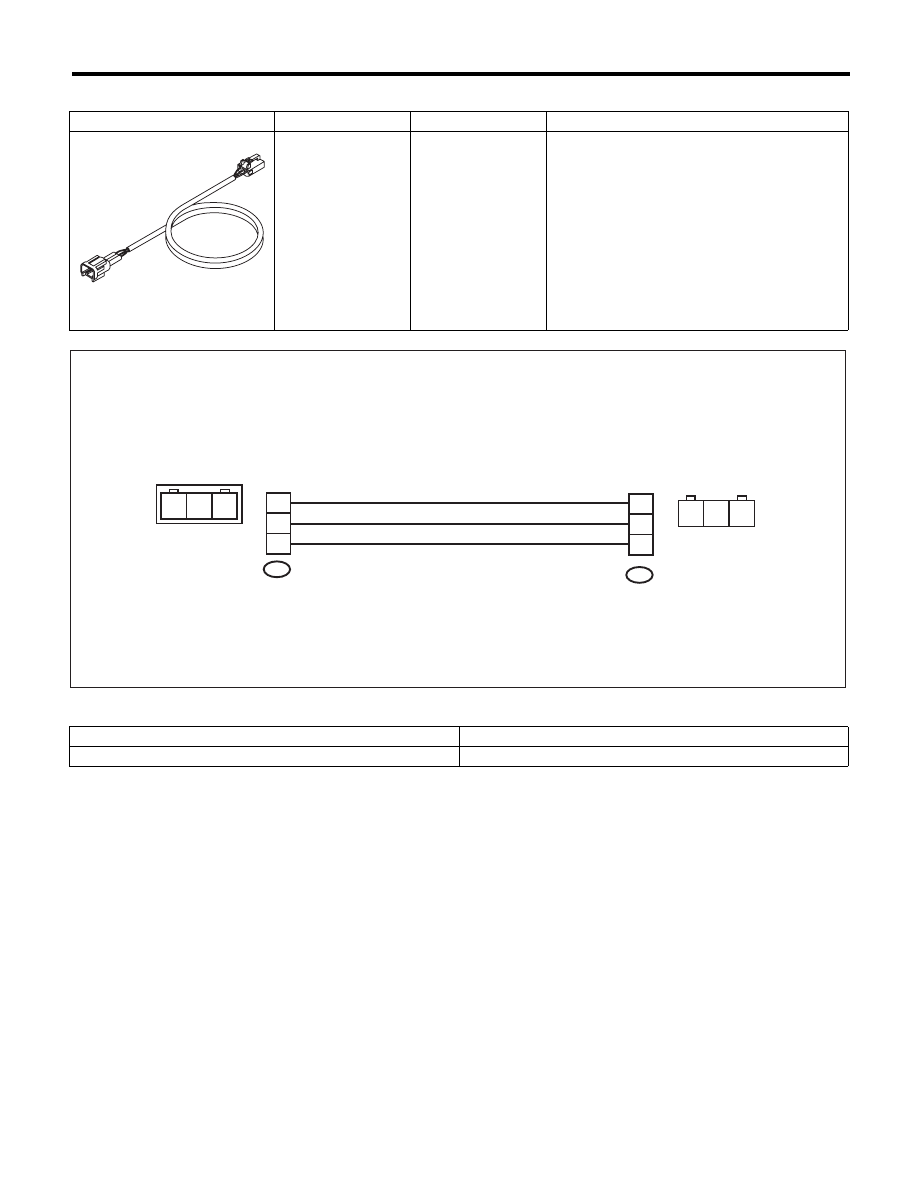

• TEST HARNESS AD

2. GENERAL TOOL

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

98299XA020

TEST HARNESS
AD

Used when measuring voltage and resistance of
the seat belt tension sensor.

TOOL NAME

REMARKS

Circuit tester

Used for measuring resistance, voltage and current.

ST98299XA020

OD-00028

1AD

2AD

3

2

1

3

1

2

3

2

1

3

1

2

OD(diag)-11

Electrical Component Location

OCCUPANT DETECTION SYSTEM (DIAGNOSTICS)

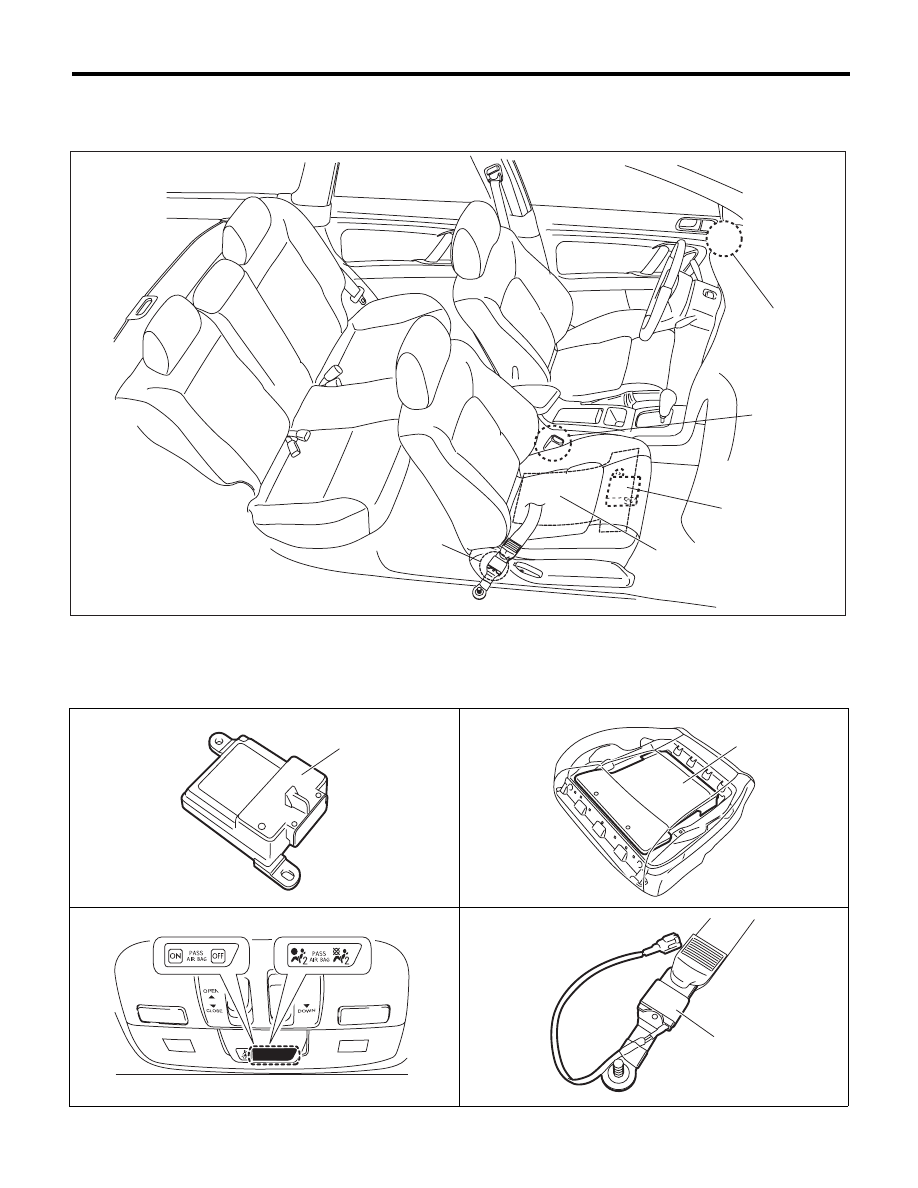

4. Electrical Component Location

A: LOCATION

(1)

Occupant detection control
module

(3)

Airbag ON/OFF indicator light
(Map light)

(5)

Seat belt tension sensor

(2)

Occupant detection sensor

(4)

Buckle switch (Passenger’s seat)





(1)

(4)

(3)

OD-00035

(2)

(5)

OD-00016

(1)

OD-00015

(2)

OD-00072

OD-00017

(5)

OD(diag)-12

Airbag Connector

OCCUPANT DETECTION SYSTEM (DIAGNOSTICS)

5. Airbag Connector

A: PROCEDURE

For detailed operation procedure, refer to “Airbag
connector” in AB section. <Ref. to AB-8, Airbag
Connector.>
