Subaru Legacy IV (2008 year). Service manual - part 6

NT-4

Note

NOTE

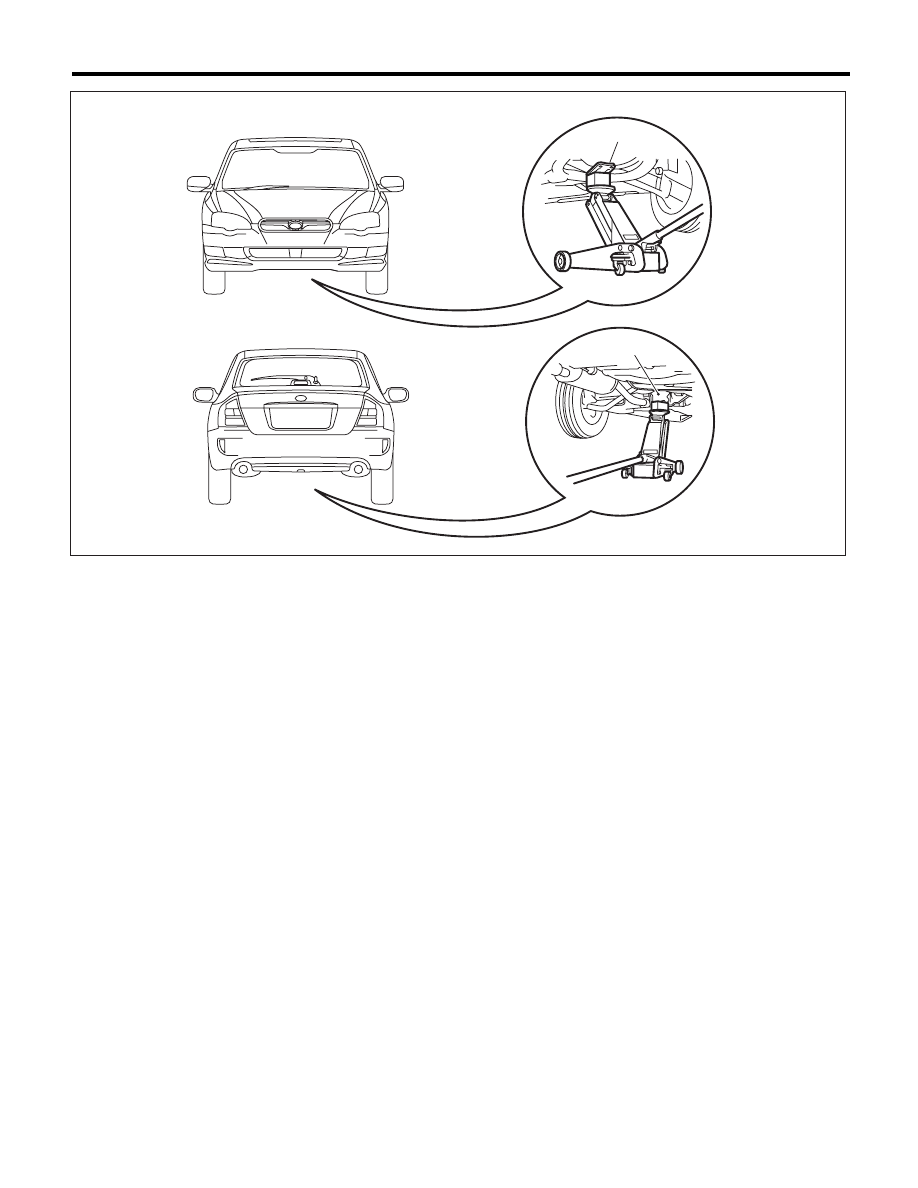

(A)

Front

(B)

Rear















(1)

Front crossmember

(2)

Rear differential





NT-00170

(1)

(2)

(A)

(B)

NT-5

Note

NOTE

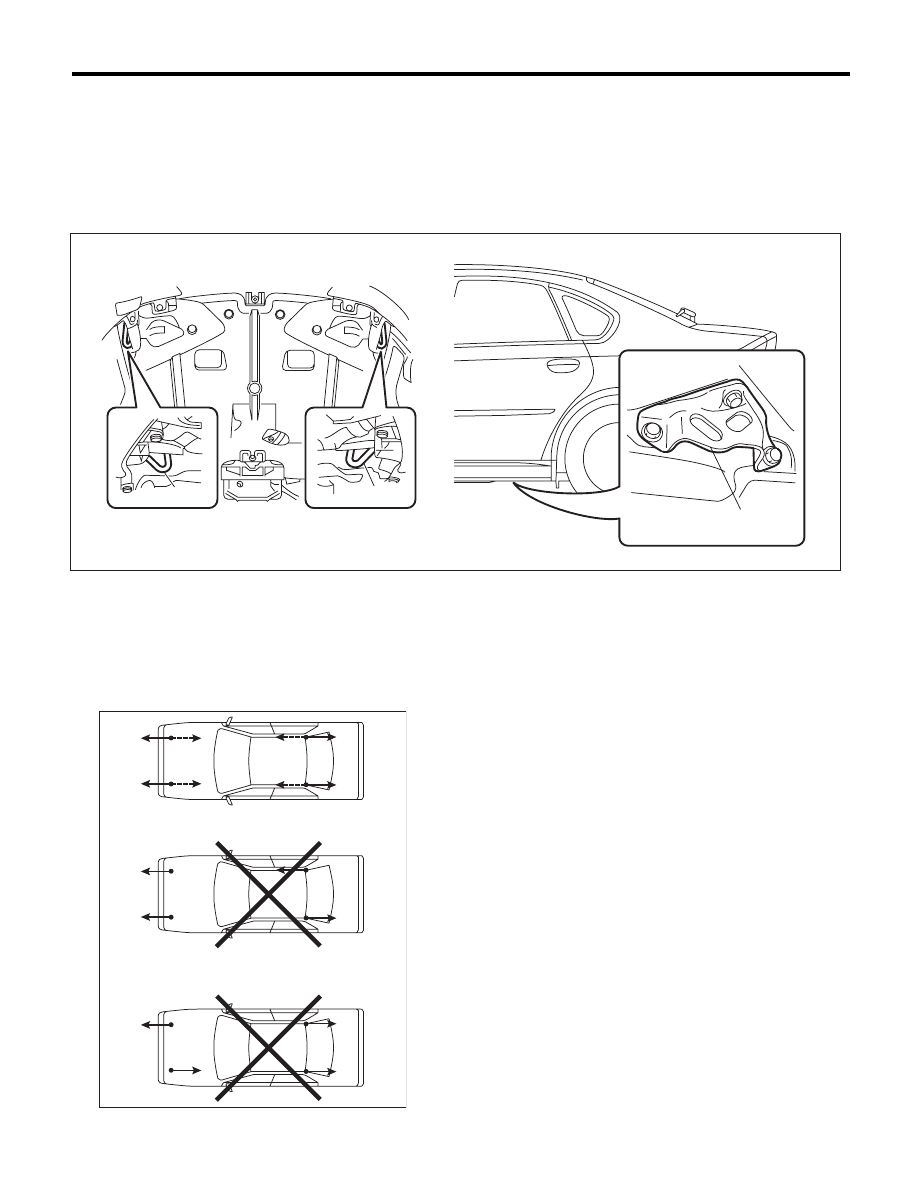

8. TIE-DOWNS

Tie-downs are used when transporting vehicles and when using the chassis dynamo. Attach tie-down only
to the specified locations on the vehicle.
• TIE-DOWN LOCATION

CAUTION:
Use the T-hook for rear tie-down. Do not use the hook other than T-hook, otherwise it can be removed
when transporting vehicles.

• CHAIN DIRECTION AT TIE-DOWN CONDITION

NOTE:
Pull the chains LH and RH in the same direction,
but front and rear side in the counter direction. Pull
all the chains in a same moment.

(1)

Hook for tie-down









(1)

(1)

(1)

NT-00149

NT-00117

NT-6

Note

NOTE

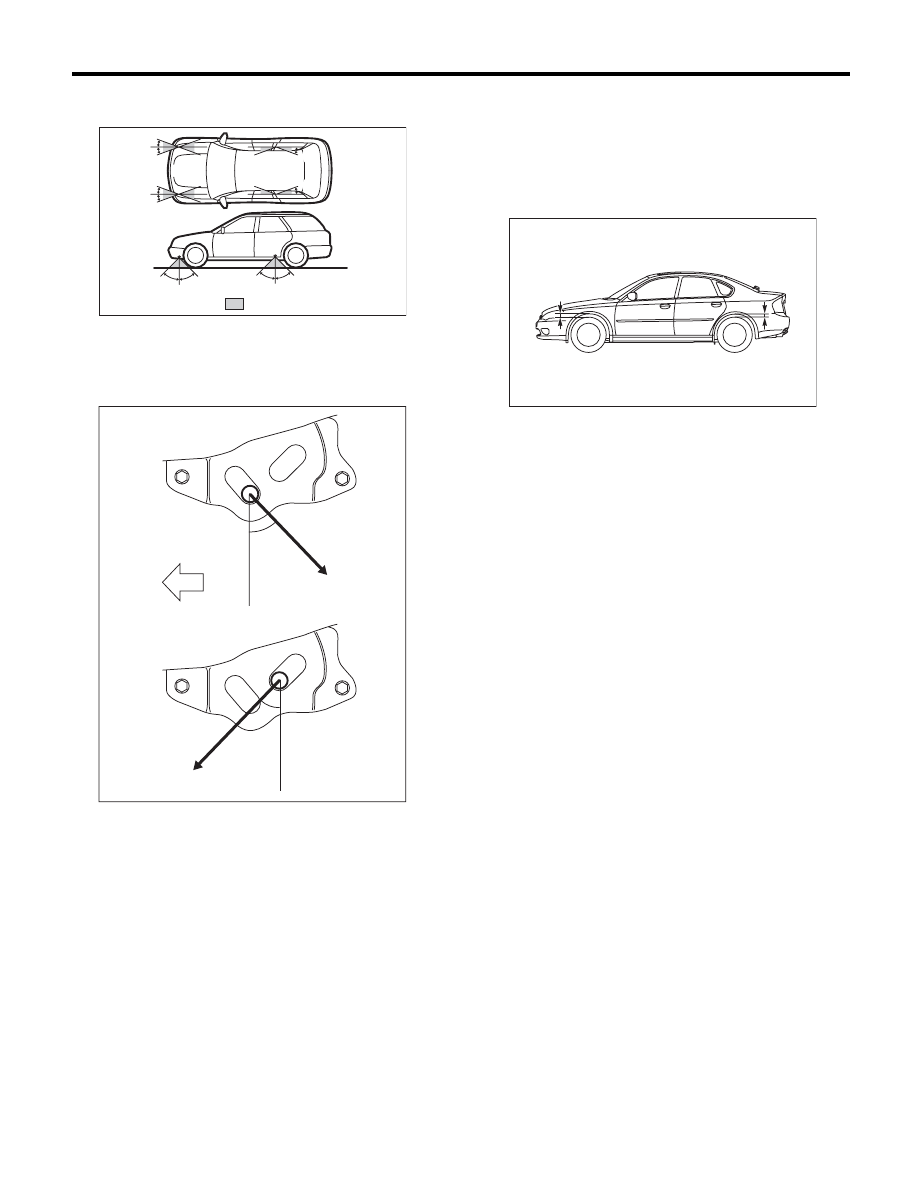

• CHAIN PULLING RANGE AT TIE-DOWN
CONDITION

• VEHICLE SINKING VOLUME AT TIE-DOWN
CONDITION
Measure the distance between the highest tire
point and highest arch point before and after tie-
down. Difference of measured values (sinking vol-
ume) should be within 50 mm (1.97 in) and make
sure to fix the vehicle securely.

(1) Chain pulling range at tie-down condition

(2) 20°

(3) 45°

(F) Front side

(1) Tightening direction of chain

(2) 45°

NT-00122

(2)

(2)

(2)

(2)

(3)

(3)

(3)

(3)

: (1)

(2)

(2)

NT-00151

(1)

(1)

(2)

(2)

F

NT-00076

L

L

NT-7

Note

NOTE

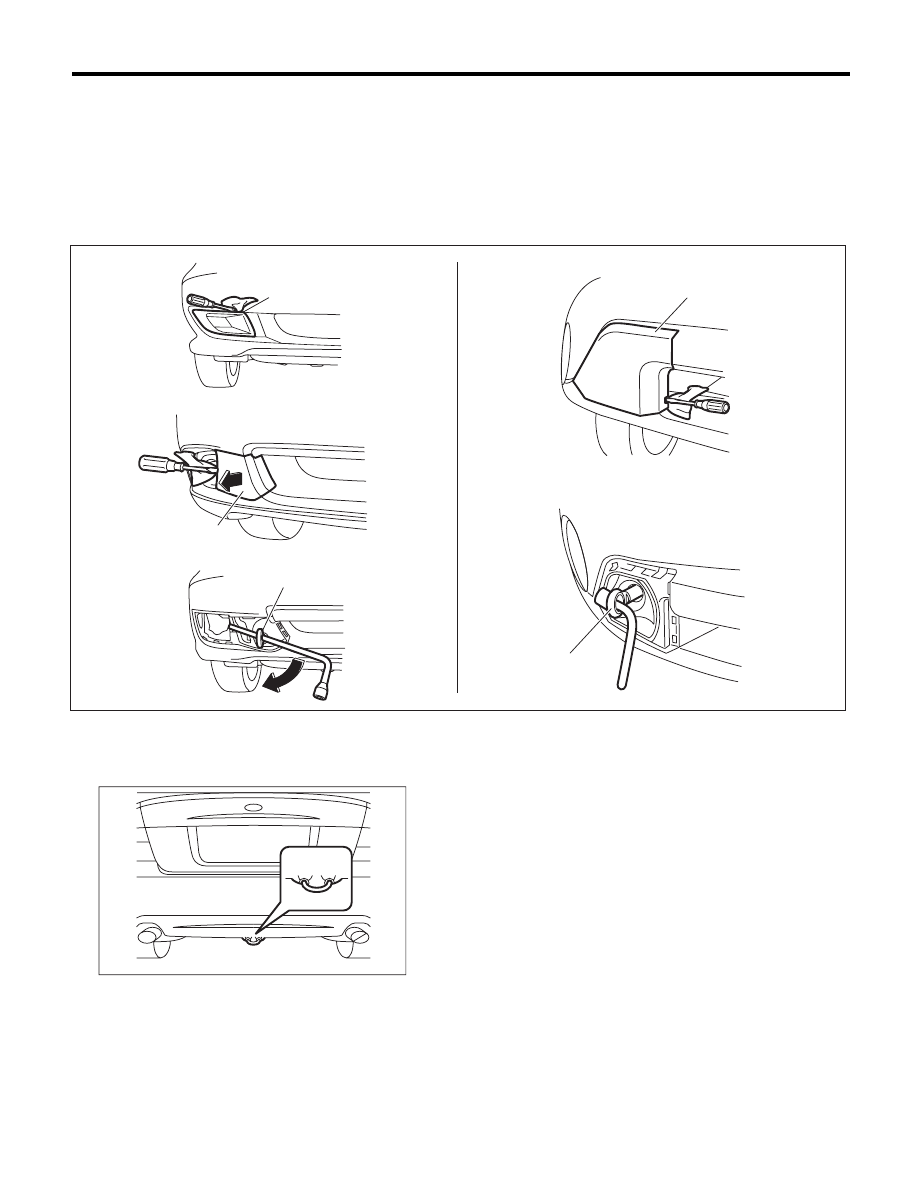

9. TOWING

Avoid towing vehicles except when the vehicle cannot be driven. For models with AWD, AT or VTD, use a
loader instead of towing. When towing other vehicles, pay attention to the following to prevent hook or vehicle
damage resulting from excessive weight.
• Do not tow other vehicles with a front tie-down hook.
• Make sure the vehicle towing is heavier than the vehicle being towed.
• Front
Remove the fog light cover (except for OUTBACK model) and hook cover, and then install the hook.

• Rear

(A)

Fog light cover
(except for OUTBACK model)

(B)

Hook cover

(C)

Hook

(A)

(C)

(B)

(C)

(B)

NT-00171

NT-00078
