PM-65

Clutch System

PERIODIC MAINTENANCE SERVICES

13) Push the release lever until the operating cylinder push rod retracts. Make sure that the clutch fluid level

in the reservoir tank increases. If the clutch fluid level increases, the hydraulic clutch is properly adjusted. If

the clutch fluid level does not increase or the push rod does not retract, replace the master cylinder with a

new part.

14) Push the release lever until the operating cylinder push rod retracts. Check that the clutch fluid level in

the reservoir tank increases.

15) If the clutch fluid level increases, hydraulic clutch play is correct.

16) If the clutch fluid level does not increase or push rod does not retract, readjust the clutch pedal.

17) Check the clutch fluid level in the reservoir tank.

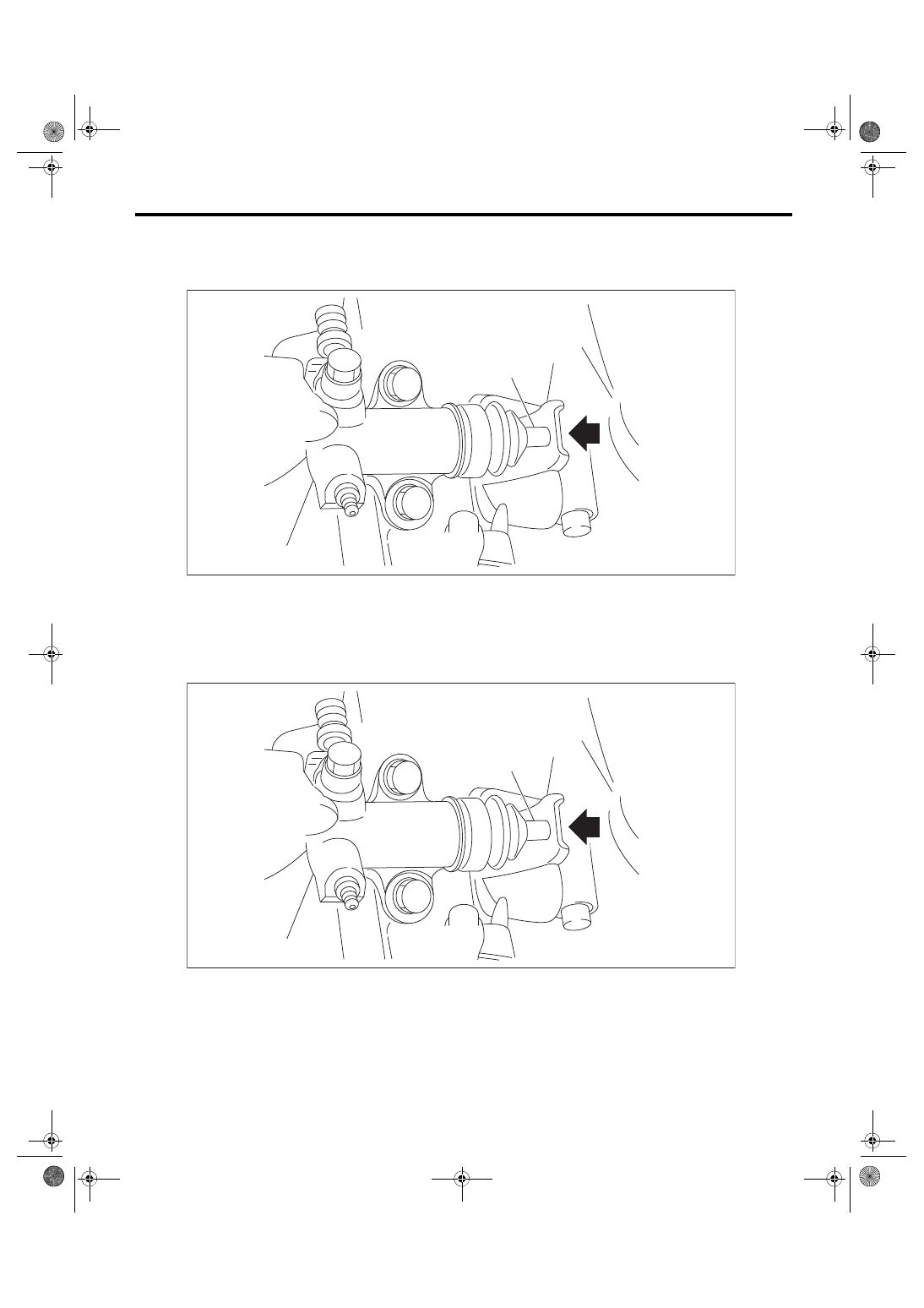

(A) Push rod
(B) Release lever

(C) Operating cylinder

(A) Push rod
(B) Release lever

(C) Operating cylinder

PM-00697

(A)

(B)

(C)

PM-00697

(A)

(B)

(C)

PM-66

Transmission Gear Oil

PERIODIC MAINTENANCE SERVICES

13.Transmission Gear Oil

A: INSPECTION

Check for leakage of gear oil from the transmission.

B: REPLACEMENT

CAUTION:

• Immediately after running the vehicle or after idling for a long time, the transmission gear oil will

be hot. Be careful not to receive burns.

• Be careful not to spill the transmission gear oil on exhaust pipe to prevent it from emitting smoke

or causing fires. If transmission gear oil is spilled on the exhaust pipe, wipe it off completely.

1) Lift up the vehicle.

2) Remove engine under cover No. 1.

3) Remove engine under cover No. 2.

4) Remove the transmission filler plug and gasket.

5) Remove the transmission drain plug and gasket, and drain the oil.

6) Install the transmission drain plug using a new gasket.
Tightening torque:

37 N·m (3.8 kgf-m, 27.3 ft-lb)

7) Pour transmission gear oil to the bottom end of filler plug.
NOTE:

Carefully refill transmission gear oil while checking the level. Excessive or insufficient oil must be avoided.
Recommended gear oil

Refer to “RM” section. <Ref. to RM-2, LUBRICANTS, RECOMMENDED MATERIALS, Recommend-

ed Materials.>

Transmission gear oil capacity

Refer to the “SPC” section. <Ref. to SPC-4, CAPACITY, BRZ.>

8) Tighten the filler plug using a new gasket.
Tightening torque:

37 N·m (3.8 kgf-m, 27.3 ft-lb)

9) Check that there is no oil leakage.

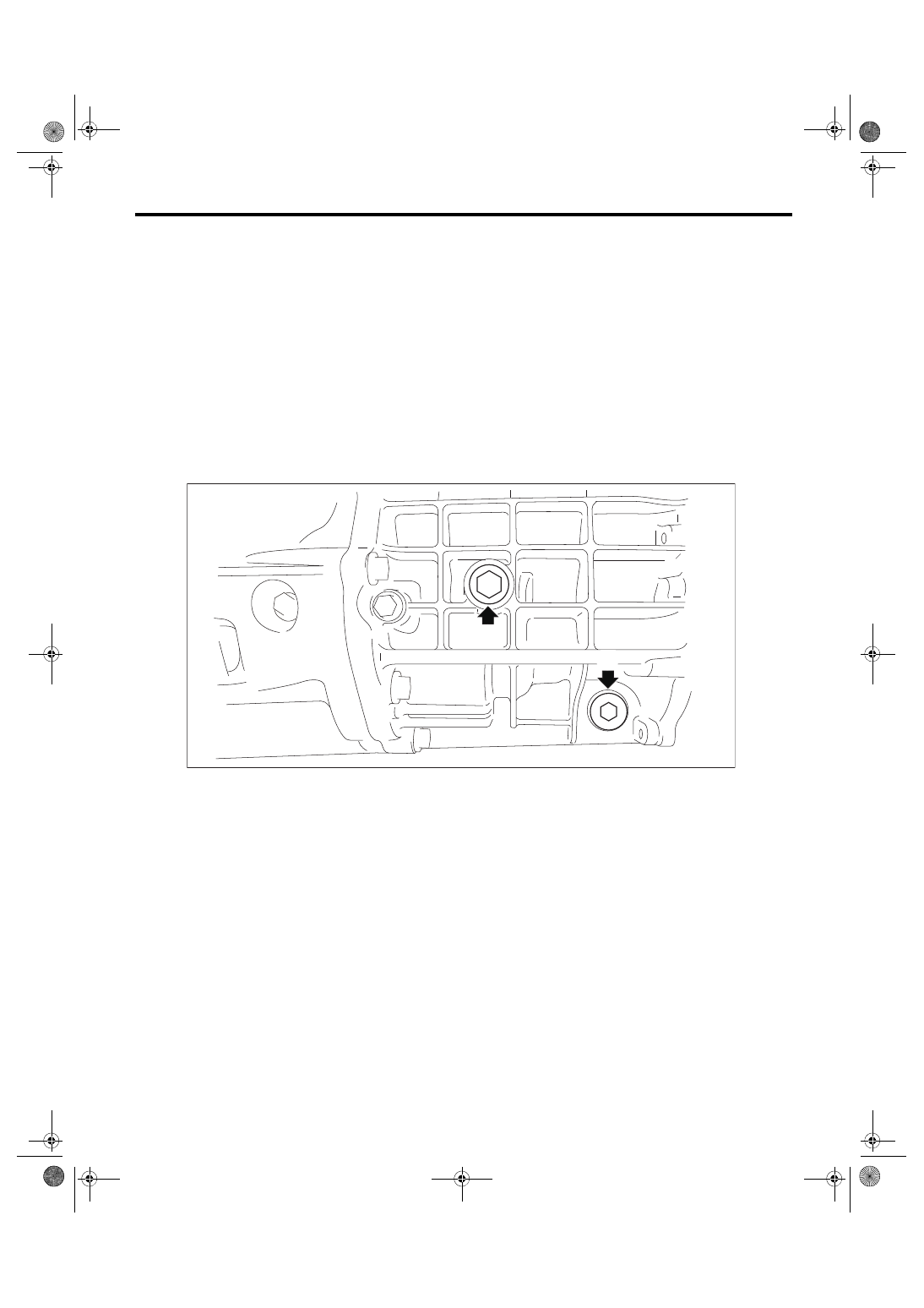

(A) Filler plug
(B) Drain plug

PM-00626

(A)

(B)

PM-67

Transmission Gear Oil

PERIODIC MAINTENANCE SERVICES

10) Install engine under cover No. 2.

11) Install engine under cover No. 1.

PM-68

Automatic Transmission Fluid

PERIODIC MAINTENANCE SERVICES

14.Automatic Transmission Fluid

A: INSPECTION

Check for leakage of ATF from transmission.

B: REPLACEMENT

1) Lift up the vehicle and maintain in a horizontal position.[*1]

2) Remove engine under cover No. 1.

3) Remove engine under cover No. 2.

4) Remove the drain plug and gasket, and drain the fluid.[*2]

5) Temporarily tighten the drain plug using a new gasket.[*3]
NOTE:

Replace the gasket and perform final tightening according procedures [*16].

6) Remove the refill plug (A) and O-ring.[*4]

7) Remove the overflow plug (B) using a socket hexagon wrench.[*5]

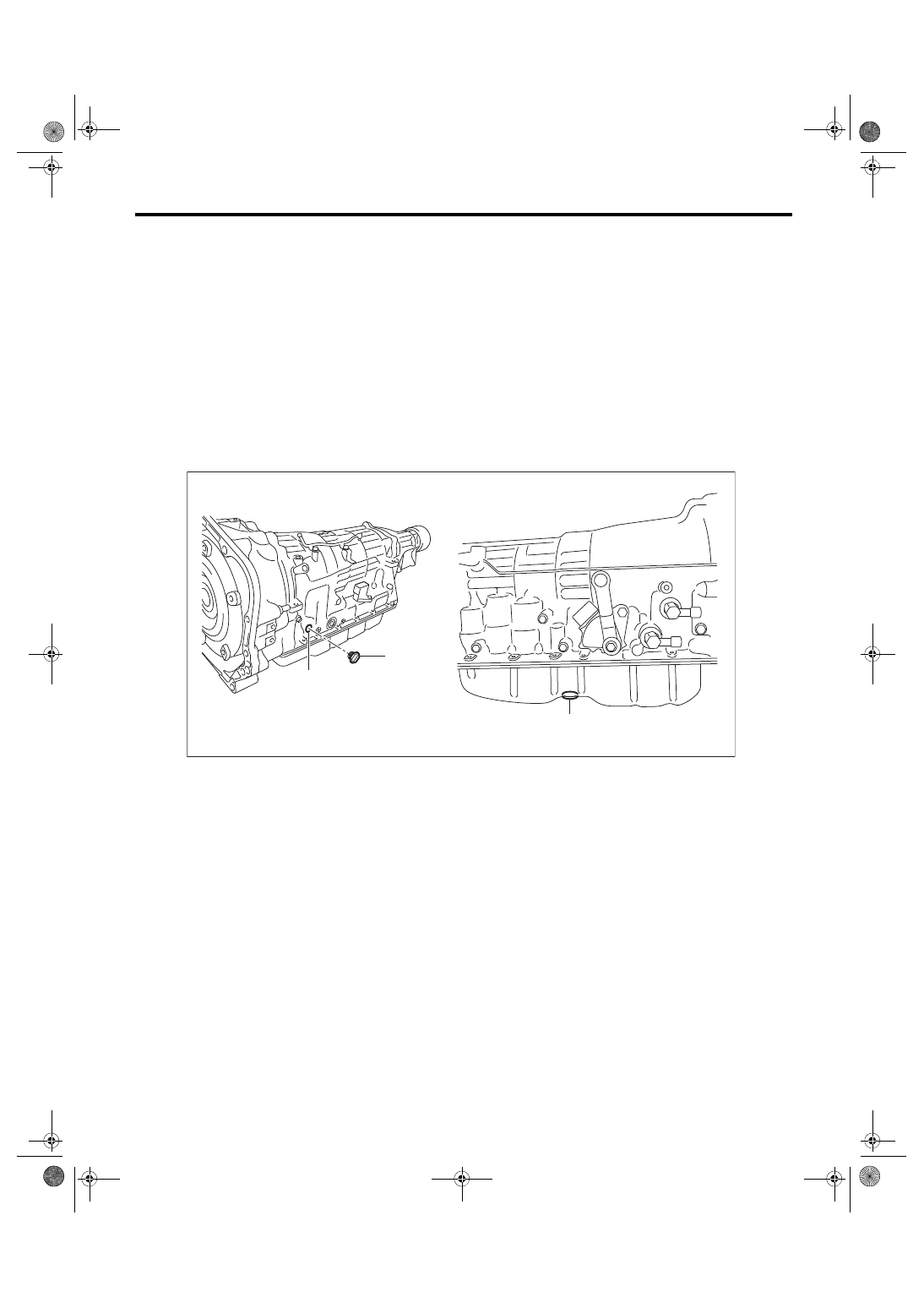

(A) Refill plug
(B) Overflow plug

(C) Refill hole

PM-00627

(C)

(A)

(B)
