SE-3

SEATS

General Description

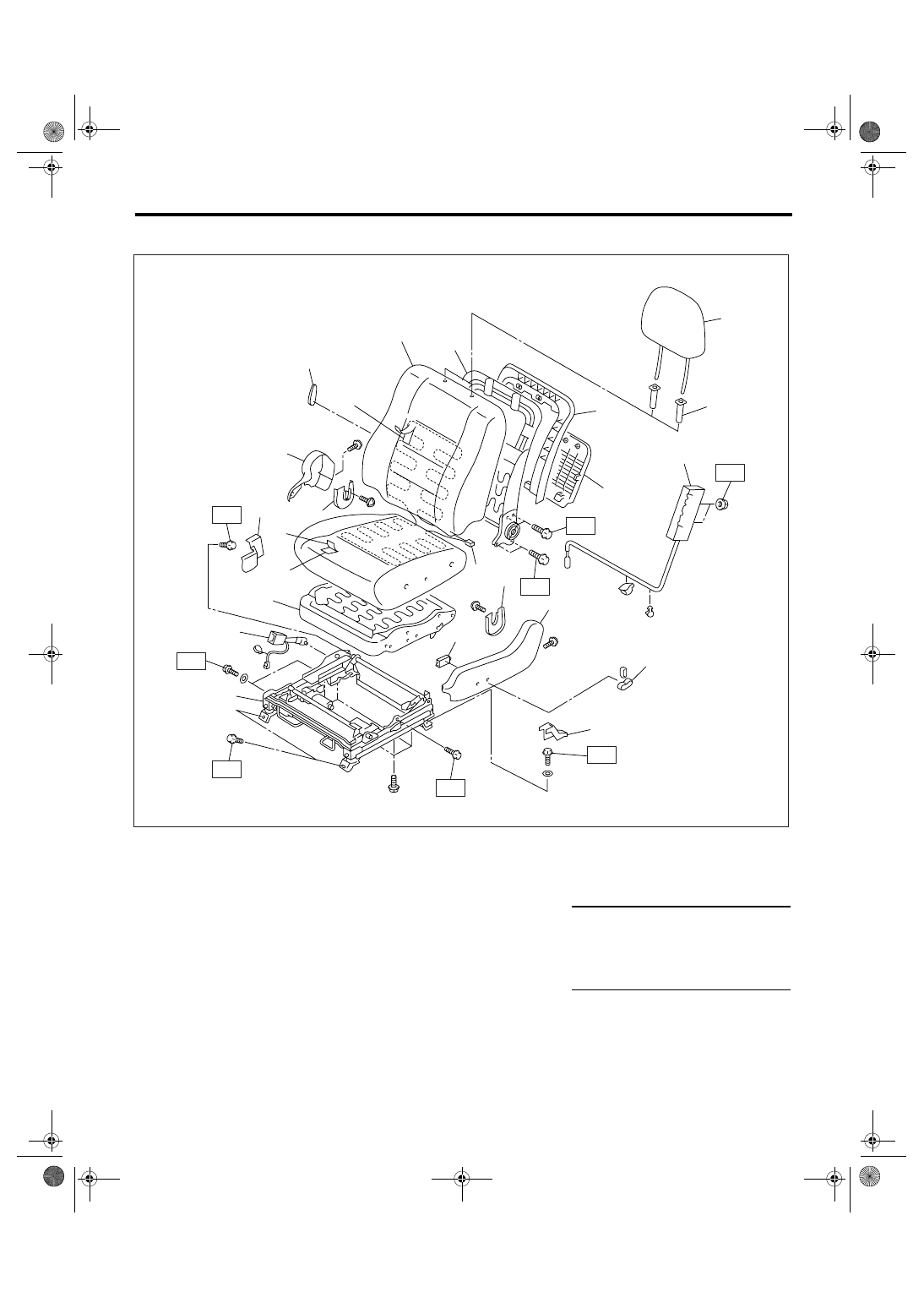

2. FRONT SEAT (POWER SEAT)

(1)

Backrest cover

(11)

Rear bolt cover inside

(21)

Power seat switch unit

(2)

Backrest pad

(12)

Seat cushion cover

(22)

Seat heater unit

(3)

Backrest frame ASSY

(13)

Seat cushion pad

(23)

Lumber support lever

(4)

Headrest ASSY

(14)

Seat cushion frame ASSY

(5)

Headrest lock bushing

(15)

Rear bolt cover outside

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(6)

Side airbag module

(16)

Power seat switch knob

T1: 6 (0.61, 4.43)

(7)

Cover frame

(17)

Seat side cover outside

T2: 22 (2.24, 16.2)

(8)

Backrest back cover

(18)

Hinge inner cover LH

T3: 52 (5.30, 38.4)

(9)

Seat side cover inside

(19)

Inner seat belt ASSY

T4: 53 (5.40, 39.1)

(10)

Hinge inner cover RH

(20)

Slide rail ASSY

SE-00511

(1)

(2)

(23)

(22)

(3)

(8)

(4)

(5)

(6)

(9)

(10)

(11)

(12)

(13)

(14)

(15)

(17)

(21)

(20)

(19)

(18)

T4

T3

T2

T3

T1

T3

T3

(7)

T3

(16)

SE-4

SEATS

General Description

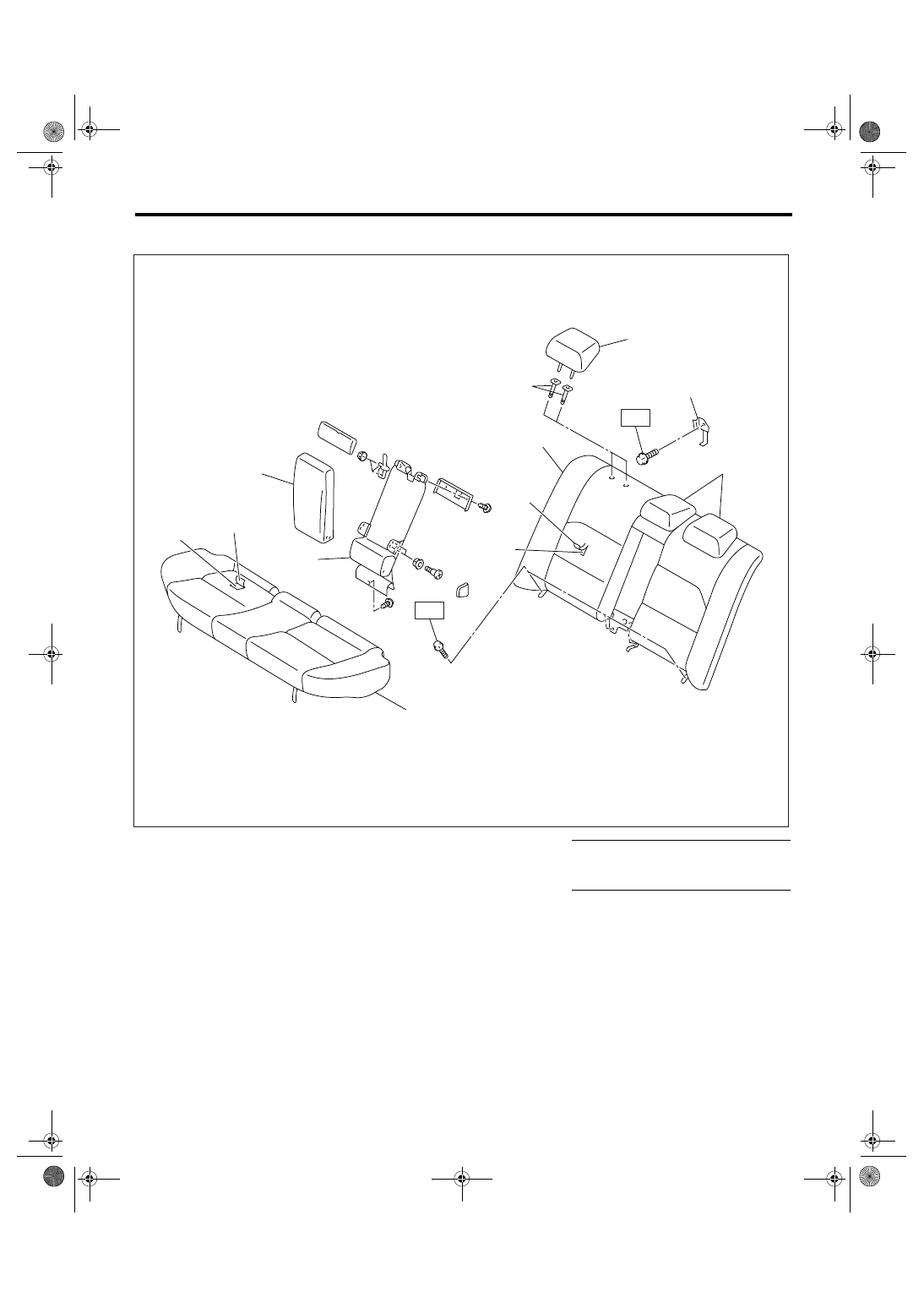

3. REAR SEAT (SEDAN MODEL)

(1)

Backrest

(7)

Backrest pad ASSY

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Headrest

(8)

Backrest cover ASSY

T1: 10 (1.02, 7.38)

(3)

Cushion

(9)

Rear pad & cushion frame ASSY

T2: 24.5 (2.5, 18.1)

(4)

Armrest

(10)

Rear cushion cover

(5)

Center through frame

(11)

Headrest bushing

(6)

Hook

SE-00422

T1

T2

(3)

(4)

(6)

(2)

(1)

(8)

(7)

(11)

(5)

(10)

(9)

(2)

SE-5

SEATS

General Description

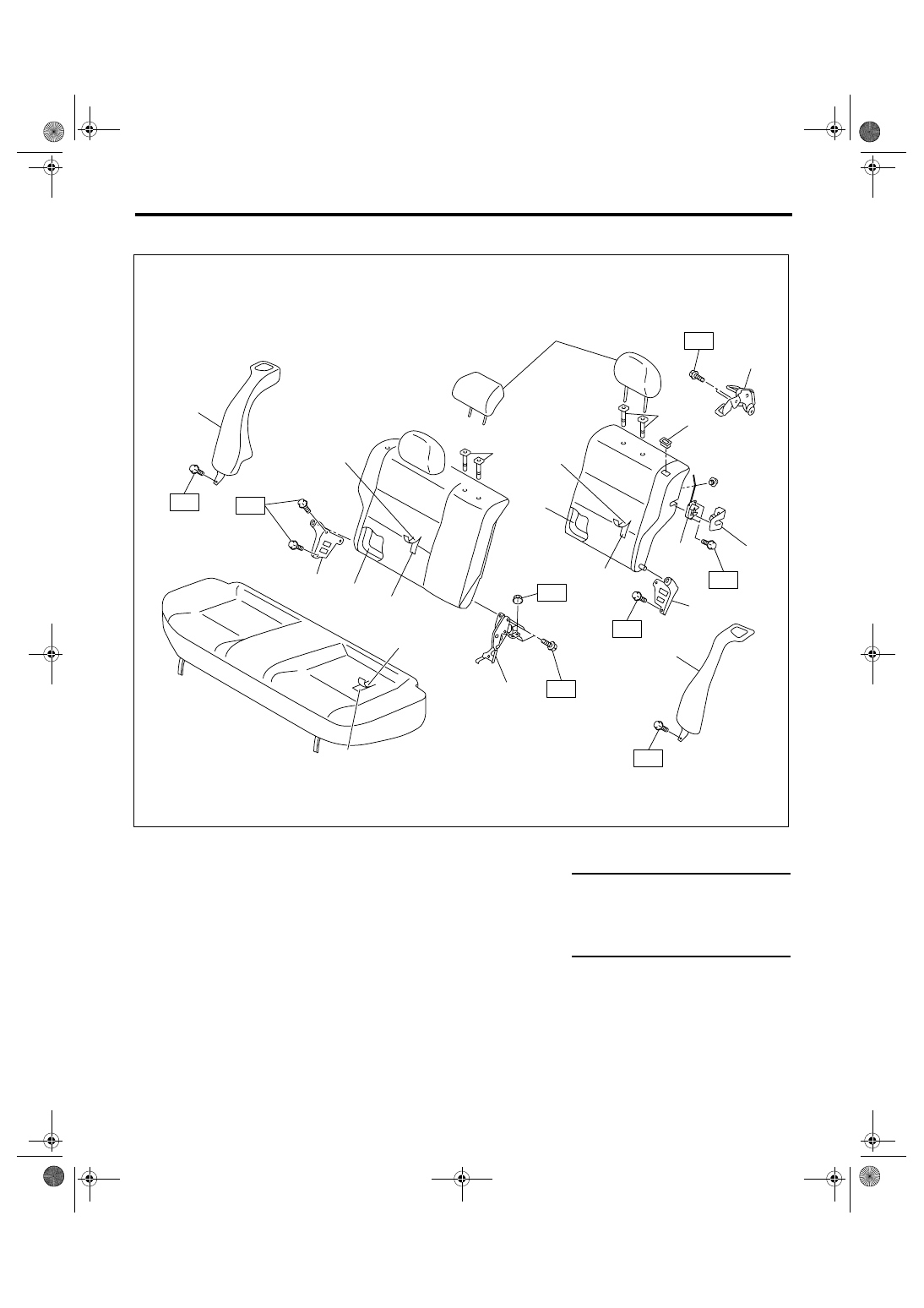

4. REAR SEAT (WAGON MODEL)

B: CAUTION

When removing the front seat from a vehicle equipped with side airbag, follow cautions given in the airbag
section. <Ref. to AB-5, CAUTION, General Description.>

(1)

Headrest

(10)

Hinge ASSY LH

(19)

Backrest shoulder LH

(2)

Headrest bushing

(11)

Backrest pad LH

(3)

Backrest cover RH

(12)

Backrest cover LH

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(4)

Backrest pad RH

(13)

Backrest frame LH

T1: 13.7 (1.40, 10.1)

(5)

Backrest frame RH

(14)

Seat back latch

T2: 22 (2.24, 16.2)

(6)

Hinge ASSY RH

(15)

Seat back latch cover

T3: 24.5 (2.5, 18.1)

(7)

Seat cushion pad

(16)

Holder & button

T4: 33 (3.3, 24.6)

(8)

Seat cushion cover

(17)

Striker

(9)

Hinge ASSY center

(18)

Backrest shoulder RH

SE-00402

(2)

(16)

(14)

(17)

(15)

(11)

(10)

(12)

(13)

(8)

(7)

(2)

(3)

(6)

(4)

(9)

(5)

(18)

(1)

T3

T4

T4

T4

T4

T2

T1

(19)

T1

SE-6

SEATS

General Description

C: PREPARATION TOOL

1. GENERAL TOOL

TOOL NAME

REMARKS

Long nose pliers

Used for removing the hog rings.

Hog ring pliers

Used for installing hog rings.

TORX

®

 BIT T50

Used for removing and installing the inner seat belt assembly.
