6MT-3

MANUAL TRANSMISSION AND DIFFERENTIAL

General Description

B: COMPONENT

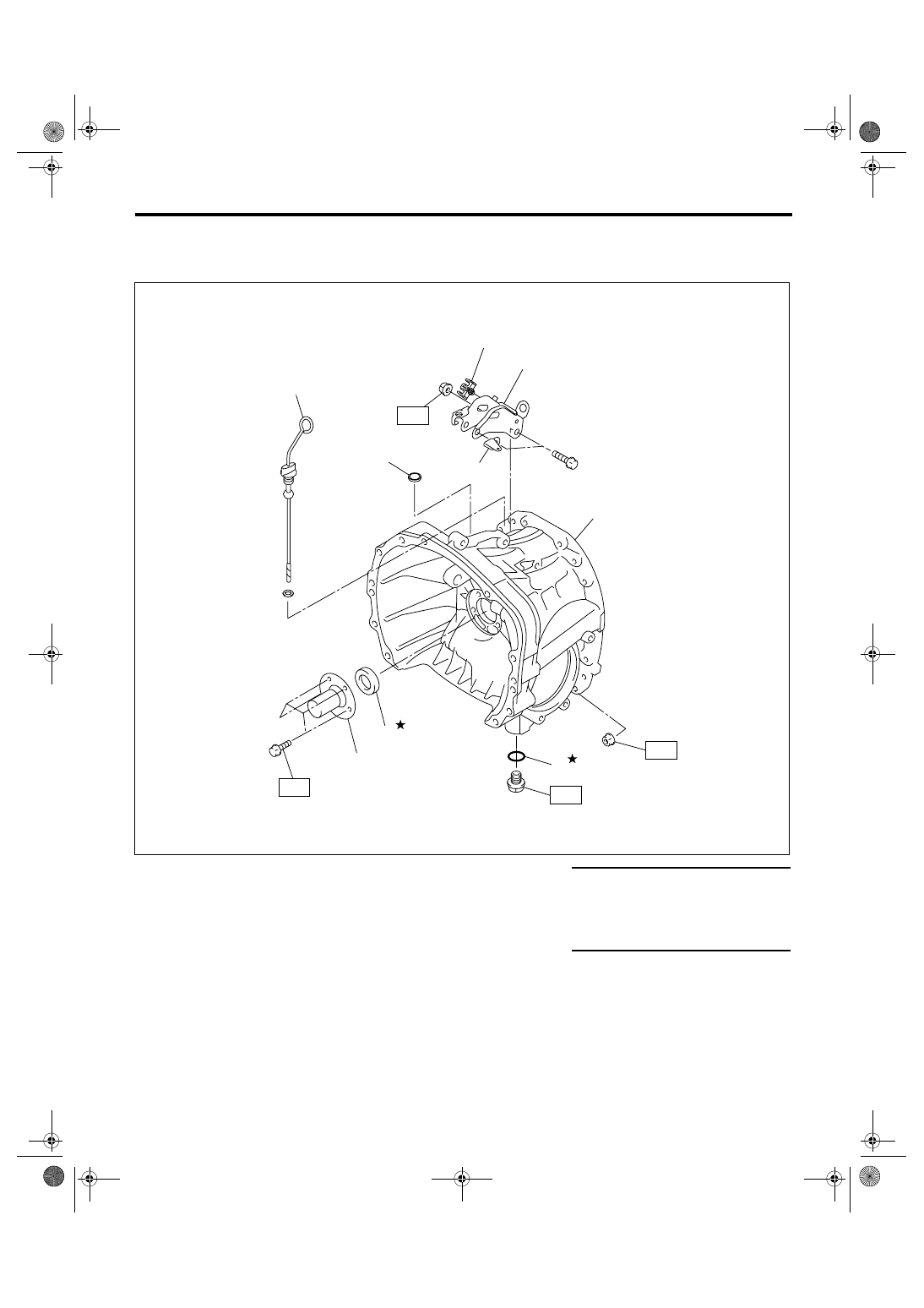

1. CLUTCH HOUSING

(1)

Oil level gauge

(6)

Gasket

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Plug

(7)

Oil seal

T1: 6.4 (0.65, 4.7)

(3)

Pitching stopper bracket

(8)

Clutch release bearing guide

T2: 41 (4.2, 30.2)

(4)

Clip

(9)

Return spring bracket

T3: 50 (5.1, 36.9)

(5)

Clutch housing

T4: 70 (7.1, 51.6)

MT-01261

(1)

(5)

(6)

(7)

(8)

T3

T4

T1

(4)

(3)

(2)

(9)

T2

6MT-4

MANUAL TRANSMISSION AND DIFFERENTIAL

General Description

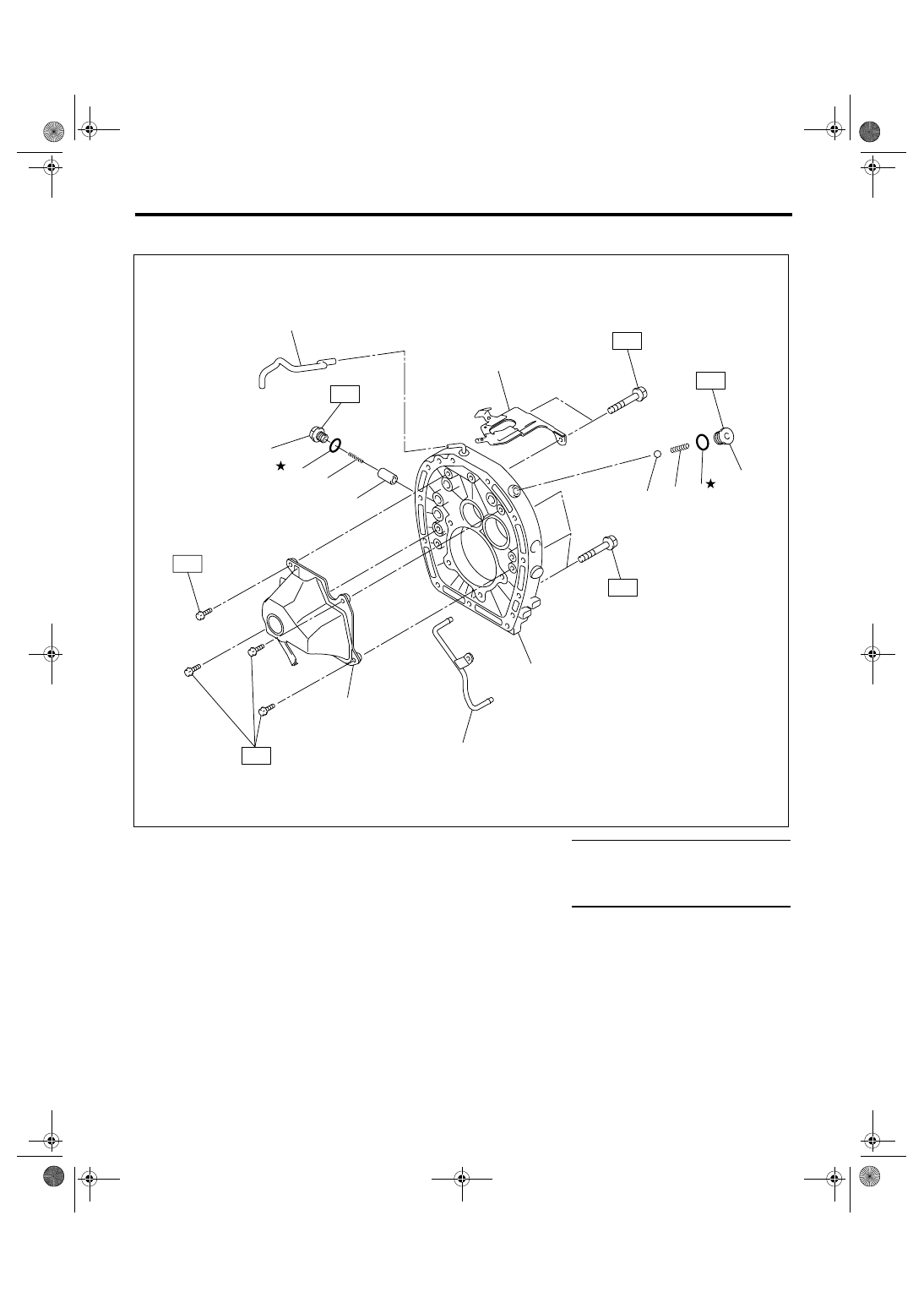

2. ADAPTER PLATE

(1)

Breather hose

(8)

Gasket

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Transmission harness stay

(9)

Checking ball spring

T1: 6.4 (0.65, 4.7)

(3)

Plug

(10)

Ball

T2: 37 (3.8, 27.3)

(4)

Gasket

(11)

Lubrication pipe

T3: 50 (5.1, 36.9)

(5)

Spring

(12)

Adapter plate

(6)

Plunger

(13)

Oil chamber

(7)

Checking ball plug

MT-01363

(2)

(3)

(4)

(1)

(5)

(7)

(6)

(8)

(9)

(10)

(11)

(12)

(13)

T2

T1

T3

T2

T3

T1

6MT-5

MANUAL TRANSMISSION AND DIFFERENTIAL

General Description

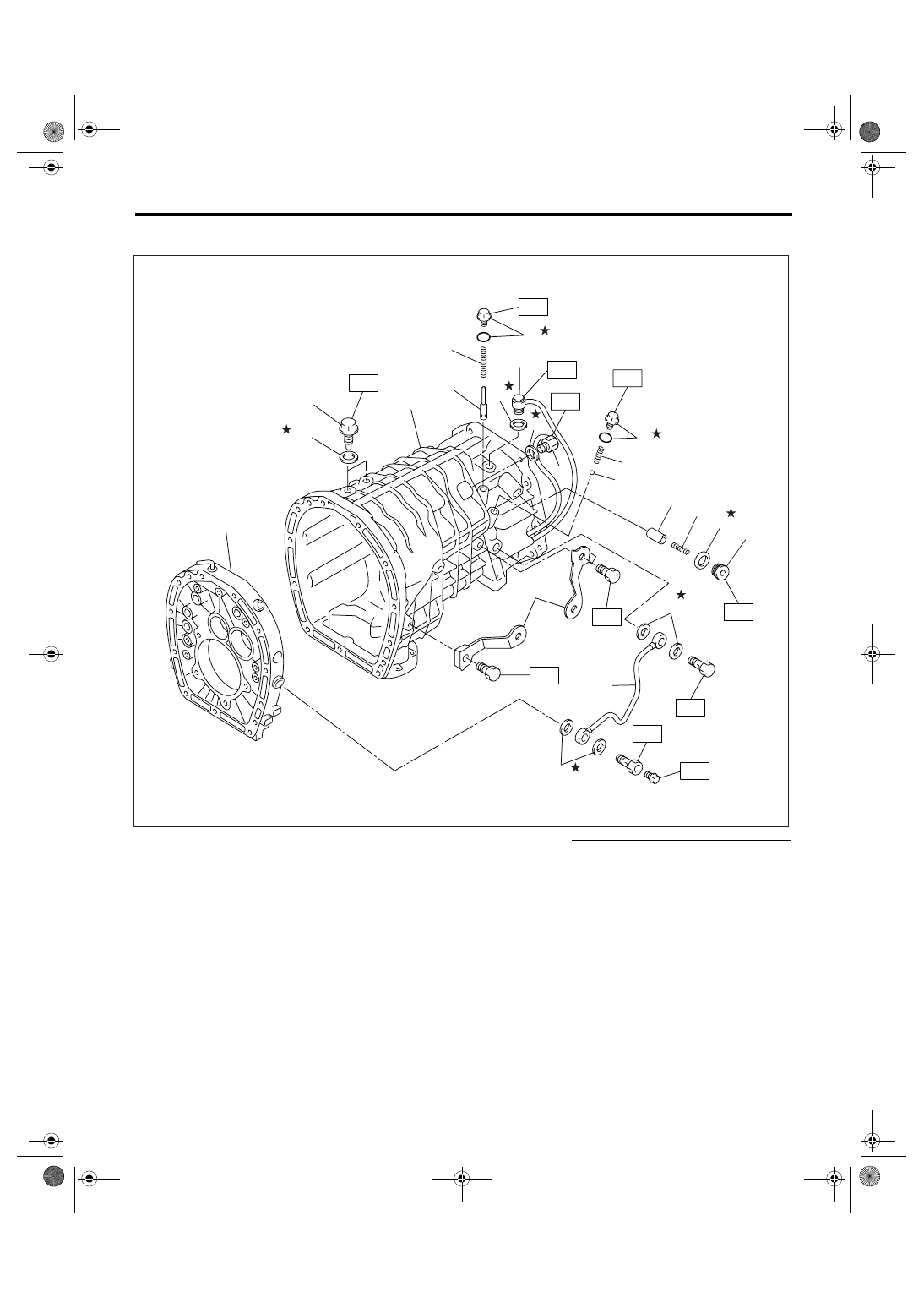

3. TRANSMISSION CASE

(1)

Pilot bolt

(9)

Relief valve spring

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Neutral position switch

(10)

Relief valve

T1: 13 (1.3, 9.6)

(3)

Back-up light switch

(11)

Valve spring

T2: 16 (1.6, 11.8)

(4)

Seal bolt assembly

(12)

Ball

T3: 32 (3.3, 23.6)

(5)

Adapter plate

(13)

Plunger

T4: 34 (3.5, 25.1)

(6)

Transmission case

(14)

Spring

T5: 41 (4.2, 30.2)

(7)

Oil pipe

(15)

Plug

(8)

Harness bracket

(16)

Gasket

MT-01364

(10)

(11)

(12)

(2)

(3)

(4)

(1)

(16)

(16)

(16)

(4)

(8)

(7)

(5)

(6)

(9)

(16)

(16)

T1

T3

T4

T2

T2

T3

T3

T1

T3

T1

(15)

(16)

(14)

(13)

T5

6MT-6

MANUAL TRANSMISSION AND DIFFERENTIAL

General Description

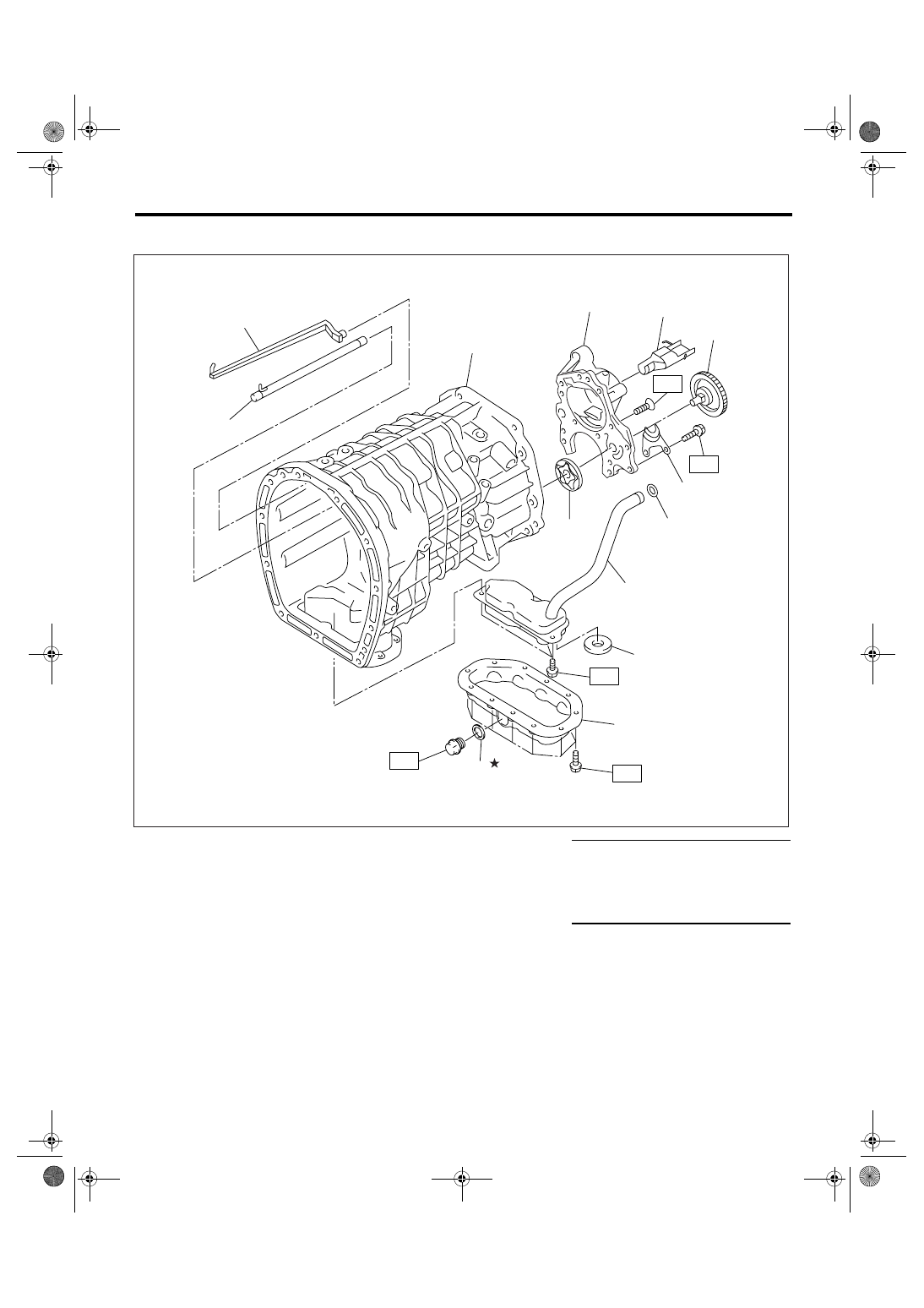

4. OIL PAN AND OIL PUMP

(1)

Transmission case

(8)

Oil pan

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Oil pump cover

(9)

Plate

T1: 6.4 (0.65, 4.7)

(3)

Oil guide

(10)

Gasket

T2: 10 (1.0, 7.4)

(4)

Oil pump driven gear ASSY

(11)

Oil guide

T3: 25 (2.5, 18.4)

(5)

Oil pump rotor ASSY

(12)

Oil pipe

T4: 44 (4.5, 32.5)

(6)

Strainer ASSY

(13)

O-ring

(7)

Magnet

(2)

(3)

(4)

(1)

(5)

(7)

(6)

(8)

(9)

(10)

(11)

(12)

(13)

T1

T3

T3

T2

T4

MT-00438
