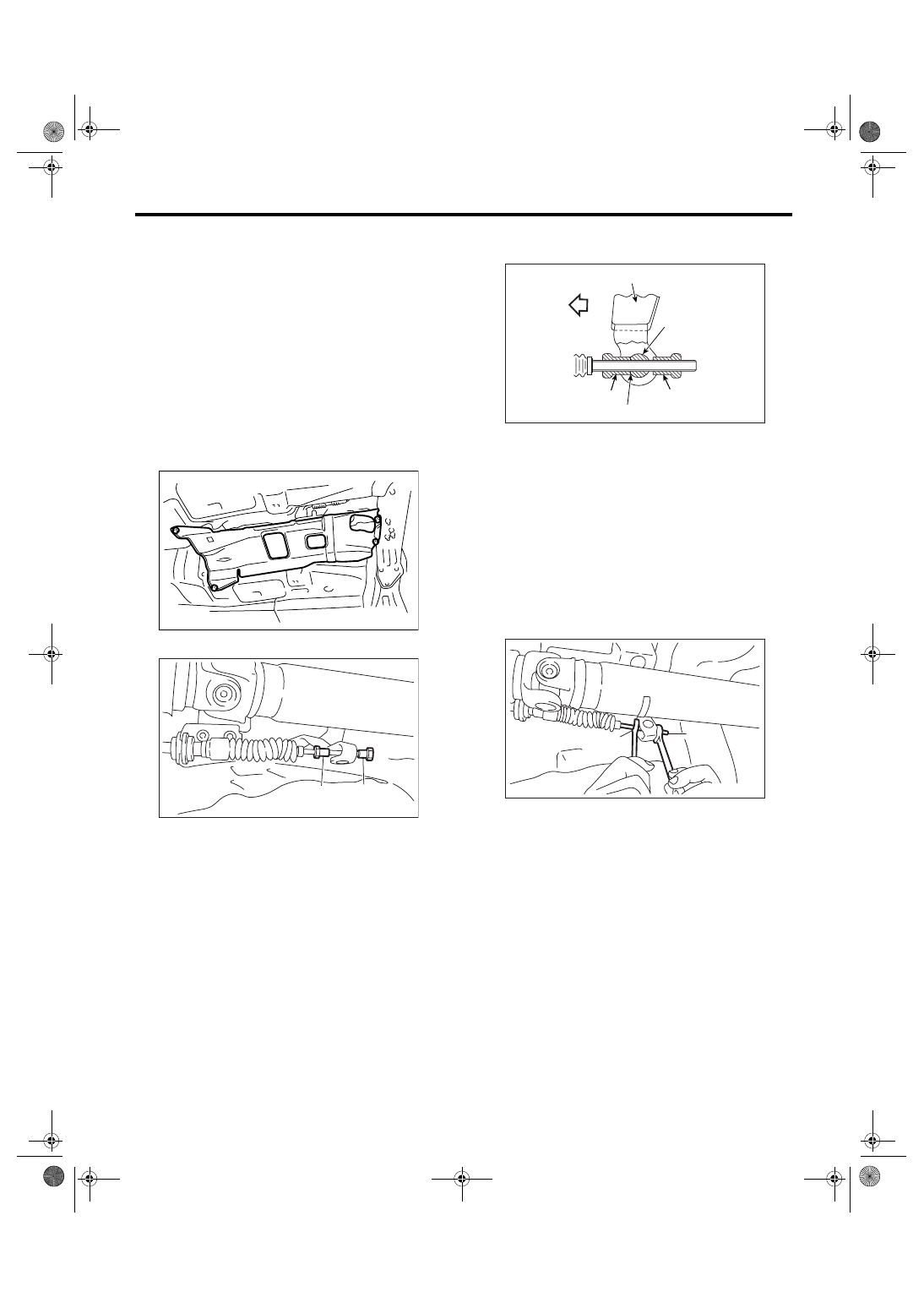

CS-29
CONTROL SYSTEMS
Select Cable
• 5AT
5) Install a new clamp paying attention to the in-
stalling direction.
6) Insert the tip of inner cable into connector hole of
the select lever, and fix the select cable to bracket.
7) Shift the select lever to “N” range, and then ad-
just the select cable position. <Ref. to CS-30, AD-
JUSTMENT, Select Cable.>
8) Install the heat shield cover.
9) Install the front, center and rear exhaust pipes
and muffler. (SOHC and DOHC non-turbo model)
• SOHC model
<Ref. to EX(H4SO 2.0)-7, INSTALLATION, Front
Exhaust Pipe.> <Ref. to EX(H4SO 2.0)-9, INSTAL-
LATION, Center Exhaust Pipe.> <Ref. to EX(H4SO
2.0)-10, INSTALLATION, Rear Exhaust Pipe.>
<Ref. to EX(H4SO 2.0)-12, INSTALLATION, Muf-
fler.>
• DOHC non-turbo model
<Ref. to EX(H6DO)-5, INSTALLATION, Front Ex-
haust Pipe.> <Ref. to EX(H6DO)-7, INSTALLA-
TION, Rear Exhaust Pipe.> <Ref. to EX(H6DO)-9,
INSTALLATION, Muffler.>
10) Install the center exhaust pipe, rear exhaust
pipe and muffler. (DOHC turbo model)
<Ref. to EX(H4DOTC)-7, INSTALLATION, Center
Exhaust Pipe.> <Ref. to EX(H4DOTC)-11, IN-
STALLATION, Rear Exhaust Pipe.> <Ref. to
EX(H4DOTC)-12, INSTALLATION, Muffler.>
C: INSPECTION
Check the removed cable and replace or adjust if
damaged, rusty or malfunctioning.
1) Check for smooth operation of the cable.
2) Check the inner cable for damage and rust.
3) Check the outer cable for damage, bends and
cracks.
4) Check the boot for damage, cracks and deterio-
ration.
5) Move the select lever from “P” to “D” range.
Check the existence of feel to contact the detents in
each range. If the detents cannot be felt or the po-
sition pointer is improperly aligned, adjust the ca-
ble.
6) Check if the starter motor rotates when the se-
lect lever is set to “P” range.
7) Check the back-up light illumination when the
select lever is in “R” range.
8) Check the parking lock operation when the se-
lect lever is in “P” range.
(A) Range select lever
(B) Snap pin
(C) Select cable
(D) Bracket
(E) Washer
(A) Clamp
(B) Forward

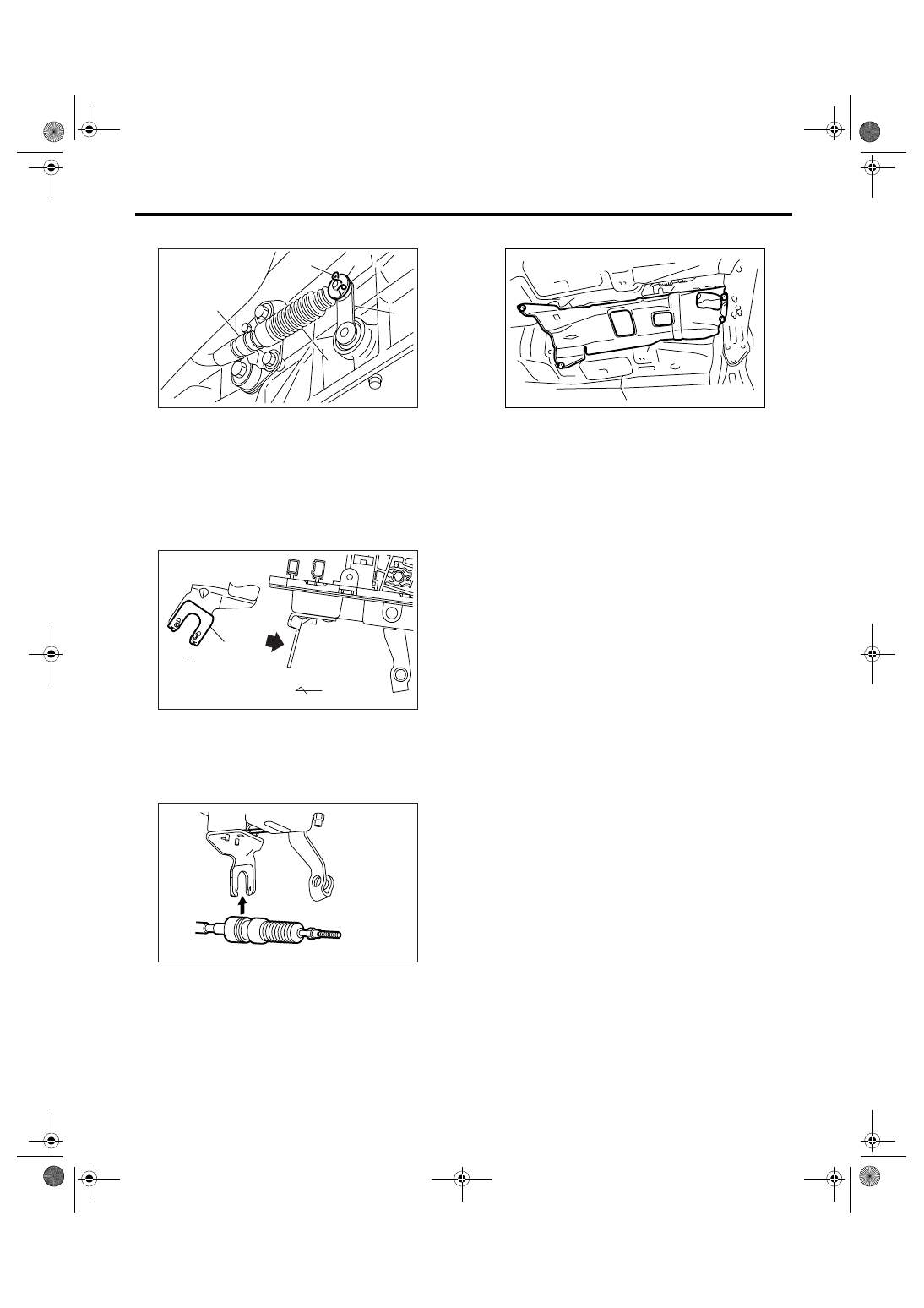

CS-00327
(B)
(D)
(C)
(E)
(A)
CS-00329
C
C
(A)
(B)
CS-00330
AT-01331
