HOW TO USE SCAN-100
(D27DT/D27DTP ENGINE) .................................... 3

1. Entering diagnosis procedures .......................................... 3

2. Selection of checking items for engine

D27DT/D27DTP (POWER UP) .......................................... 5

DTC: DIAGNOSTIC TROUBLE CODE ............... 28

1. Overview for the changes in DTC by engine .................... 28

2. New DTCs according to D27DTP (POWER UP)

application ........................................................................ 29

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

3

1491

DIAGNOSIS

D27DTP/D27DT (EU4)  SM - 2006.08

D27DTP/D27DT (EU4)

ENGINE

FUEL

I

N

T

AKE

EXHAUST

PRE-HEA

TING

LUB

COOLING

SWITCHABLE

ECU

DIAGNOSIS

ڭڠڨڪڞڪکٻڞڪڟڤکڢ

ڭڠڨڪڞڪکٻڞڪڟڤکڢ

ڒڸٻڟڜګٻڞڪڨڨڤڞڜگڤڪک

ڒڸٻڟڜګٻڞڪڨڨڤڞڜگڤڪک
ړڸٻ

ړڸٻ

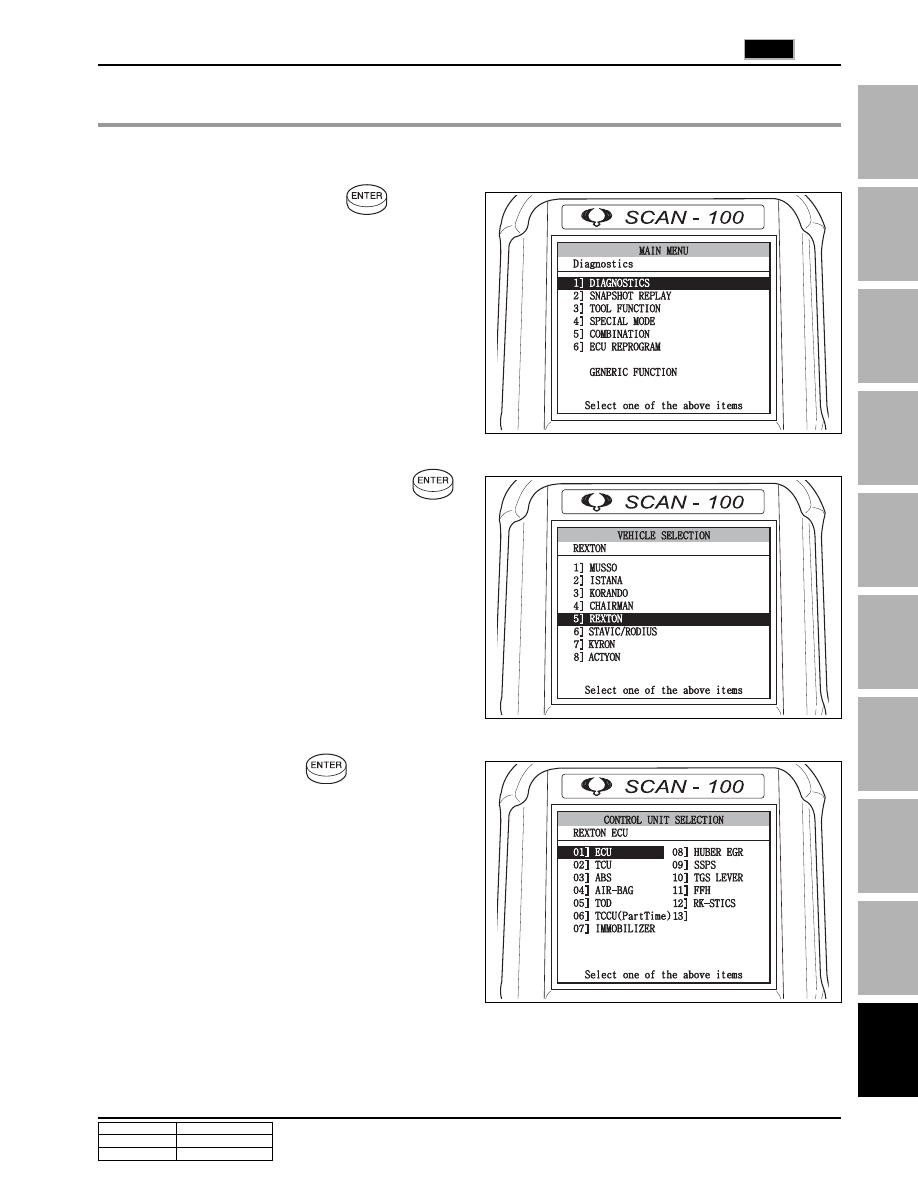

1. ENTERING DIAGNOSIS PROCEDURES

1. Select “1] DIAGNOSIS” and press

 on “MAIN

MENU” screen.

2. Select the desired model (REXTON) and press

on “VEHICLE SELECTION” screen.

3. Select “1] ECU” and press

 on “CONTROL

UNIT SELECTION” screen.

How to use SCAN-100 (D27DT/D27DTP Engine)

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

4

1491

DIAGNOSIS

D27DTP/D27DT (EU4)  SM - 2006.08

D27DTP/D27DT (EU4)

ڟگګٻڍڒڋڃڞڎڤڄ

ڟگګٻڍڒڋڃڞڎڤڄ

ڨڤڮڞڠڧڧڜکڠڪڰڮ

ڨڤڮڞڠڧڧڜکڠڪڰڮ

ڞڎڤ

ڞڎڤ

ڟگګٻڍڒڋڃڞڎڤڄ

ڟگګٻڍڒڋڃڞڎڤڄ

ڳڟۄٻڍڒڋڃڞڍڤڄ

ڳڟۄٻڍڒڋڃڞڍڤڄ

ڟگګٻڍڒڋڃڞڎڤڄ

ڟگګٻڍڒڋڃڞڎڤڄ

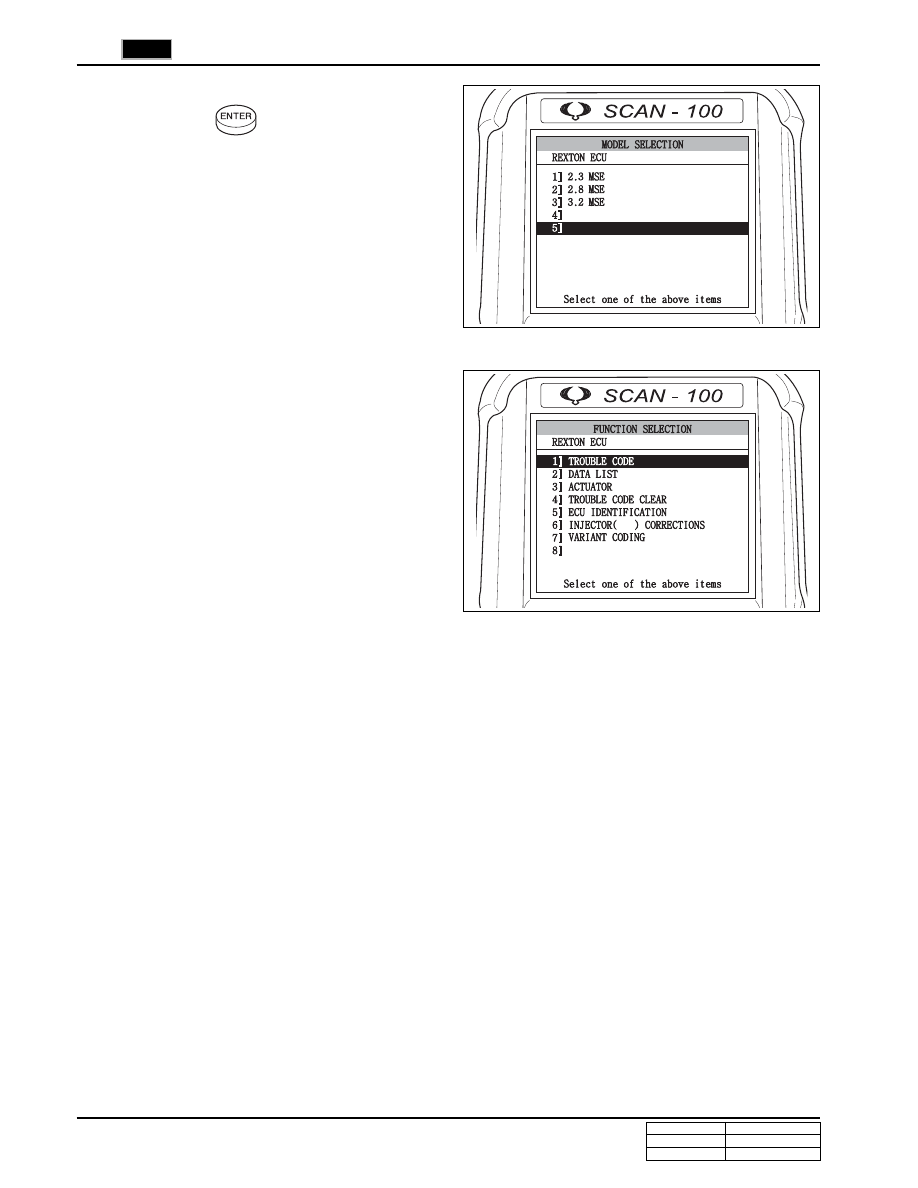

4. Select the desired engine on [MODEL SELECTION]

screen and press

.

5. The [FUNCTION SELECTION] screen is displayed.

Select the item to be checked.
