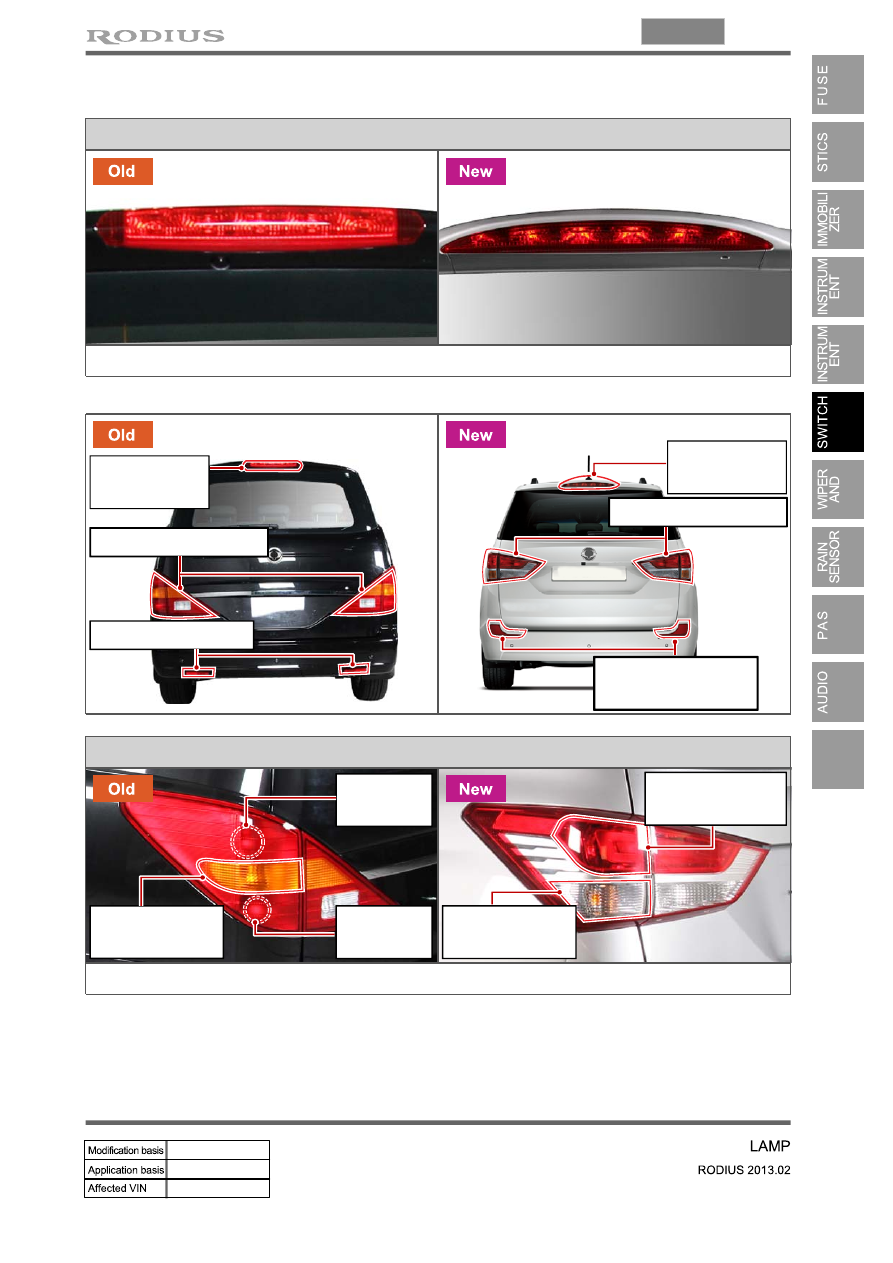

07-5

8310-01

Rear quarter combination lamp

Design changed

Rear view

▶

High-mounted

stop lamp

Rear combination lamp

Reflex reflector lamp

Turn signal lamp

(12V-27W)

Stop lamp

(12V-8W)

Tail lamp

(12V-8W)

Turn signal lamp

(PY21W)

Stop lamp and tail

lamp (P21/5W)

High-mounted

stop lamp

Rear combination lamp

Reflex reflector lamp

(Rear fog lamp)

High-mounted stop lamp

High mounted stop lamp design changed due to spoiler modification

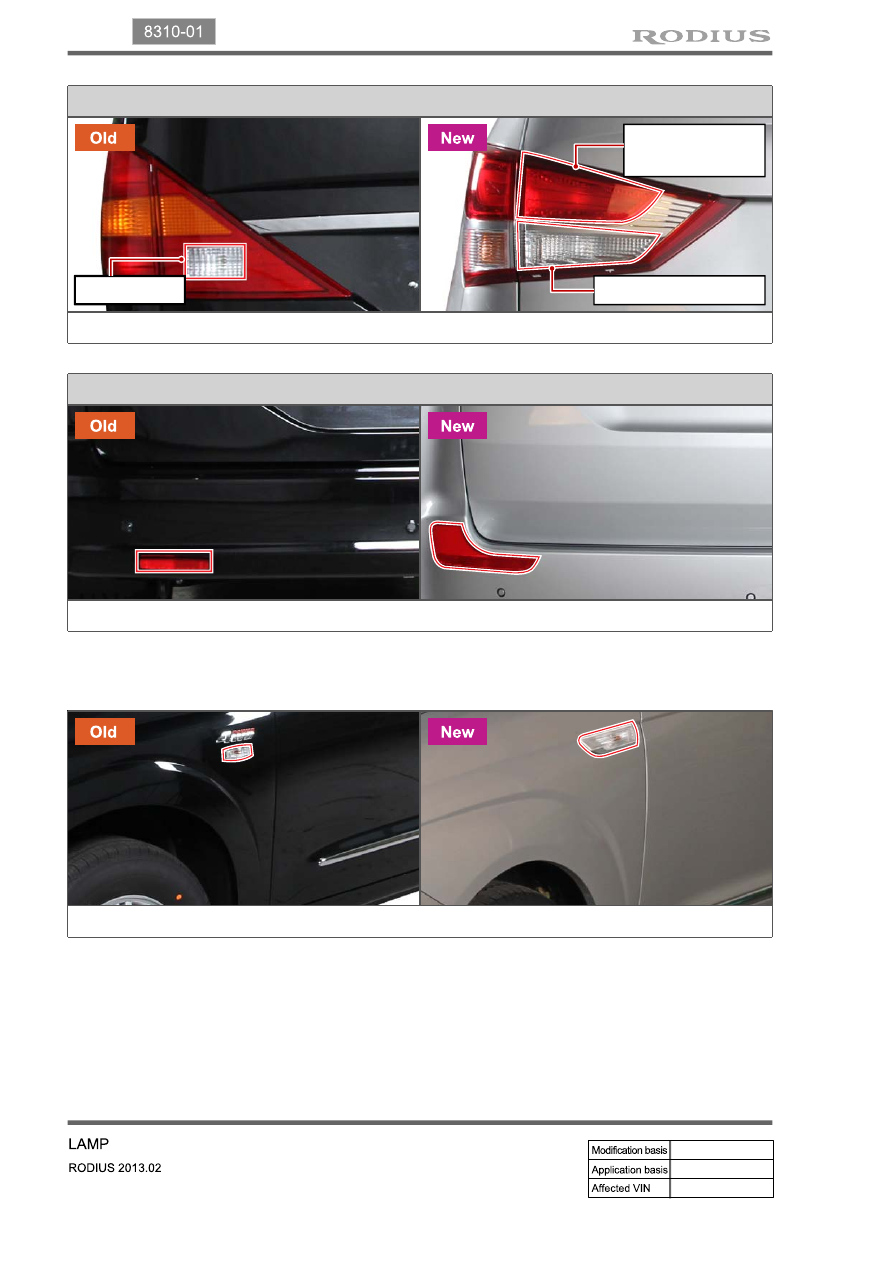

07-6

Rear Tailgate Combination Lamp

Design changed

Side view

▶

Backup lamp

Stop lamp and tail

lamp (P21/5W)

Backup lamp (W16W)

Reflex reflector lamp (Rear fog lamp)

Design change due to changed rear bumper

Side repeater lamp design changed

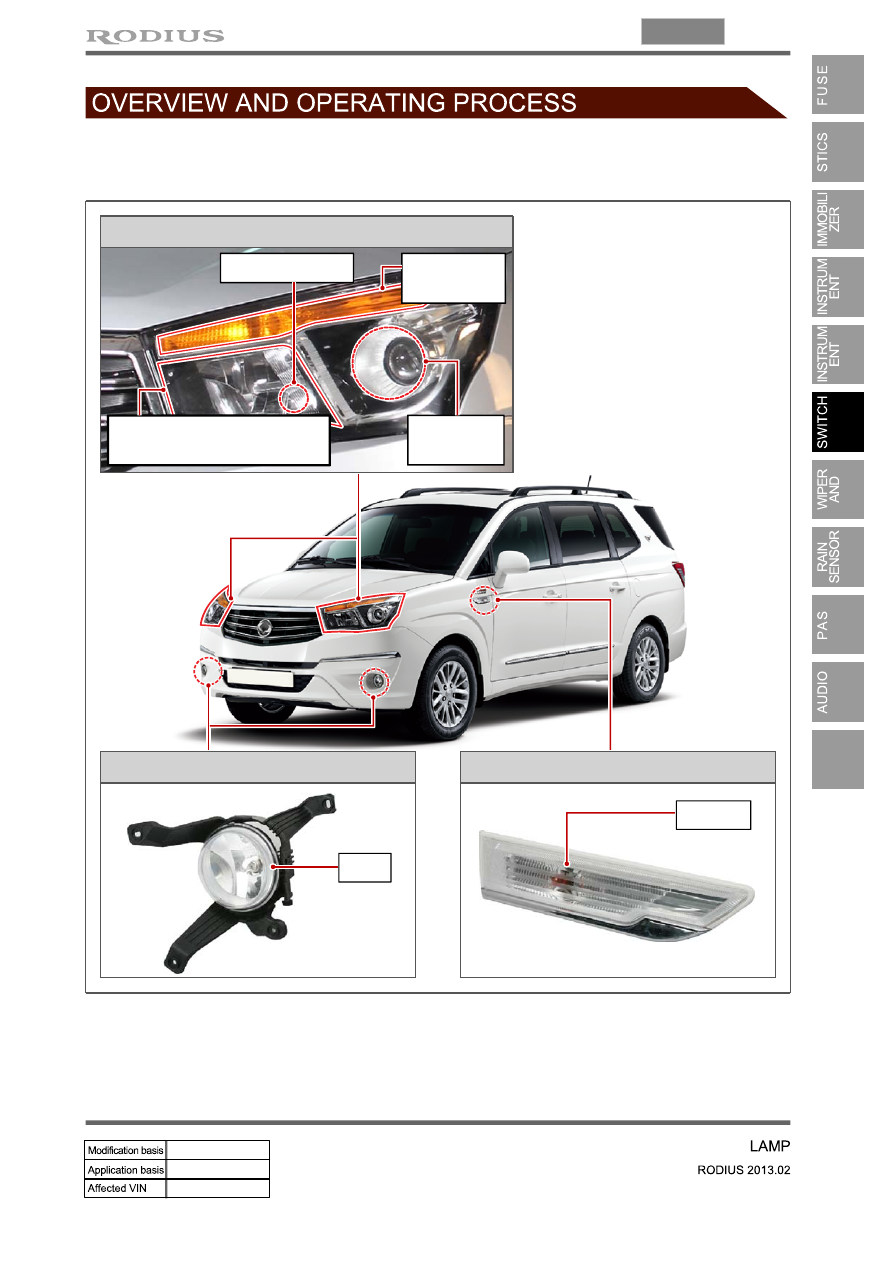

07-7

8310-01

Head lamp

1. CONFIGURATION FOR EXTERIOR LAMP

Front / Side

▶

Front fog lamp

Side repeater lamp (side)

H16

WY5W

DRL (Day Time Running Light)

▶

The day time running lamp (DRL) comes on when starting the engine without intervention of light

switch. It goes out when turning on the headlamp low beam. DRL is optional only for EU market.

Low beam

(H7-55W)

Tail lamp (W5W)

Turn signal

lamp (P21W)

High beam + DRL

(EU: 55W+15W, GEN: 55W)

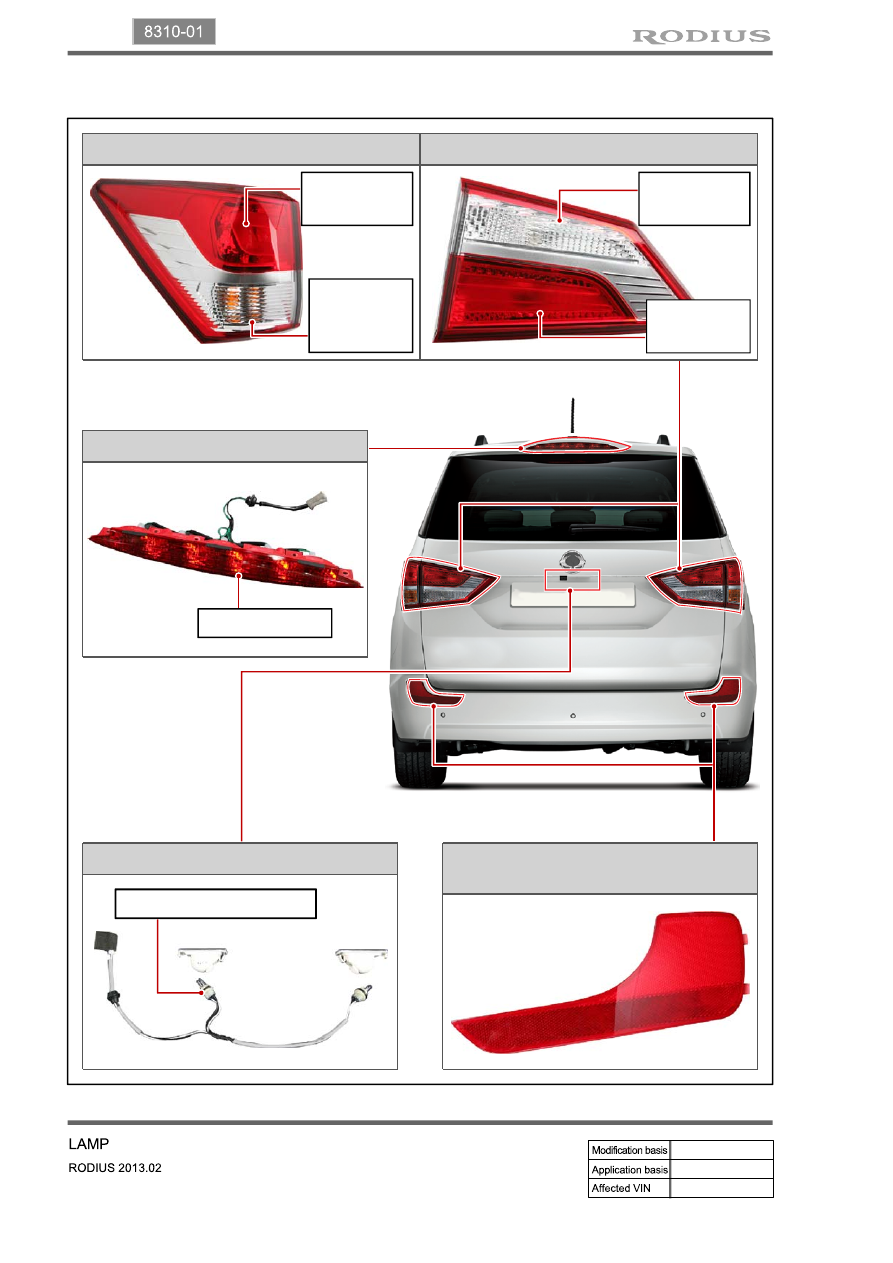

07-8

Rear quarter combination lamp

Rear tailgate combination lamp

Rear side

▶

High mounted stop lamp

License plate lamp

Reflex reflector lamp

(Rear fog lamp)

Stop/tail lamp

(P21/5W)

Turn signal

indicator

(PY21W)

Stop/tail lamp

(P21/5W)

Backup lamp

(W16)

12V-5W (5EA)

12V-5W (1 on each side)
