02-4

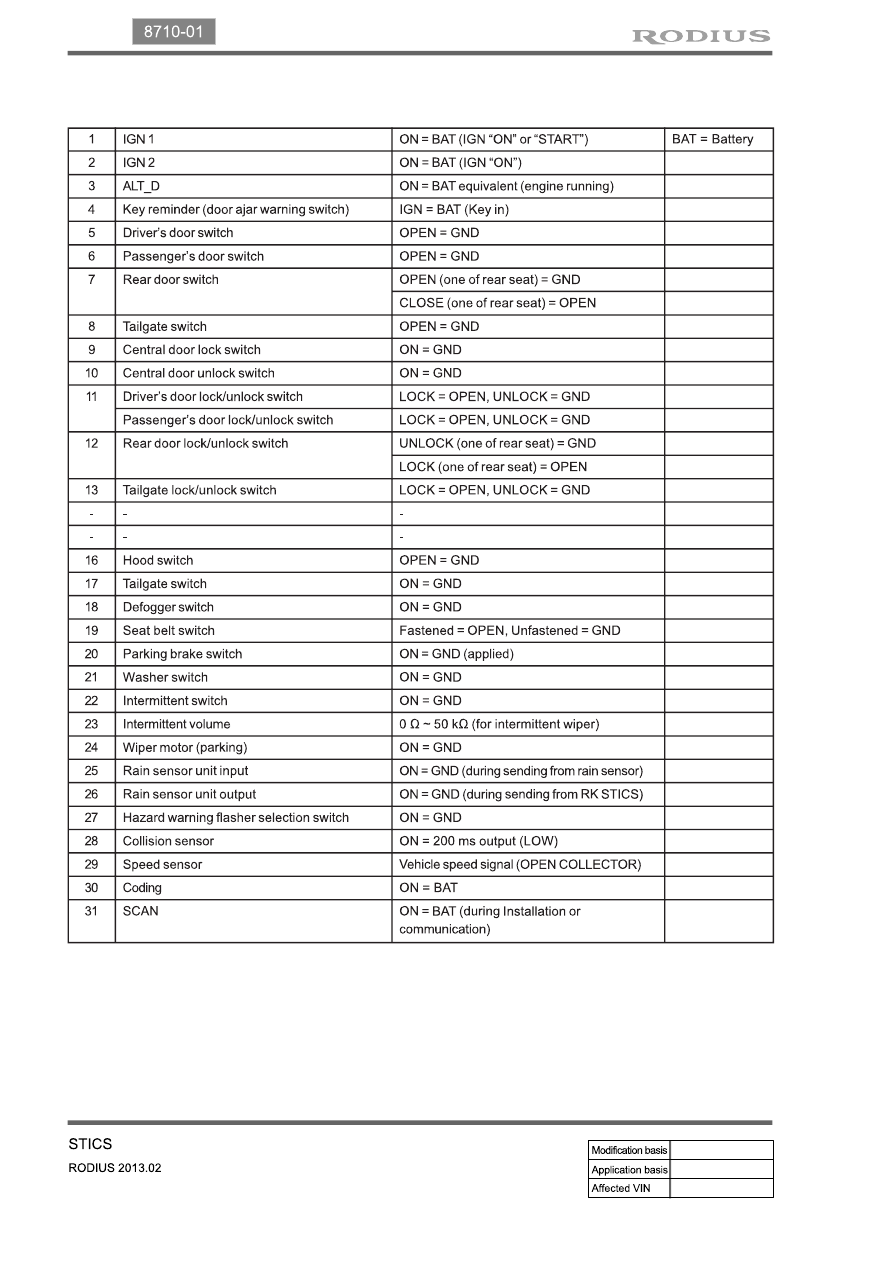

4) Input Signals Of Rk Stics

02-5

8710-01

The remote engine control function has been deleted in this model.

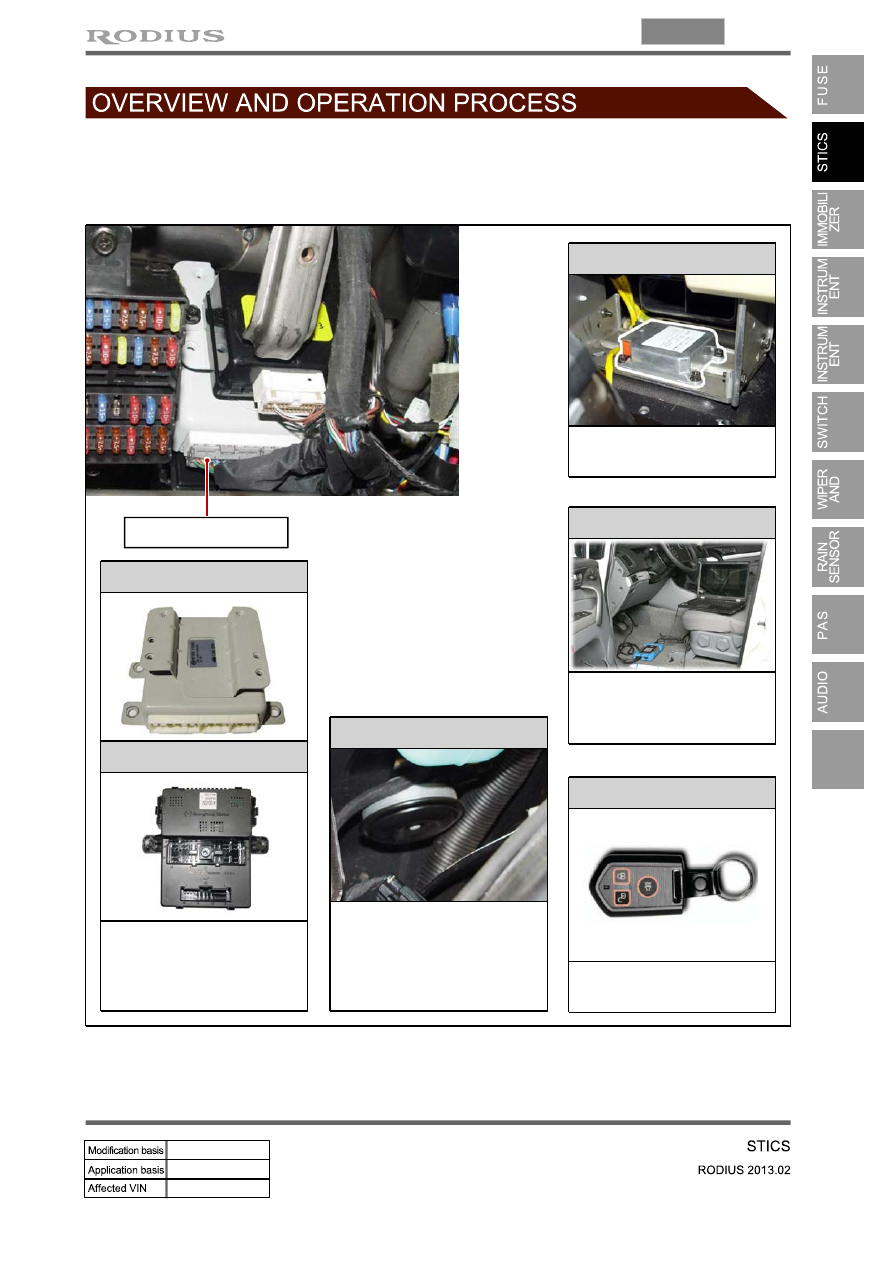

1. COMPONENTS

STICS / ICM module

Air bag ECU

Sends the vehicle collision
signals to STICS.

Theft deterrent horn

Installed under the battery.
This horn works only for the
theft deterrent function, panic
function, and remote starting.

SCAN-tool

SIW is used for REKES key
coding and trouble
diagnosis.

REKES

Added the escort and panic
function

RK STICS

ICM module

This module contains
various relays, chime and
buzzer controlled by STICS

02-6

2. FUNCTIONS OF RK STICS

1) Wiper Control

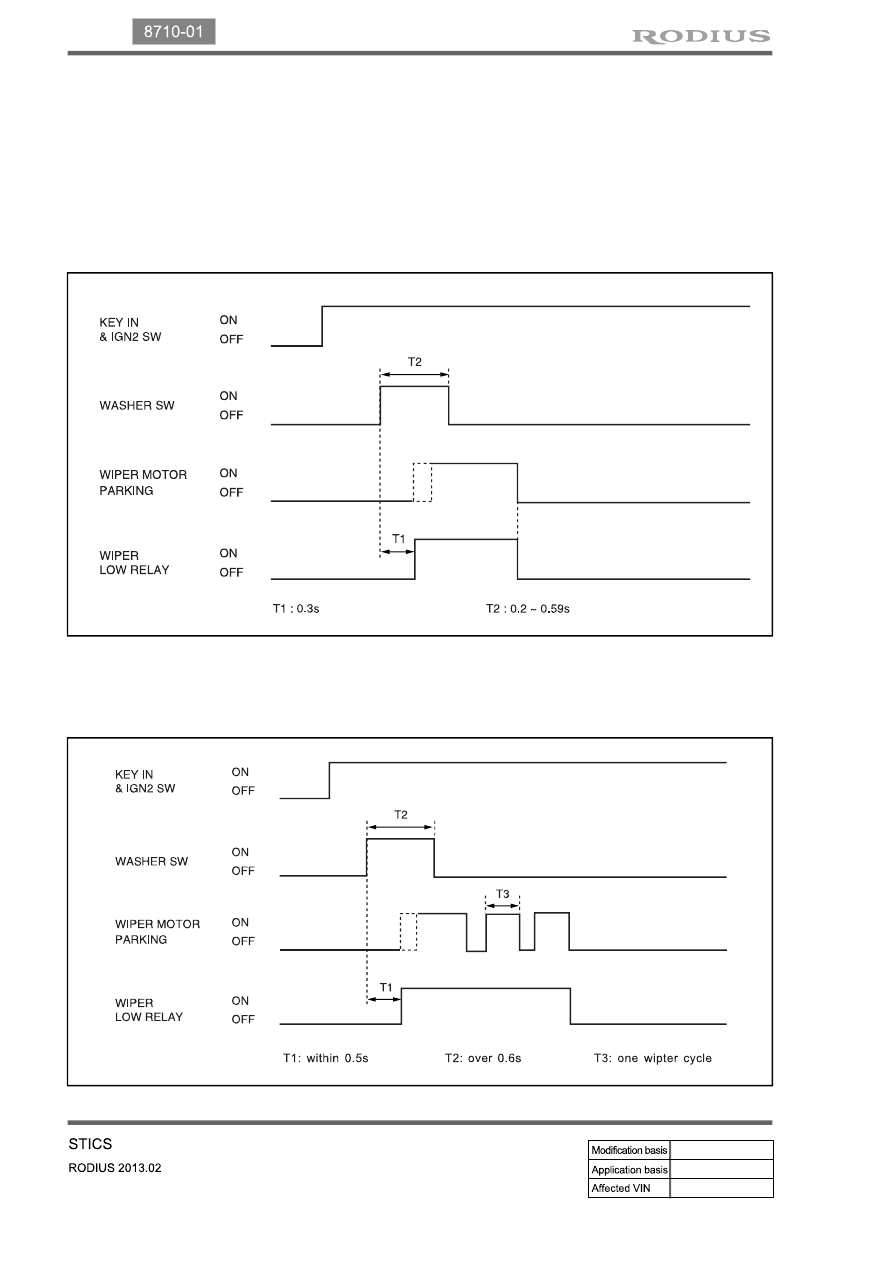

(1) Wiper MIST and Washer Coupled Wiper

The wiper relay is turned on 0.3 seconds (T1) after turning “ON”

the washer switch for 0.2 ~

0.59 seconds (T2) with the ignition key “ON”,

and it is turned off when the parking terminal

is turned off.

1.

The wiper relay is turned on 0.3 seconds (T1) after turning “ON”

the washer switch  over 0.6

seconds (T2) with the ignition key “ON”,

and it is turned on three times immediately  after

turning off the washer switch.

2.

02-7

8710-01

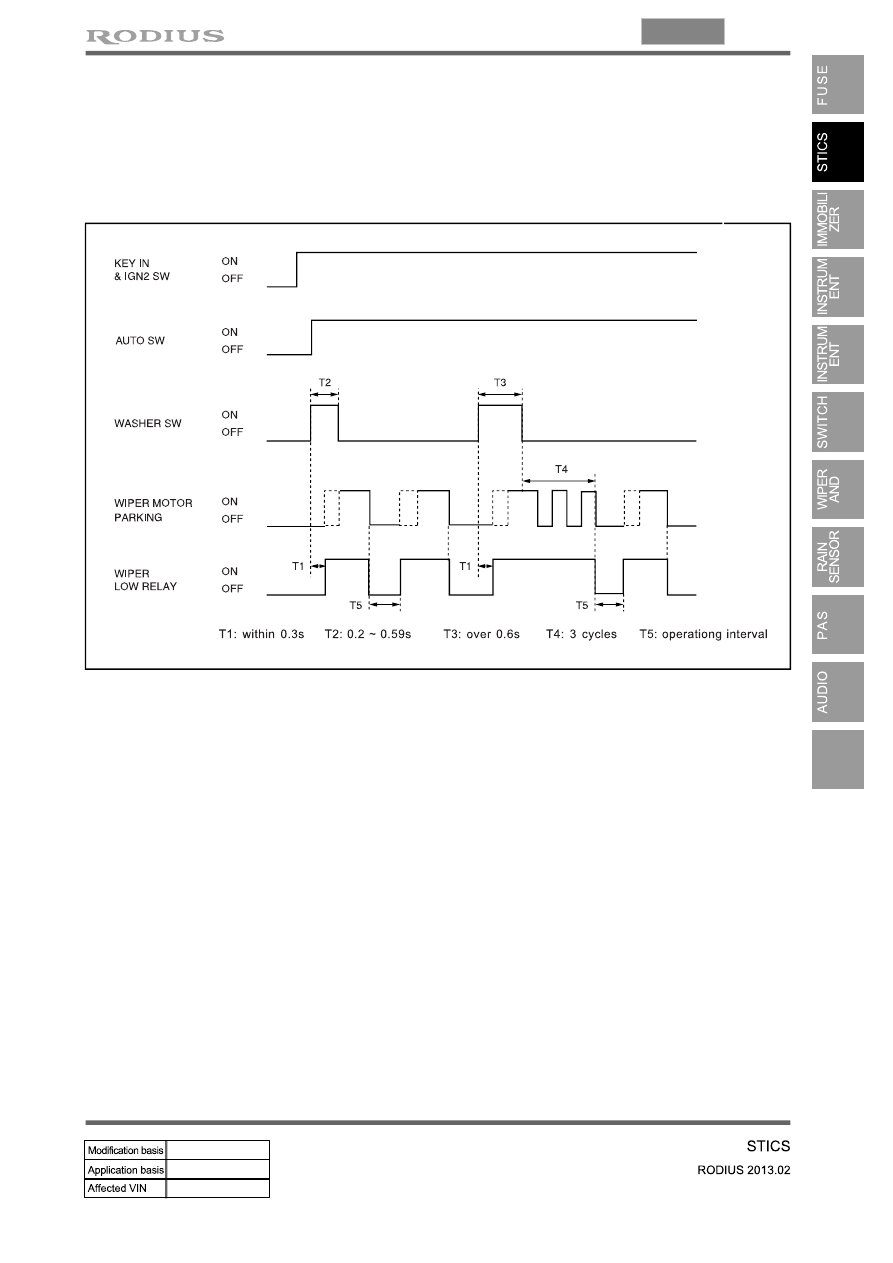

If the washer operating signal is inputted while the wipers are operating in intermittent or AUTO

mode, the system stores the previous intermittent interval and operates the washer coupled wiper.

After then, the wiper operation returns back to intermittent or AUTO mode with the stored operating

interval.

3.
