SSANGYONG Y200

9D-82 BODY ELECTRICAL

YAD9D2Z0

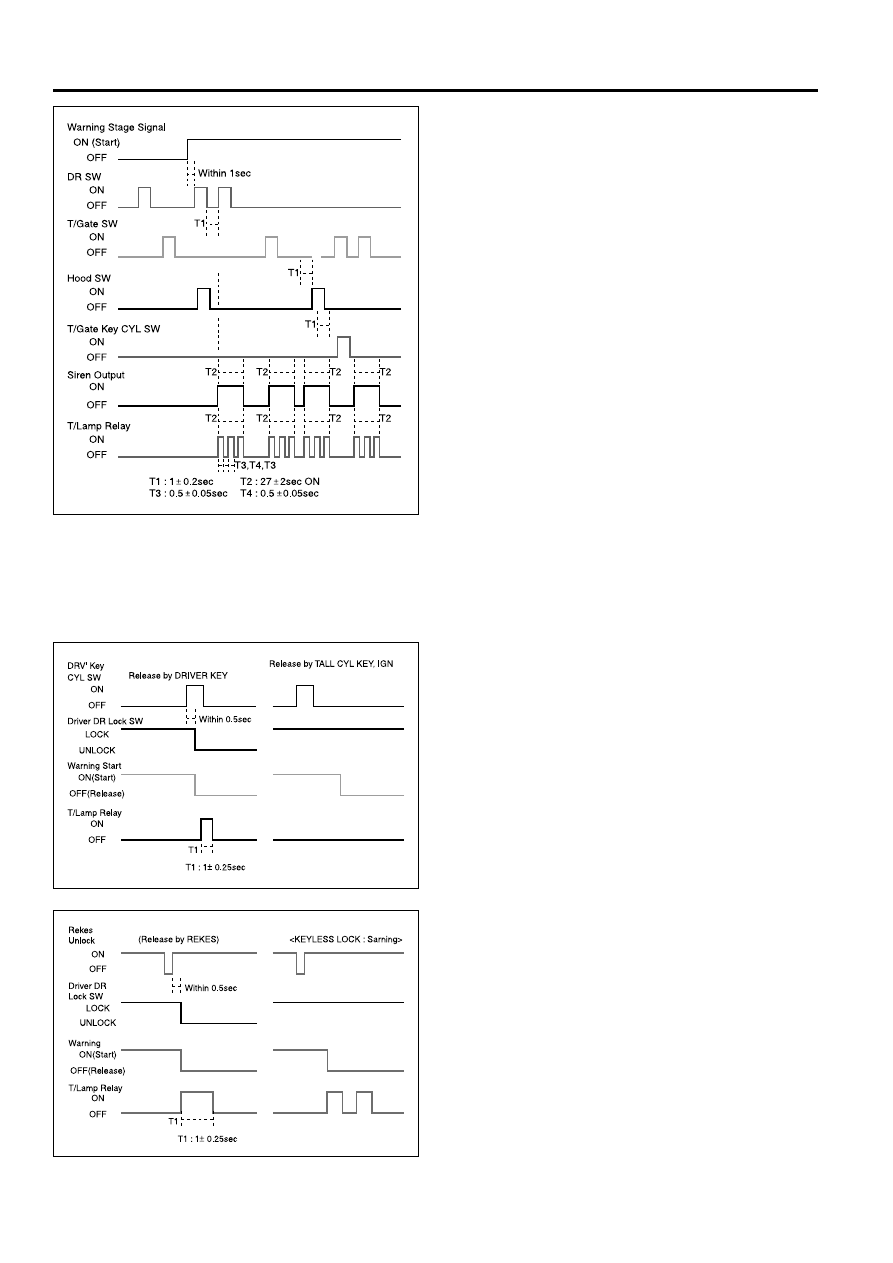

3. set vigilance of robbery free

•

In case switch of driver key cylinder is unlocked
or rekes is unlocked, IGN1 OR IGN2 is turned,
under the those condition only, should be set
vigilance of robbery free.(while alarming of
robbery is turned on, turn IGN1, IGN2 ON, relay
of start inhibitor is “OFF”, alarming of robbery
is continuously operating for remaining times )

•

Setting vigilance of robbery free is released by
key of driver seat, key of tail gate, unlock of
rekes and lock.

YAD9D3A0

YAD9D2Y0

2. operation of alarm

•

After the situation of robbery vigilance is set on,
not released the situation of robbery vigilance,
with all the door, tail gate and hood are closing,
after this situation are going on more than one
second, if door, tail gate and hood is opened,
alarm should be operating immediately.

•

If only one thing among alarm conditions is
satisfied, immediately the operation should begin
to start, siren is operating continuously for 27
seconds, after siren,condition of alarming is again
satisfied, once again siren is operating
continuously for 27 seconds.

•

Under the state of vigilance, if only tail gate is
opened by key, the state of vigilance should be
set on the regular state of vigilance into secondary
state of vigilance.(At this time, proceed alarming
as open up tail gate, hood, assist and rear door )

In other words, while not being releasing condition
of vigilance, although switch of tail gate is turned
on, alarming is not operating, state of closing tail
gate is going on more than one seconds, again
back to regular state of vigilance, with siren once,
tail lamp is “ON/OFF” two times for 0.5 seconds.

Under the operation of alarming, if battery is
removed, and then if the battery is installed, state
of memory which is previously removed gets
back, this state will be operating.

BODY ELECTRICAL 9D-83

SSANGYONG Y200

YAD9D3B0

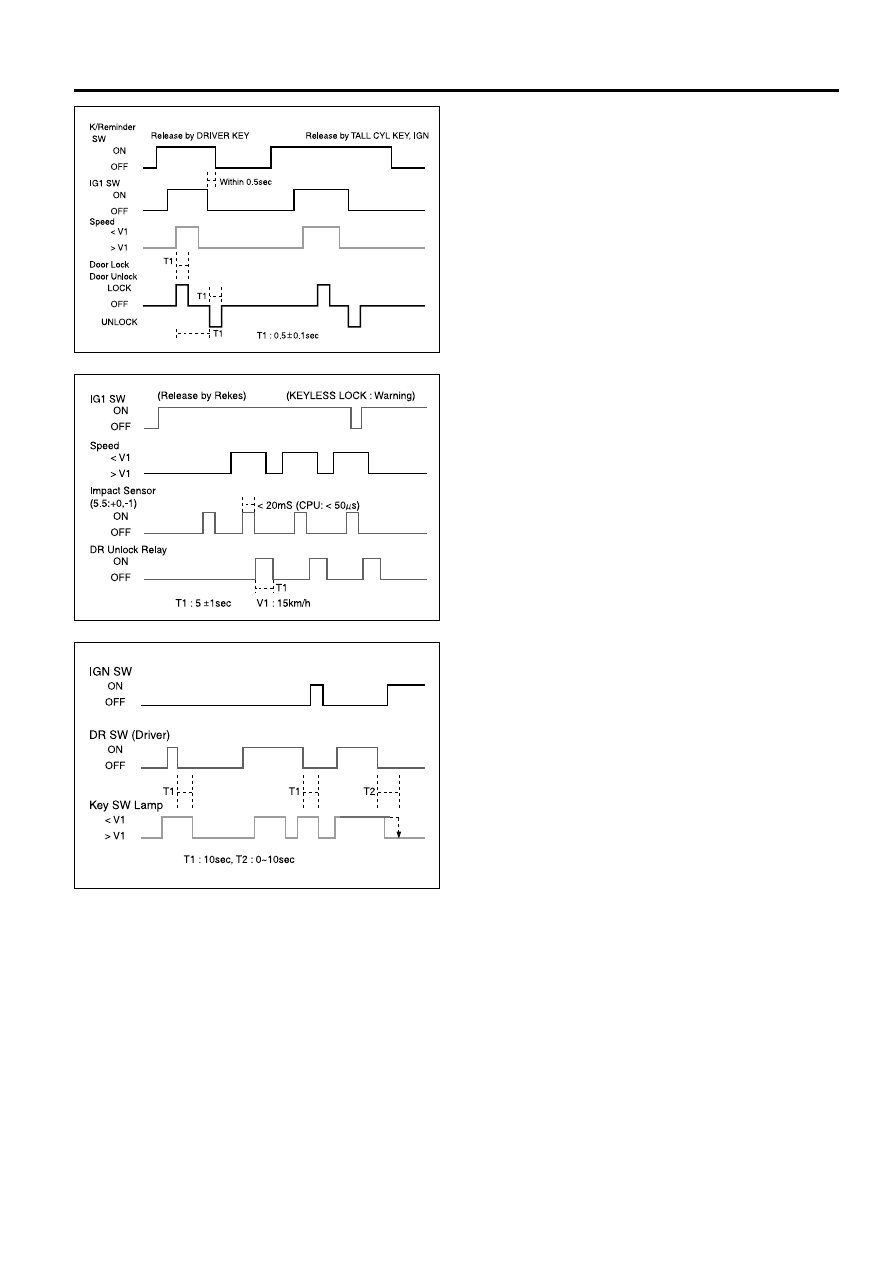

Function of auto door lock

1. If switch of IGN is turned “ON”, and if velocity of

vehicle is more than V1(50km/h)all the door is
locked automatically,and under this velocity of
v e h i c l e , i f d o o r i s u n l o c k e d , b u t d o o r i s
automatically locked (after switch of IGN1 is
turned, from passing time of 1.5 seconds, velocity
should be sensing )

2. After auto unlock of door is operating, should not

operate auto lock of door by velocity of vehicle

YAD9D3C0

Function of auto unlock of door

1. Under turning ignition switch on, while vehicle is

running more than 15km/h, if vehicle has a
collision with other vehicle, automatically all the
door should be unlocked.(After switch of IGN1 is
turned on, and then passing time 1.5 seconds,
velocity of vehicle should be sensed.)

2. Auto unlock of door with is operating with average

o f v e h i c l e v e l o c i t y w h i c h i s s e t t i n g f o r 8
seconds(While velocity of vehicle is reduced )

YAD9D3D0

Function of key hole which is illuminated

1. If door is opened under vehicle’s stop, as

illuminating lamp round key hole, at time of
stopping door, is lighting on for 10 seconds, but
within 10 seconds, if signal of rekes is operating
or if switch is turned “ON”, should be turned
“OFF”

SSANGYONG Y200

9D-84 BODY ELECTRICAL

YAD9D3E0

YAD9D3F0

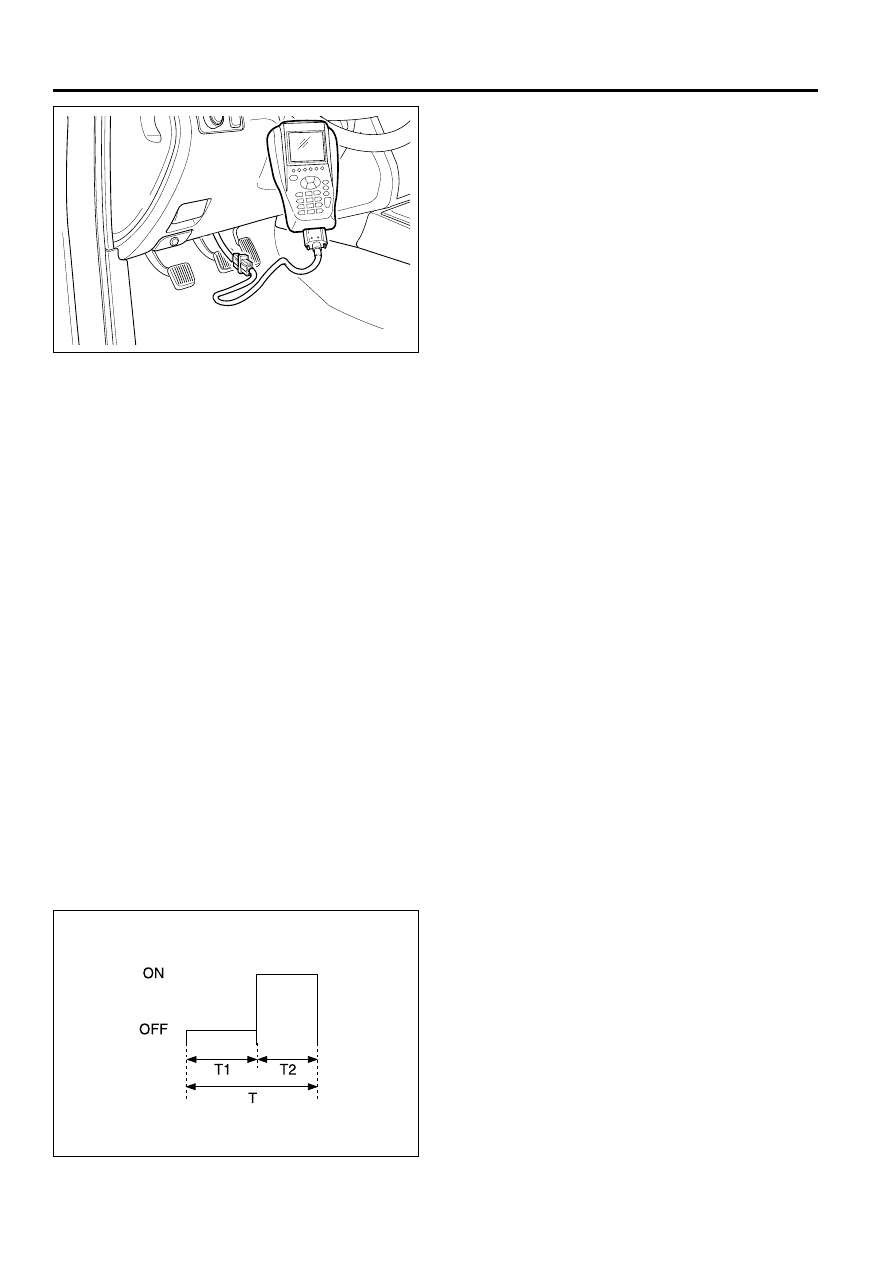

Method to Diagnose

1. While failure is checking, use buzzer

2. While the switch of diagnosis is turned “ON”,

(stics of diagnosis socket box : number 7 and
ground 1 is connected), the following operation
should not proceed.

•

warning : the first step of light is “ ON”(buzzer
is not operating, lock or unlock of door is not
operating)

•

warning of seat belt(chime bell is not operating )

•

warning of key reminder (chime bell is not
operating, lock or unlock of door is not operating)

•

central door lock(lock or unlock of door is not
operating)

3. While switch of diagnosis is “OFF”, function of

number 2 should get back to original position

4. While switch of diagnosis is “ON,” data which is

diagnosed should output only once

5. If switch is operated by operation of other switch,

among them, first input data will be output(buzzer
is “ON”), and output is “OFF” for one seconds,
and remaining input data is proceeding output.

6. Output of buzzer is as following

T1 : 0.3 ±

0.1 seconds

T2: 0.3 ±

0.1 seconds

T: 0.6 ±

0.2 seconds

Notice:

•

If system is diagnosed, switch of diagnosis
should be always “ON”

•

While the diagnosis of system is operated, if
system is normal, buzzer is coming out, if
system is out of order, buzzer is not coming
out.

SELF DIAGNOSIS

Summary

After using the service connector which is installed on
the instrument panel of lower driver seat, each failure
is diagnosed internal unit of stics, can be checked the
state of normal or mode of failure.

BODY ELECTRICAL 9D-85

SSANGYONG Y200

Switch of diagnosis is

“ O N ”

Power of battery is

supplied

Battery plus: related

parts is operated

Ignition switch is

operating

Ignition plus related

parts is operated

IGN, starting plus

related parts is

operating.

CHART OF DIAGNOSIS

Buzzer,frequency: once

Buzzer,frequency: twice

Buzzer,frequency: once

IGN2 :

Buzzer,frequency: twice

IGN1:

Buzzer,frequency: once

Power window: buzzer:

Three times

Buzzer,frequency: once

Parking of wiper motor: 3

times

Switch of washer :once

Relay of wiper : twice

Wiper motor parking:

3times

Wiper auto switch; once

Relay of wiper : twice

Buzzer, frequency: once

Buzzer,frequency: once

Conditions

Normal

Confirm 0f beginning to dignose

Check battery

Tail gate, rear door lock switch

Driver seat door lock switch

Passenger seat door lock switch

Driver seat door switch

Passenger and rear door switch

Rekes is operating

Switch of key reminder

IGN and relay of power window

Switch parking brake

Switch of seat belt

Washer switch

Wiper auto switch

Switchof variable volume

A L T ’ L ’

Switch of defogger

Signal of speed sensor

Check

Switch of dia

gnosis is

“ ON ”

Remark
