SSANGYONG  Y200

9D-38  BODY ELECTRICAL

YAD9D750

YAD9D760

YAD9D770

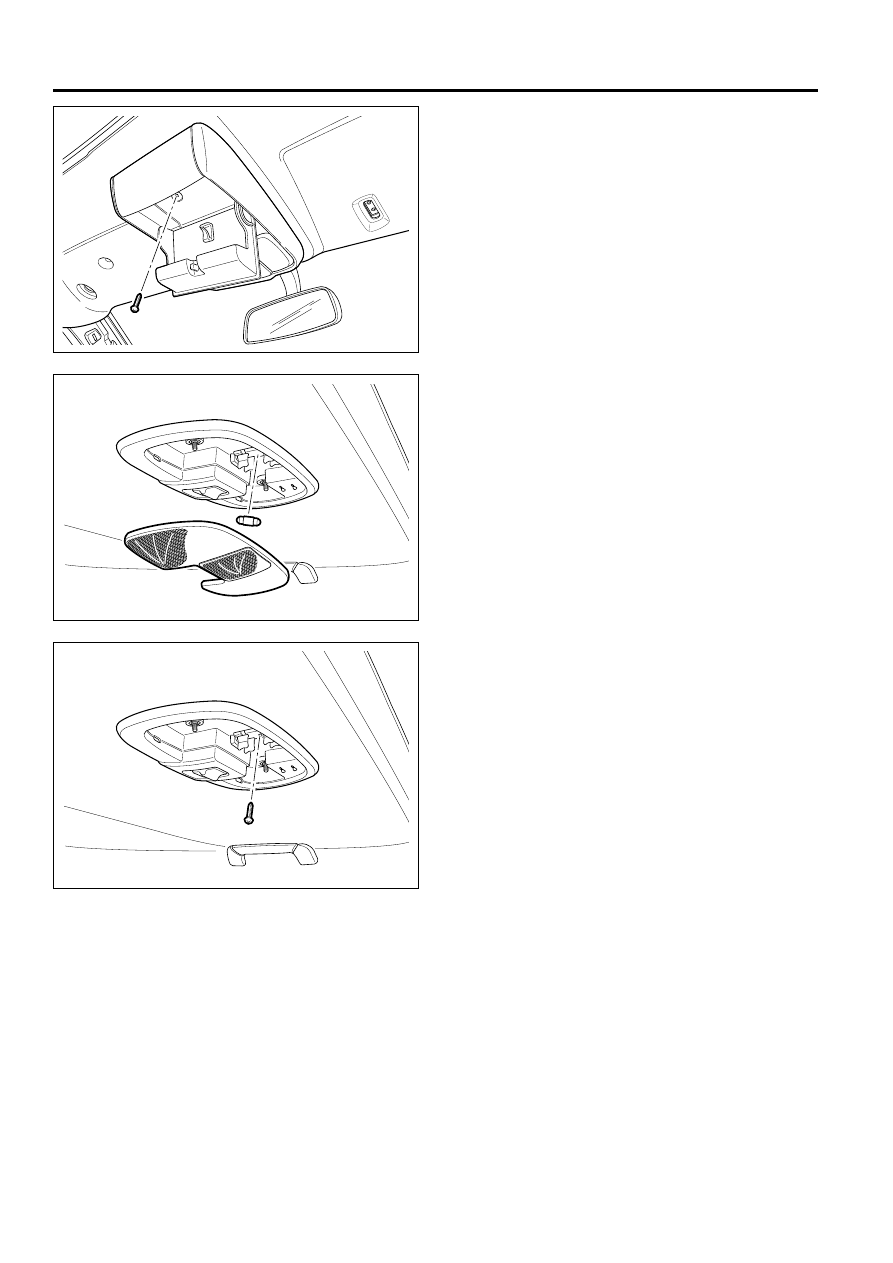

2. After releasing the housing fixing screw of lamp,

and then separate housing.

3. After separating connector of lamp housing,

remove lamp housing.

4. Install the reverse order of removal.

2. After releasing housing fixing screw of lamp,

separate the housing.

3. After removing connector from the lamp housing,

remove lamp housing.

4. Install the reverse order of removal.

Center / rear lamp

1. After removing lense of lamp, remove bulb.

BODY ELECTRICAL  9D-39

SSANGYONG  Y200

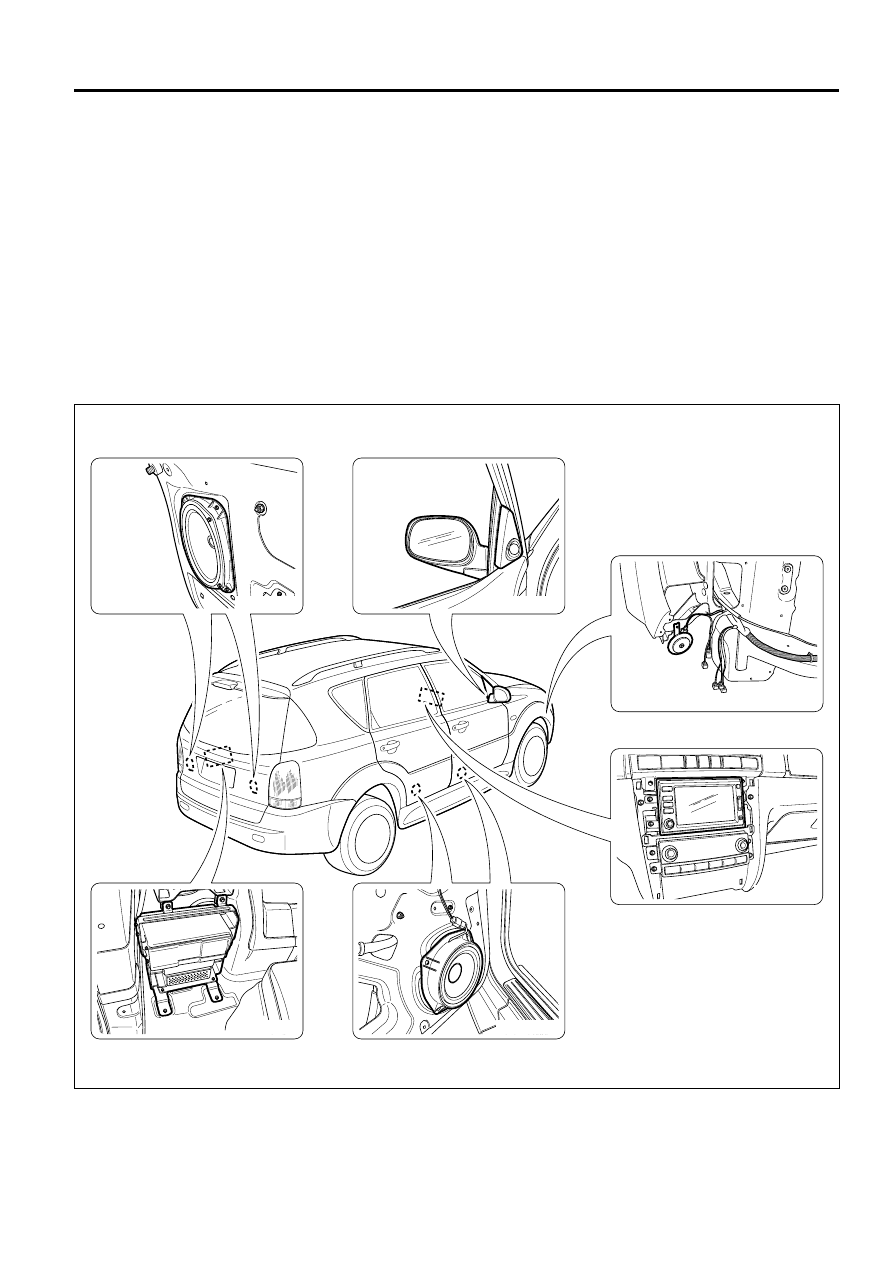

HORN AND AUDIO SYSTEM

General Description

Horn

Horn is located under the hood, is also installed near
radiator in the front. Horn is operated by pushing pad
of steering wheel which is linking to the electric circuit.

Audio system

Audio

Radio and cassette are installed in the audio system
by standard specification, changer of cd is applied
option specification, which is installed on the room of
trunk.

Front and rear speaker

Eight of speaker is installed in the vehicle, two of
speaker is installed on the front door, rear door, and
tail gate and an speaker is installed each side mirror
(left, right).

Glass antenna

Glass antenna is different from existing antenna, is
not appeared external shape of antenna,this one is
installed on the quarter glass, consists of module of
glass antenna, harness, and connector. The sensitivity
of reception are better than the existing antenna.

YAD9D780

SSANGYONG  Y200

9D-40  BODY ELECTRICAL

YAD9D790

YAD9D800

YAD9D810

YAD9D820

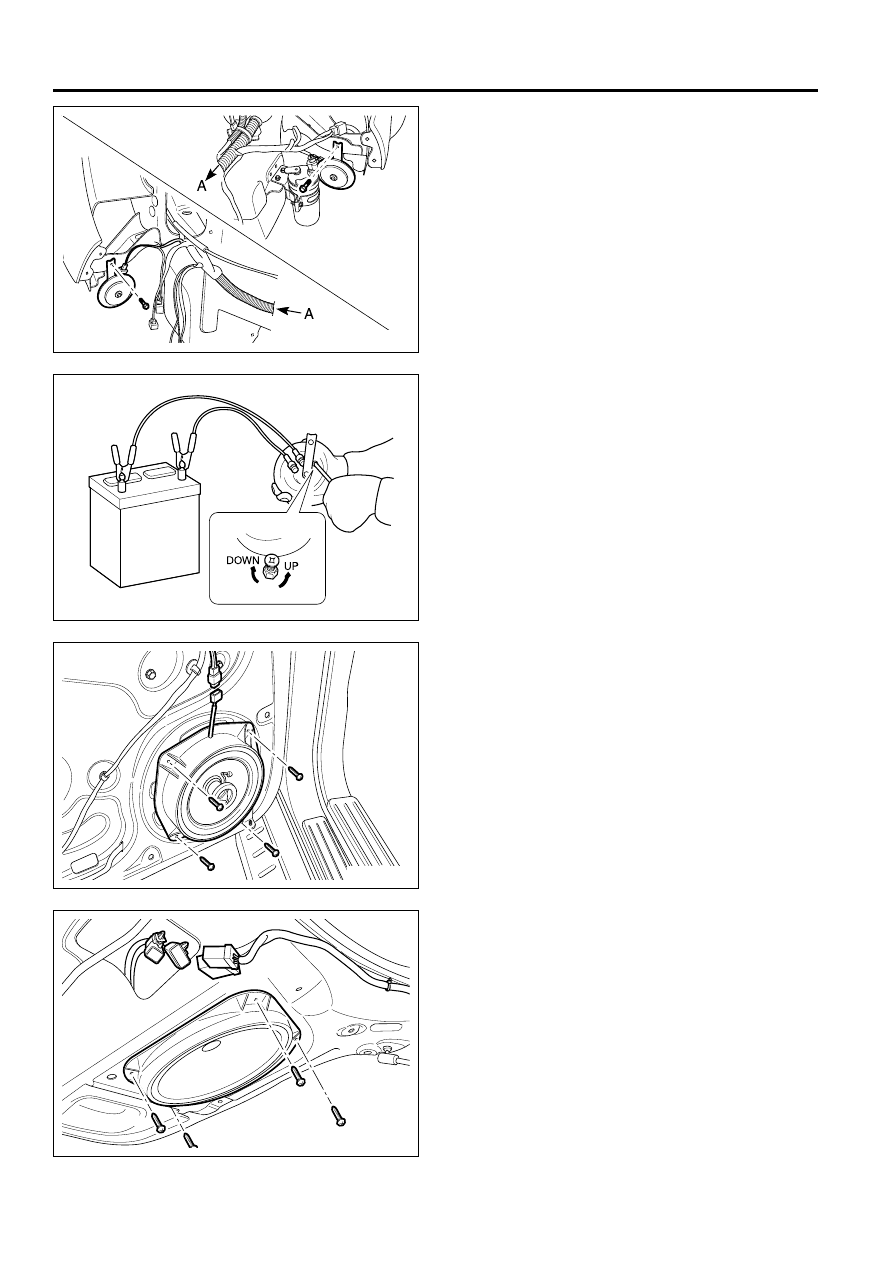

Removal and Installation

Horn

1. After releasing fixing bolt, remove horn.

2. Install the reverse order of removal.

2. Remove speaker of tail gate.

1) Remove trim of tail gate and seal.

2) After releasing fixing screw and connector of

speaker, remove speaker.

3) Install the reverse order of removal.

Speaker

1. Remove front door speaker and rear.

1) Remove door trim and seal.

2) After separating connector of speaker, and then

release fixing screw of speaker.

3) Remove speaker.

4) Install the reverse order of removal.

3. Adjust

•

After operating the horn, and then adjust tone
of horn proper (adjust screw of controlling).

Notice: After adjusting screw, spread paint on the
screw of adjusting, do not release screw of
adjusting.

BODY ELECTRICAL  9D-41

SSANGYONG  Y200

YAD9D830

YAD9D840

YAD9D850

YAD9D860

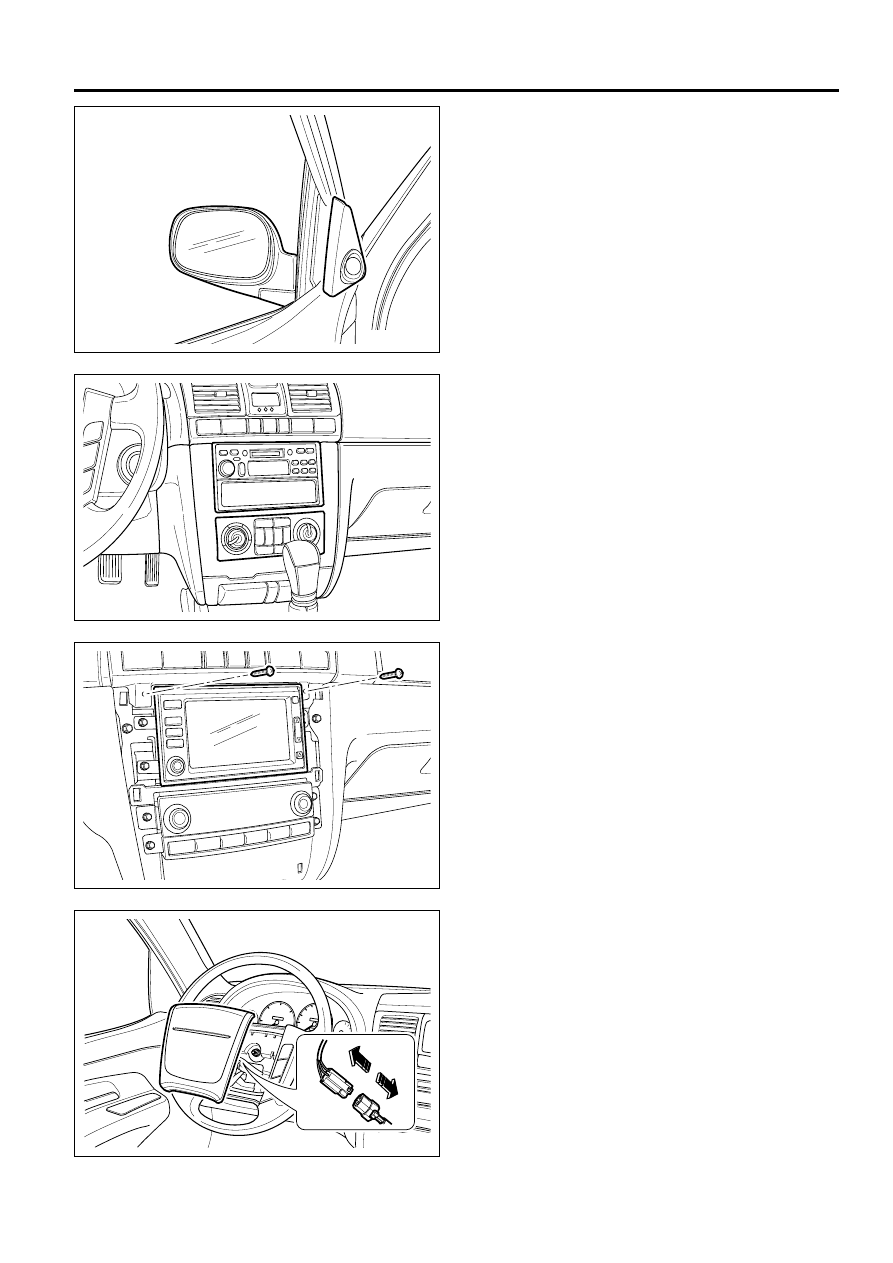

3. Remove speaker of side.

1) Remove door trim.

2) After removing speaker assembly, remove

connector of speaker.

3) Install the reverse order of removal.

Controller of audio remote

1. Remove air bag module of steering wheel or horn

pad on the driver seat.

2. After releasing connector and fixing screw, and

then remove remote control.

3. Install the reverse order of removal.

3. Remove audio

•

Release fixing screw of audio.

•

Separate cable of antenna and connector.

•

Remove audio.

4. Install the reverse order of removal.

Accessory of audio system

Audio

1. Separate the negative terminal of battery.

2. Remove center of instrument panel.
