NOTICE: REPAIRING ELECTRICAL
SYSTEM

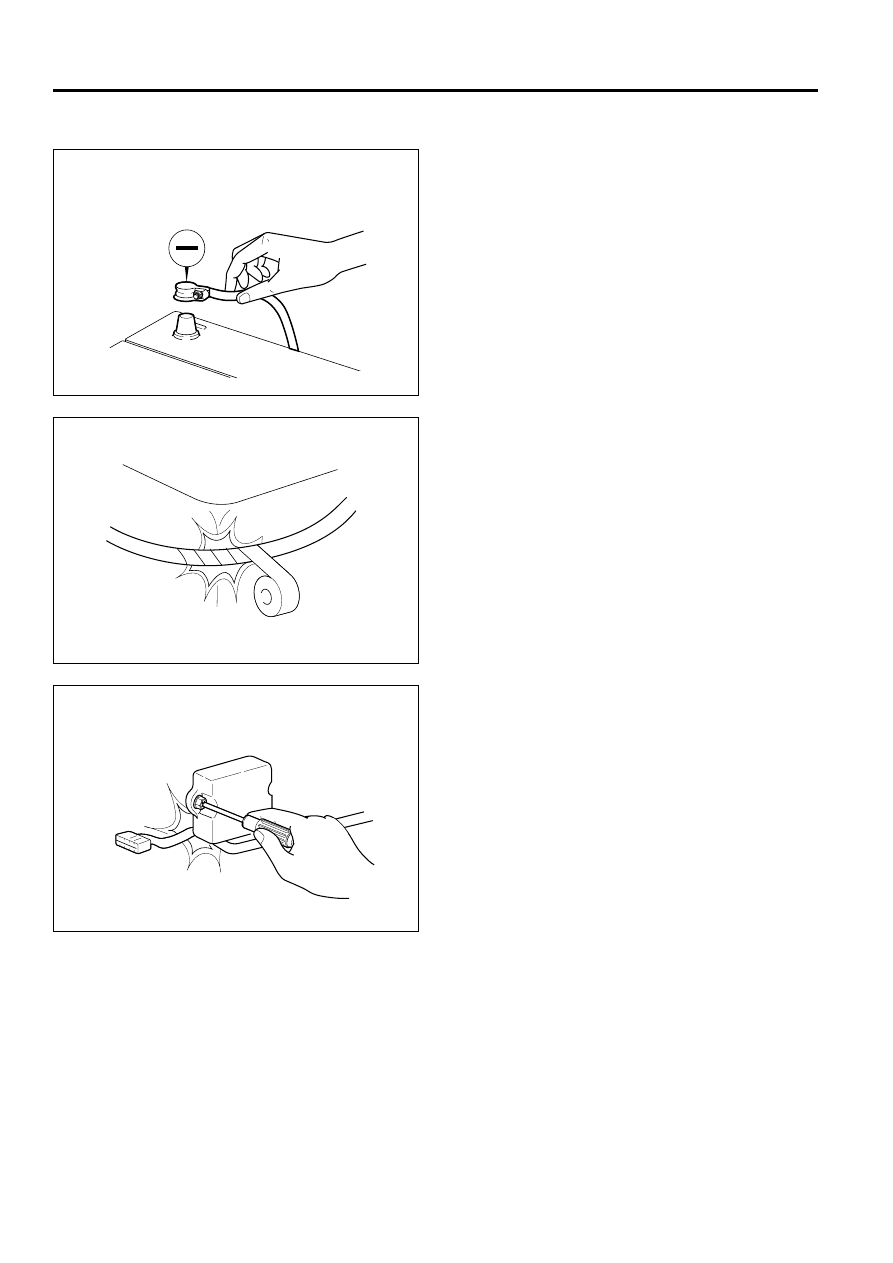

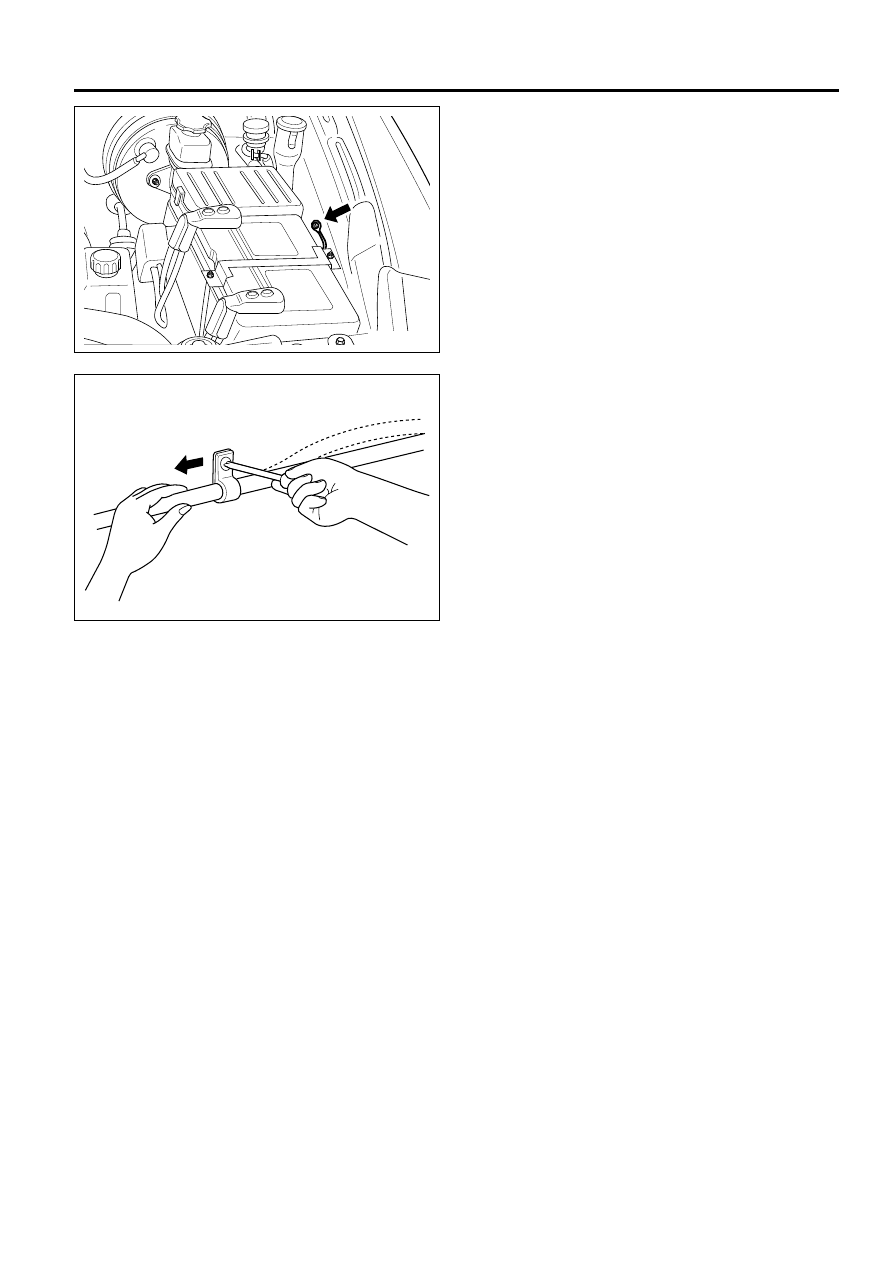

1. While electrical parts is repaired, first of all

separate negative terminal of battery.

Notice: Before separate and link negative terminal,
turn starting switch or all the switch of lamp off (if
switches are not turned off, parts of semi-
conductor may be impaired).

Notice: Memory values of electrical parts may be
erased, so those value should be kept another
place.

2. If harness is interfered by other sharp section, wrap

them, and then, for protecting of harness.

3. While parts is instslled on the vehicle, keep in

mind, in order not to tear or impair to the wiring
harness.

YAD9D010

GENERAL DESCRIPTION

BODY ELECTRICAL  9D-3

SSANGYONG  Y200

YAD9D040

YAD9D050

YAD9D060

YAD9D070

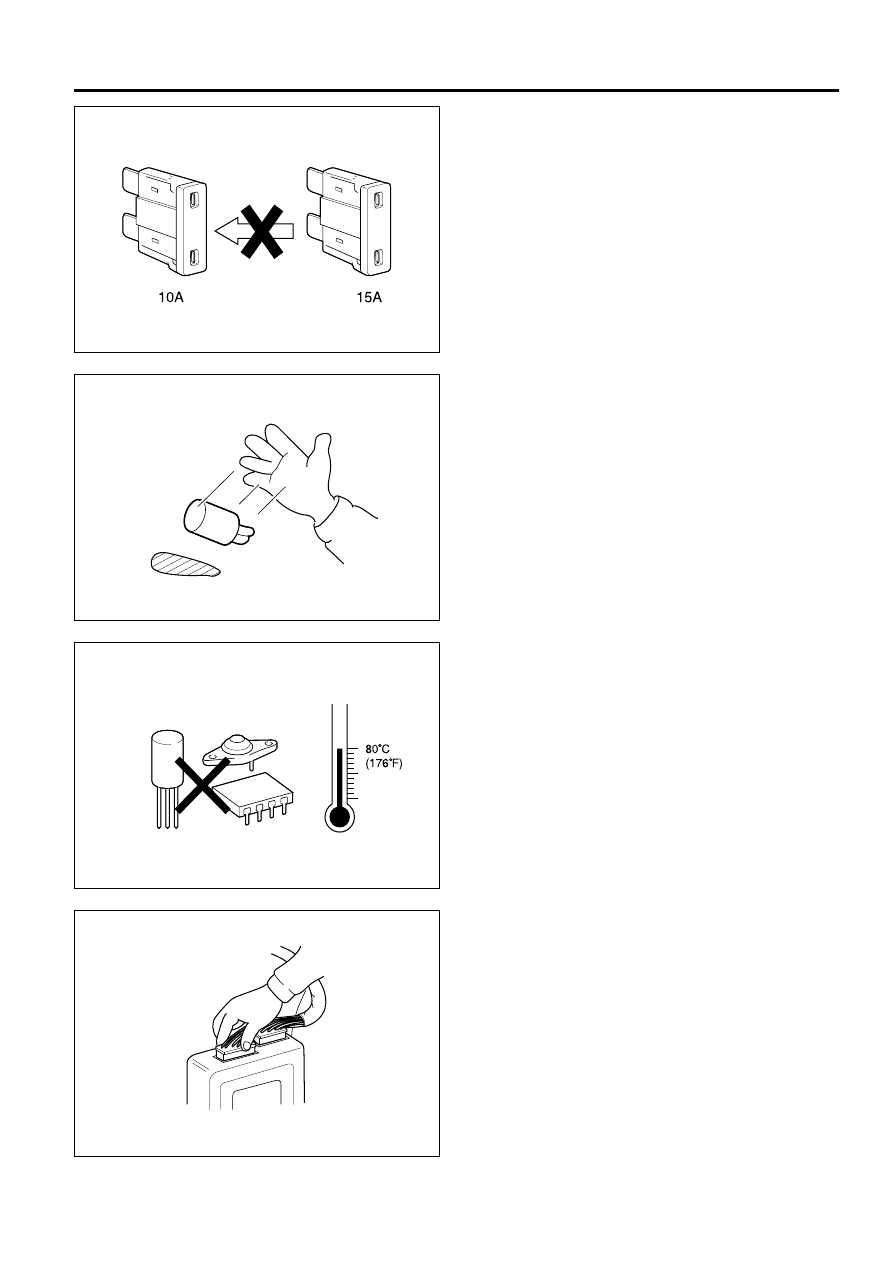

4. If fuse is damaged, fuse is replaced by rated

capacity, if fuse is replaced by excessive rated
capacity, parts may be impaired or fired.

7. If connector is connecting loose, this cause to

repair, make sure connecting of connector.

6. Electrical parts are impaired by heat, so if work of

repair should be done excessive temperature of
8°C, remove electrical parts before done this.

5. Sensors and relays should not be influenced by

impact and should not be dropped on the floor.

SSANGYONG  Y200

9D-4  BODY ELECTRICAL

YAD9D080

YAD9D090

YAD9D100

YAD9D110

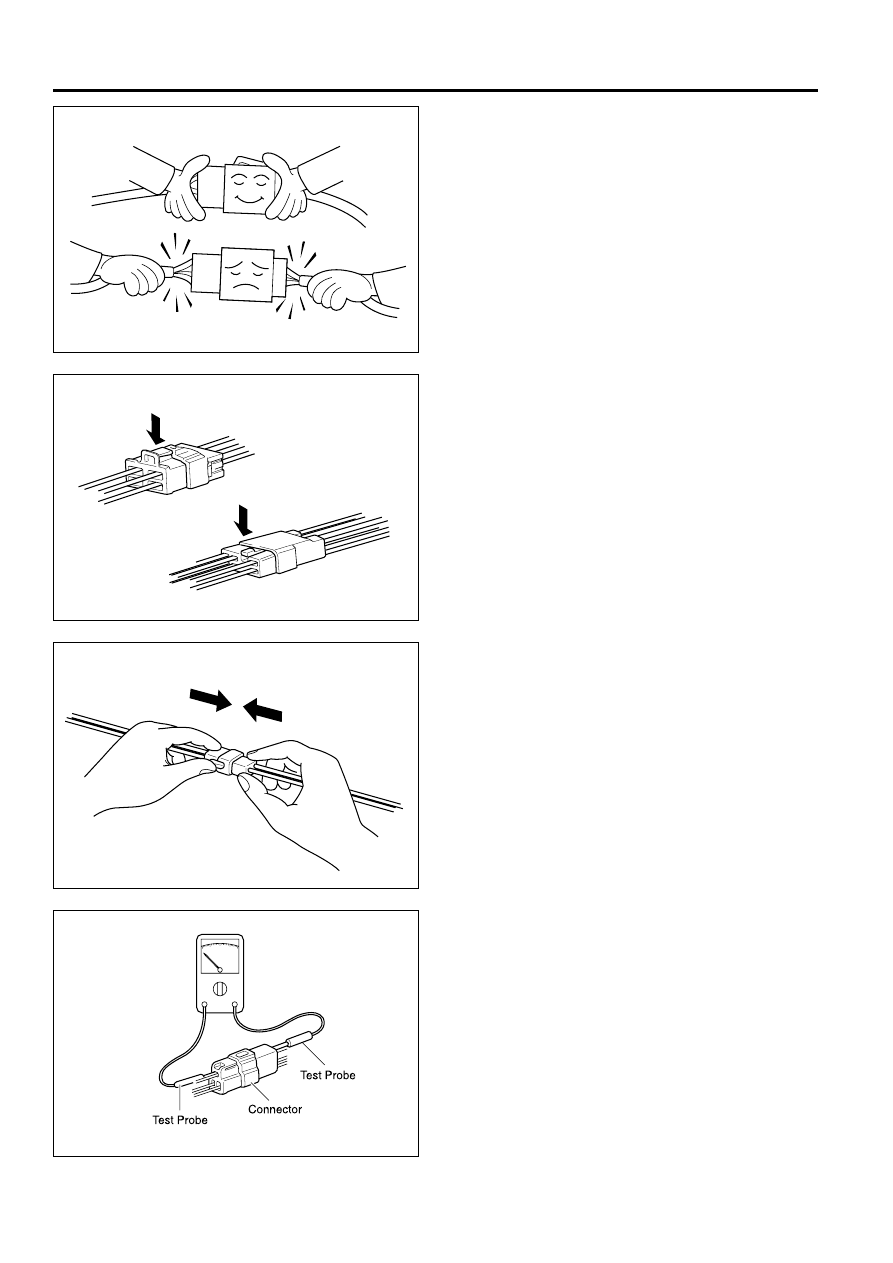

8. While harness is separated, connector should be

pulled, harness should not be pulled, like the
picture.

11. If electric current is sent or check voltage through

tester of circuit, probe is set from the harness, if
connector is kind of sealing type, probe is set
through hole of cap in the wiring rubber.

At this time, keep in mind, not to damage isolation
of wiring, insert probe until contact connector of
terminal completely.

Notice: Tester of circuit is not used on the air bag
system, while this system is checked, scanner
should be used.

10. While connector is linked, insert this until sounds

like tack!, tack!

9. While connector is separated with the lock, pushing

arrow indicated, remove the connector.

BODY ELECTRICAL  9D-5

SSANGYONG  Y200

YAD9D120

YAD9D130

Check Cable and Wire

1. Check looseness of the connecting and corrosion.

2. Check the corrosion of terminal and wire by the

eletrolyte.

3. Check open circuit for terminal and wire.

4. Check isolation of wire, damage, deformation.

5. Check interference between parts of terminal and

other metal parts.

6. Check applying an electrical current complete

between fixing bolt and body on the section of
ground.

7. Check lay-out of wiring proper.

8. After fixing wiring completely, wiring should not

be contacting by section of sharpness, section of
high temp. (For example: exhaust manifold,
exhaust pipe).

9. Keep the clearance between wiring and fan- pully,

fan-belt, other parts.

10. After loosening wiring and fix, for vibration

between section of body and the section of engine.
