7. For the right position installed of glass which wind

shield is fixed, stick tape on moulding, and frame
of wind shield.

8. To keep sealant dry, park the vehicle for 24 hours.

9. Remove tape1.

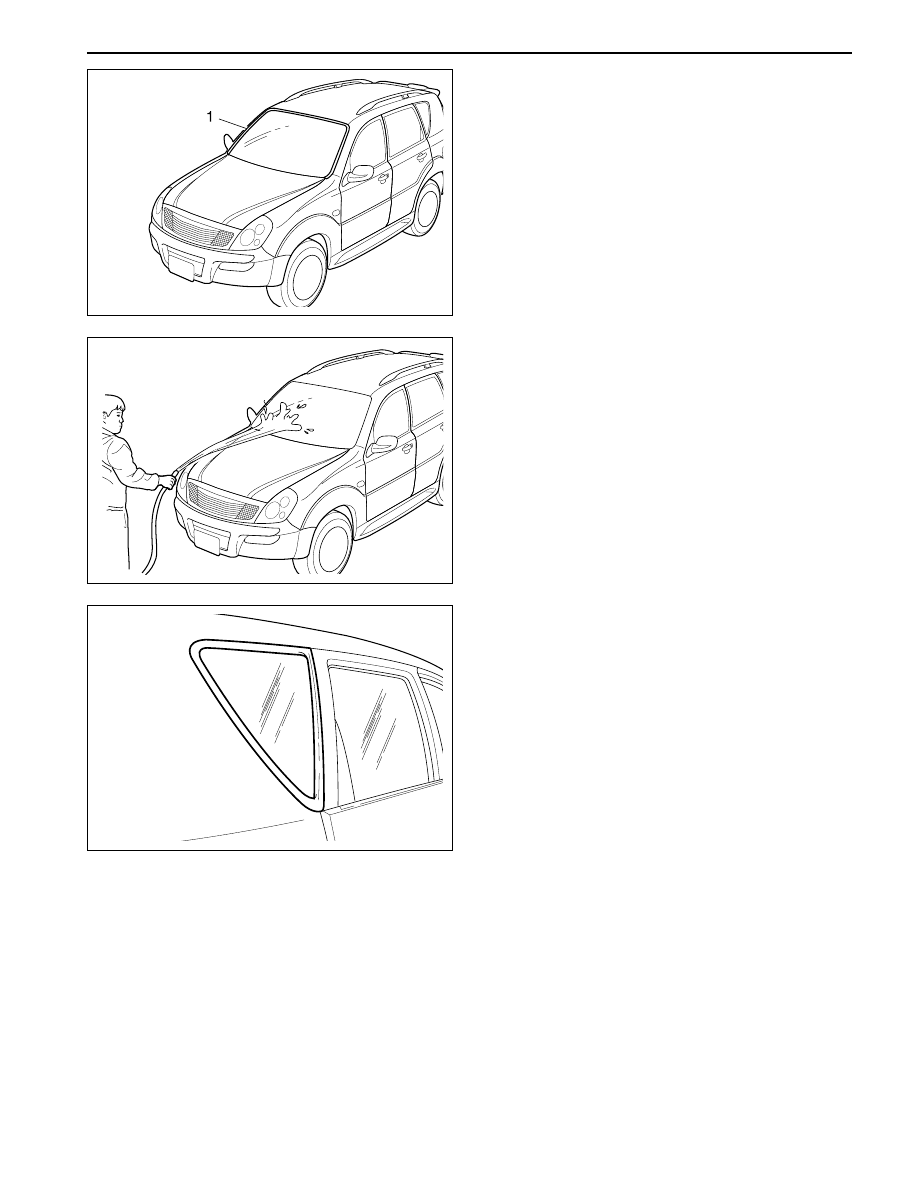

10. Spread water on the wind shield glass, and then

check leaking of water. If leaking of water happen,
after keep wind shield glass dry, fill sealant on
the section of leaking, if leaking of water goes on,
w i n d   s h i e l d   g l a s s   i s   r e m o v e d ,   t h e   a b o v e
descriptive work proceed to repair once again.

FRONT QUARTER GLASS

Removal

1. After releasing fixing nut of quarter glass, remove

cover of glass moulding.

2. After removing quarter glass, using knife, remove

sealant of quarter and frame.

YAD9C1W0

YAD9C1X0

SSANGYONG Y200

9C-46 BODY EXTERIOR

;;;;

;;;;

;;;;

;

;

Installation

1. Wash up body frame (section of glass installed).

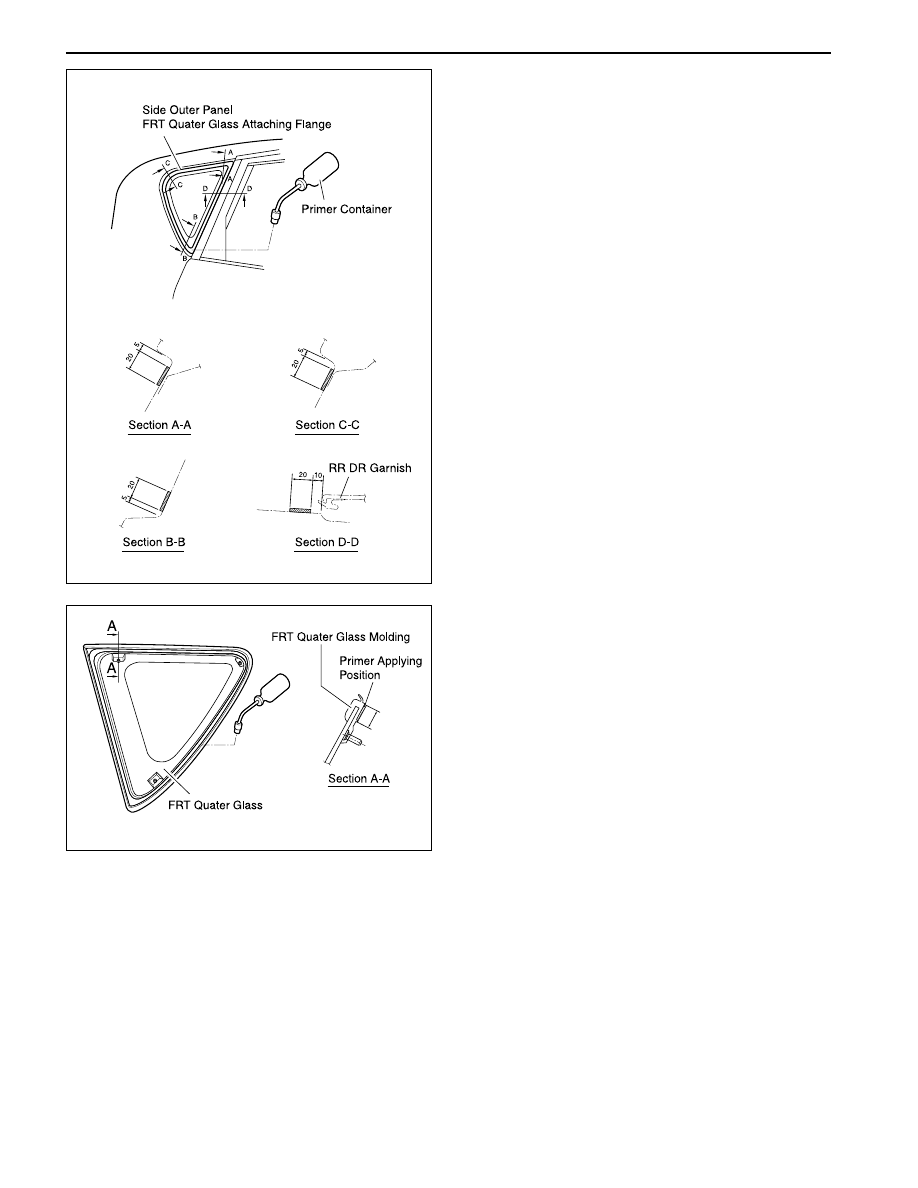

2. As keeping distance like the left picture, spread

primer on the section of frame of installed glass.

3. Spread primer on the moulding of quarter glass of

new quarter glass.

YAD9C1Z0

YAD9C2A0

BODY EXTERIOR 9C-47

SSANGYONG Y200

YAD9C2B0

YAD9C2C0

4. As keep distance like left picture, spread sealant

on the glass.

5. After Install glass of front quarter on the body

frame, tighten nut on the bolt of mounting.

6. After installing front quarter glass, proceed to

check leaking of water.

SSANGYONG Y200

9C-48 BODY EXTERIOR

;;

;;

;;

;;

;;

;;

YAD9C2D0

YAD9C2E0

YAD9C2F0

REAR QUARTER GLASS

Removal

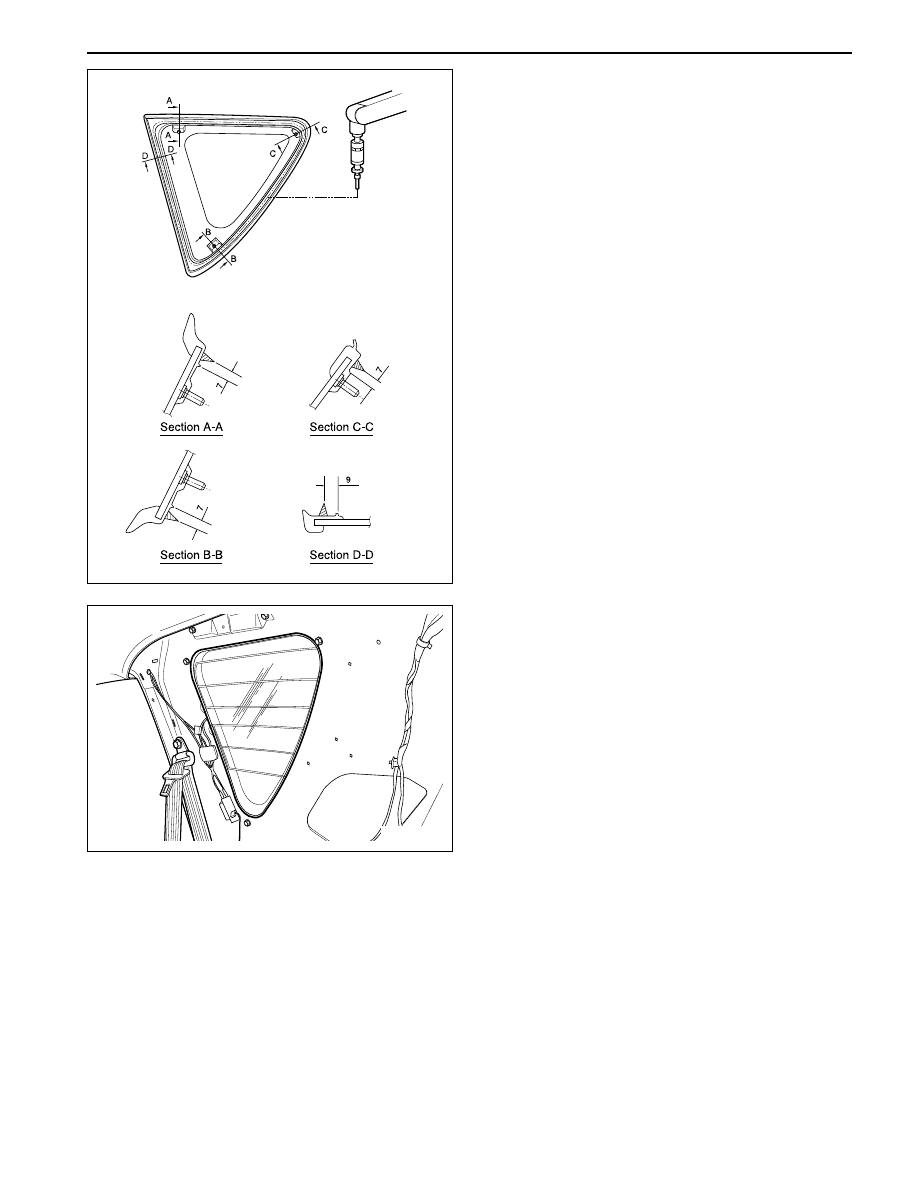

1. After using special tool, remove sealant around

glass.

2. Remove rear quarter glass.

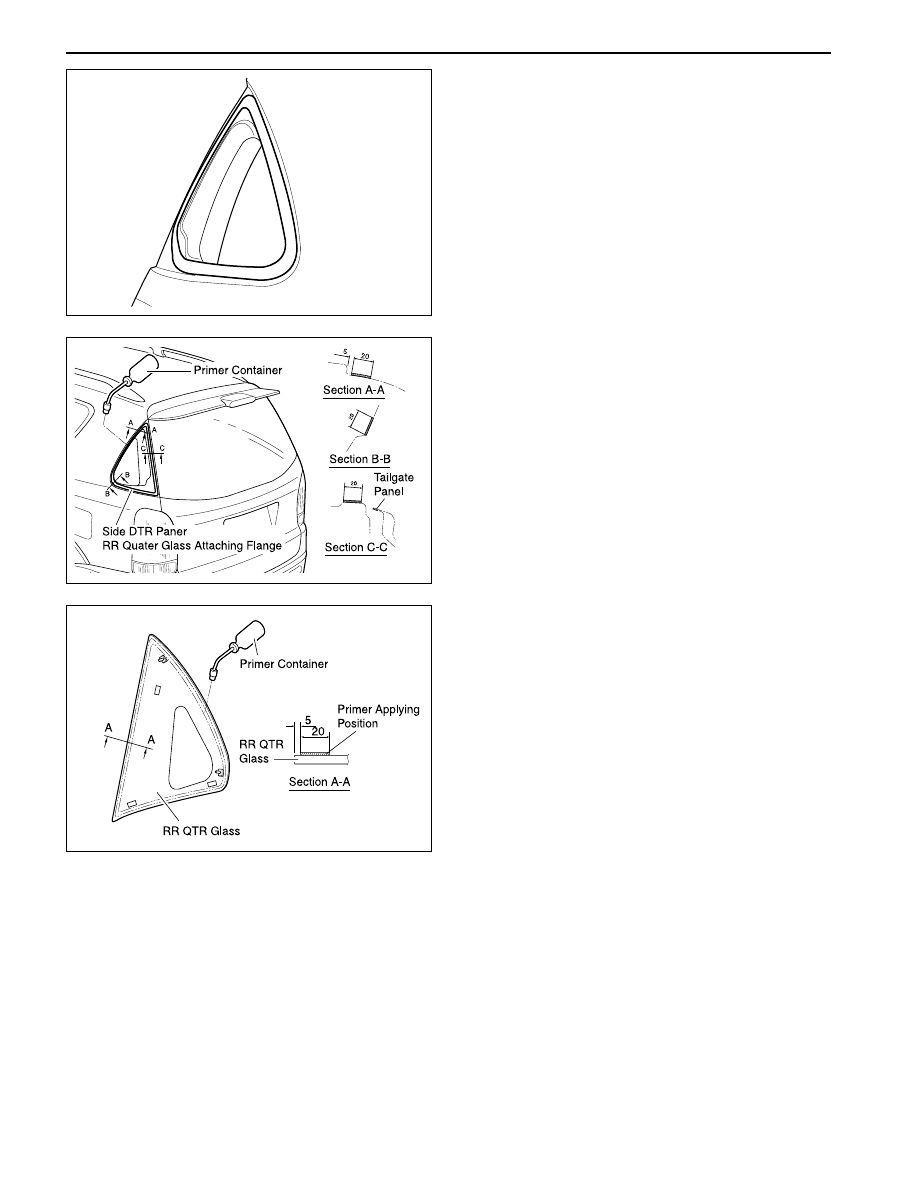

3. After spread on the new rear quarter glass, install

glass moulding.

Installation

1. Wash up the section of body frame.

2. As keep distance like the left picture, spread

primer.
