SSANGYONG  Y200

6E-16  STEERING COLUMN

SPECIAL TOOLS AND EQUIPMENT

SPECIAL TOOLS TABLE

Steering Wheel

Remover

YAD6E340

SECTION 7A

HEATING AND VENTILATION SYSTEM

TABLE OF CONTENTS

Description and Operation ................................... 7A-2

General ............................................................... 7A-2

Specifications ...................................................... 7A-3

Air Delivery and Function ..................................... 7A-4

Schematic and Routing Diagrams ........................ 7A-6

Diagnostic Information and Procedures .............. 7A-7

Insufficient Heating Or Defrosting ........................ 7A-7

Blower Electrical .................................................. 7A-9

Improper Air Delivery Or No Mode Shift .............. 7A-10

Too Much Heat .................................................. 7A-11

Heater Controls .................................................. 7A-12

Blower Noise ..................................................... 7A-13

Component Locator ........................................... 7A-14

Airflow Through Vents With Rear Heating Duct ... 7A-14

Repair Instructions .............................................. 7A-15

On-Vehicle Service ............................................... 7A-15

Air Duct Assembly ............................................ 7A-15

Rear Cooler Duct ............................................... 7A-16

Heater and Blower Module Assembly ................. 7A-17

Heater Suction and Discharge Hose ................... 7A-18

SSANGYONG  Y200

7A-2  HEATING AND VENTILATION SYSTEM

DESCRIPTION AND OPERATION

GENERAL

Heater is the system that circulate the suction air
through the heater core to deliver the heat of engine
coolant to the suction air and designed for heating
and defrosting in the passenger room.

Heater system is consist of heater hose, heater module,
blower motor and adjustment system.

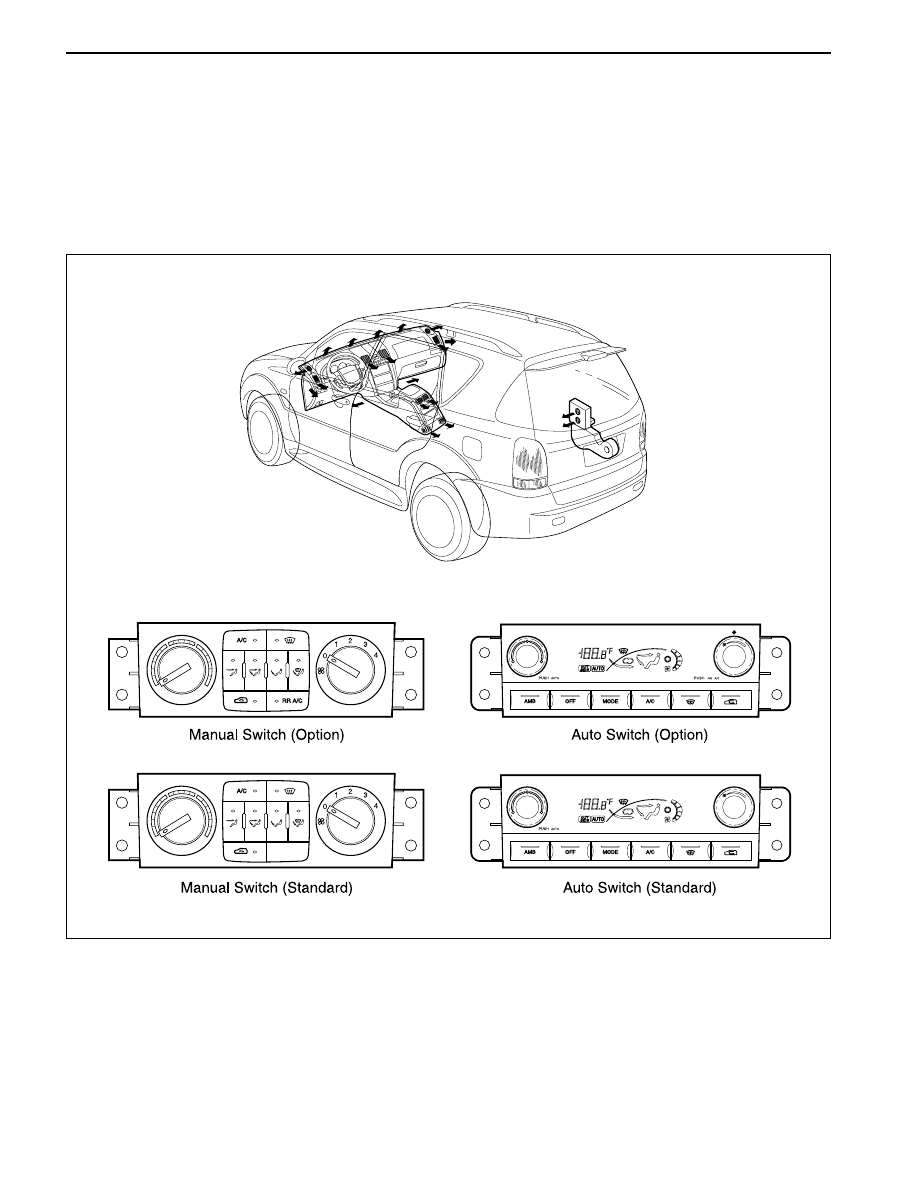

The control switch assembly (adjustment system)
equipped with the instrument panel can control the
temperature, the amount and the direction of the outlet.
Also this system can use the suction air as separation
between ambient air and intake air on the vehicle.

YAD7A010

HEATING AND VENTILATION SYSTEM  7A-3

SSANGYONG  Y200

Blower Motor

Heater Core

Blower Motor Resistance

Front A/C and Heater Unit

Rear Cooler

Max. Capacity

Fin Pitch

Size (L x H x W)

Heating Capacity

1st Mode

2nd Mode

3rd Mode

4th Mode

Type

Heating Capacity

Cooling Capacity

Expansion Valve

Input Power

Type

Cooling Capacity

Expansion Valve

Input Power

Engine Type

SPECIFICATIONS

Heater+Evaporator and Blower (2 pieces)

Min. 4600 kcal/h (5.5 m

3

/Min)

Min. 4700 kcal/h (7.5 m

3

/Min)

Block Type

Max. 250 W

Evaporator and Blower (only Cooler)

Min. 2700 kcal/h (5 m

3

/Min)

ANGLE Type

Max. 180 W

GSL

GSL

7.425 - 9.075 kcal/h

1.52 mm

194.6 x180 x 35 mm

8,250 (Min. 4,700) kcal/h

3.25

Ω

1.45

Ω

0.35

Ω



Ω

←
←
←
←
←
←
←
←
