POWER STEERING  6A-11

SSANGYONG  Y200

YAD6A140

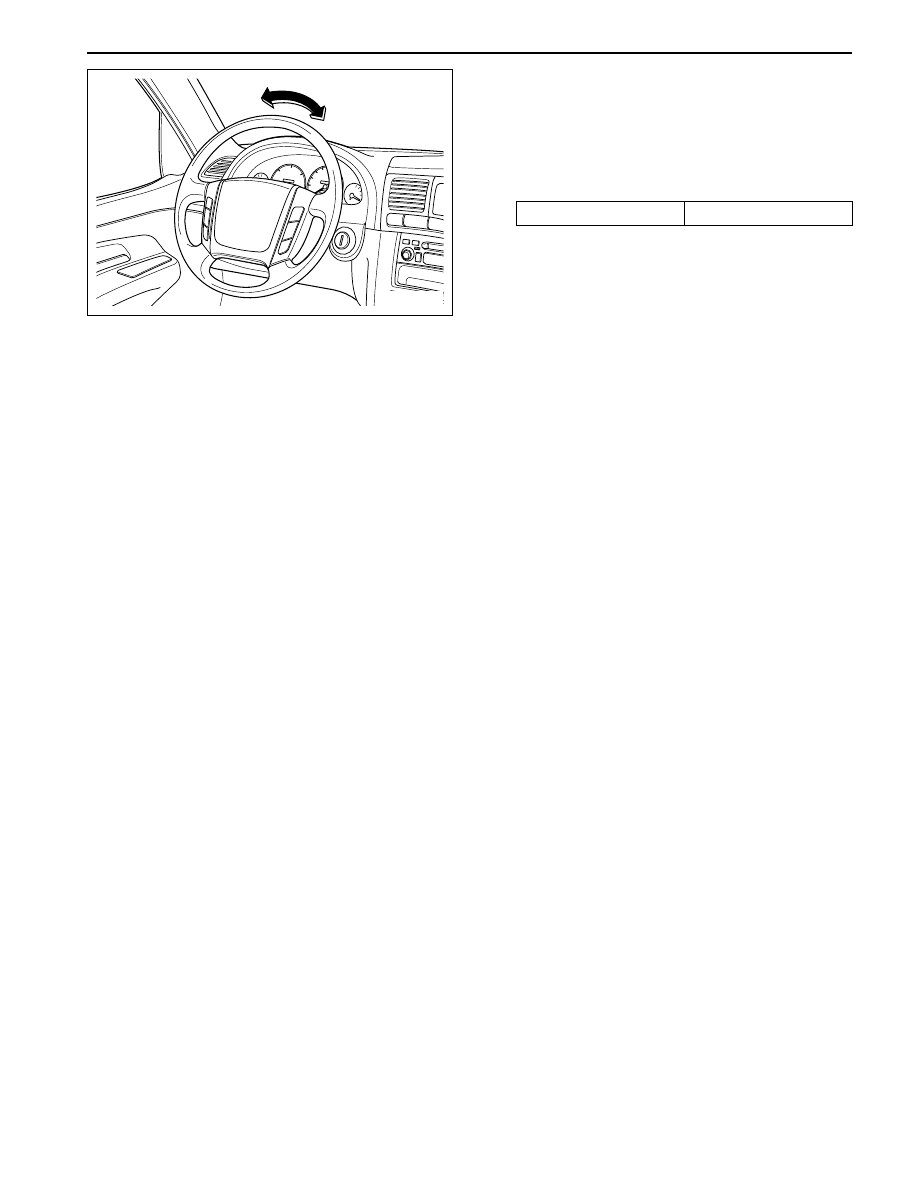

Steering Effort Check

1. Place a vehicle on the paved flat ground with front

wheels In a straight ahead position.

2. Start the engine and run it at 1,000 rpm.

3. Using a scale, measure the steering effort in both

directions.

Notice: The difference in steering effort of left/
right should be within 0.6 kg.

Standard

Max. 3.0 kg

SSANGYONG  Y200

6A-12  POWER STEERING

1

2

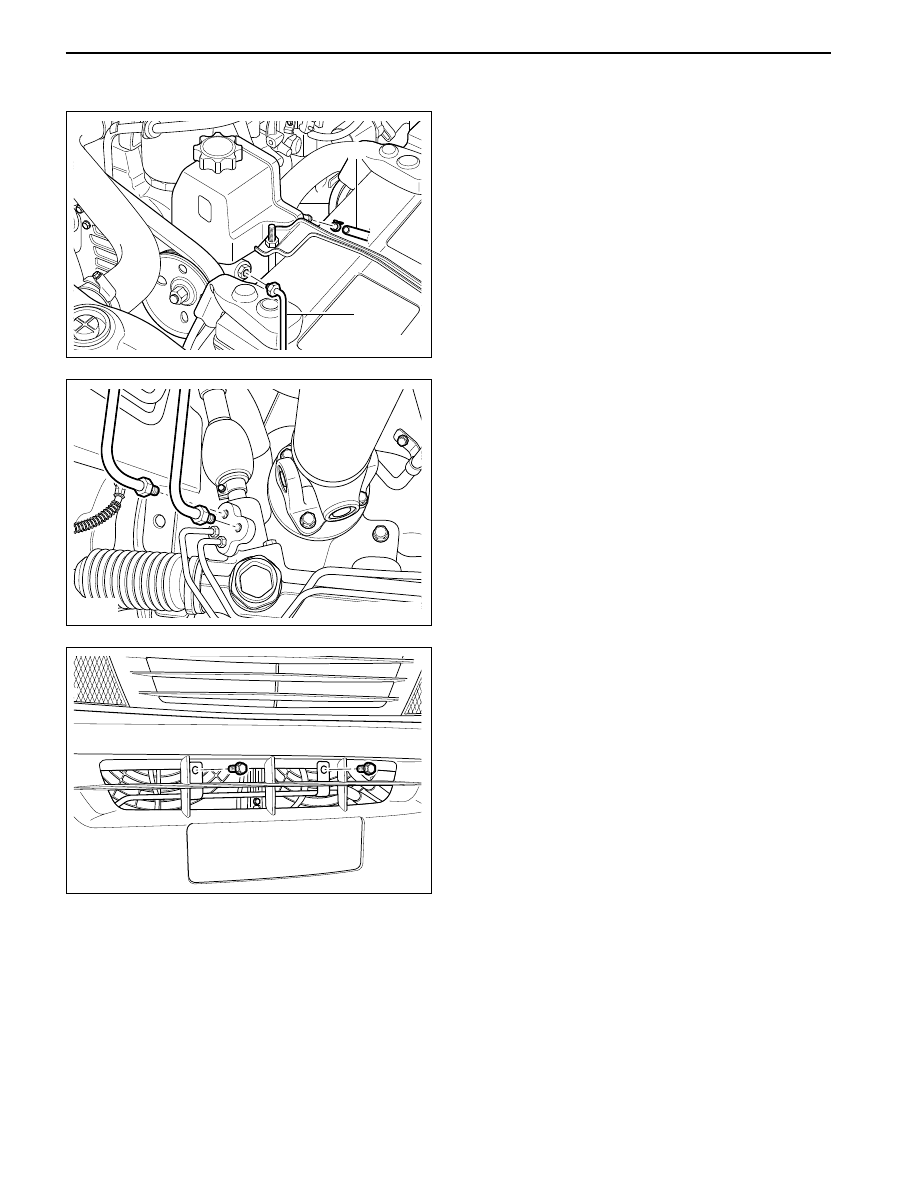

ON-VEHICLE SERVICE

POWER STEERING PIPE/HOSE

Removal

1. Remove the supply pipe (1) and return hose (2)

which is installed in power steering pump.

Notice: When removing/installing the pipe and
hose, prepare the oil container in order that the oil
may not drop down.

YAD6A160

YAD6A170

2. Remove the supply/return pipe installed in power

steering gear box.

3. Remove the oil pipe bracket bolt installed in front

bumper and pull off the oil pipe.

Notice: First, remove the pipe from the pipe clamp
installed in front panel and then pull off the pipe.

YAD6A180

MAINTENANCE AND REPAIR

POWER STEERING  6A-13

SSANGYONG  Y200

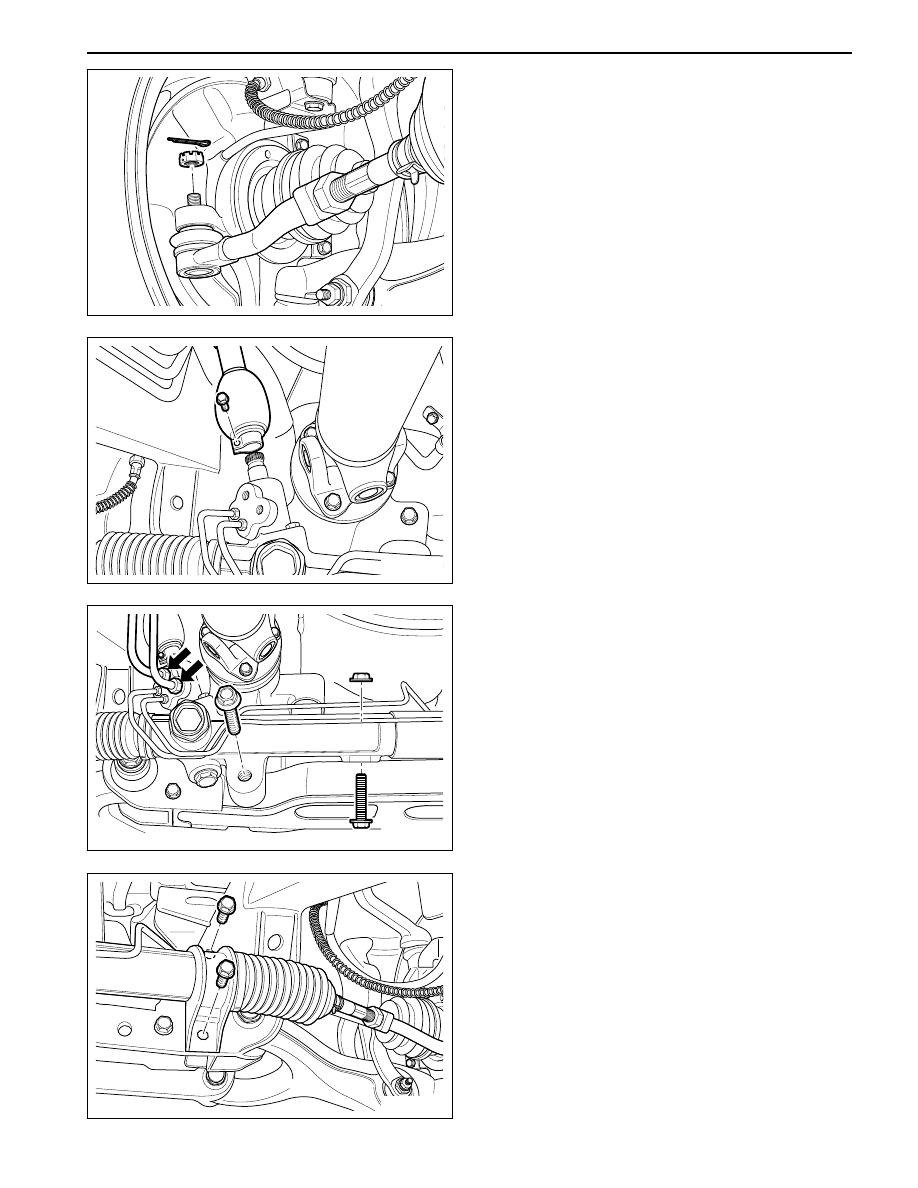

POWER STEERING GEAR BOX
ASSEMBLY

1. Remove the tie rod installed in steering knuckle.

Disassembly the split pin and sloted nut in tie rod
end and pull off the tie rod using the special tool.

YAD6A190

YAD6A200

YAD6A220

YAD6A210

2. Remove the joint blot of steering lower shaft and

separate the lower shaft from the gear box.

3. Remove the center bolt in gear box and left

mounting bolt. Remove the supply/return pipe
connection bolt.

4. Remove the clamping bolt and pull off the steering

gear box assembly.

SSANGYONG  Y200

6A-14  POWER STEERING

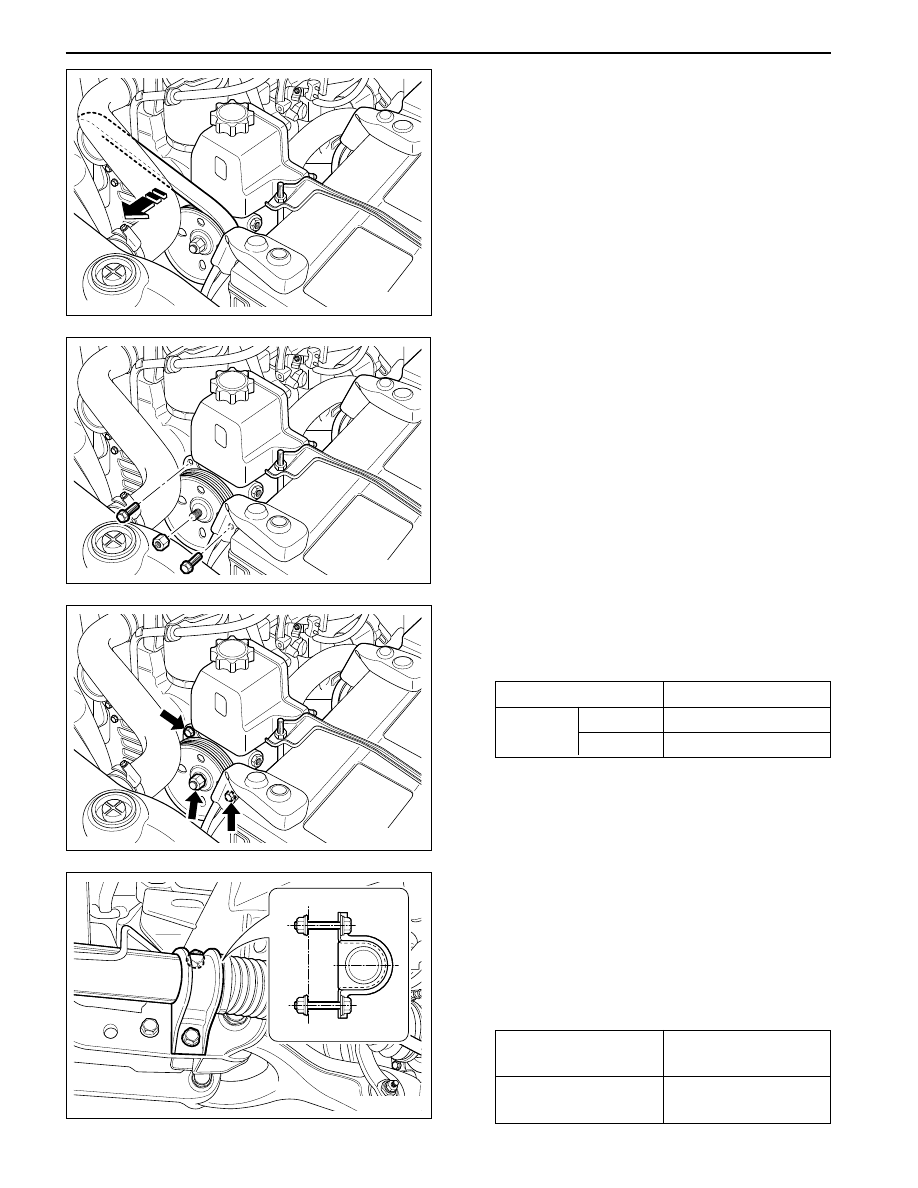

STEERING GEAR PUMP

1. Separate the drive belt from pump pulley after each

pipe and hose is removed.

YAD6A230

YAD6A250

YAD6A260

ASSEMBLY INSTALLATION

1. Install the power steering pump in engine and

tighten the bolt/nut as specified torque.

Torque

23 N•m (17 lb-ft)

23 N•m (17 lb-ft)

Nut

Bolt

Upper

Lower

2. Install the power steering gear box in frame.

Tighten the mounting bolts slightly and then install
the gear box clamp in left. Tighten the bolt/nut as
specified torque.

Notice: Because the length of bolt is same, install
them after checking.

Installation Notice

70 - 90 N•m

(52 - 66 lb-ft)

70 - 90 N•m

(52 - 66 lb-in)

95 mm Bolt/Nut (Upper)

95 mm Bolt/Nut (Lower)

YAD6A240

2. Remove the bolts/nuts in pump and pull off the

pump assembly from engine.
