SsangYong Rexton. Service manual - part 610
SSANGYONG Y200

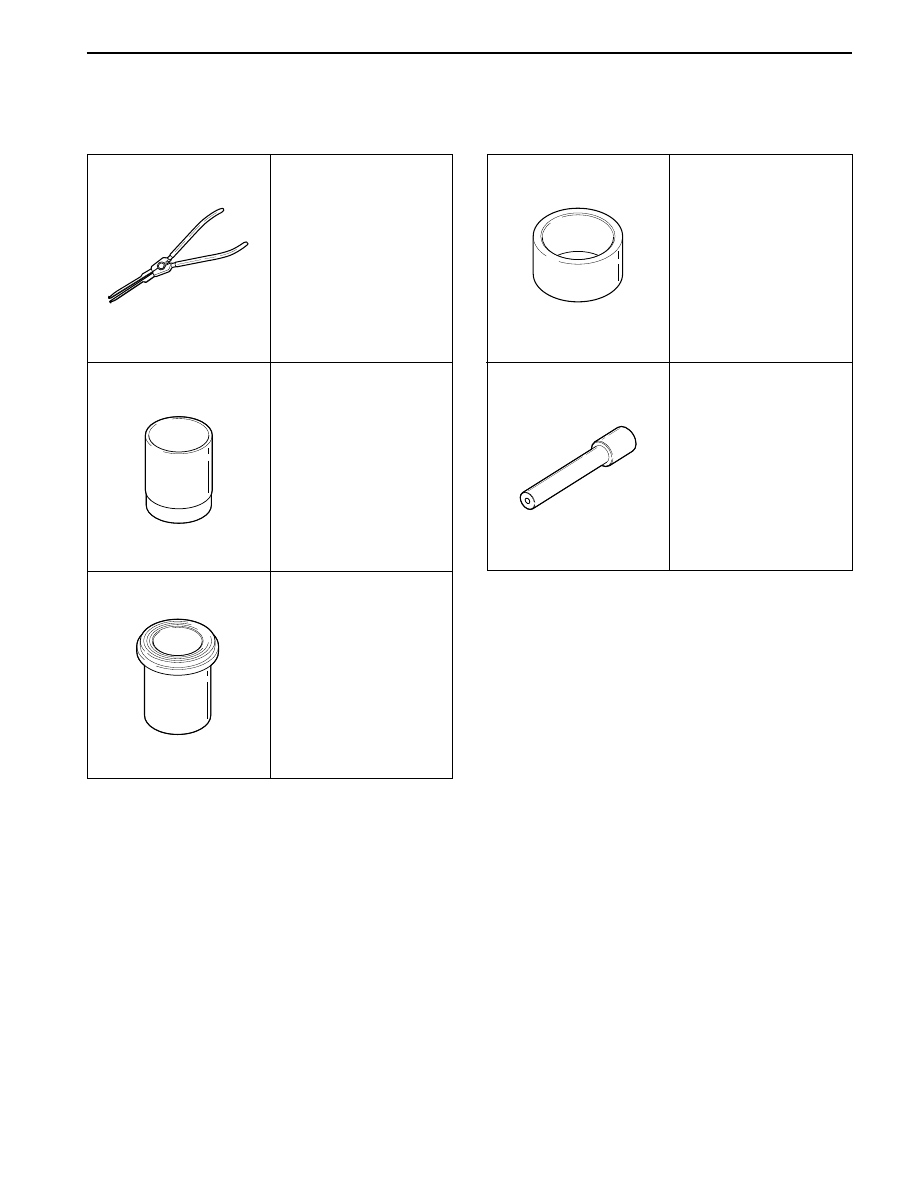

5D2-88 TRANSFER CASE - TOD
54. Holding the slotted support bracket tight against
the motor housing end, secure the bracket to the
transfer case, tightening the bolt with lock washer.
Installation Notice
Tightening Torque
8 - 11 N•m
(71 - 97 lb-in)
55. Retighten the two nuts that attach the slotted
support bracket to the end of the motor.
Installation Notice
Tightening Torque
3 - 6 N•m
(27 - 53 lb-in)
56. Install the clutch coil wire terminal(brown) and other
shift motor wires to the 7-pin connector(black).
57. Install the connector retainer at the connector end.
58. Connect the front and rear speed sensors wiring
to the 7-pin connector(white).
59. Install the rear case flange on the output shaft.
60. Install the rubber seal, output shaft yoke washer
and nut. Tighten the nut.
Installation Notice
61. Install the drain plug and tighten.
Tightening Torque
19 - 30 N•m
(14 - 22 lb-ft)
62. Fill the transfer case with 1.4 liters of Automatic
Transmission Fluid or equivalent.
63. Install the fill plug and tighten.
Installation Notice
64. Install the transfer case as outlined in removal and
Installation.
Tightening Torque
19 - 30 N•m
(14 - 22 lb-ft)
Tightening Torque
137 - 196 N•m
