AUTOMATIC TRANSMISSION  5A-211

SSANGYONG  Y200

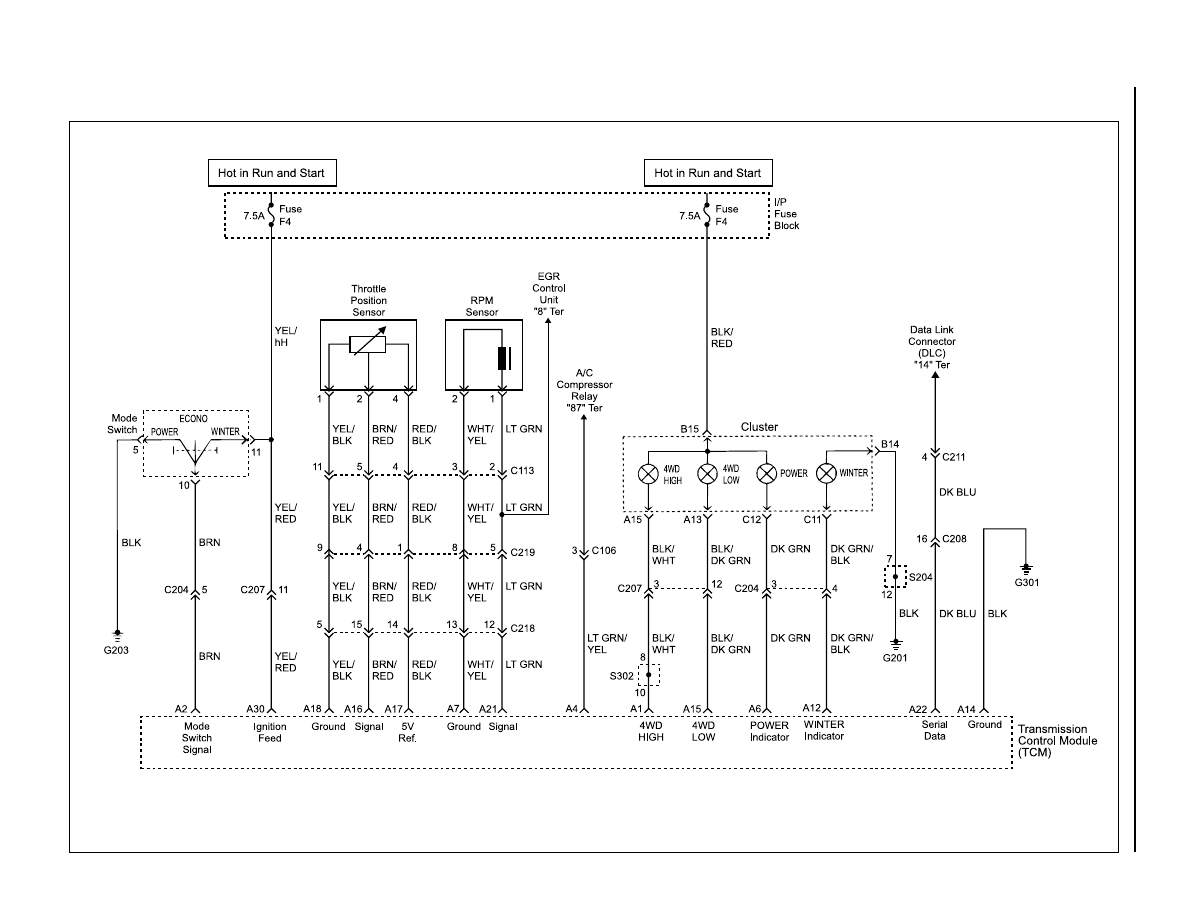

TCM WIRING DIAGRAM (GASOLINE ENGINE-1 OF 2)

SCHEMATIC AND ROUTING DIAGRAMS

YAD5A210

5A-212  AUTOMATIC TRANSMISSION

SSANGYONG  Y200

TCM WIRING DIAGRAM (GASOLINE ENGINE-2 OF 2)

YAD5A220

AUTOMATIC TRANSMISSION  5A-213

SSANGYONG  Y200

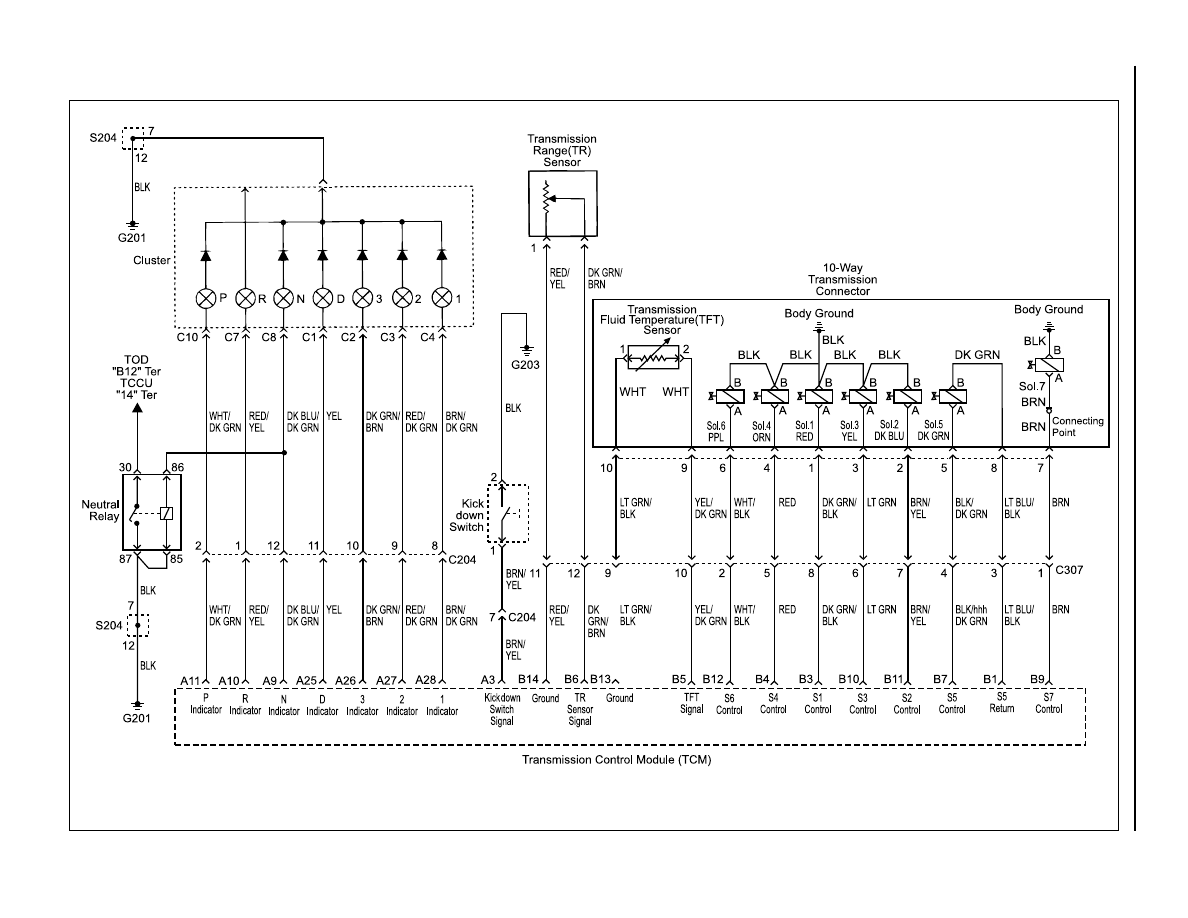

TCM WIRING DIAGRAM (DIESEL ENGINE-1 OF 2)

YAD5A230

5A-214  AUTOMATIC TRANSMISSION

SSANGYONG  Y200

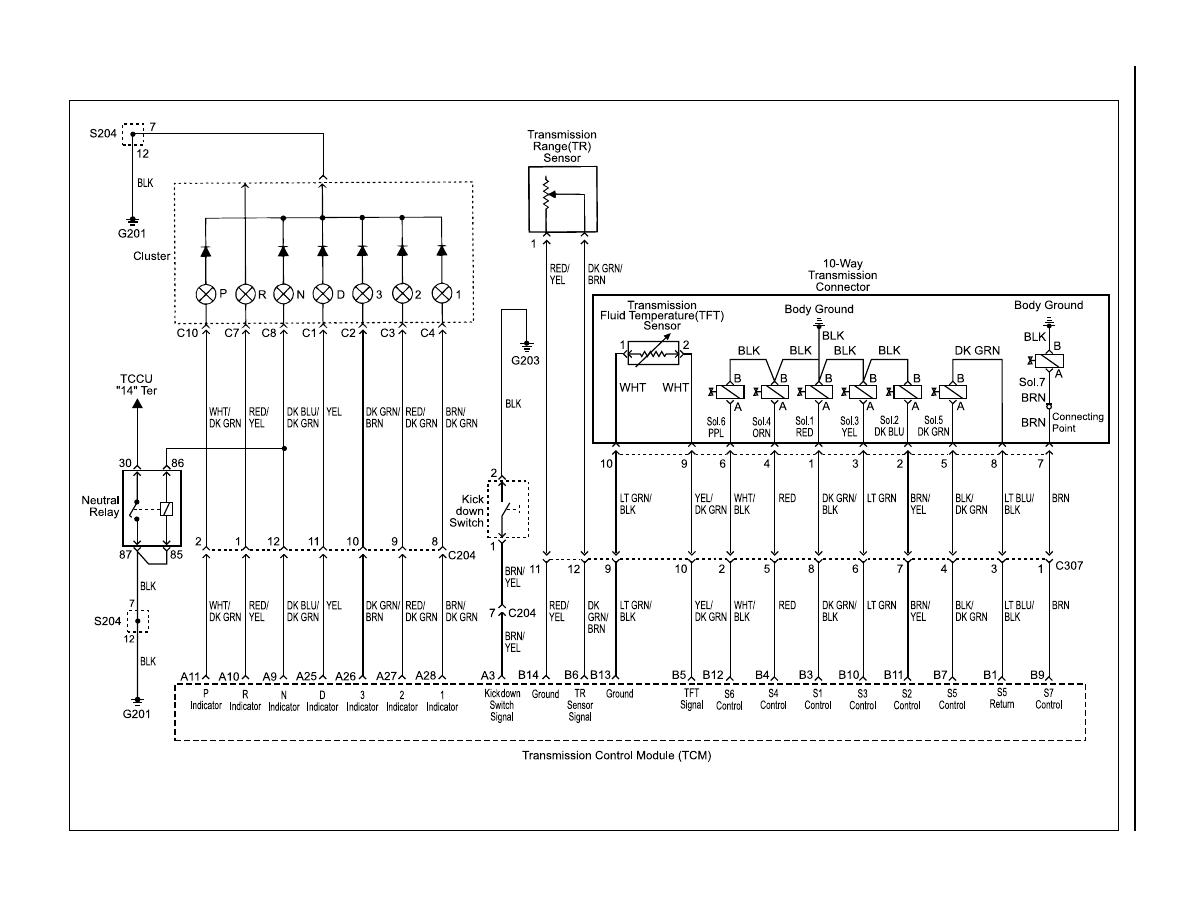

TCM WIRING DIAGRAM (DIESEL ENGINE-2 OF 2)

YAD5A240
