FRONT AXLE  3A-7

SSANGYONG  Y200

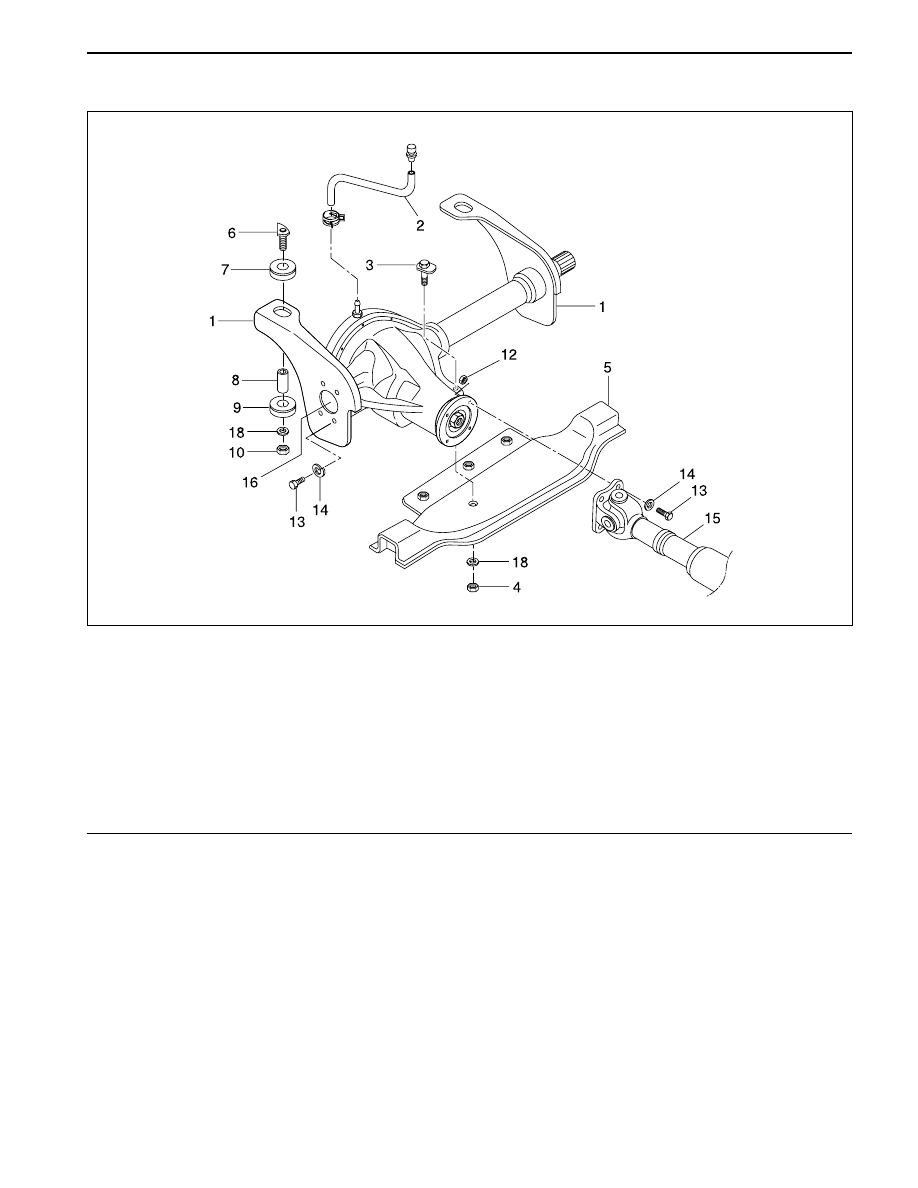

FRONT AXLE HOUSING

YAD3A330

1 Axle Mounting Bracket
2 Breather Hose
3 Bolt
4 Nut
5 Cross Member
6 Bolt
7 Bushing
8 Spacer
9 Spacer

10 Nut
11 Front Axle Housing
12 Nut
13 Bolt
14 Washer
15 Inner Shaft (Left)
16 Inner Shaft (Right)
17 Washer Plain

SSANGYONG  Y200

3A-8  FRONT AXLE

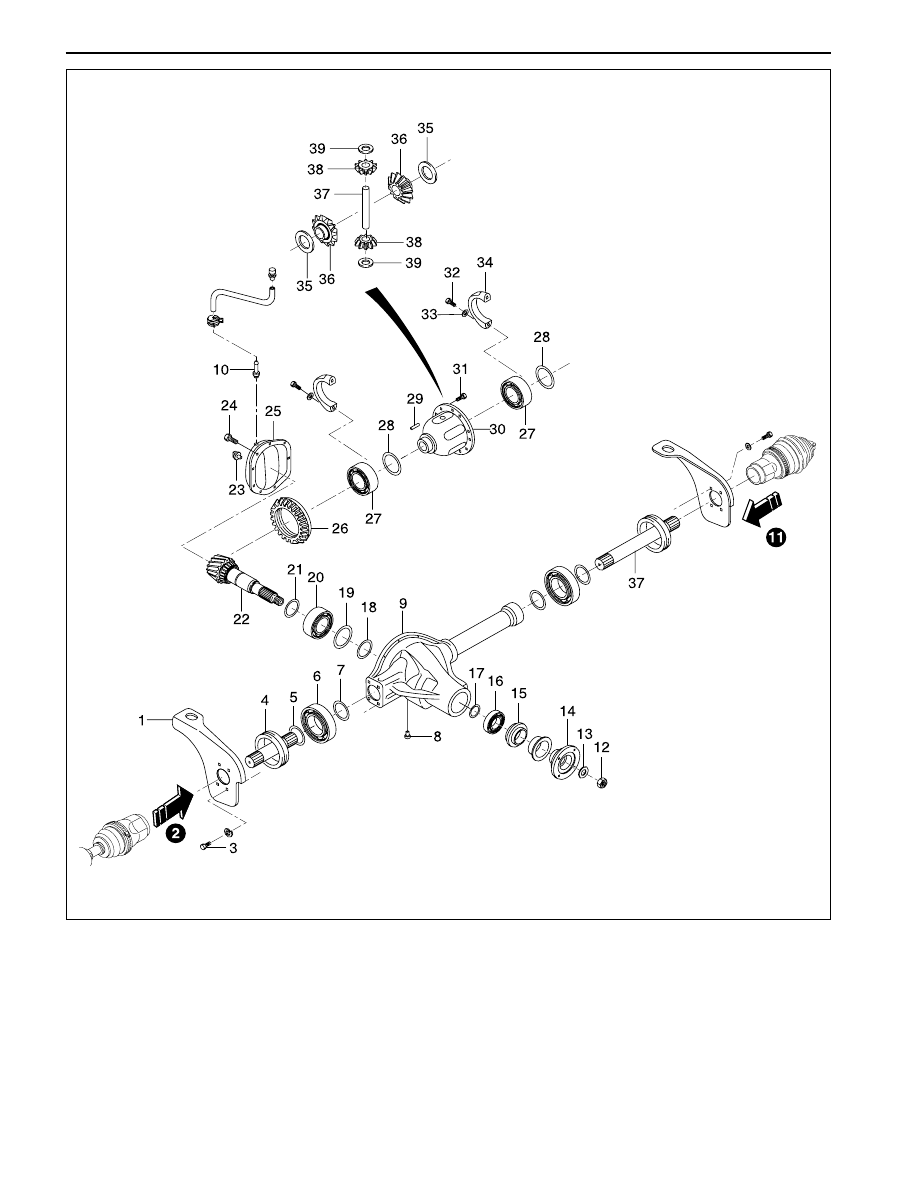

YAD3A380

FRONT AXLE  3A-9

SSANGYONG  Y200

1 Front Axle Housing Mounting Bracket
2 Inner Shaft (Left)
3 Bolt
4 Oil Seal ................................................................

........ Replace, Apply Grease to the Sealing Rib

5 Snap Ring
6 Bearing
7 Snap Ring
8 Oil Drain Plug
9 Front Axle Housing

10 Breather Nipple
11 Inner Shaft (Right)
12 Pinion Lock Nut
13 Washer
14 Companion Flange
15 Oil Seal ................................................................

......... Replace, Apply grease to the sealing Rib

16 Bearing
17 Shim
18 Bearing Baffle
19 Shim

20 Bearing
21 Oil Slinger
22 Driver Pinion
23 Oil Filler Plug
24 Bolt
25 Axle Housing Cover ........... Apply Liquid Gasket
26 Ring Gear
27 Bearing
28 Shim
29 Shaft Lock Pin
30 Differential Case
31 Bolt
32 Bolt
33 Washer
34 Bearing Cap
35 Thrust Washer
36 Side Gear
37 Differential shaft
38 Differential Pinion
39 Thrust Washer

SSANGYONG  Y200

3A-10  FRONT AXLE

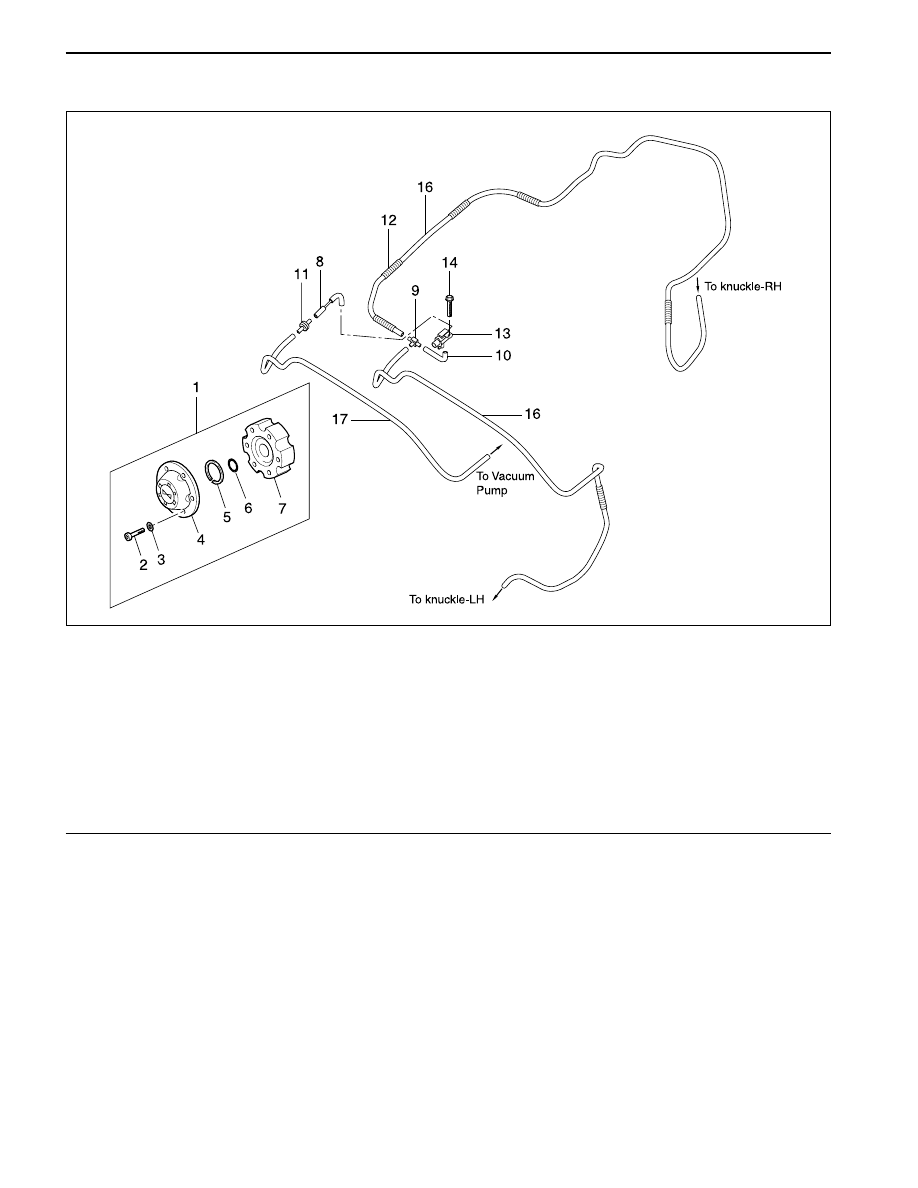

VACUUM LINE

YAD3A300

1 Vacuum Auto-locking Hub Assembly
2 Bolt .................................. 50-60 N•m(37-44 lb-ft)
3 Washer
4 Auto-locking Hub Cap
5 Retaining Ring
6 Shim
7 Locking Hub
8 Hose and Tube Assembly
9 T-Connector

10 Hose Molded
11 Check Valve
12 Corrugated Tube
13 Auto-locking Hub Solenoid Valve
14 Bolt
15 Hose (L:2000/Yellow)
16 Hose (L:3200/Red)
17 Hose (L:1500/White) (DSL)

Hose (L:800/Blue) (GSL)
