REAR SUSPENSION  2D-9

SSANGYONG  Y200

REAR SUSPENSION ASSEMBLY

Removal Procedure

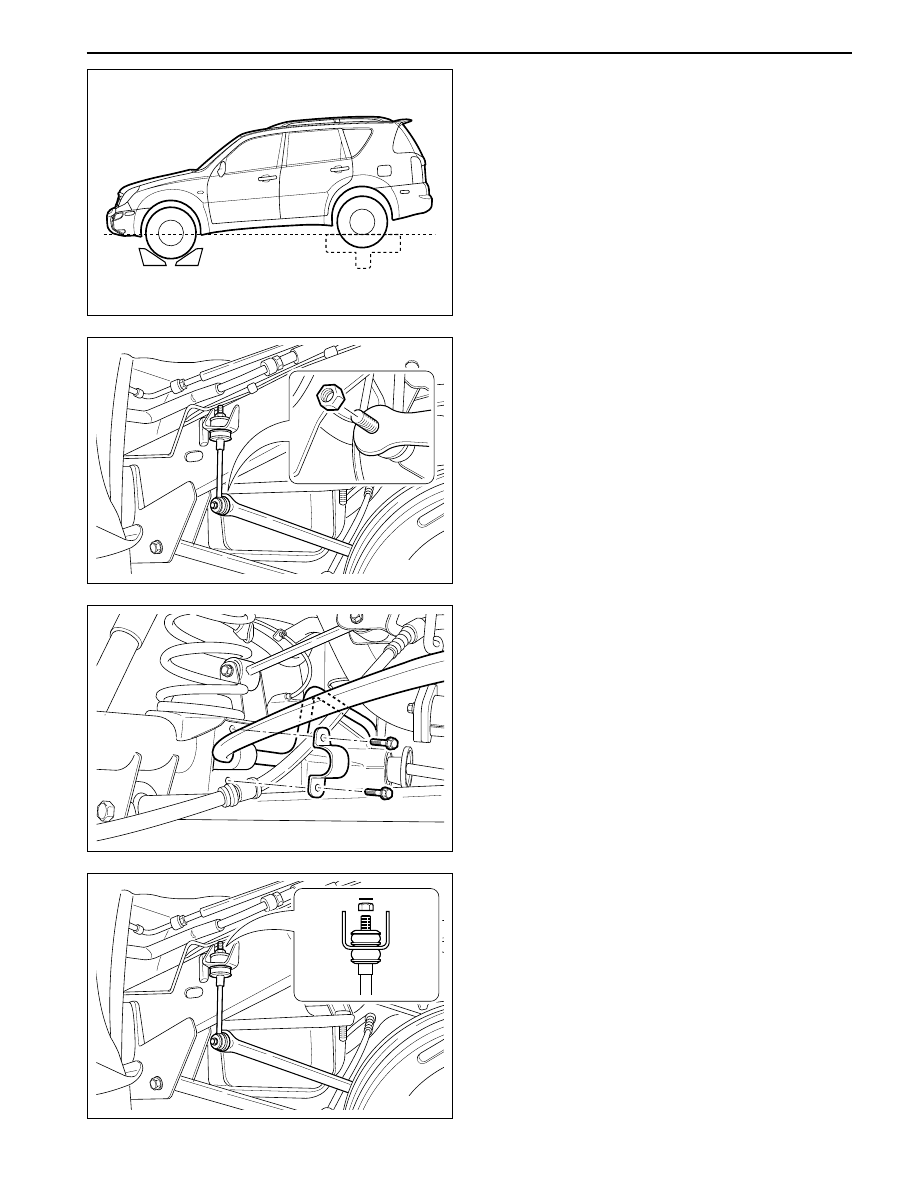

1. Support the rear axle housing bottom safely using

the jack and fix the front wheel as shown.

YAD2D080

YAD2D090

YAD2D100

2. Remove the mounting nut of the lower link

connected the stabilizer bar and separate the
stabilizer bar.

3. Remove the mounting cap bolt retaining both end

of the stabilizer bar and remove the stabilizer bar,
the mounting cap and the bushing.

YAD2D110

4. Remove the upper mounting nut of the link with

the stabilizer bar removed and remove the link.

SSANGYONG  Y200

2D-10  REAR SUSPENSION

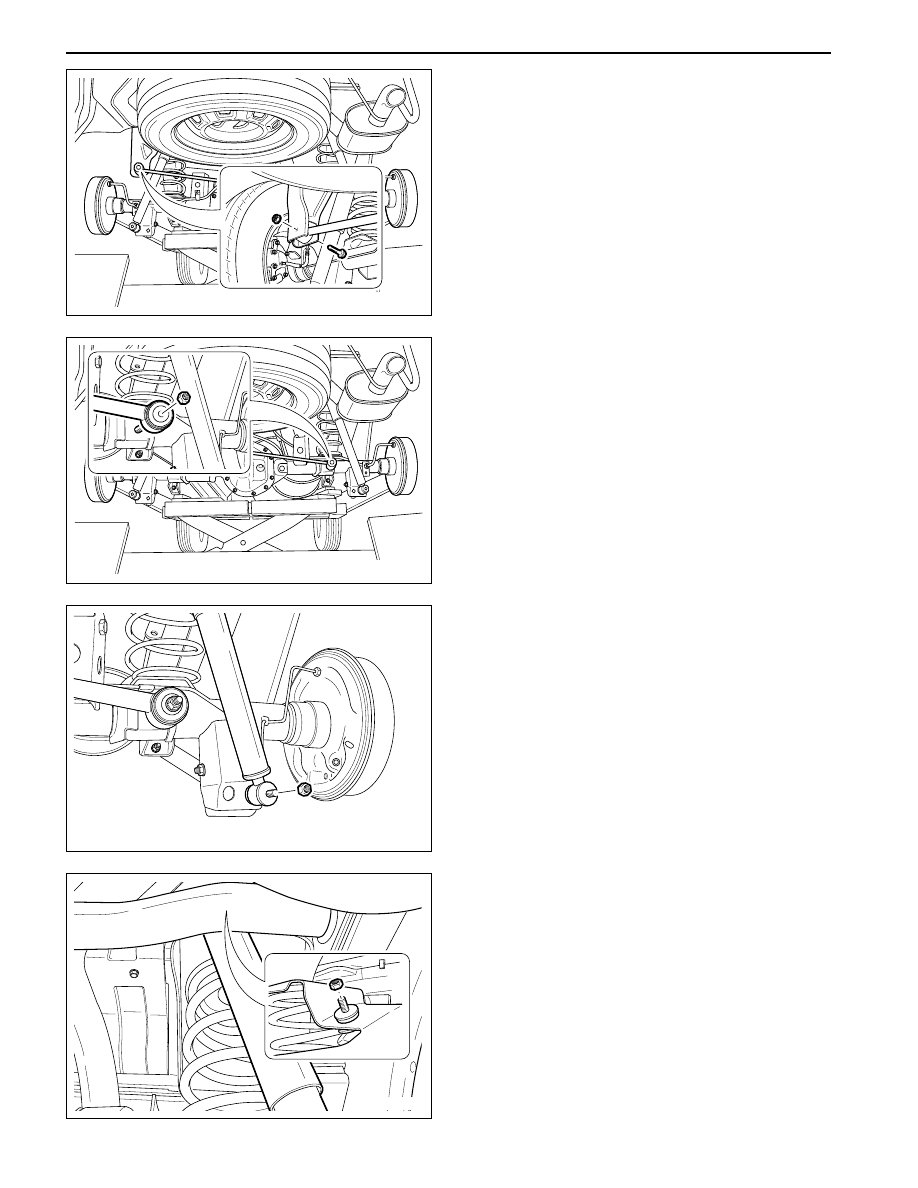

5. Remove the lateral rod mounting nut by retaining

the frame.

8. Remove the upper nut and remove the shock

absorber

YAD2D120

YAD2D130

YAD2D140

6. Remove the lateral rod mounting nut by retaining

the axle and remove the lateral rod assembly.

7. Remove the lower nut of the shock absorber.

YAD2D150

REAR SUSPENSION  2D-11

SSANGYONG  Y200

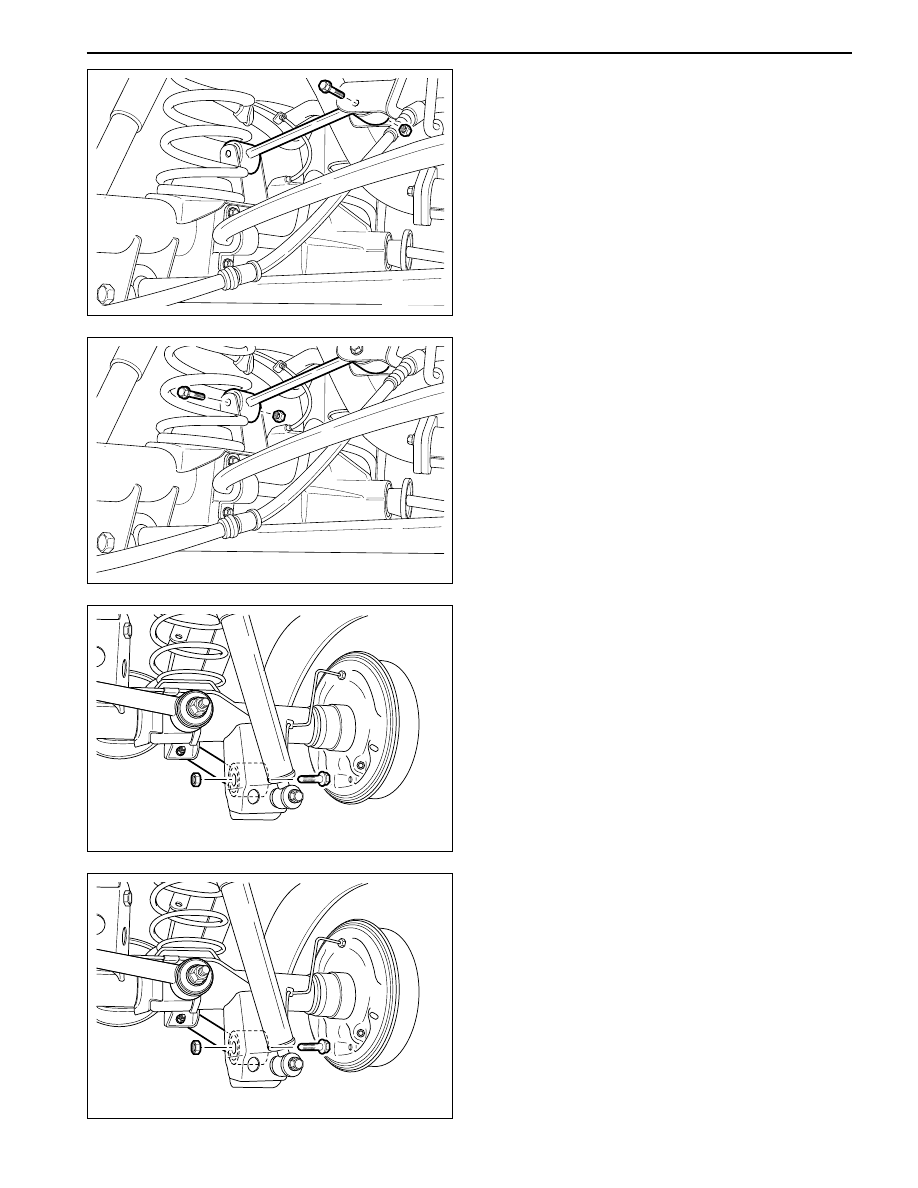

9. Remove the bolt and nut retaining the frame.

12. Remove the lower arm mounting bolt & nut

retaining the axle and then remove the lower arm.

YAD2D160

YAD2D170

YAD2D180

YAD2D180

10. Remove the upper bolt and nut retaining the axle

and remove the upper arm.

11. Remove the lower arm mounting the frame.

SSANGYONG  Y200

2D-12  REAR SUSPENSION

YAD2D210

Installation Procedure

1. Installation should follow the removal procedure

in the reverse order.

2. Be careful to the installation direction of the coil

spring to install the spring correctly.

Notice:

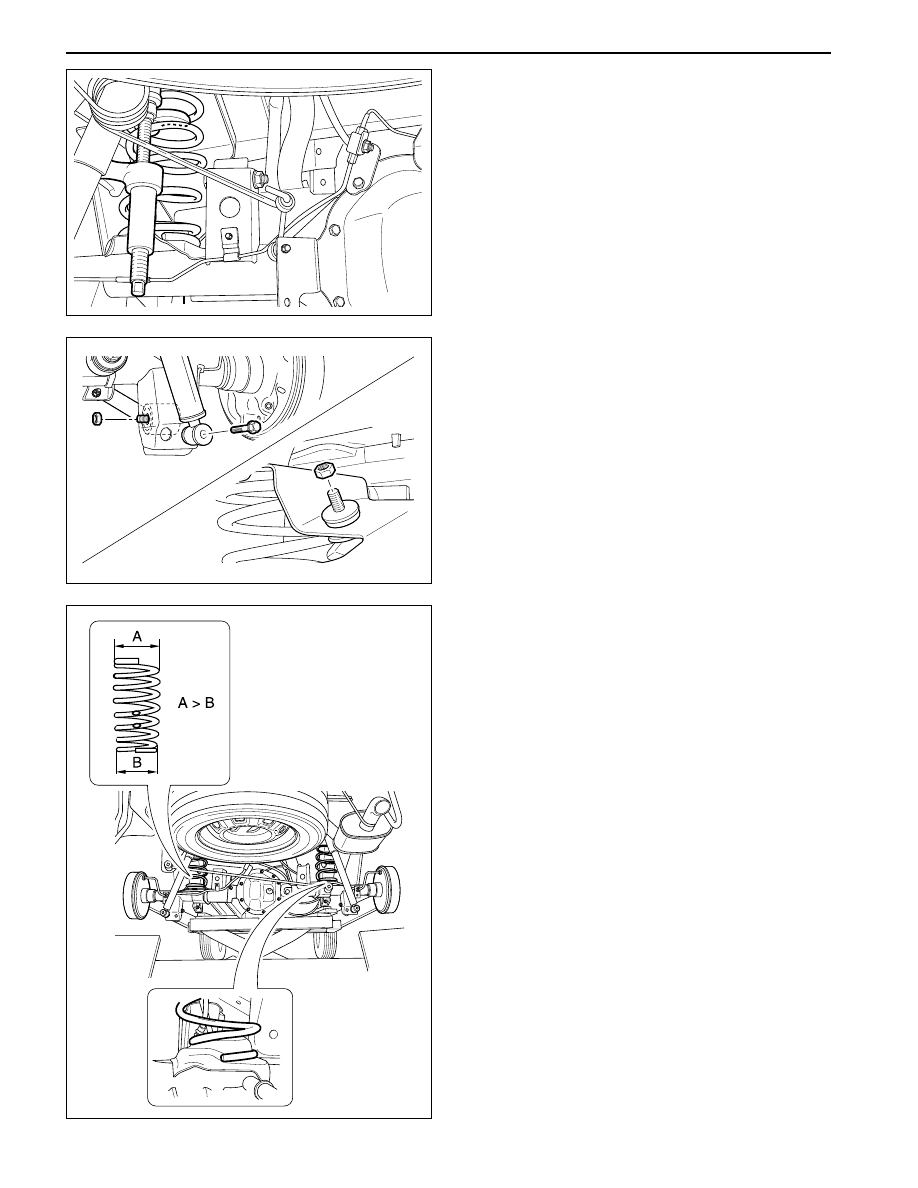

1. Be careful that the diameter of the upper coil

spring is longer than that of the lower’s.

2. Verify that the coil spring should be installed

onto the spring seat of the axle and body(frame)
correctly.

13. Loosen the brake & hose and remove the spring

by pushing to incline the rear axle.

YAD2D190

YAD2D200

14. Remove the mounting nut of the shock absorber

bottom and the upper arm. And then remove the
spring.
