1F2-62  M161 ENGINE CONTROLS

YAD1F510

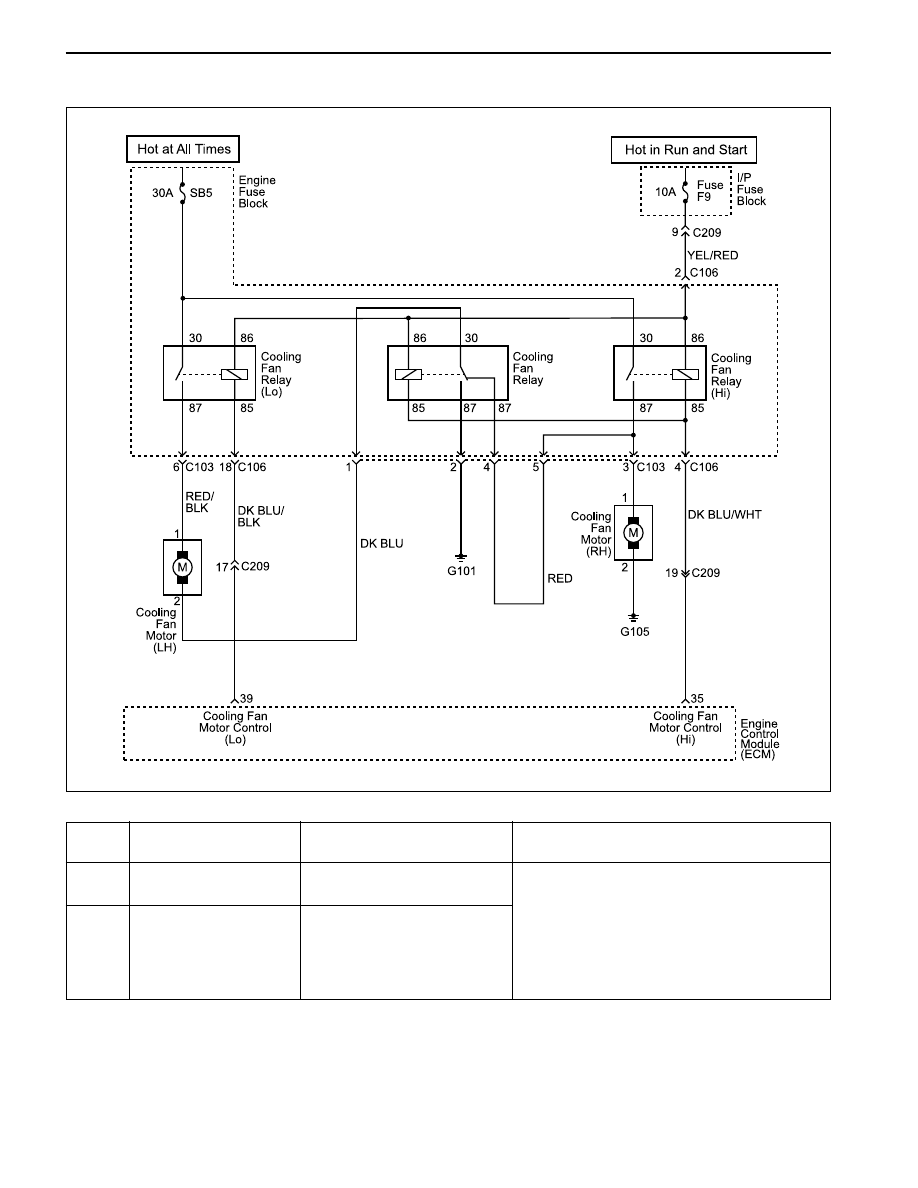

COOLING FAN

Failure

Code

Description

Trouble  Area

Maintenance Hint

Cooling fan (HI ) relay

short circuit to power

Cooling fan (HI ) relay
short circuit to ground

or open

Cooling fan short circuit to

power

Cooling fan short circuit to

ground or open

•

Inspection the Engine Control Module

(ECM) pin 35 about short circuit or open
with bad contact

•

Inspection the power source

•

Inspection the cooling fan

•

Inspection the ECM

44

45

Circuit Description

Ignition voltage is supplied directly to the cooling fan relay coil. The ECM controls the relay by grounding the
control circuit. When the ECM is commanding a command ON, the voltage of the control circuit should be low
(near 0 volt).

When the ECM is commanding the control circuit should be high (near battery voltage). If the fault detection circuit
senses a voltage other than what is expected, the fault line status will change causing the fault code to set.

M161 ENGINE CONTROLS  1F2-63

SSANGYONG  Y200

YAD1F520

A/C COMPRESSOR RELAY

Failure

Code

Description

Trouble  Area

Maintenance Hint

 A/C compressor relay

short circuit to battery

A/c compressor relay

short circuit to ground

or open

When malfunction of A/C

compressor control

•

Monitoring the actual operation through
scan tool

•

Inspection the Engine Control Module
(ECM) pin 44 about short circuit or open
with bad contact

•

Inspection the relay short circuit or open

•

Inspection the ECM

228

229

Circuit Description

When the ECM detects that A/C has been requested, the ECM will activated the A/C clutch relay. When the relay
has been activated, voltage should be present at both the A/C clutch relay and A/C switch circuit at ECM.

SSANGYONG  Y200

1F2-64  M161 ENGINE CONTROLS

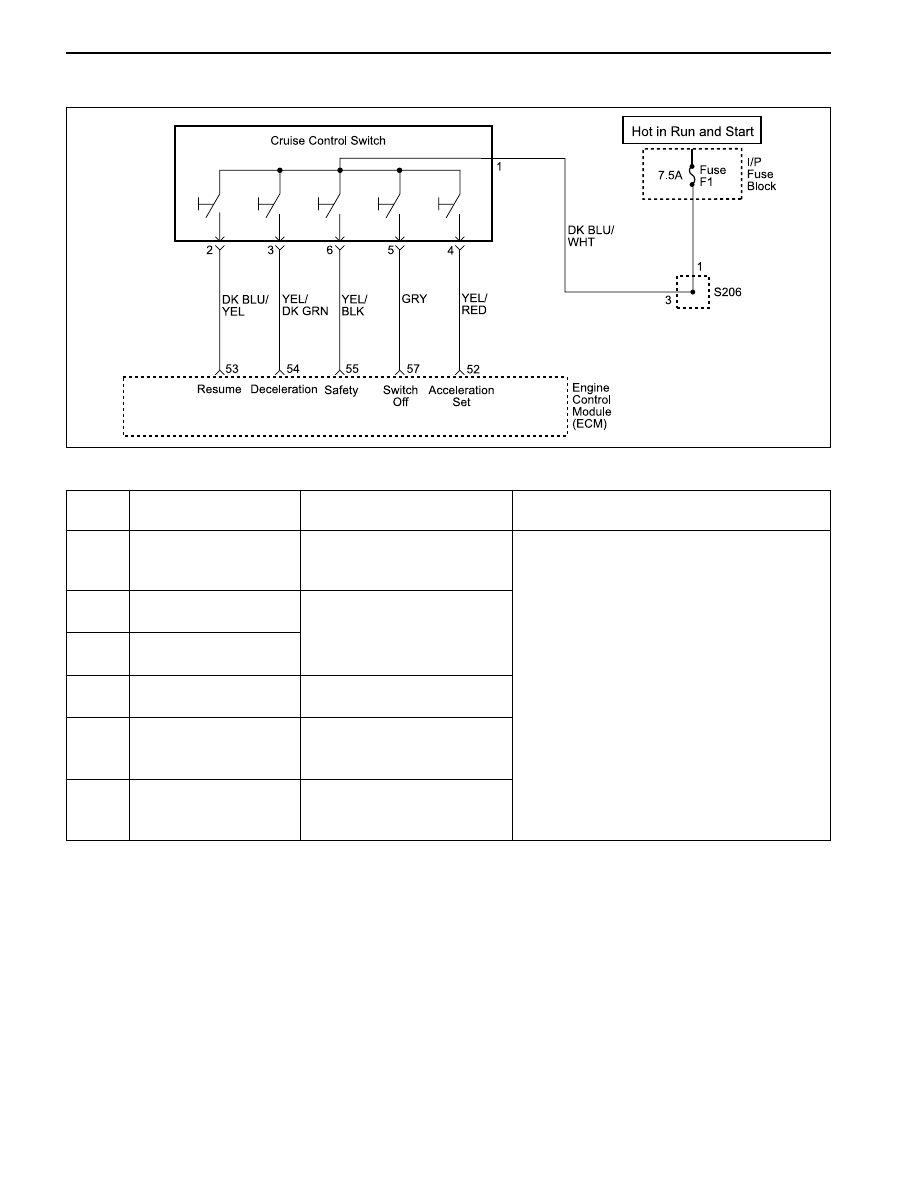

CRUISE CONTROL SWITCH

YAD1F530

Circuit Description

Cruise control is an automatic speed control system that maintain adesired driving speed with out using the
accelerator pedal. The vehicle speed must be greater than 40 km/h to engage cruise control.

Failure

Code

Description

Trouble  Area

Maintenance Hint

Cruise control “OFF”

due to message counter

failure

Vehicle speed signal

failure

Vehicle speed signal

failure

Cruise control lever

failure

Cruise control

acceleration failure

Cruise control

deceleration failure

Cruise control system

message counter fault

When malfunction of

auto-cruise system

Implausible condition of

vehicle speed signal.

Cruise control lever defective

Cruise control system

Implausible condition of

acceleration signal

Cruise control system

Implausible condition of

deceleration signal

•

Monitoring the actual recognition status

and vehicle speed signal through scan
tool

•

Inspection the Engine Control Module

(ECM) pin 52, 53, 54, 55, 57 about short
circuit or open with bad contact

•

Inspection the CAN and ABS

•

Inspection the cruise control lever switch

•

Inspection the ECM

129

130

131

132

133

134

M161 ENGINE CONTROLS  1F2-65

SSANGYONG  Y200

Circuit Description

Battery voltage is supplied to the TCS warning lamp with the ignition in ON and START. The warning lamp can be
activated only by the Electrical Brake Control Module (EBCM) internally supplying ground to terminal 21. If the
TCS input circuit is open or short, this failure code will be set.

Failure

Code

Description

Trouble  Area

Maintenance Hint

TCS input signal short

circuit to battery

TCS input signal short

circuit to ground or

open

TCS short circuit to power

TCS short circuit to ground

or open

•

Inspection the Engine Control Module
(ECM) pin 45 about short circuit or open
with bad contact

•

Inspection the TCS lamp of I/P cluster.

•

Inspection the ECM

150

151

TRACTION CONTROL SYSTEM (TCS)
