M162 ENGINE CONTROLS  1F1-65

SSANGYONG  Y200

TCS input signal short

circuit to battery

TCS input signal short

circuit to ground or

open

YAD1F540

Failure

Code

Description

Trouble  Area

Maintenance Hint

TCS short circuit to power

TCS short circuit to ground or

open

•

Inspection the Engine Control Module
(ECM) pin 45 about short circuit or open
with bad contact

•

Inspection the TCS lamp of I/P cluster.

•

Inspection the ECM

150

TRACTION CONTROL SYSTEM (TCS)

151

Circuit Description

Battery voltage is supplied to the TCS warning lamp with the ignition in ON and START. The warning lamp can be
activated only by the Electrical Brake Control Module (EBCM) internally supplying ground to terminal 21. If the
TCS input circuit is open or short, this failure code will be set.

SSANGYONG  Y200

1F1-66  M162 ENGINE CONTROLS

Resonance flap short

circuit to battery

Resonance flap short

circuit to ground or

open

YAD1F150

Failure

Code

Description

Trouble  Area

Maintenance Hint

Resonance flap short circuit to

power

Resonance flap short circuit to

ground or open

•

Monitoring the actual operational status

and vehicle speed signal through scan
tool

•

Inspection the Engine Control Module

(ECM) pin 97 about short circuit or open
with bad contact

•

Inspection the power source short circuit

or open to resonance flap

•

Inspection the resonance flap solenoid

and hardware

•

Inspection the ECM

198

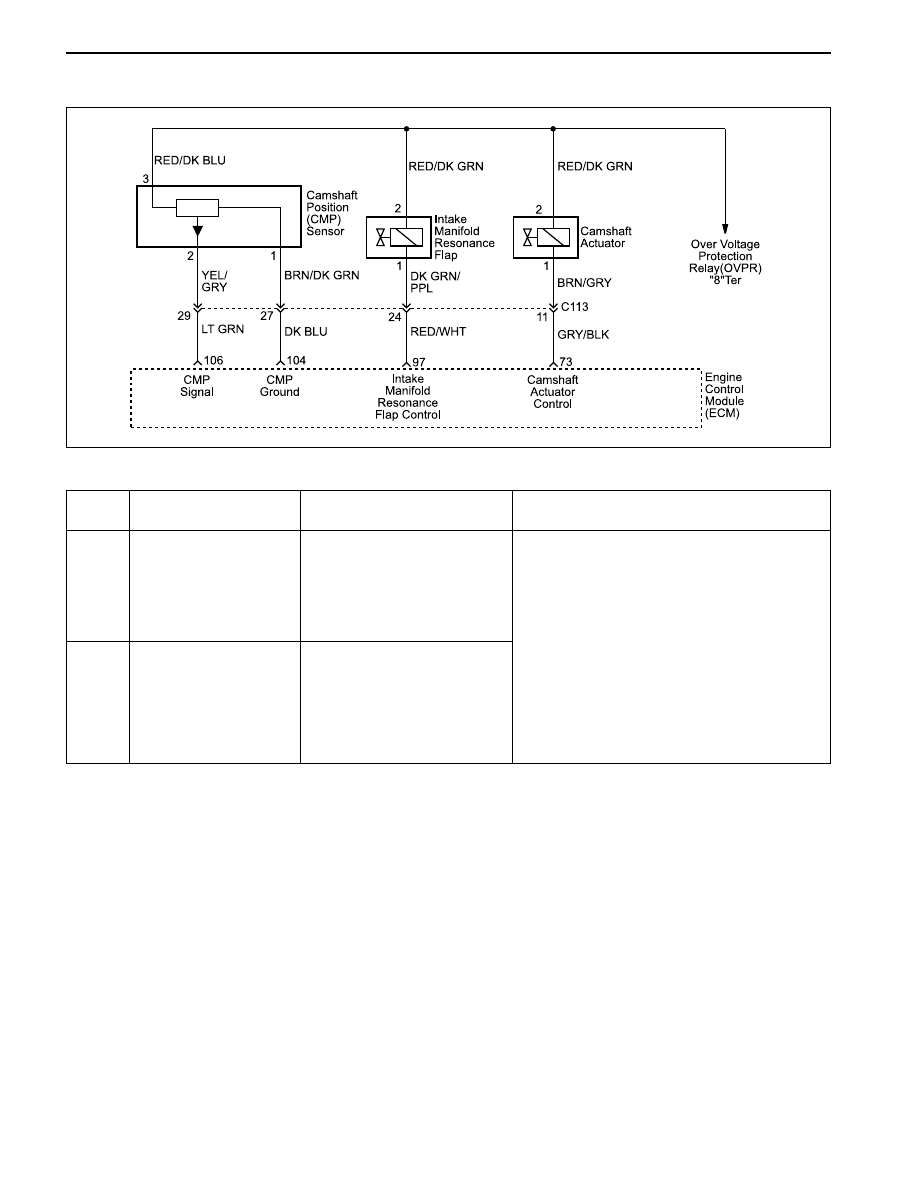

RESONANCE FLAP

199

Circuit Description

A pneumatically actuated resonance flap is located on the intake manifold, and will be opened and closed by
load, which operates resonance flap according to engine and controlled by ECM and rpm.

Resonance flap is closed at idle/partial load (less than 3,800/rpm). The switch valve will be adjusted by ECM and
resonance flap will be closed. By increasing air flow passage through dividing intake air flow toward both air
collection housing. This leads to a significant increase in the torque in the lower speed range.

Resonance flap is open at full load (over 3,800/rpm). The switch valve will not be adjusted by ECM and resonance
flap will be open. The collected air in the air collection housing will not be divided and intake air passage will be
shorten.

M162 ENGINE CONTROLS  1F1-67

SSANGYONG  Y200

Stop lamp switch failure

YAD1F550

Failure

Code

Description

Trouble  Area

Maintenance Hint

When malfunction of stop

lamp switch - implausible

condition of stop lamp signal

input

•

Monitoring the actual operational status
and vehicle speed signal through scan
tool

•

Inspection the Engine Control Module
(ECM) pin 49 about short circuit or open
with bad contact

•

Inspection the contact condition of stop
lamp switch

•

Inspection the ECM

135

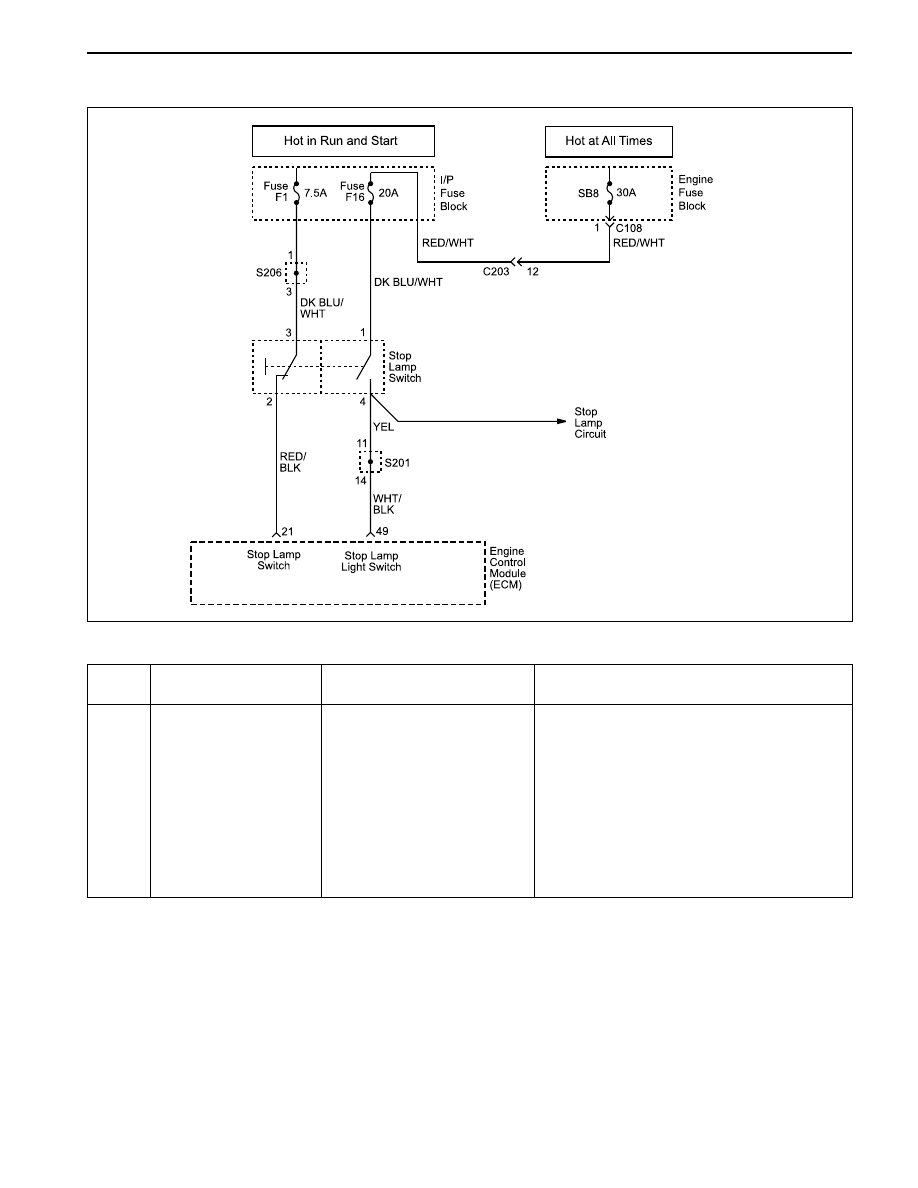

STOP LAMP SWITCH

Circuit Description

The stop lamp switch is normally opened. When the ignition switch ON and brake ON, the battery voltage is
supplied to the ECM. A scan tool should display ON when brake pedal is depressed and should read OFF with
brake pedal released.

SSANGYONG  Y200

1F1-68  M162 ENGINE CONTROLS

Engine rpm output

circuit short circuit to

battery

Engine rpm output

circuit short circuit to

ground or open

YAD1F560

Failure

Code

Description

Trouble  Area

Maintenance Hint

When short circuit to battery

When short circuit to ground

or open

•

Inspection the cluster panel board circuit

•

Inspection the ECM

•

Monitoring the actual rpm in cluster

•

Inspection the Engine Control Module

(ECM) pin 60 about short circuit or open

32

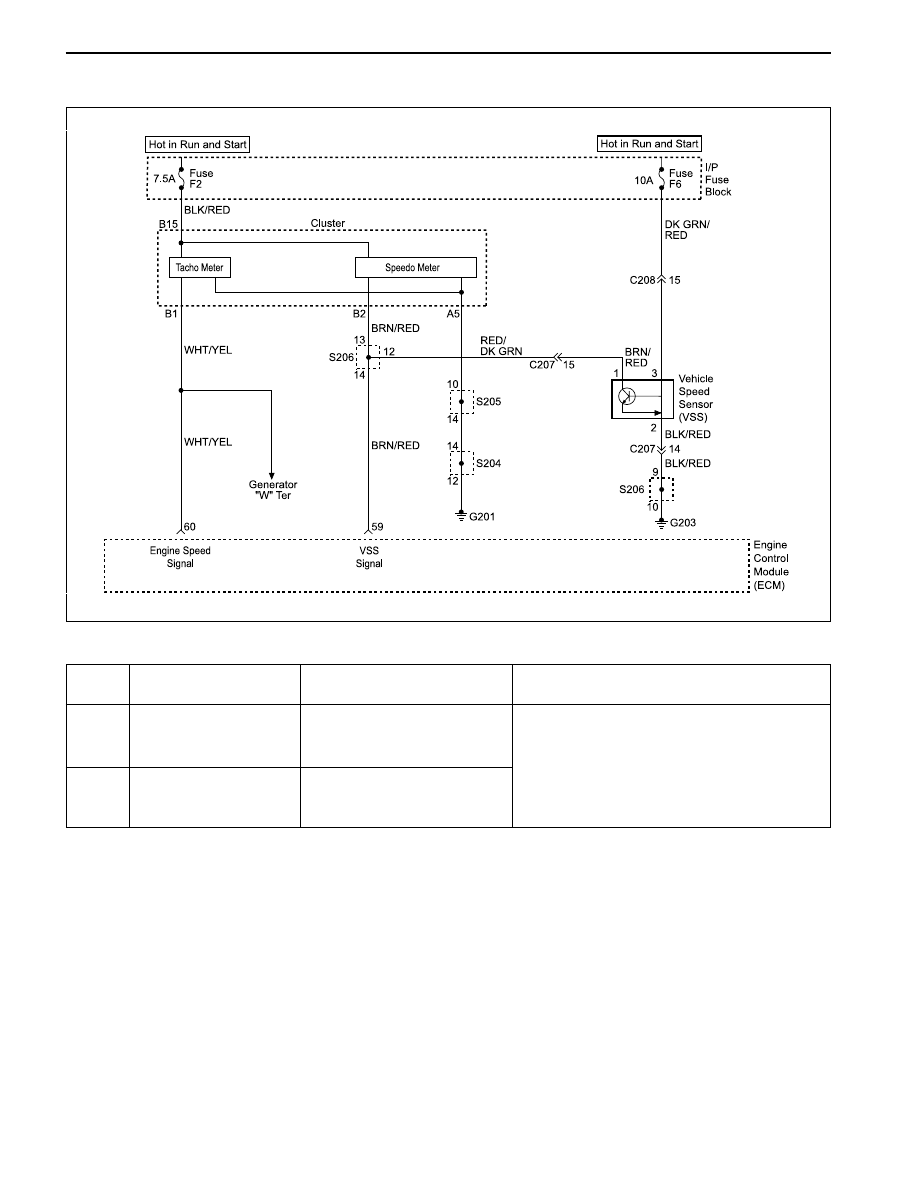

ENGINE RPM

33
