SSANGYONG  Y200

1B3-56  DIESEL ENGINE MECHANICAL

YAD1BD70

YAD1BCV0

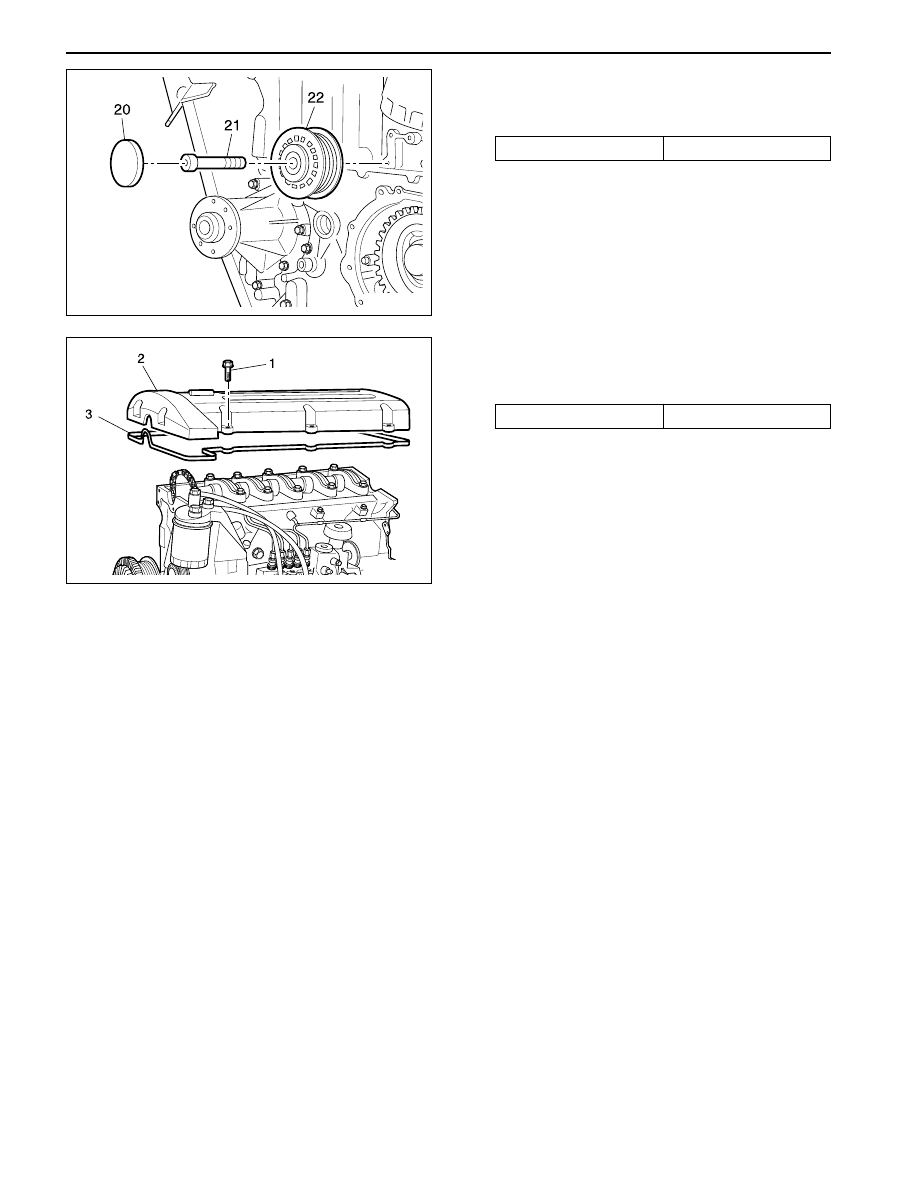

15. Install the guide pulley (22) and fit the closing

cover (20).

Installation Notice

16. Replace the gasket (3) and install the cylinder

head cover (2).

Installation Notice

17. Install the cooling fan belt pulley and fan clutch.

18. Install the belt tensioning device and then install

the belt.

19. Install the cooling fan.

20. Fill the engine oil and check oil leaks by running

the engine.

Tightening Torque

23 N•m (17 lb-ft)

Tightening Torque

10 N•m (89 lb-in)

DIESEL ENGINE MECHANICAL  1B3-57

SSANGYONG  Y200

YAD1BDQ0

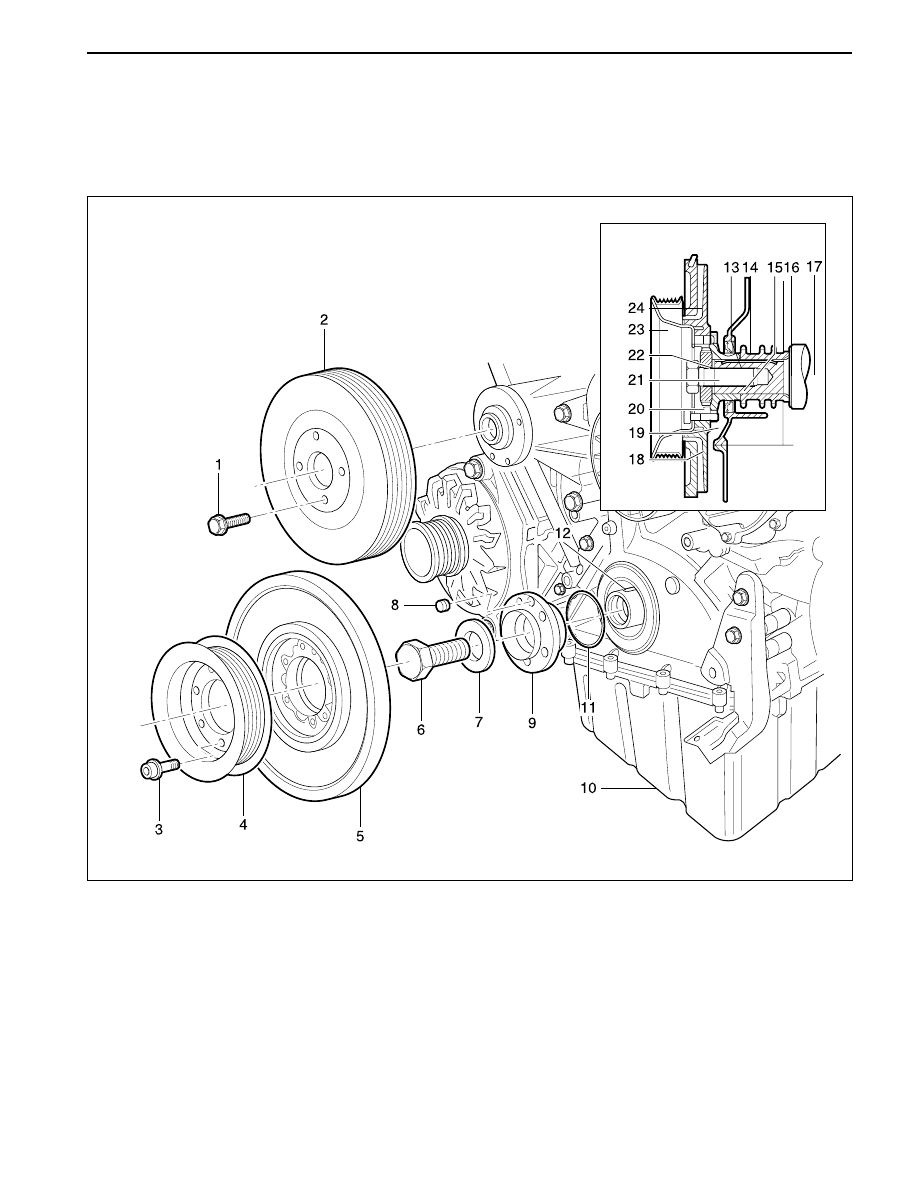

CRANKSHAFT ASSEMBLY

VIBRATION DAMPER AND HUB

Preceding Work:

Removal of the cooling fan

Removal of poly V-belt

SSANGYONG  Y200

1B3-58  DIESEL ENGINE MECHANICAL

1 Bolt ........................................... 10 N•m (89 lb-in)
2 Cooling Fan Belt Pulley
3 Socket Bolt .............................. 23 N•m (17 lb-ft)
4 Crankshaft Belt Pulley
5 Vibration Damper
6 Bolt .............................. 200 N•m (148 lb-ft)+ 90°
7 Washer
8 Straight Pin
9 Hub

10 Oil Pan
11 Radial Seal
12 Key

13 Radial Seal
14 Timing Gear Case Cover
15 Key
16 Crankshaft Sprocket
17 Crankshaft
18 Socket Bolt .............................. 23 N•m (17 lb-ft)
19 Washer
20 Bolt ................................ 20 N•m (148 lb-ft)+ 90°
21 Hub
22 Straight Pin
23 Crankshaft Velt Pulley
24 Vibration Damper

DIESEL ENGINE MECHANICAL  1B3-59

SSANGYONG  Y200

YAD1BC40

YAD1BDR0

YAD1BDS0

YAD1BDT0

Tools Required

103 589 00 33 00

Puller

601 589 03 14 00

Sleeve

602 589 00 40 00

Engine Lock

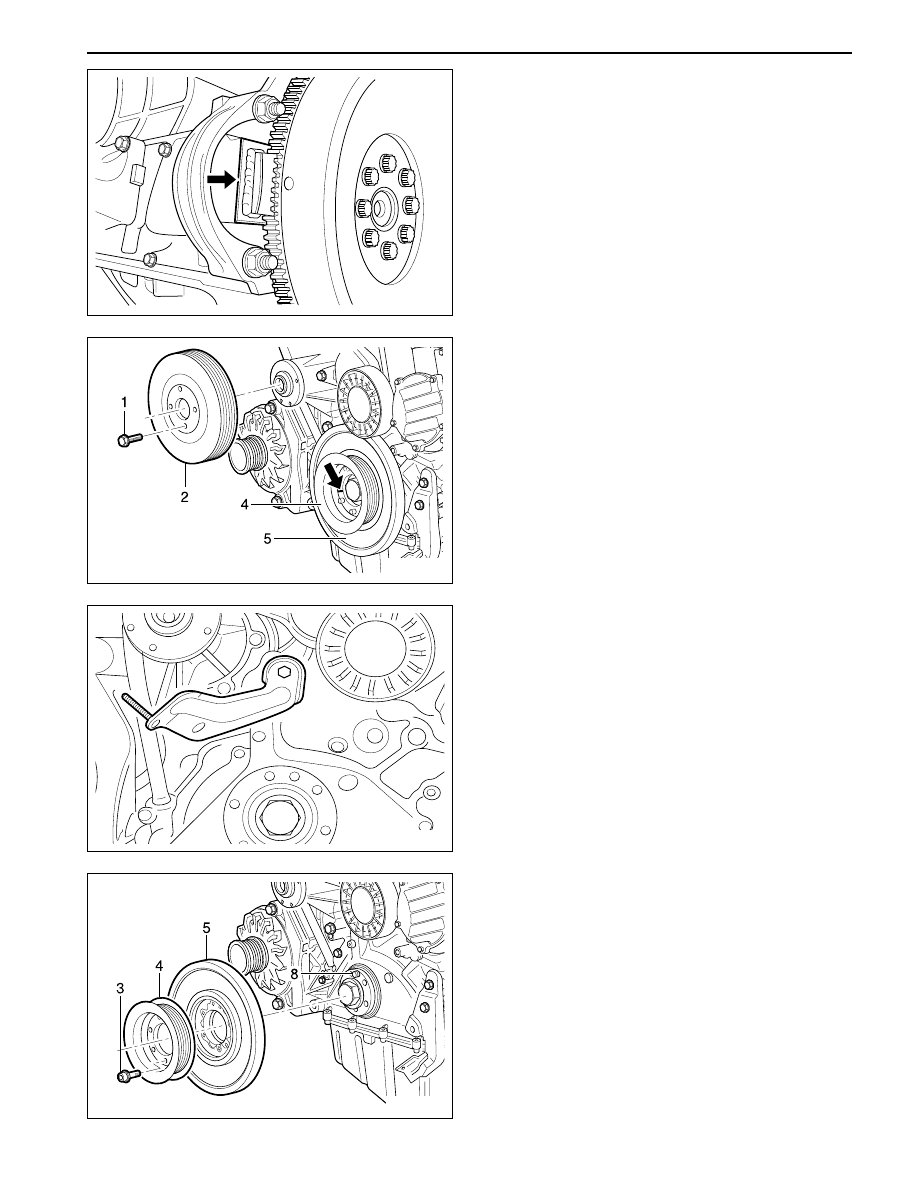

Removal Procedure

1. Remove the starter motor and install the engine

lock 602 589 00 40 00 into the flywheel ring gear.

2. Remove the poly V-belt.

3. Remove the cooling fan.

Notice: Keep the fan in vertical position.

4. Remove the cooling fan belt pulley (2).

5. Place alignment marks (arrow) on the vibration

damper (5) and crankshaft belt pulley (4).

6. Remove the timing sensor bracket.

Notice: Remove if necessary.

7. Remove the socket bolts (3) and then remove the

belt pulley (4) and vibration damper (5).
