M161 ENGINE MECHANICAL  1B2-71

SSANGYONG  Y200

YAD1B2D0

YAD1B2E0

YAD1B2F0

YAD1B2E0

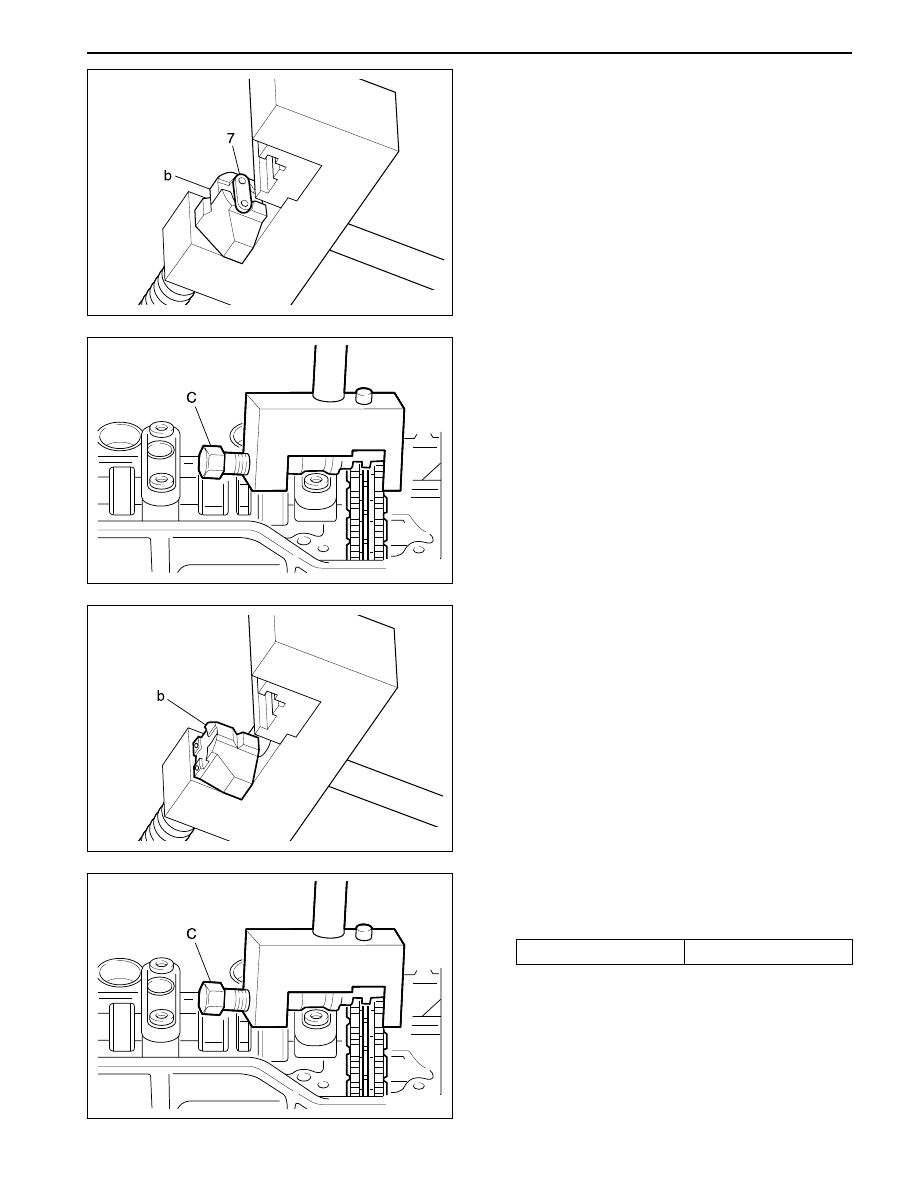

12. Place the outer plate (7, thickness 1.2 mm) inside

the thrust piece (b).

16. Install the chain assembly 000 589 58 43 00 to

the link pin and tighten the spindle (c).

Installation Notice

15. Replace the thrust piece (b) as shown in the figure.

13. Install the chain assembly 000 589 58 43 00 above

the link and tighten the spindle (c) until a block is
felt.

14. Place the chain assembly 000 589 58 43 00.

Tightening Torque

30 N•m (22 lb-ft)

SSANGYONG  Y200

1B2-72  M161 ENGINE MECHANICAL

YAD1B2G0

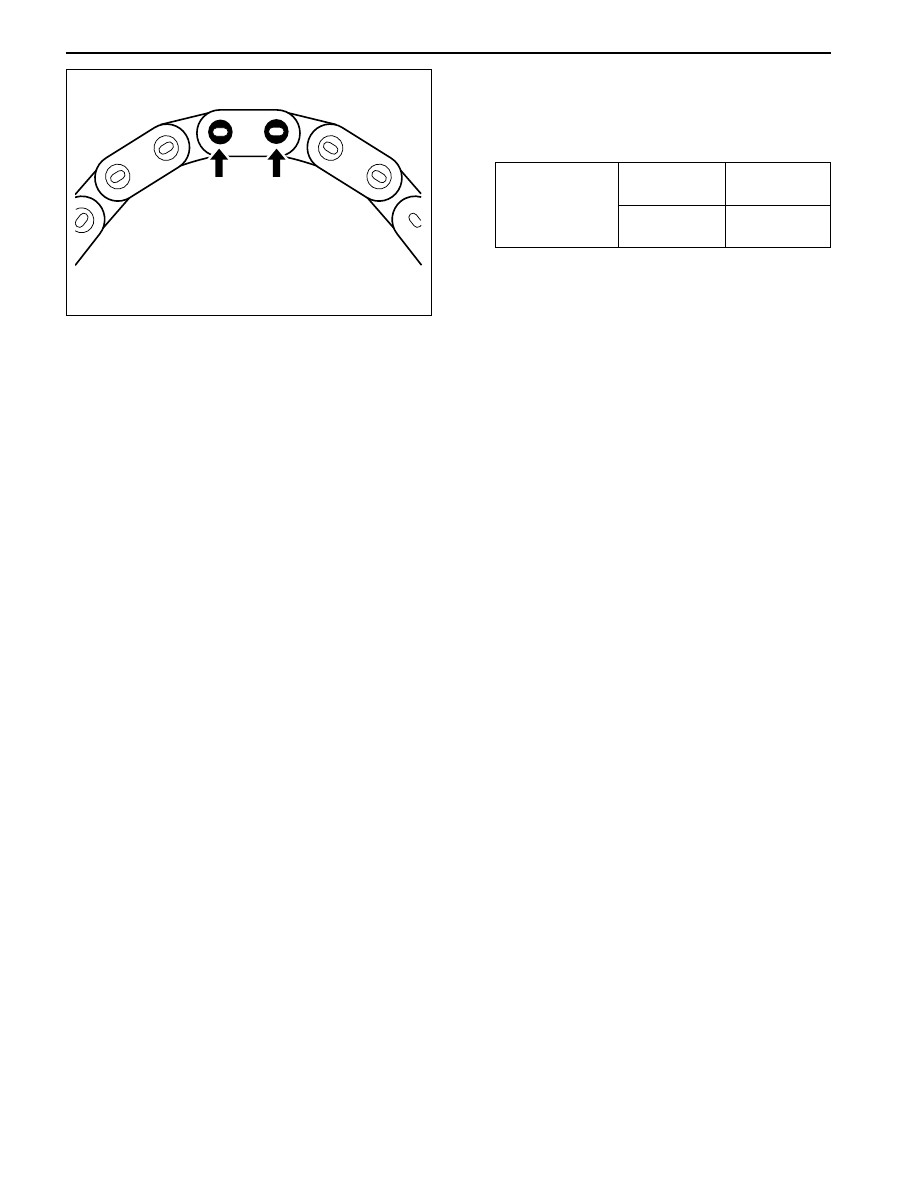

17. Rivet the link pin.

Check the condition and it again if necessary.

18. Install the chain tensioner.

Installation Notice

19. Check the camshaft timing position.

Tightening

Torque

Screw Plug

Tensioner

Assembly

40 N•m

(30 lb-ft)

72 - 88 N•m

(53 - 65 lb-ft)

M161 ENGINE MECHANICAL  1B2-73

SSANGYONG  Y200

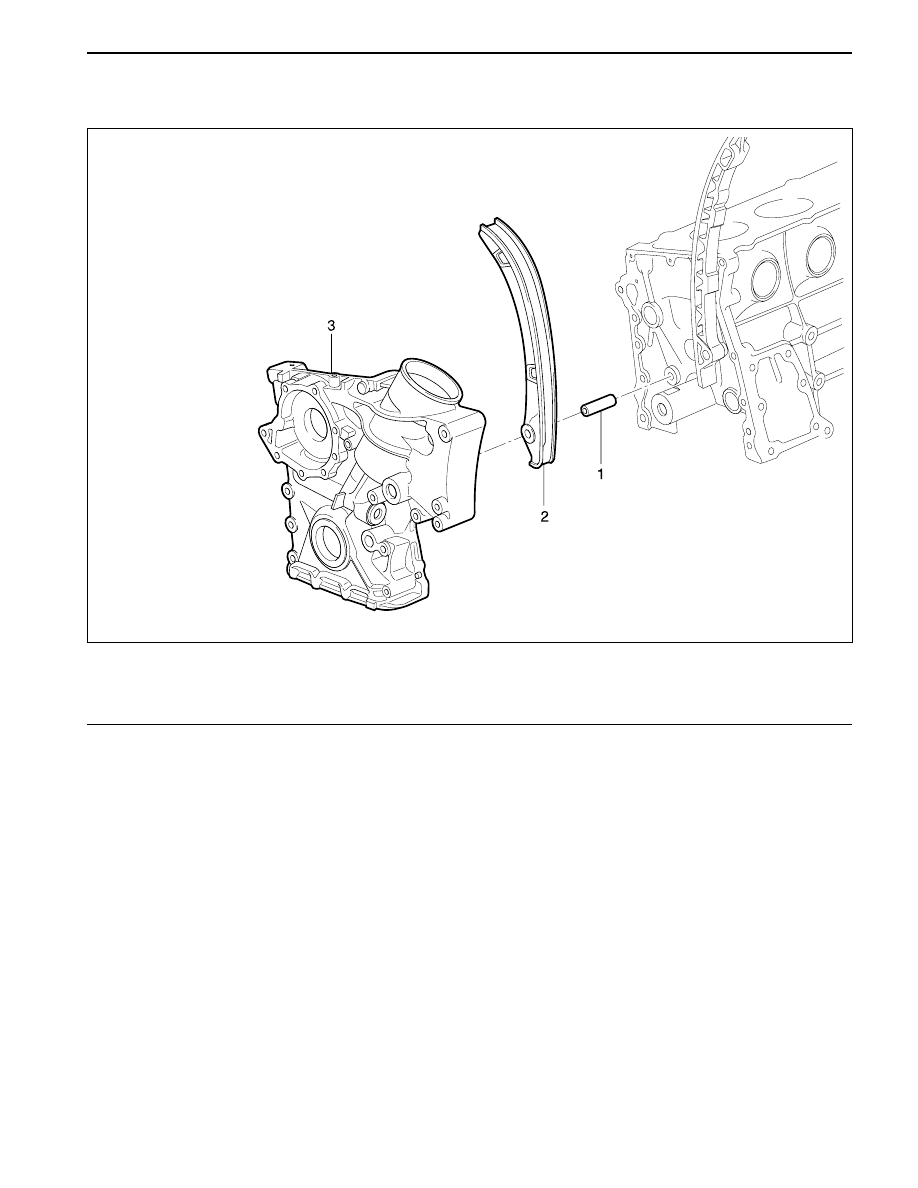

TENSIONING RAIL

Preceding Work:

Removal of cylinder head

1 Sliding Rail Pin
2 Sliding Rail

Removal & Installation Procedure

1. Remove the timing gear case cover (3).

Notice: Be careful not to damage the gasket.

2. Remove the sliding rail (1) from the sliding rail

pin (2).

Notice:

•

Replace the plastic guide (2) if it is damaged.

•

For installation, exactly align the plastic guide
(2) with the sliding rail (1).

3. Installation should follow the removal procedure

in the reverse order.

YAD1B7K0

3 Timing Gear Case Cover

SSANGYONG  Y200

1B2-74  M161 ENGINE MECHANICAL

YAD1B7L0

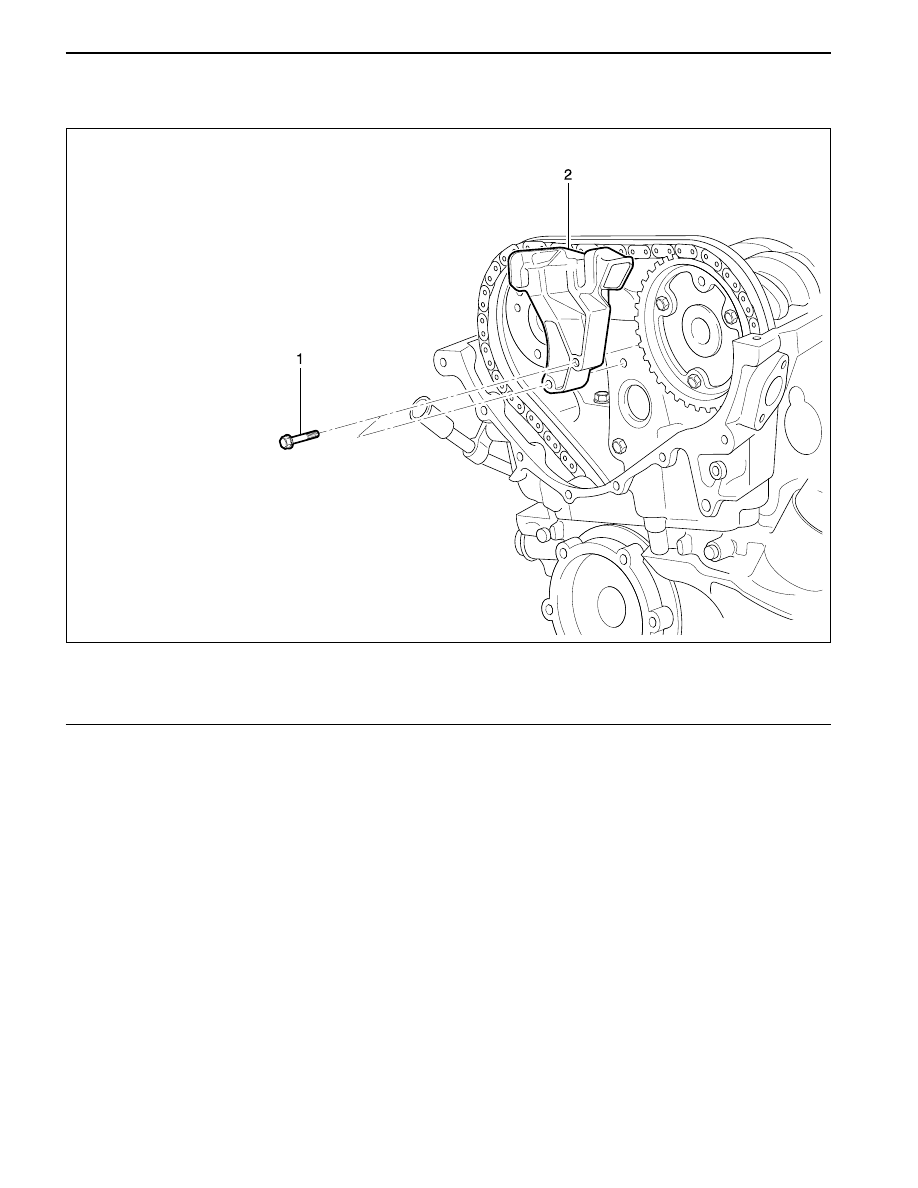

CYLINDER HEAD GUIDE RAIL

Preceding Work: Removal of cylinder head front cover

1 Bolt (M6 X 45, 2 pieces)

.................................... 9 - 11 N•m (80 - 97 lb-in)

2 Guide Rail
