SSANGYONG  Y200

0B-12  GENERAL INFORMATION

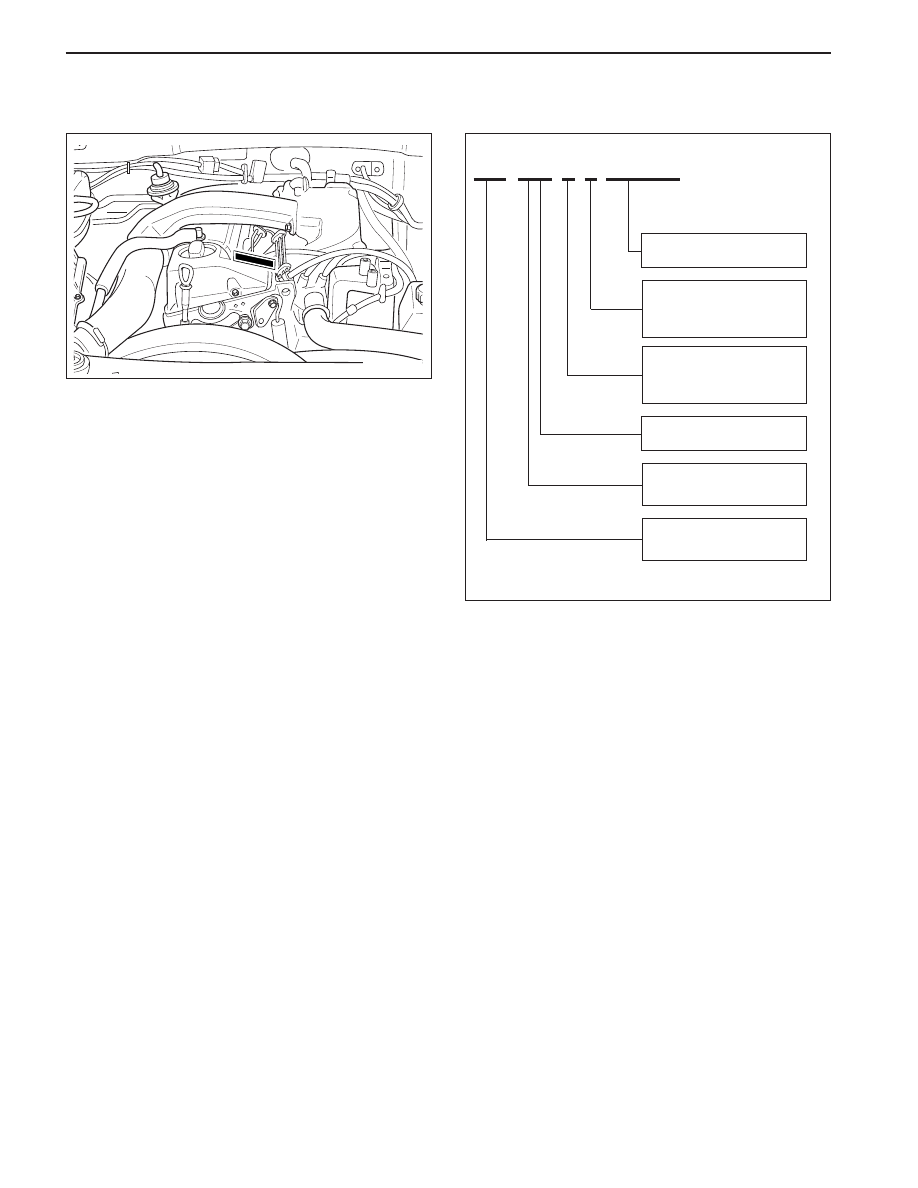

ENGINE NUMBER

Diesel Engine

YAA0B080

The engine number is stamped on the cylinder block
in front of injection pump.

662 920 1 0 012345

Serial Number

0 : Manual T/M
1 : Hydr - Auto Coupling
2 : Automatic T/M

910 :Non-Intercooler Engine
920 :Intercooler Engine

661 : 2299cc
662 : 2874cc

0 : Common
1 : Left - Hand Drive
2 : Right - Hand Drive

5 : REXTON

YAA0B090

GENERAL INFORMATION  0B-13

SSANGYONG  Y200

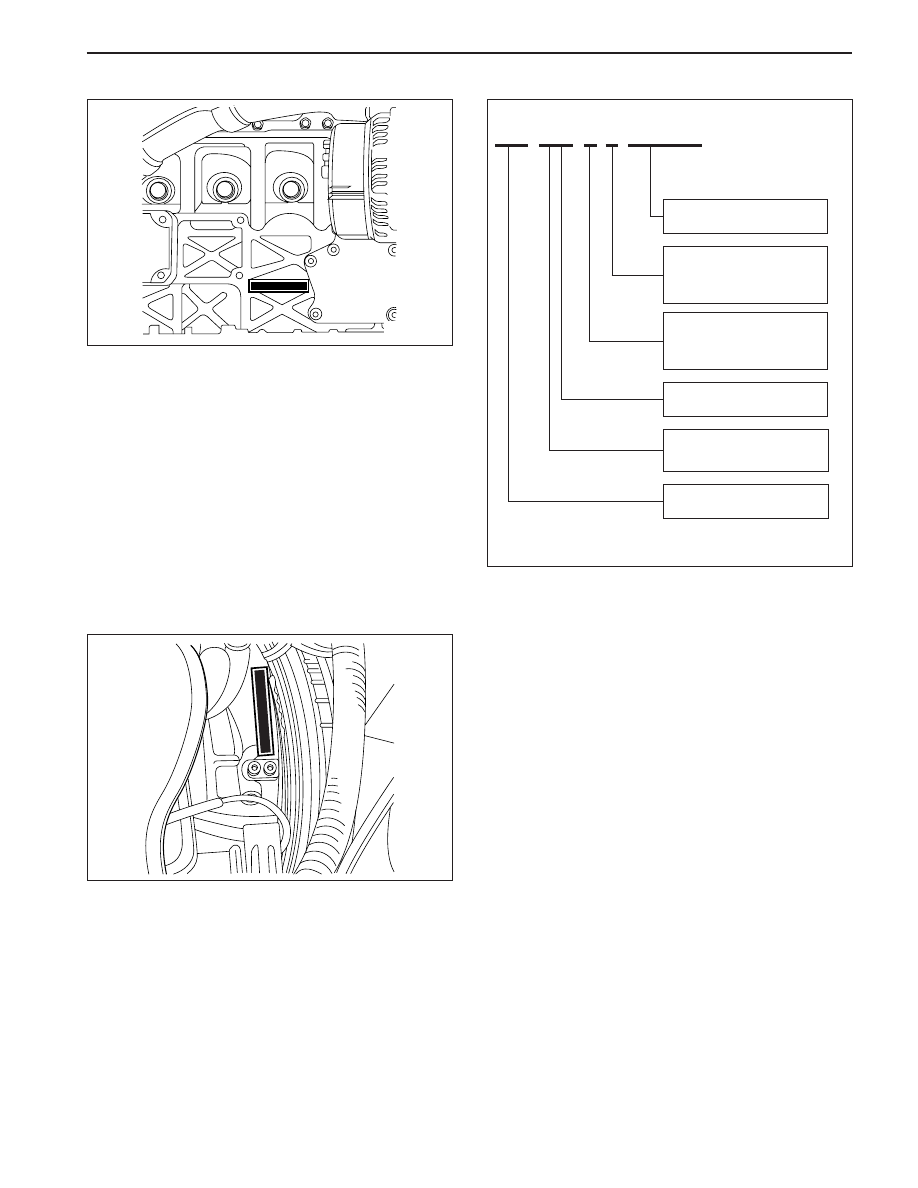

Gasolind Engine (3.2L DOHC)

YAA0B100

•

The engine number is stamped on the lower rear
side of the alternator.

162 990 1 0 012345

Serial Number

0 : Manual T/M
1 : Hydr - Auto Coupling
2 : Automatic T/M

99 : 3.2L
97 : 2.3L

ENGINE TYPE

0 : Common
1 : Left - Hand Drive
2 : Right - Hand Drive

5 : REXTON

YAA0B120

Gasolind Engine (2.3L DOHC)

YAA0B110

•

The engine number is stamped on the upper rear
left-hand side of the cylinder block.

SSANGYONG  Y200

0B-14  GENERAL INFORMATION

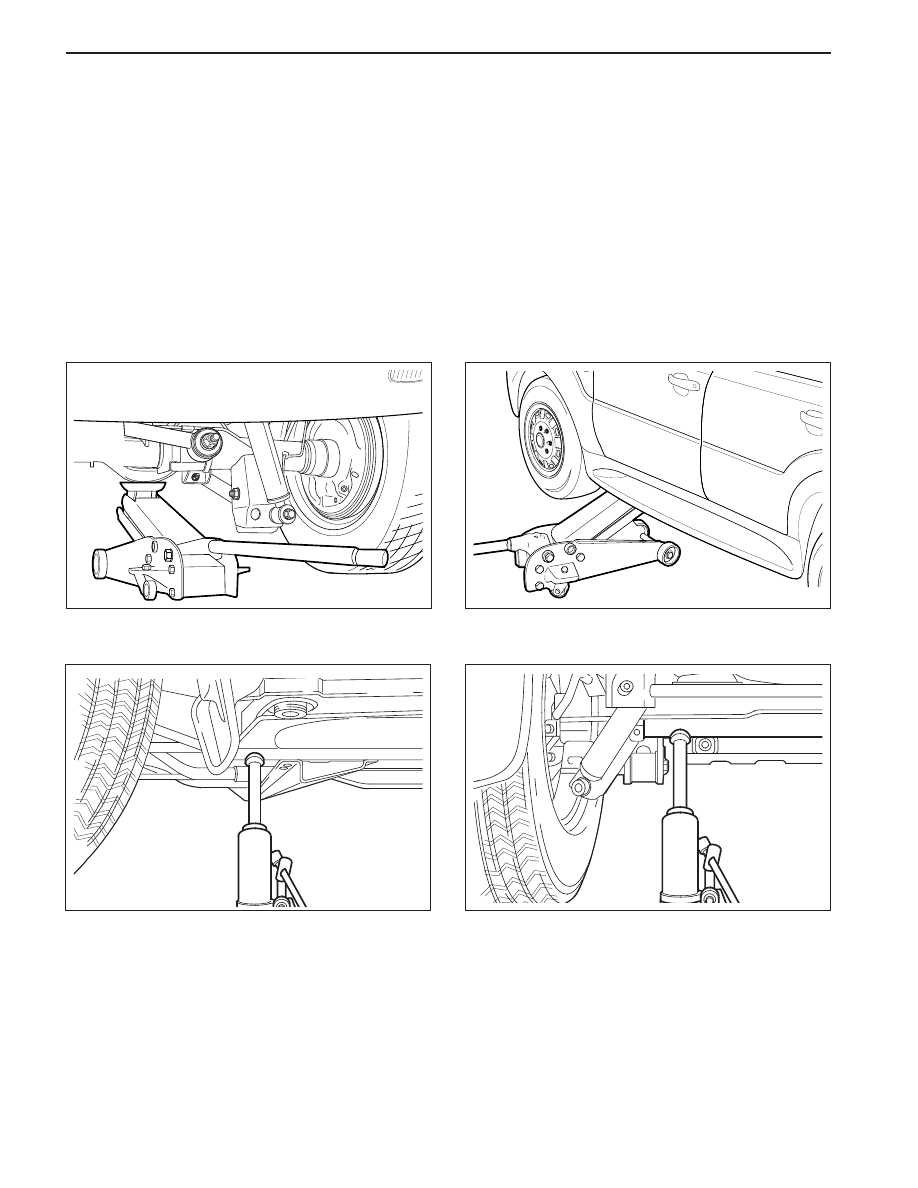

VEHICLE LIFTING PROCEDURES

To raise the vehicle, place the lifting equipment only
at the points indicated. Failure to use these precise
positions may result in permanent vehicle body
deformation.

Many dealer service facilities and service stations are
equipped with automative hoists that bear upon some
parts of the frame in order to lift the vehicle. If any
other hoist method is used, take special care to avoid
damaging the fuel tank, the filter neck, the exhaust
system, or the underbody.

Using Floor Jack

YAA0B130

Front Side

YAA0B140

Rear Side

YAA0B150

Using Jack

YAA0B160

Rearward of Front Tire

Forward of Rear Tire

SECTION 1

ENGINE

SECTION 1A

ENGINE GENERAL INFORMATION

TABLE OF CONTENTS

Description and Operation ............................... 1A-2

Cleanliness and Care ....................................... 1A-2

On-Engine Service ............................................ 1A-2

Component Locator .......................................... 1A-3

M162 Engine ..................................................... 1A-3

M161 Engine ..................................................... 1A-5

Diesel Engine .................................................... 1A-7

Diagnostic Information and Procedure .......... 1A-9

Oil Leak Diagnosis ........................................... 1A-9

Compression Pressure Test

(Gasoline Engine) ........................................ 1A-10

Compression Pressure Test

(Diesel Engine) ............................................ 1A-12

Cylinder Pressure Leakage Test

(Gasoline Engine) ........................................ 1A-14

Cylinder Pressure Leakage Test

(Diesel Engine) ............................................ 1A-16

General Diagnosis .......................................... 1A-18

Specifications .................................................. 1A-23

Engine Specifications ..................................... 1A-23

Performance Curve ......................................... 1A-24

Special Tools and Equipment ....................... 1A-27

Special Tools Table ........................................ 1A-27
