ELECTRICAL WIRING DIAGRAMS 5-101

SSANGYONG REXTON XDi (LHD)

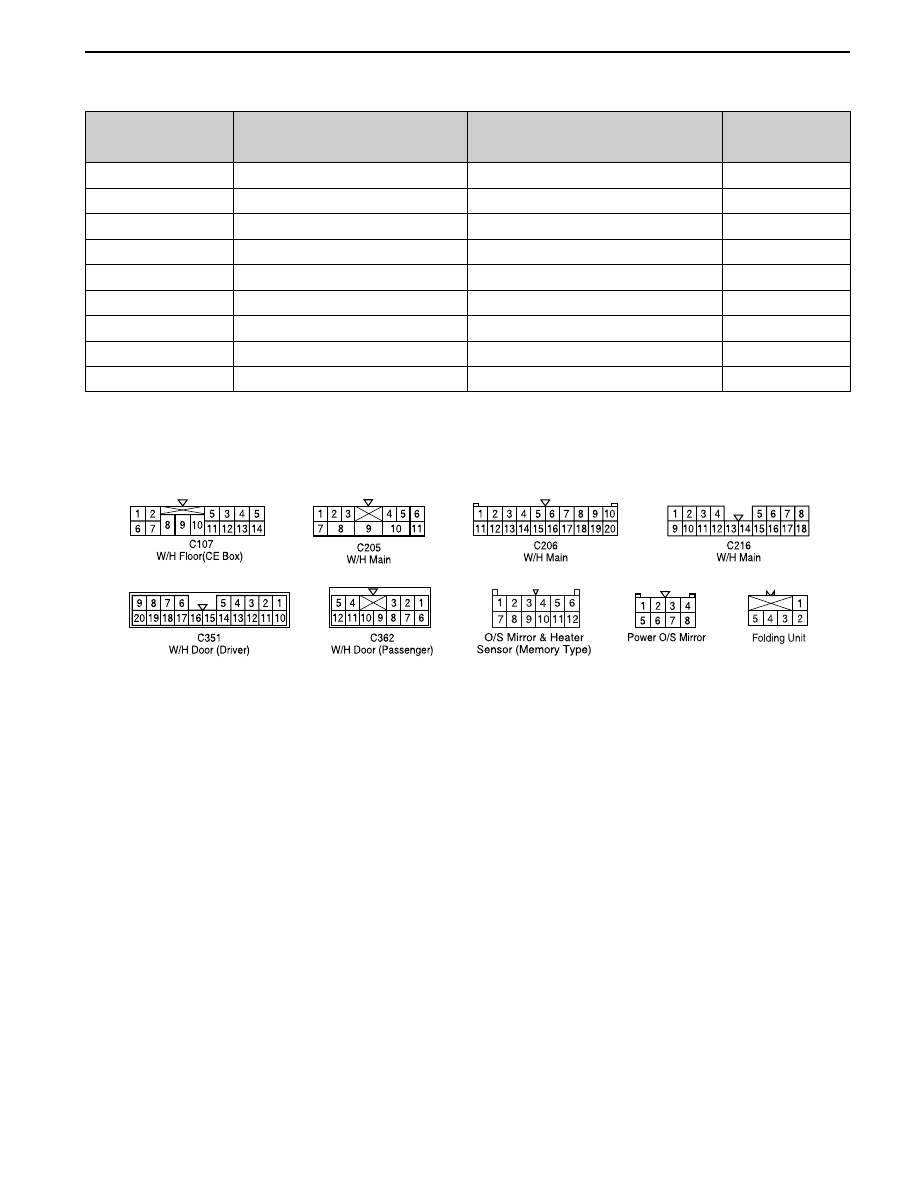

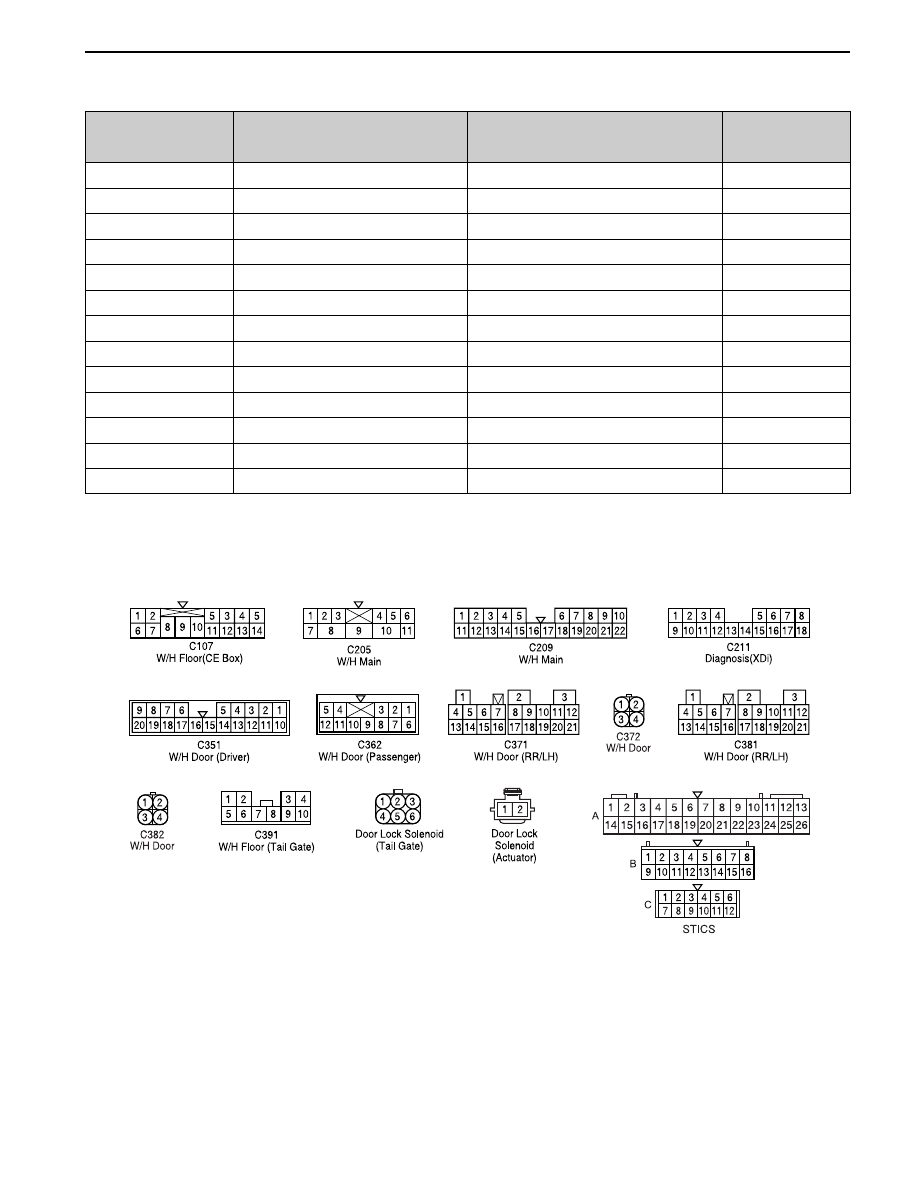

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box (J) - Engine

Main - Floor (LH)

Main - Floor (RH)

Floor - Driver Door

Floor - Co-Driver Door

W/H Main

C107 (14Pin, White)

C205 (11Pin, White)

C206 (20Pin, Black)

C216 (18Pin, White)

C351 (20Pin, White)

C362 (12Pin, White)

S201 (14Pin, Black)

S208 (14Pin, Black)

G201

Connecting Wiring

Harness

Engine Room Fuse Box

Inside Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Upper the I/P Relay Box

Behind the Right FATC

Inside Driver Side Cowl PNL

Behinel Conn Holder

GND

Remark

Connector Position

SSANGYONG REXTON XDi (LHD)

5-102 ELECTRICAL WIRING DIAGRAMS

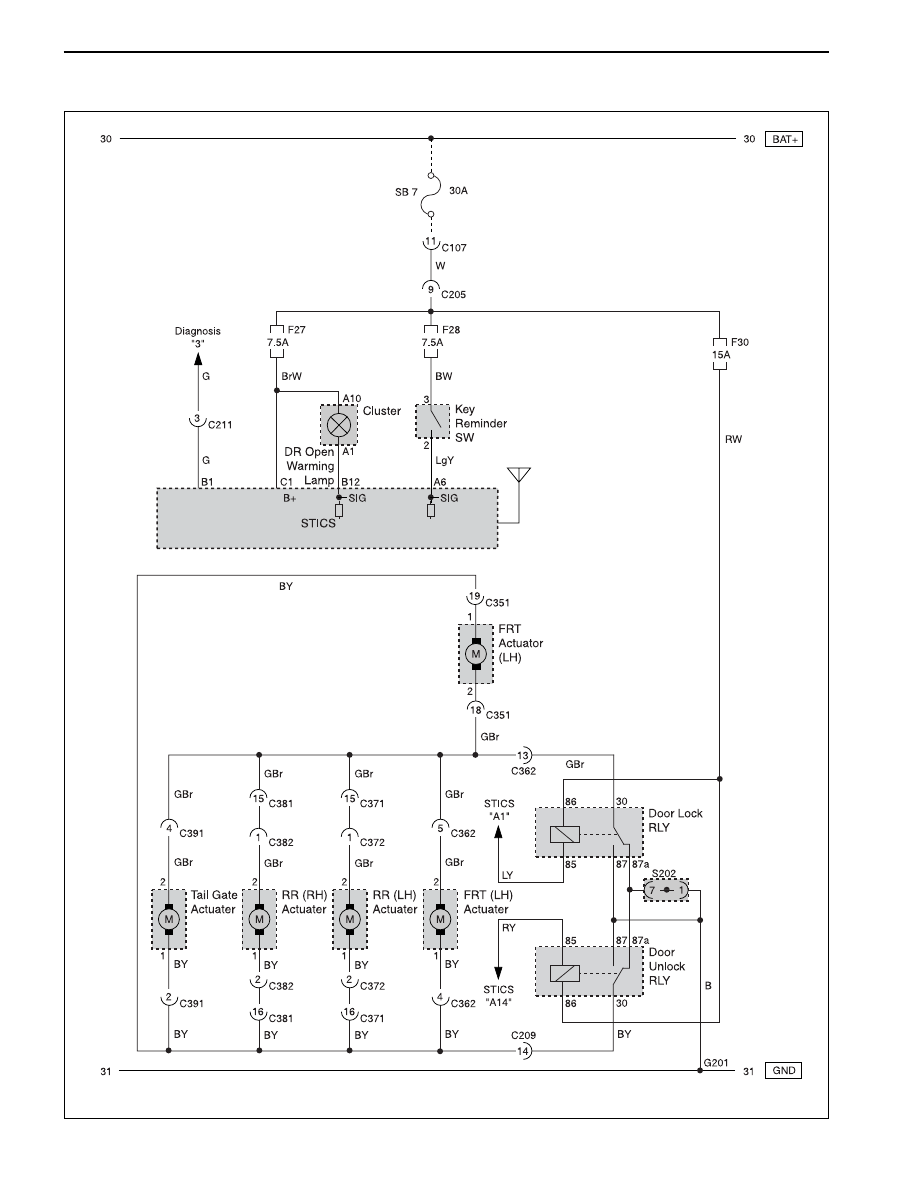

22. CENTRAL DOOR LOCKING SYSTEM

ELECTRICAL WIRING DIAGRAMS 5-103

SSANGYONG REXTON XDi (LHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box (J) - Engine

Main - Floor (LH)

Main - Diagnosis Connector

Floor - Driver Door

Floor - Co-Driver Door

Floor - RR Left Door

RR LH Door - Door Extention

Floor - RR Right Door

RR RH Door - Door Extention

Floor - Tail Gate

W/H Main

C107 (14Pin, White)

C205 (11Pin, White)

C209 (22Pin, Yellow)

C211 (18Pin, White)

C351 (20Pin, White)

C362 (12Pin, White)

C371 (21Pin, White)

C372 (4Pin, Black)

C381 (21Pin, White)

C382 (4Pin, Black)

C391 (10Pin, White)

S202 (14Pin, Black)

G201

Connecting Wiring

Harness

Engine Room Fuse Box

Inside Driver Side Cowl PNL

Upper the Diagnosis

Inside Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Under Left “B” Filler

In Side RR LH Door PNL

Under Right “B” Filler

Inside RR RH Door PNL

Inside the Left Side Cover the Tail Gate

Upper the I/P Relay Box

Inside Driver Side Cowl PNL

XDi

Behinel Conn Holder

Remark

Connector Position

SSANGYONG REXTON XDi (LHD)

5-104 ELECTRICAL WIRING DIAGRAMS

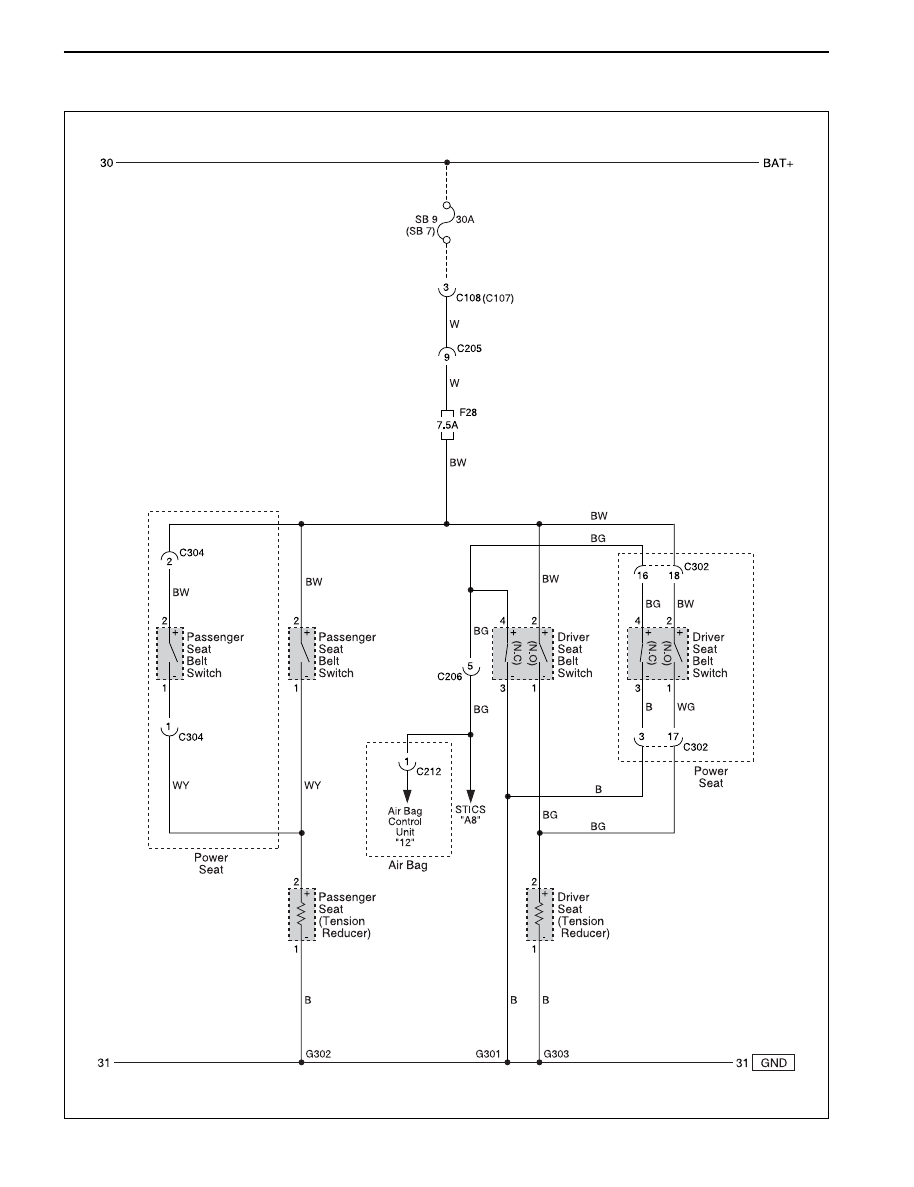

23. SEAT BELT, TENSION REDUCER CIRCUIT (2002 MODEL ONLY)
