SsangYong Rexton. Service manual - part 261

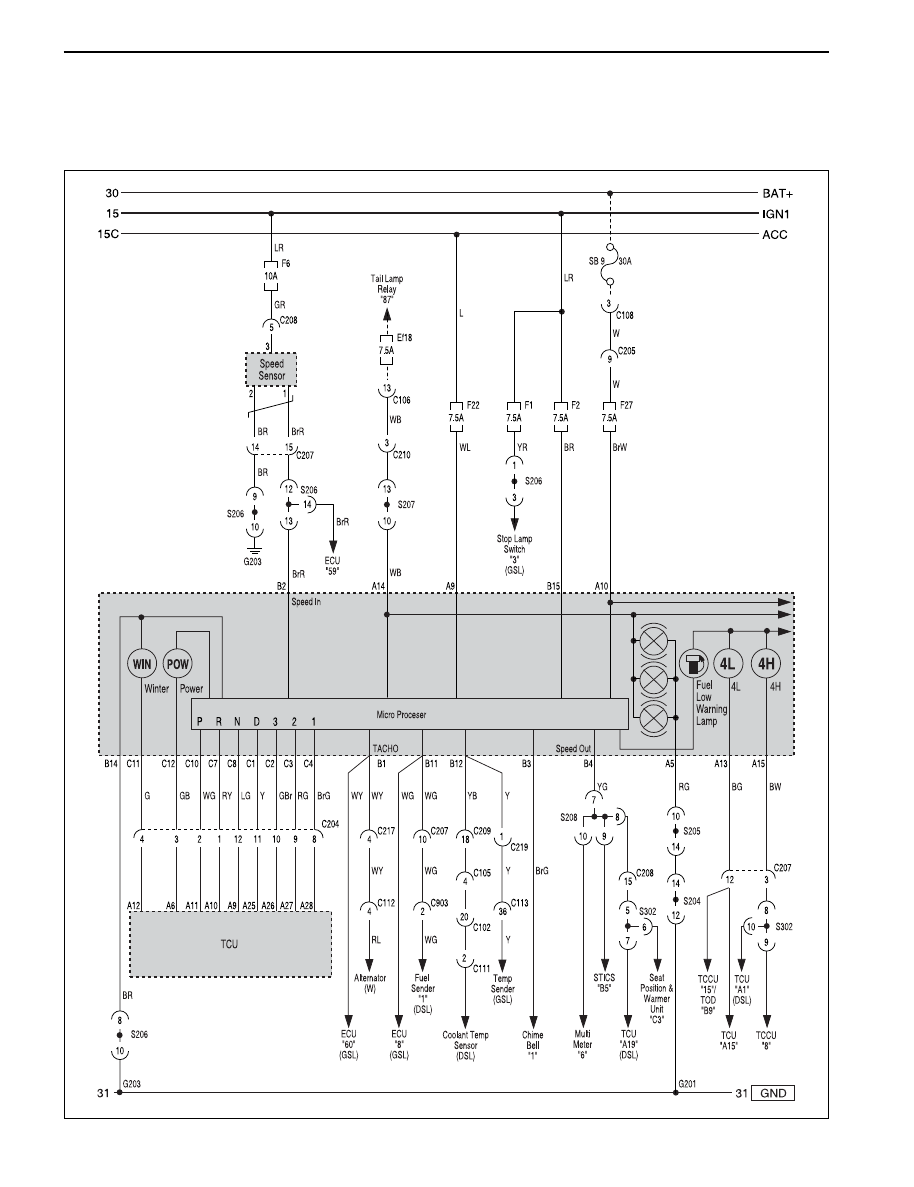

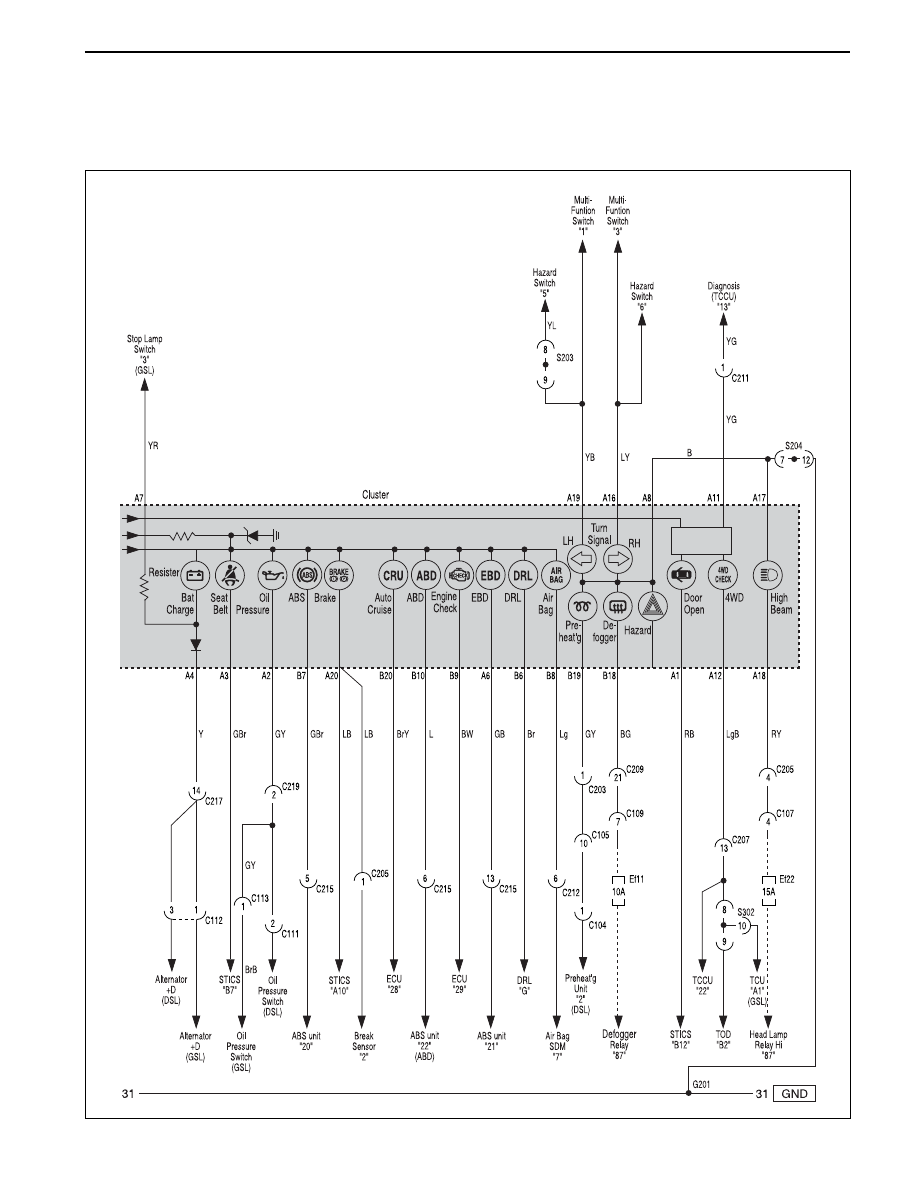

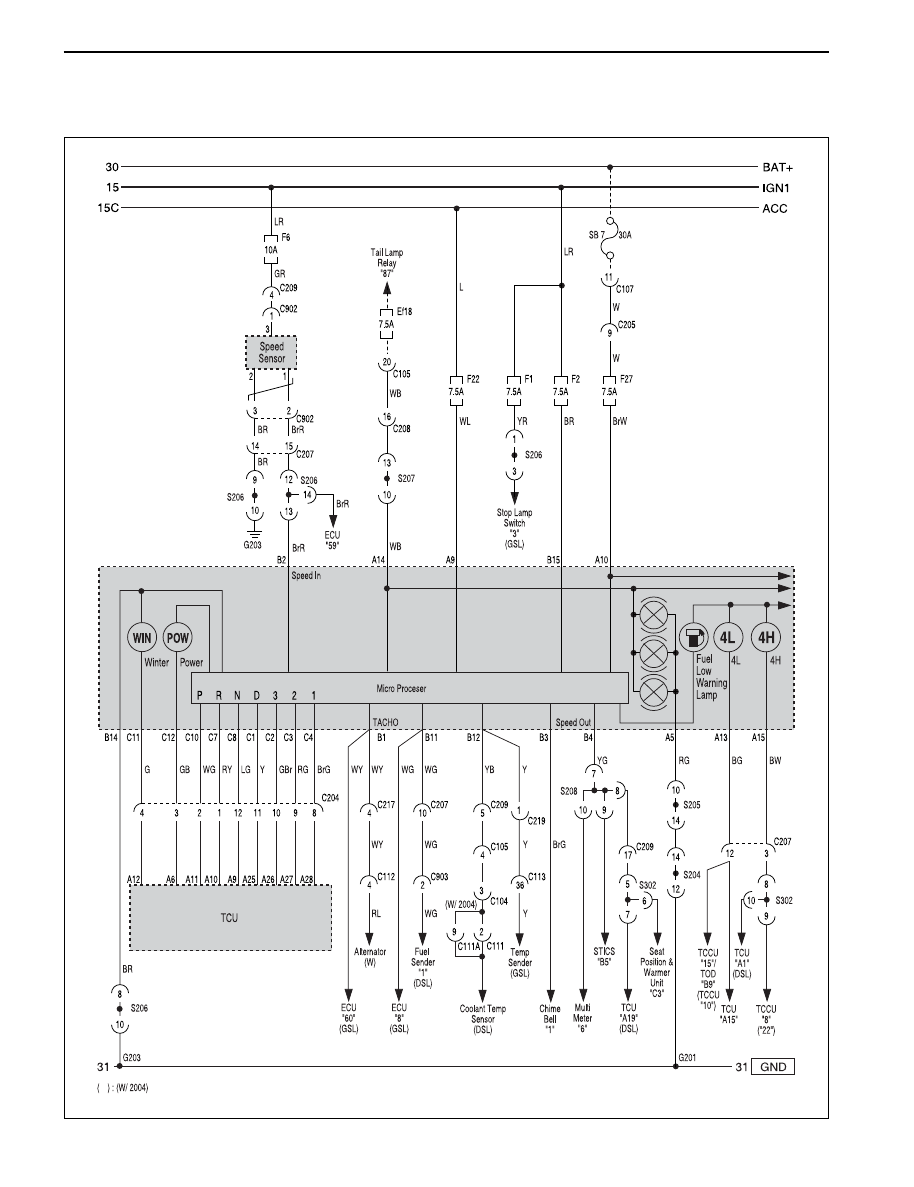

ELECTRICAL WIRING DIAGRAMS 5-77
SSANGYONG REXTON XDi (LHD)

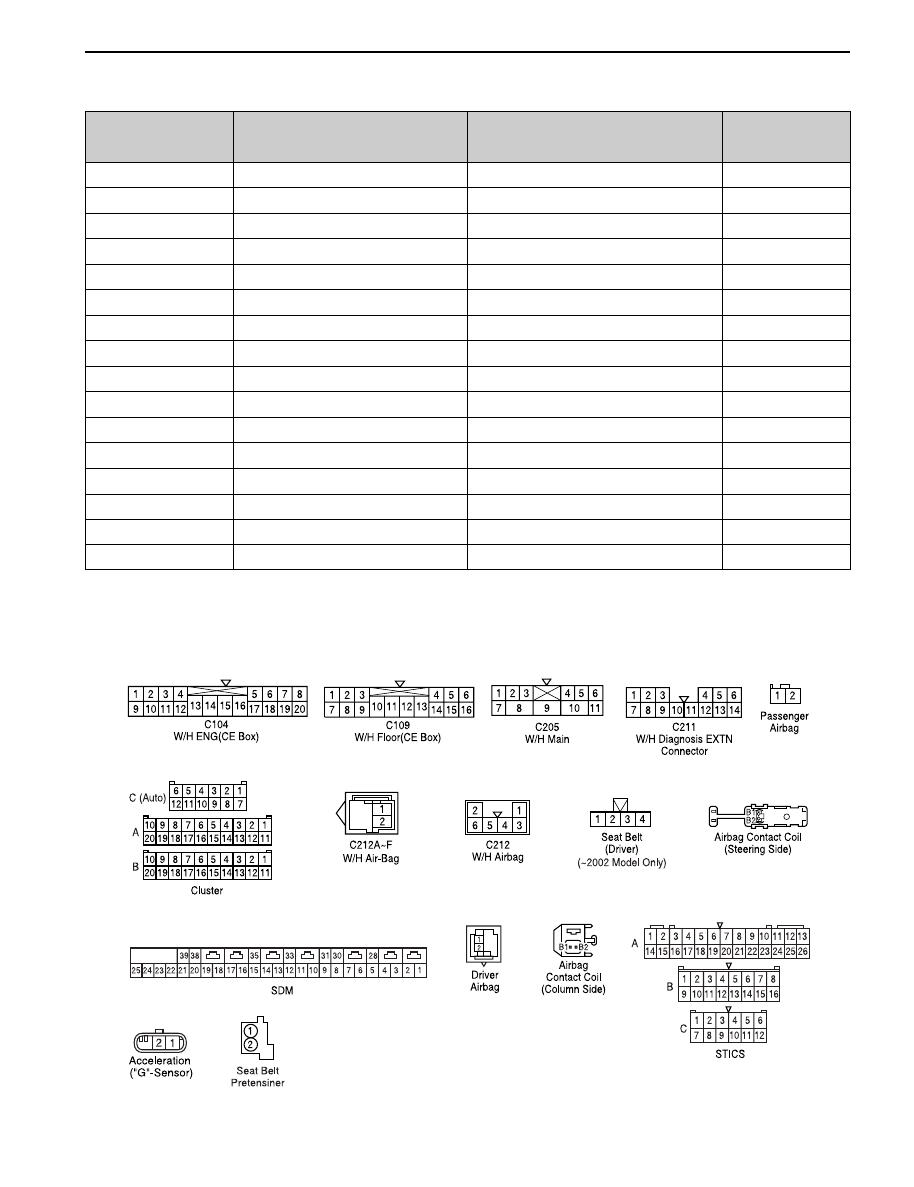

A. CONNECTOR INFORMATION
B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
Connector Number
(Pin Number, Color)
Engine Room Fuse Box (D) - Engine
Engine Room Fuse Box (M) - Engine
Main - Floor (LH)
Main - Floor (LH)
Main - Diagnosis Connector
Main - Air-Bag
Floor - W/H Air-Bag
Floor - W/H Air-Bag
Floor - W/H Air-Bag
Floor - W/H Air-Bag
Floor - W/H Air-Bag
Floor - W/H Air-Bag
W/H Main
W/H Engine
W/H Main
W/H Floor
C104 (20Pin, White)
C109 (16Pin, White)
C205 (11Pin, White)
C206 (20Pin, Black)
C211 (14Pin, White)
C212 (6Pin, White)
C212A (2Pin, White)
C212B (2Pin, Yellow)
C212C (2Pin, Black)
C212D (2Pin, White)
C212E (2Pin, Yellow)
C212F (2Pin, Black)
S204 (14Pin, Black)
G101
G202
G301
Connecting Wiring
Harness
Engine Room Fuse Box
Engine Room Fuse Box
Inside Driver Side Cowl PNL
Inside Driver Side Cowl PNL
Upper the Diagnosis
Behind the Cluster (Inside Dash PNL)
Inside Driver Side Cowl PNL
Inside Driver Side Cowl PNL
Inside Driver Side Cowl PNL
Inside Co-Driver Side Cowl PNL
Inside Co-Driver Side Cowl PNL
Inside Co-Driver Side Cowl PNL
Behind the Left the FATC
Center the Engine Room Fuse Box
Beside the SDM
Under Driver Seat
Side Air-Bag
Side Air-Bag
Freetensioner
Side Air-Bag
Side Air-Bag
Freetensioner
GND
ECU GND
Remark
Connector Position
