ELECTRICAL WIRING DIAGRAMS  5-41

SSANGYONG  REXTON XDi (LHD)

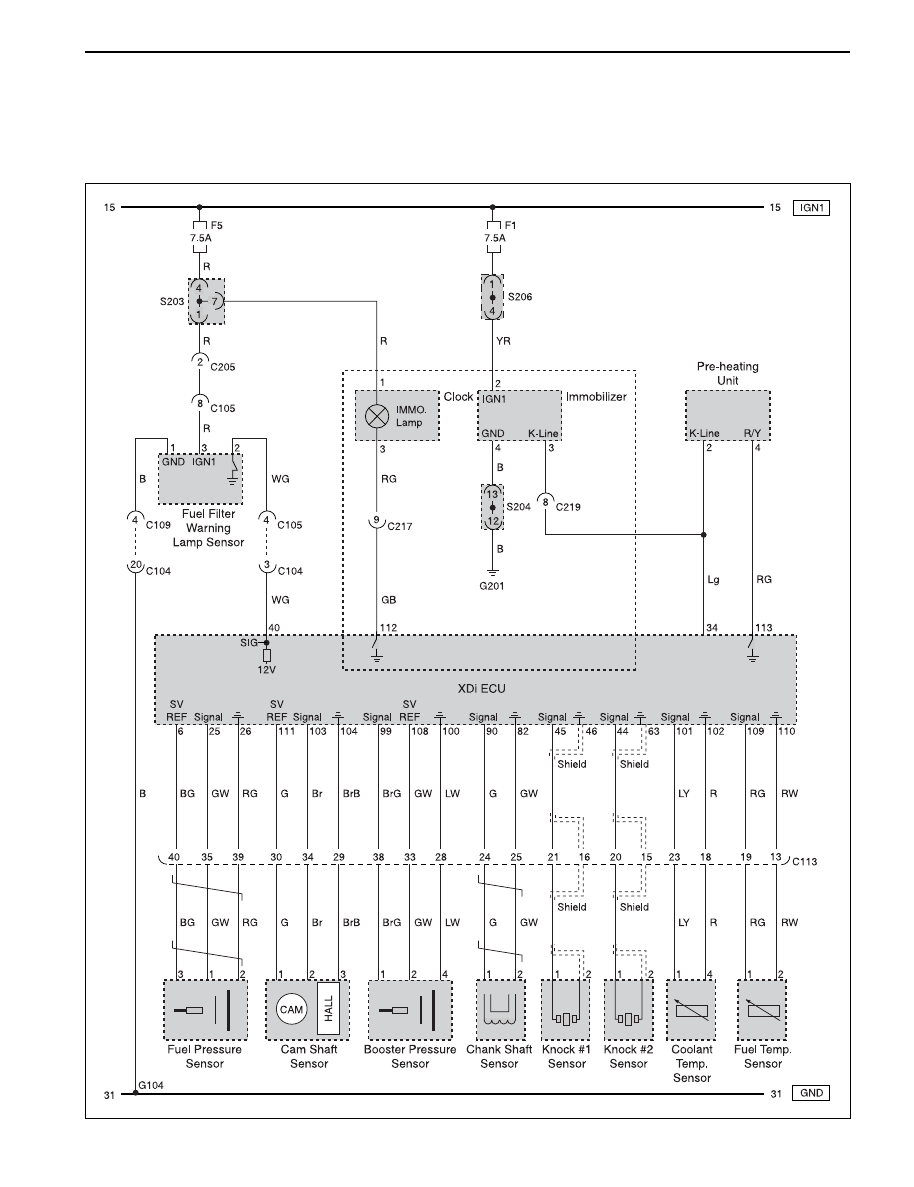

2) FUEL FILTER WARNING LAMP, IMMOBILIZER, SENSOR

(FUEL PRESSURE, CAM SHAFT, BOOSTER PRESSURE, CRANK SHAFT, KNOCK,
WATER PUMP, FUEL TEMP)

SSANGYONG  REXTON XDi (LHD)

5-42  ELECTRICAL WIRING DIAGRAMS

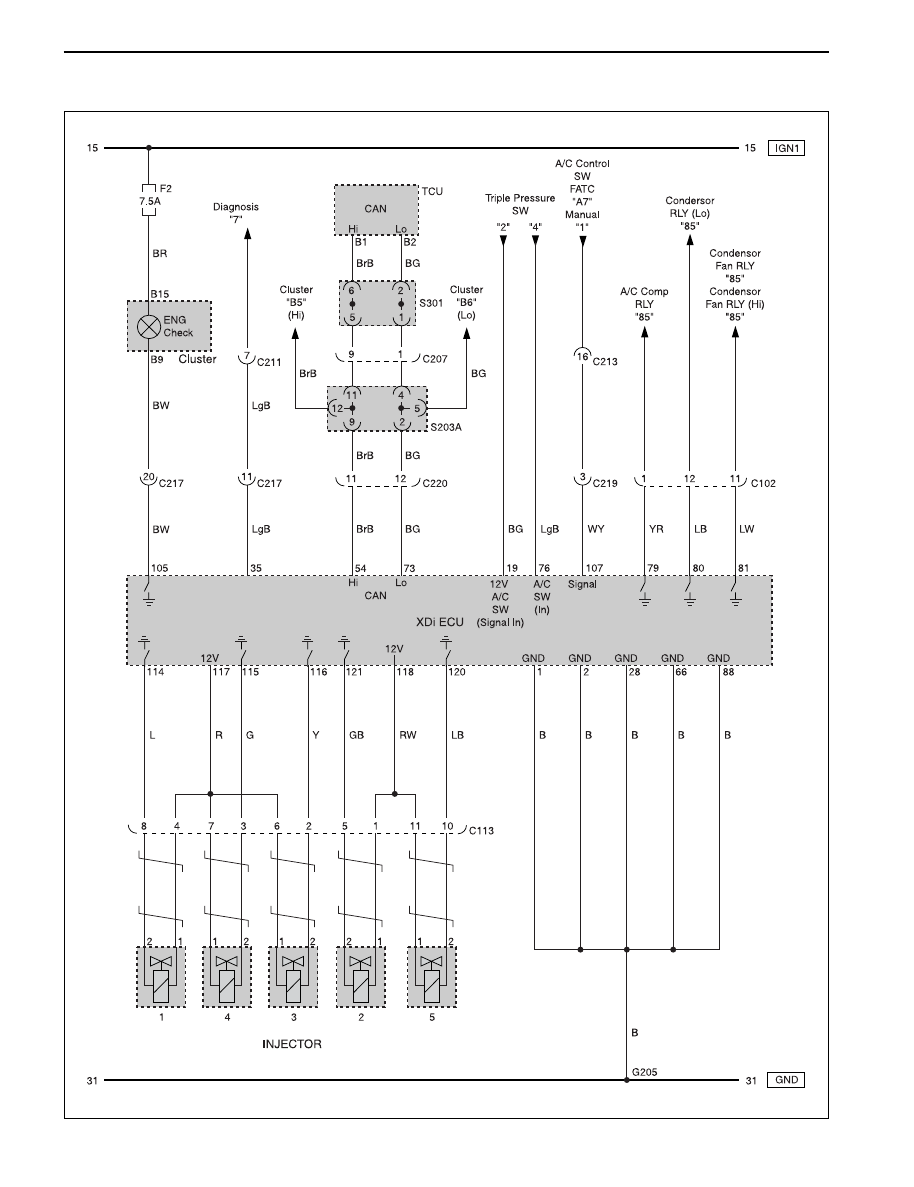

3) INJECTOR, CAN LINE

ELECTRICAL WIRING DIAGRAMS  5-43

SSANGYONG  REXTON XDi (LHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box (B) - Engine

Engine Room Fuse Box (D) - Engine

Engine Room Fuse Box (E) - Engine

Engine Room Fuse Box (K) - Engine

Engine Room Fuse Box (M) - Engine

Engine - Engine Control

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

Engine - Main (RH)

Engine - Main (RH)

W/H Main

W/H Main

W/H Engine

W/H Main

W/H Main

C102 (20Pin, White)

C104 (20Pin, White)

C105 (22Pin, White)

C108 (4Pin, Colorless)

C109 (16Pin, White)

C113 (42Pin, Black)

C205 (11Pin, White)

C207 (15Pin, Blue)

C208 (20Pin, Black)

C217 (20Pin, Black)

C219 (13Pin, Green)

S203 (14Pin, Black)

S205 (14Pin, Black)

G101

G201

G205

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Right Engine Room Dash PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Upper the I/P Relay Box

Behind the Left FATC

Center the Engine Room Fuse Box

Inside Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

XDi

XDi

GND

GSL

Remark

Connector Position

SSANGYONG  REXTON XDi (LHD)

5-44  ELECTRICAL WIRING DIAGRAMS

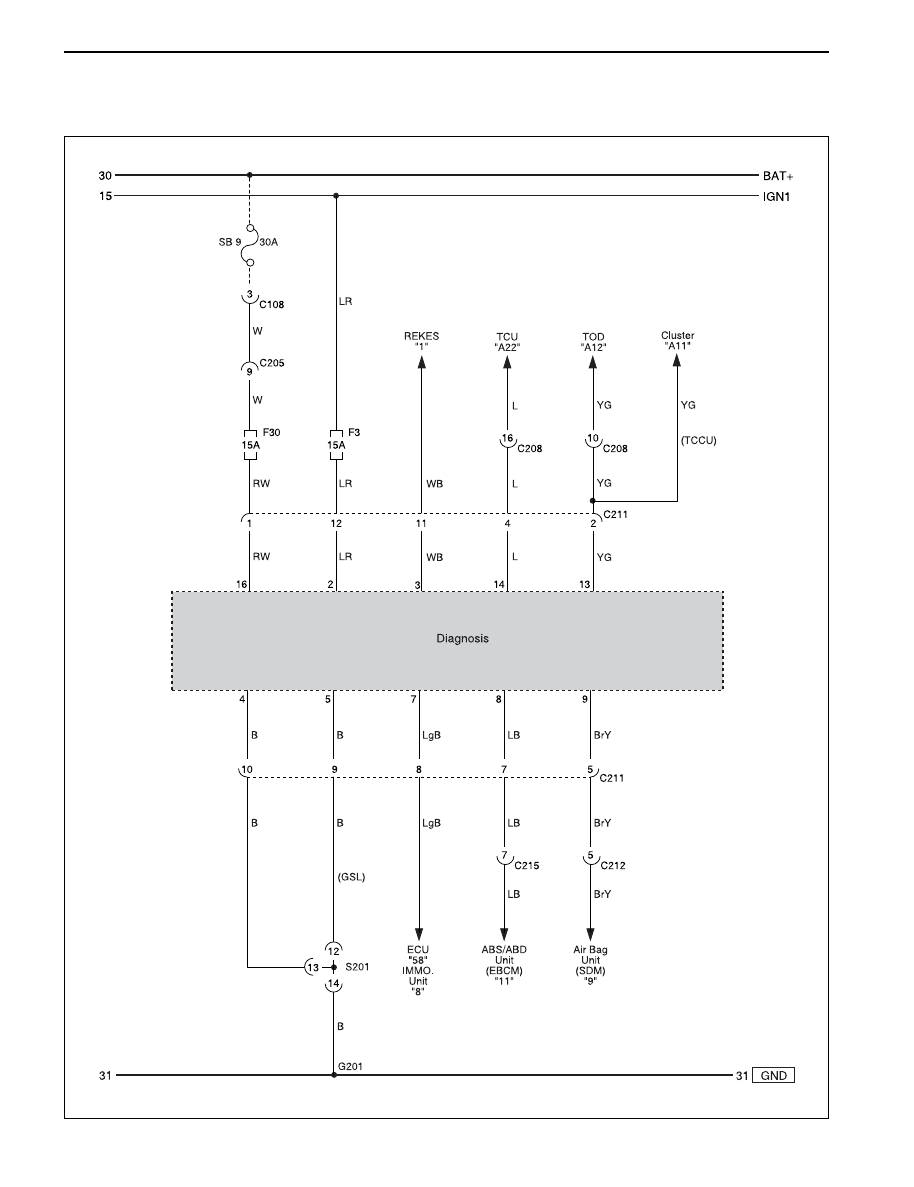

7. DIAGNOSIS CIRCUIT

1) ~ 2002 MODEL
