ELECTRICAL WIRING DIAGRAMS  5-9

SSANGYONG  REXTON XDi (LHD)

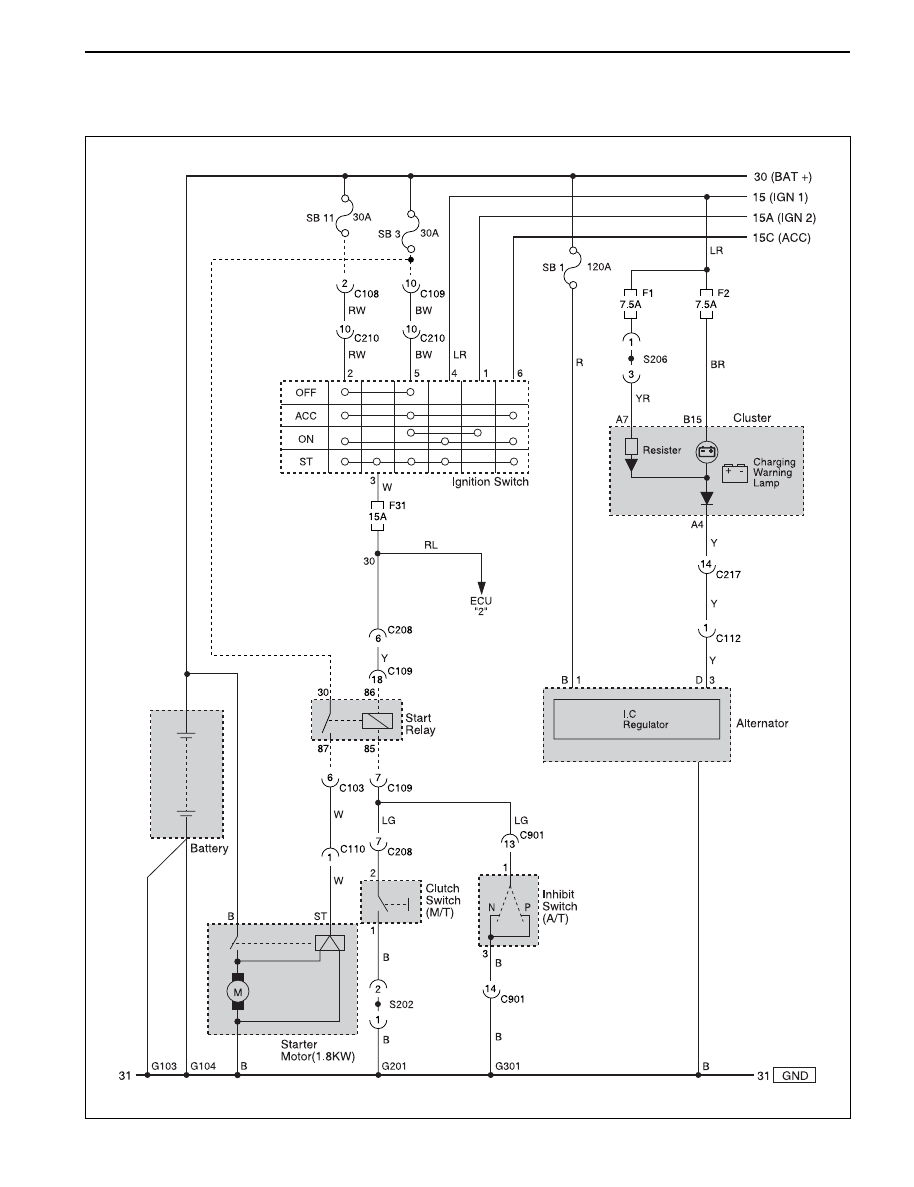

(2) GASOLINE (M/T, A/T)

SSANGYONG  REXTON XDi (LHD)

5-10  ELECTRICAL WIRING DIAGRAMS

A. CONNECTOR INFORMATION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box (B) - Engine

Engine Room Fuse Box (C) - Engine

Engine Room Fuse Box (D) - Engine

Engine Room Fuse Box (F) - Engine

Engine Room Fuse Box (K) - Engine

Engine Room Fuse Box (M) - Engine

Engine - Starter “ST”

Engine - Alternator

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

Engine - Main (RH)

Floor - T/M

Floor - T/M

W/H Main

W/H Main

W/H Main

W/H Engine

W/H Engine

W/H Main

W/H Floor

C102 (20Pin, White)

C103 (6Pin, Colorless)

C104 (20Pin, White)

C106 (18Pin, White)

C108 (4Pin, Colorless)

C109 (16Pin, White)

C110 (1Pin, Gray)

C112 (4Pin, Black)

C203 (13Pin, Green)

C205 (11Pin, White)

C209 (22Pin, Yellow)

C210 (13Pin, Green)

C217 (20Pin, Black)

C901 (16Pin, White)

C901 (2Pin, White)

S202 (14Pin, Black)

S203 (14Pin, Black)

S206 (14Pin, Black)

G103

G104

G201

G301

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

FRT Pre-Heating Unit

Under the Coolant Reserve Tank

Under the I/P Fuse Box

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Left the T/C (Under the Floor)

Left the T/C (Under the Floor)

Upper the I/P Relay Box

Upper the I/P Relay Box

Behind the Left the FATC

Behind the Left Head Lamp

Beside the Engine Mounting Bracket

Inside Driver Side Cowl PNL

Under Driver Seat

DSL

A/T

M/T

ECU GND

Remark

Connector Position

ELECTRICAL WIRING DIAGRAMS  5-11

SSANGYONG  REXTON XDi (LHD)

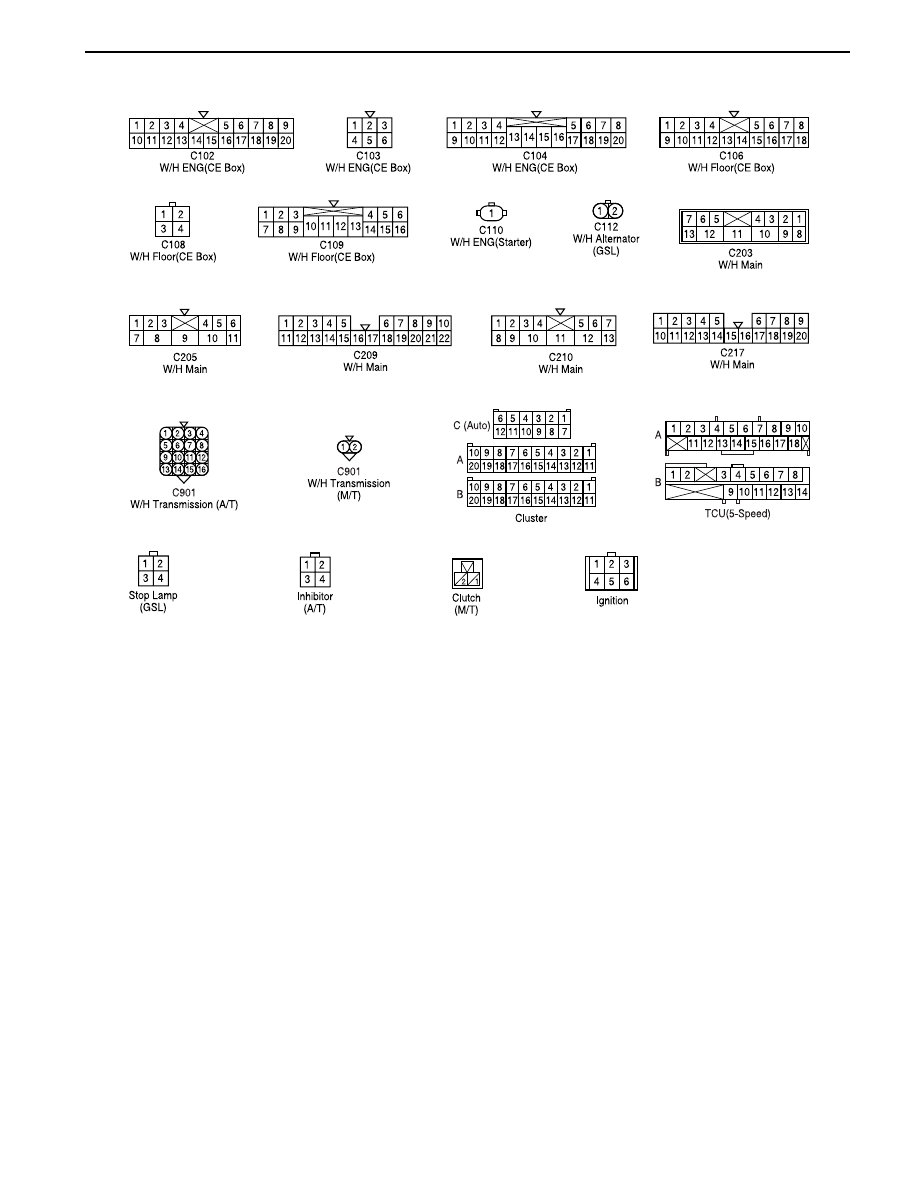

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

SSANGYONG  REXTON XDi (LHD)

5-12  ELECTRICAL WIRING DIAGRAMS

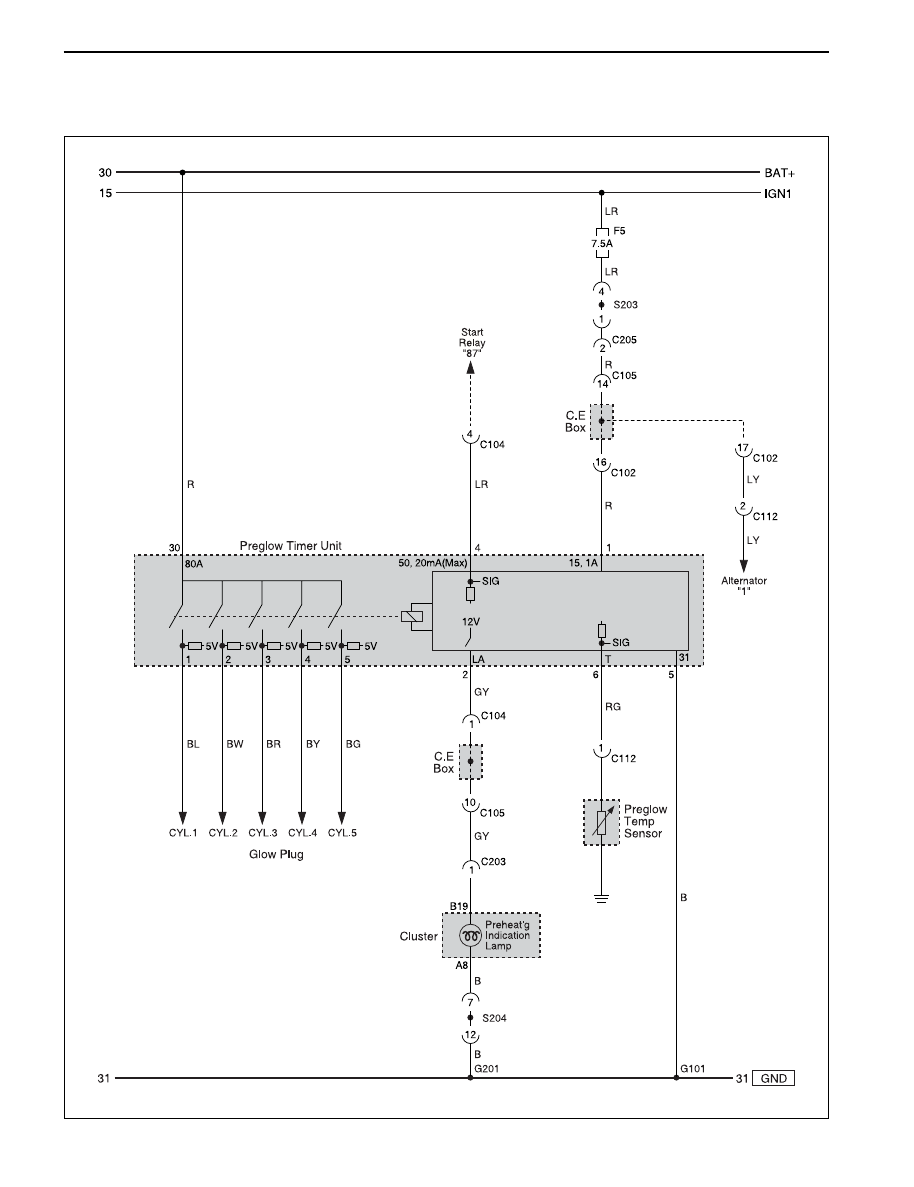

2. PREHEATING UNIT CIRCUIT

1) ~ 2002 MODEL
