SSANGYONG REXTON XDi (LHD)
4-4 USAGE AND CAPACITY OF FUSES IN FUSE BLOCK
Fuse NO.
Power Seat (Driver)
FRT Fog Lamp
A/C Comp. (GSL)
Horn
Power Seat (Driver)
Head Lamp (Low)
Spare
Power Window
TCCU/TOD (GSL)
Spare
Heated Mirror
Defogger
Seat Warmer
Power Seat (Passenger)
OVPR (GSL)
Tail Lamp (LH)
Tail Lamp (RH)
Illumination
Ef1
Ef2
Ef3
Ef4
Ef5
Ef6
Ef7
Ef8
Ef9
Ef10
Ef11
Ef12
Ef13
Ef14
Ef15
Ef16
Ef17
Ef18
Usage
(5) USAGE OF FUSE IN ENGINE ROOM FUSE BOX
Capacity
20A
15A
10A
10A
20A
15A
20A
30A
20A
20A
10A
30A
15A
20A
20A
10A
10A
7.5A
Fuse NO.
Power Antenna.
Fuel Pump (GSL)
RR Blower
Head Lamp (HI)
Power Outlet (FRT)
Power Outlet (RR)
OVPR (GSL)
Alternator
ABS/ABD
IGN Key “2”
C/Fan (HI) - GSL
C/Fan (DSL), C/Fan (LOW) - DSL
2nd Air Pump
FRT Blower
Cabin F/Box “B+” - 2
Cabin F/Box “B+” - 1
IGN Key “1”
Ef19
Ef20
Ef21
Ef22
Ef23
Ef24
Ef25
SB1
SB2
SB3
SB4
SB5
SB6
SB7
SB8
SB9
SB10
Usage
Capacity
10A
15A
15A
15A
15A
15A
15A
80A/100A/120A
60A
30A
30A
30A
50A
30A
30A
30A
30A

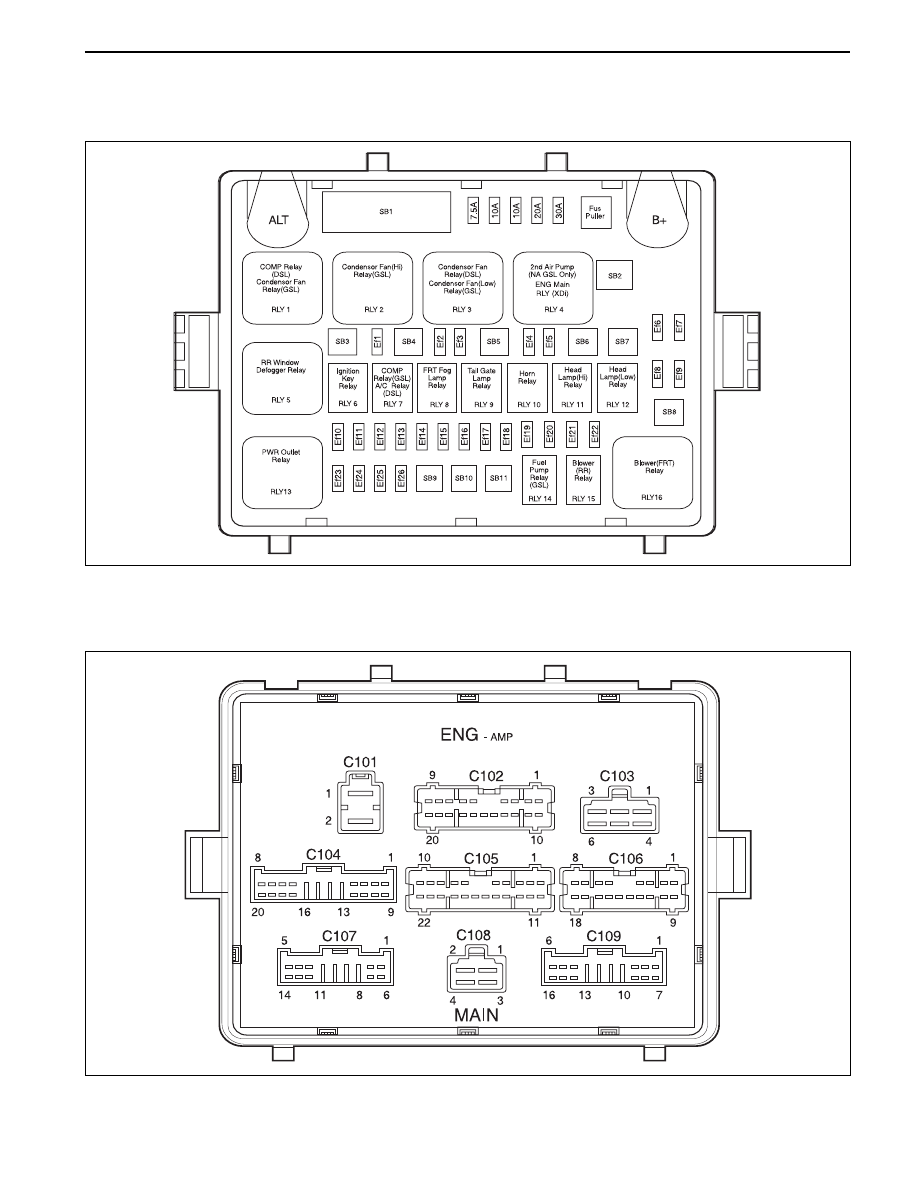

(6) CONNECTOR
Position
C101
C102
C103
C104
C105
C106
C107
C108
C109
A
B
C
D
E
F
J
K
M
Connector NO.
2
20
6
20
22
18
14
4
16
Black
White
Colorless
White
White
White
White
Colorless
White
Connector Color
Pin NO.
