SsangYong Rexton. Service manual - part 232





SSANGYONG  REXTON XDi (LHD)

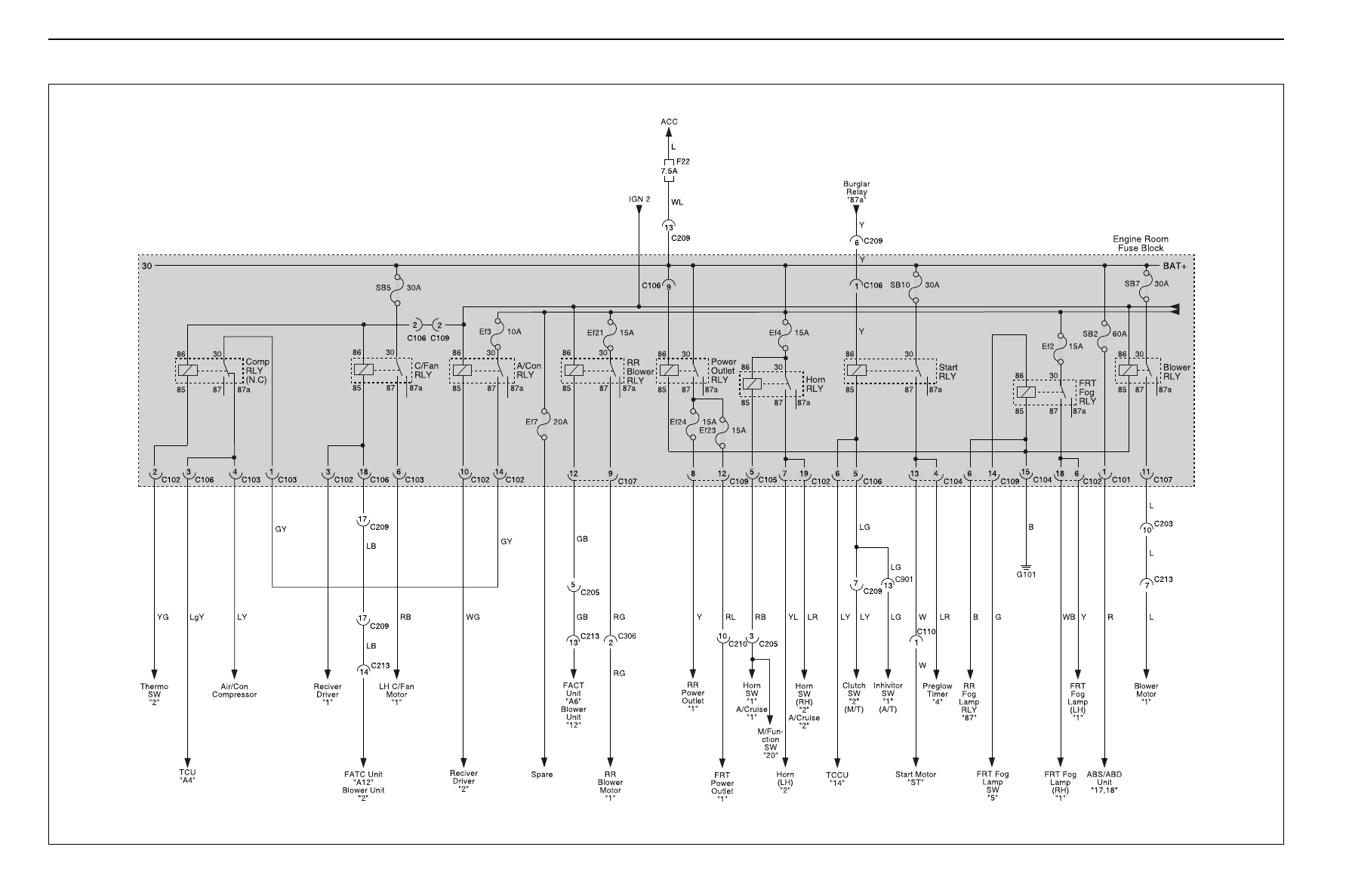

3-6  WIRING DIAGRAM FOR POWER SUPPLIES

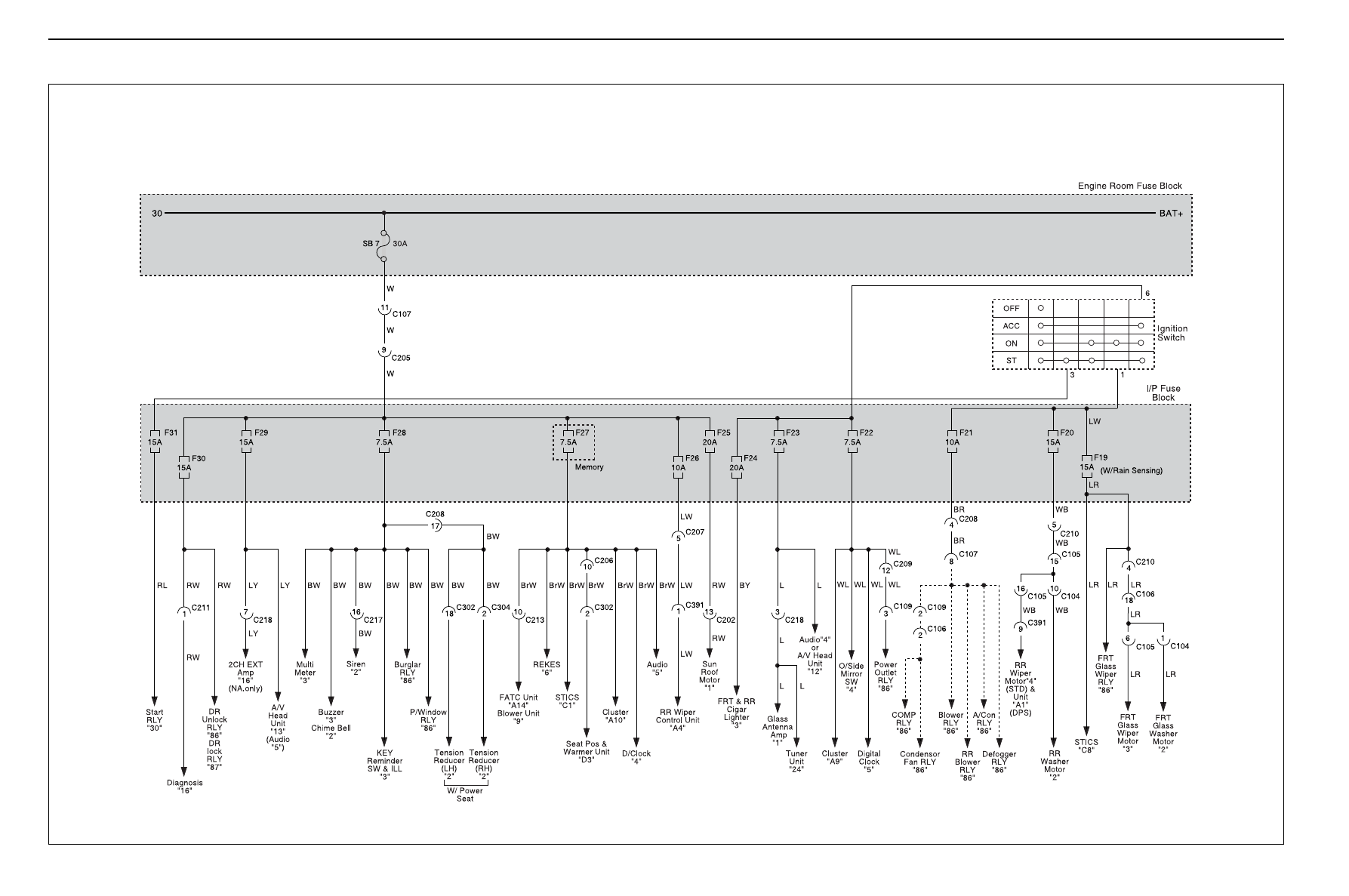

WIRING DIAGRAM FOR POWER SUPPLIES  3-7

SSANGYONG  REXTON XDi (LHD)

2) 2003 MODEL

SSANGYONG  REXTON XDi (LHD)

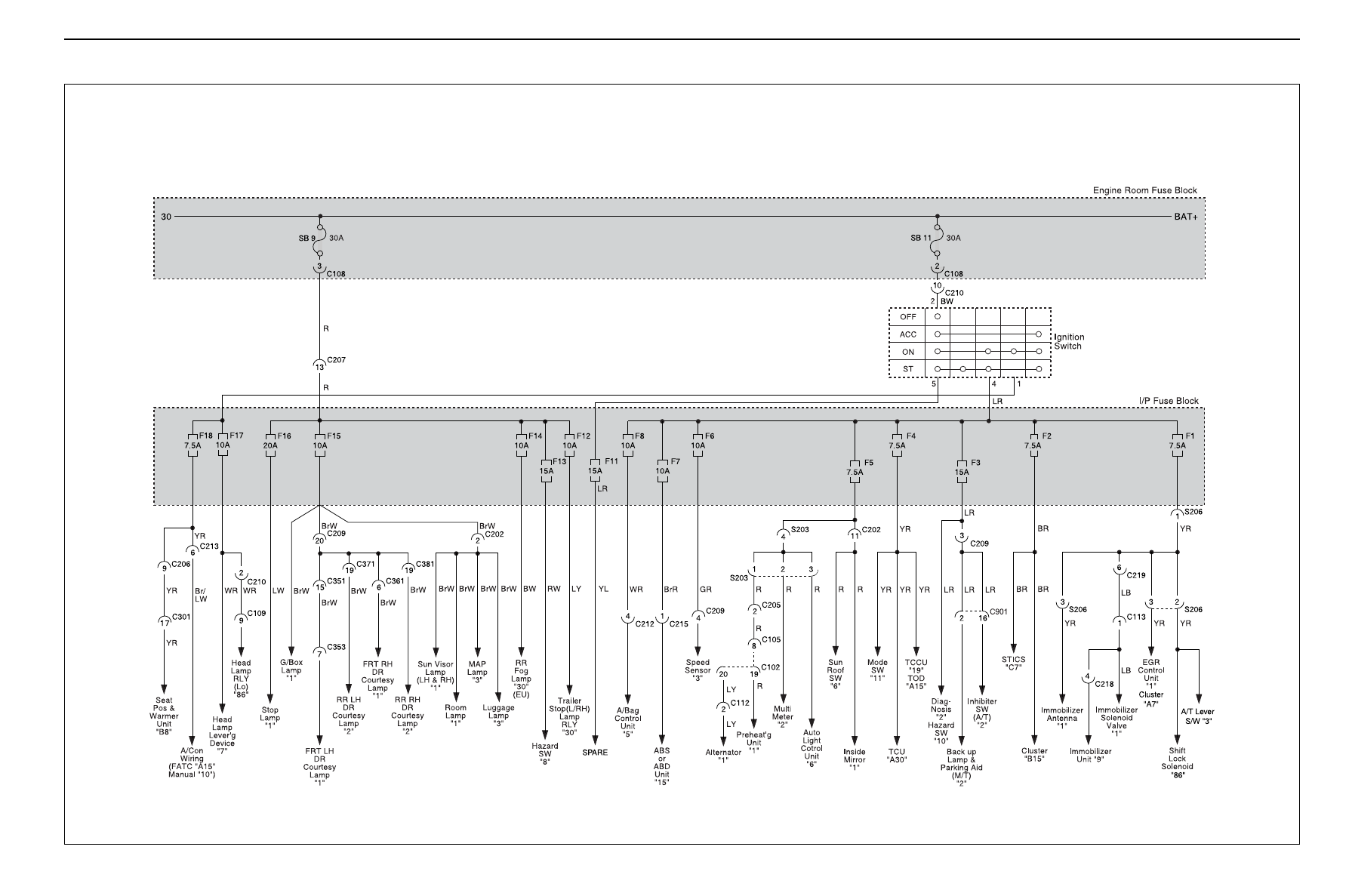

3-8  WIRING DIAGRAM FOR POWER SUPPLIES

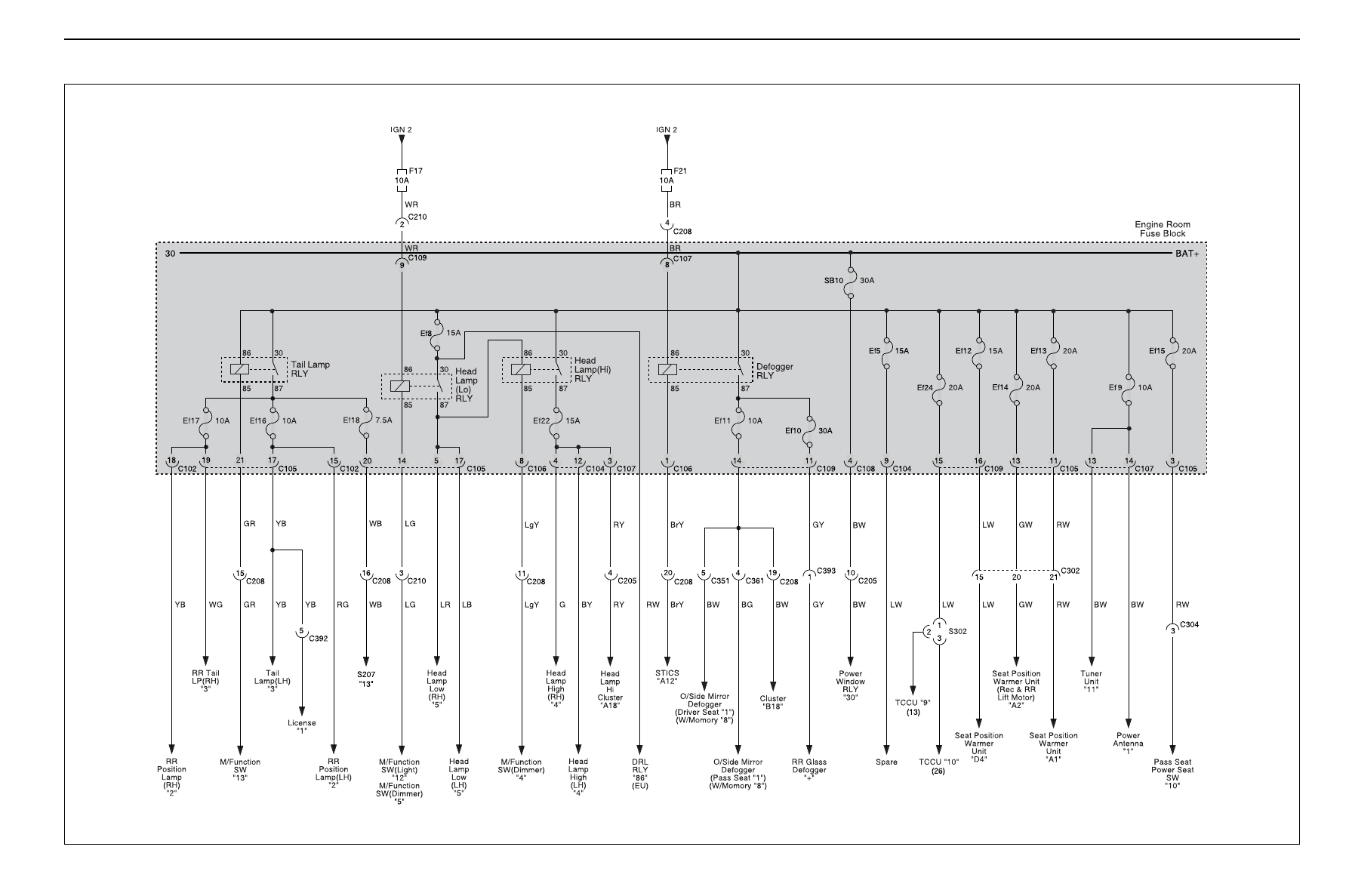

WIRING DIAGRAM FOR POWER SUPPLIES  3-9

SSANGYONG  REXTON XDi (LHD)
