SSANGYONG  REXTON XDi(RHD)

5-160  ELECTRICAL WIRING DIAGRAMS

45. FATC(FULL AUTO TEMPERATURE CONTROL) CIRCUIT

1) DIESEL

(1) ~ 2002 MODEL

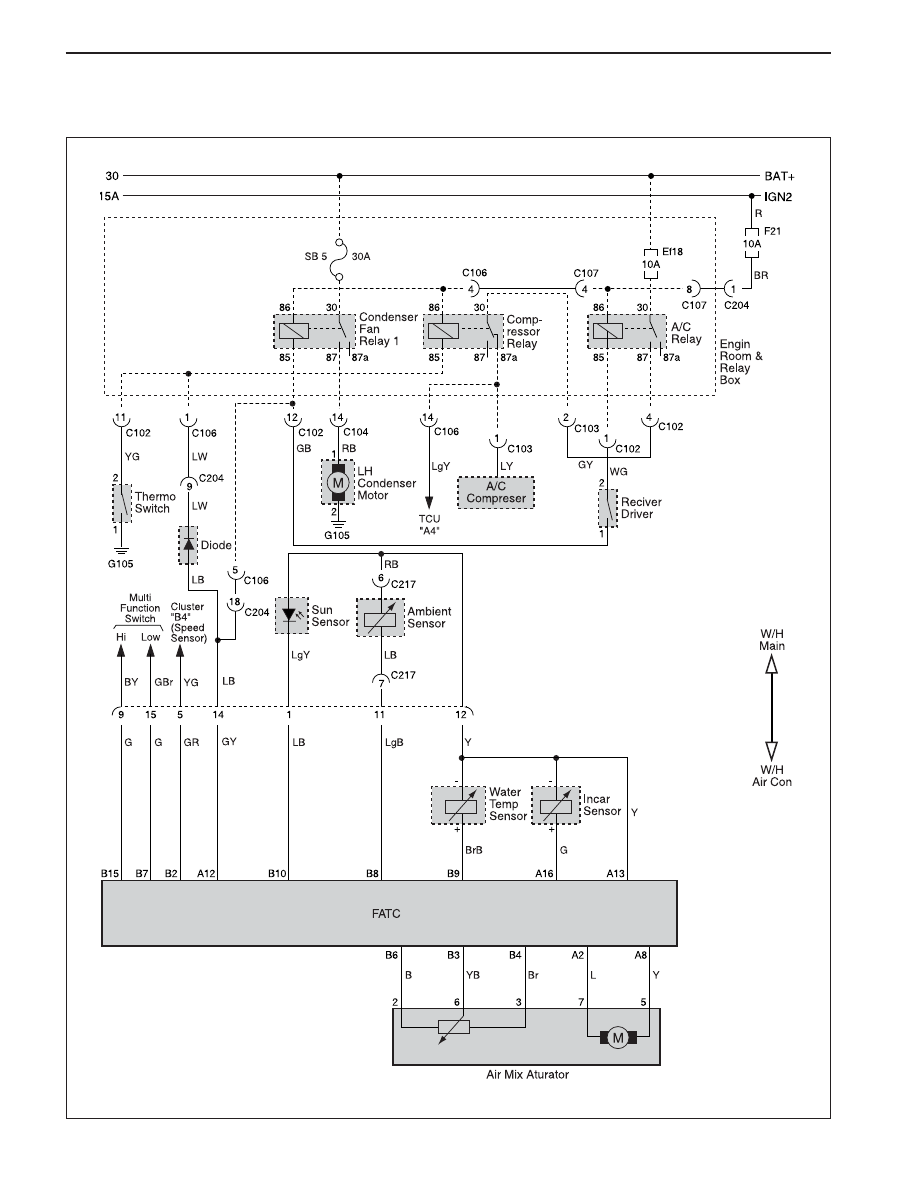

(A) AIR MIX ACTUCTOR, SENSOR(SUN, AMBIENT, INCAR, WATER TEMP) CIRCUIT

ELECTRICAL WIRING DIAGRAMS  5-161

SSANGYONG  REXTON XDi(RHD)

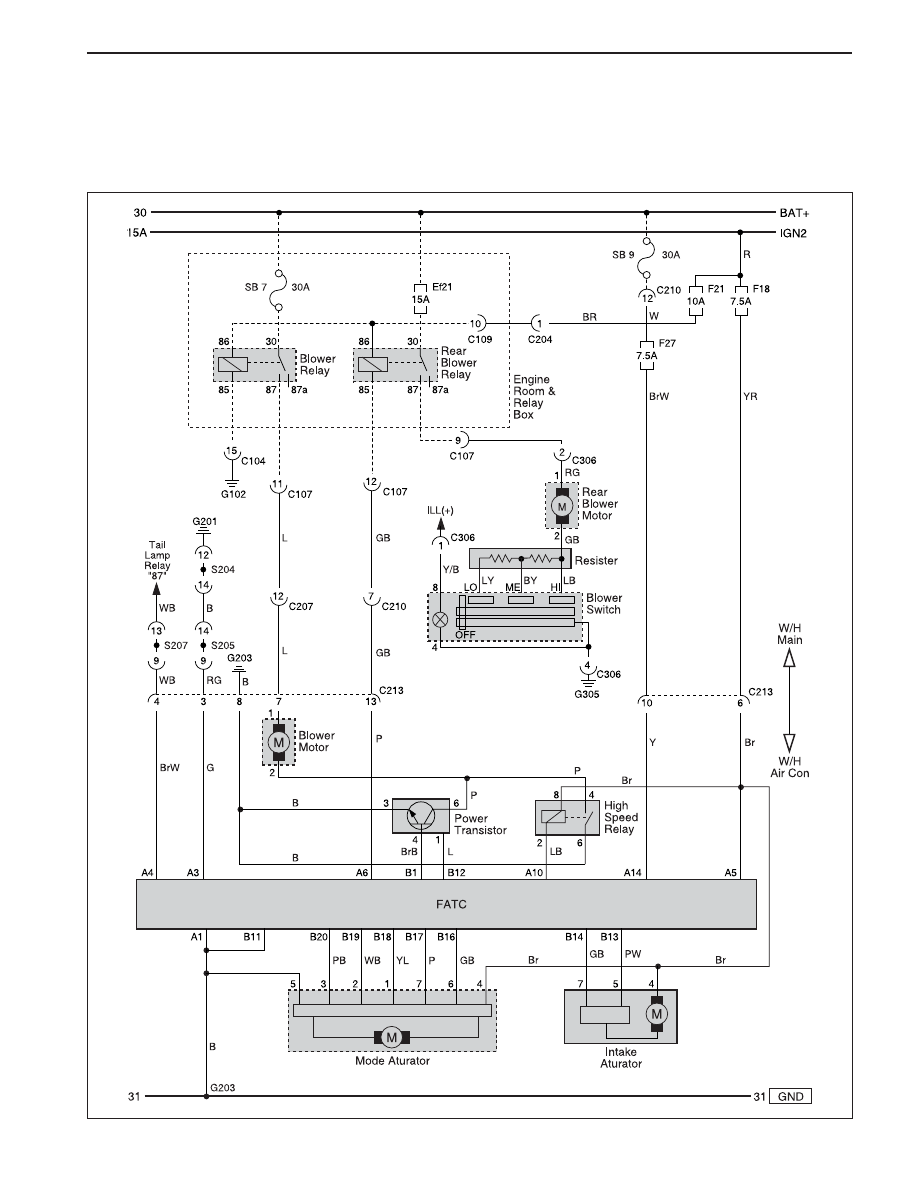

(B) ACTURATOR(MODE, INTAKE) CIRCUIT

SSANGYONG  REXTON XDi(RHD)

5-162  ELECTRICAL WIRING DIAGRAMS

(2) 2003 MODEL ~

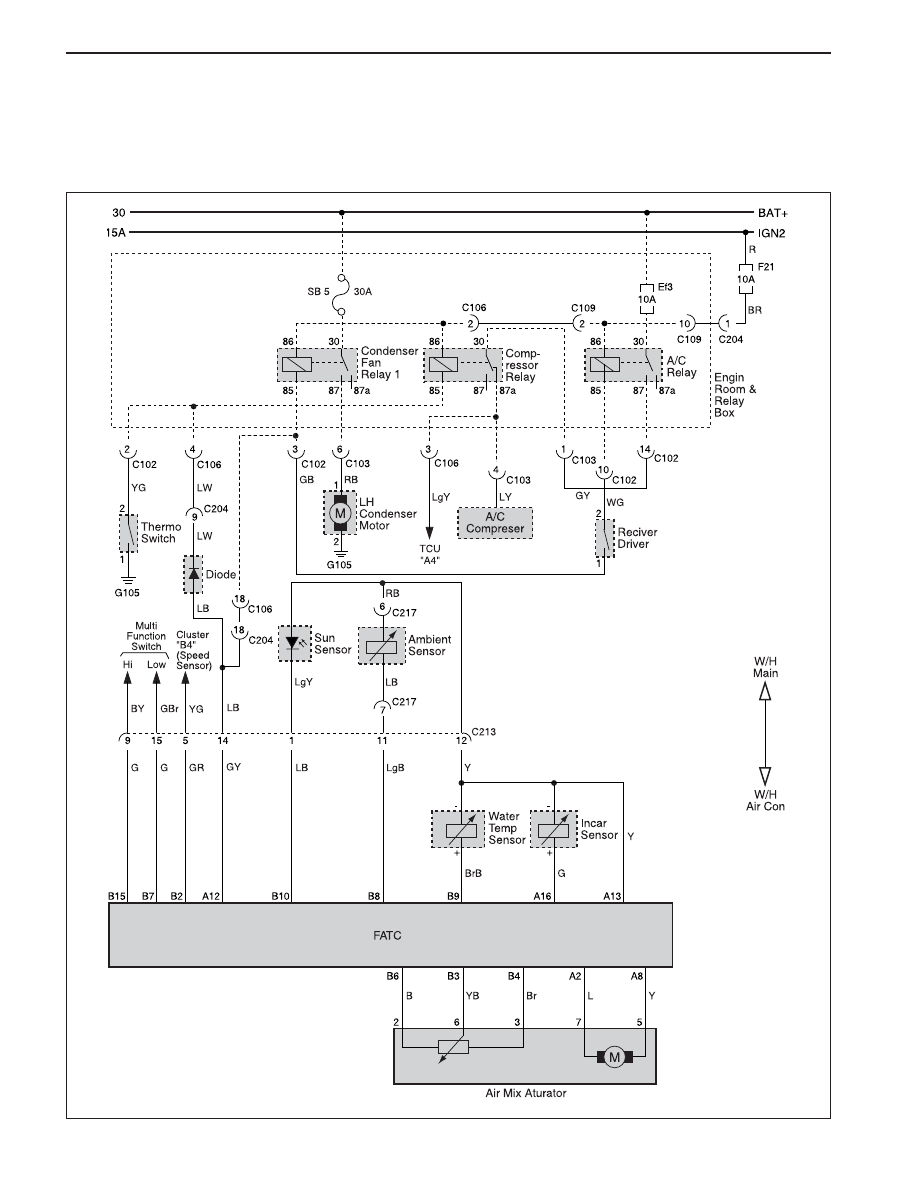

(A) AIR MIX ACTUCTOR, SENSOR(SUN, AMBIENT, INCAR, WATER TEMP) CIRCUIT

ELECTRICAL WIRING DIAGRAMS  5-163

SSANGYONG  REXTON XDi(RHD)

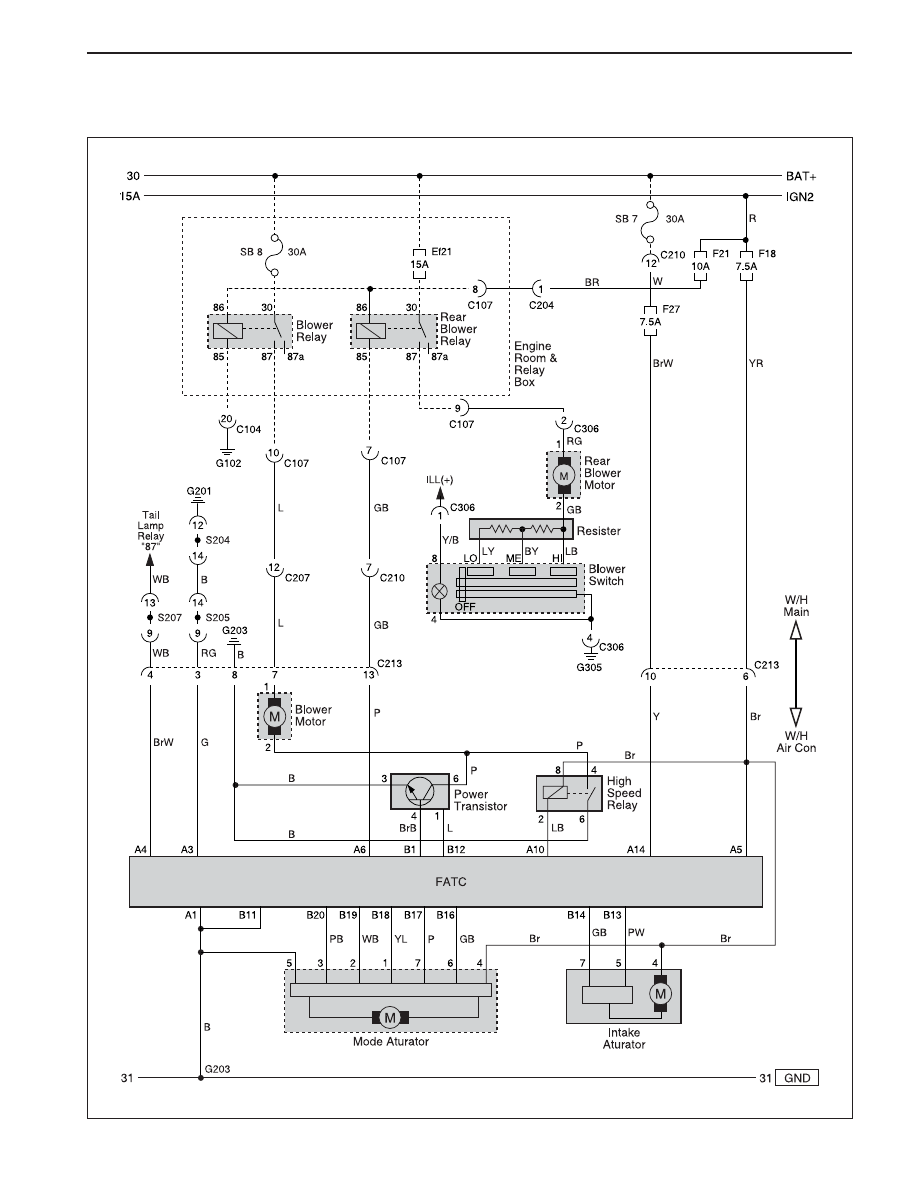

(B) ACTURATOR(MODE, INTAKE) CIRCUIT
