SSANGYONG  REXTON XDi(RHD)

2-30  POSITION OF CONNECTORS AND GROUNDS

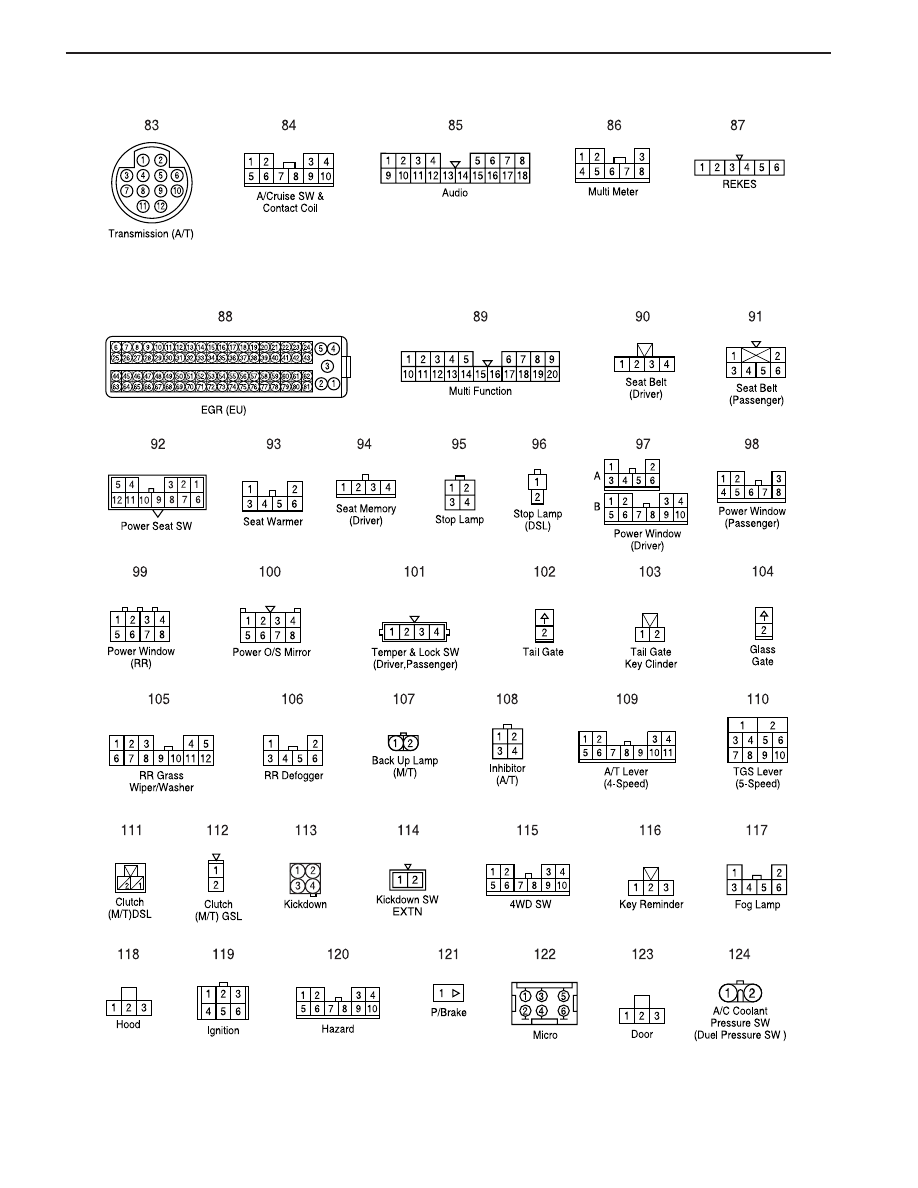

5) SW

POSITION OF CONNECTORS AND GROUNDS  2-31

SSANGYONG  REXTON XDi(RHD)

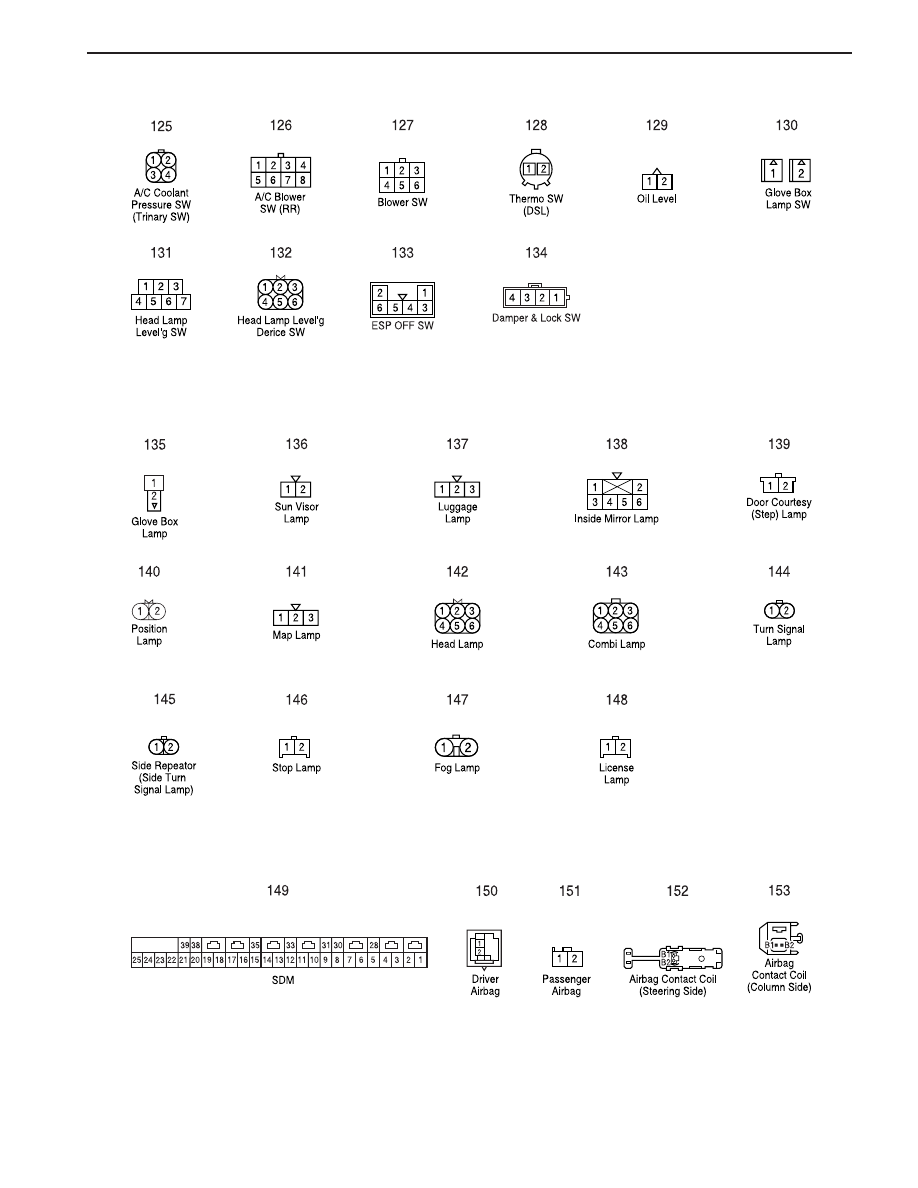

6) LAMP

7) AIR BAG

SSANGYONG  REXTON XDi(RHD)

2-32  POSITION OF CONNECTORS AND GROUNDS

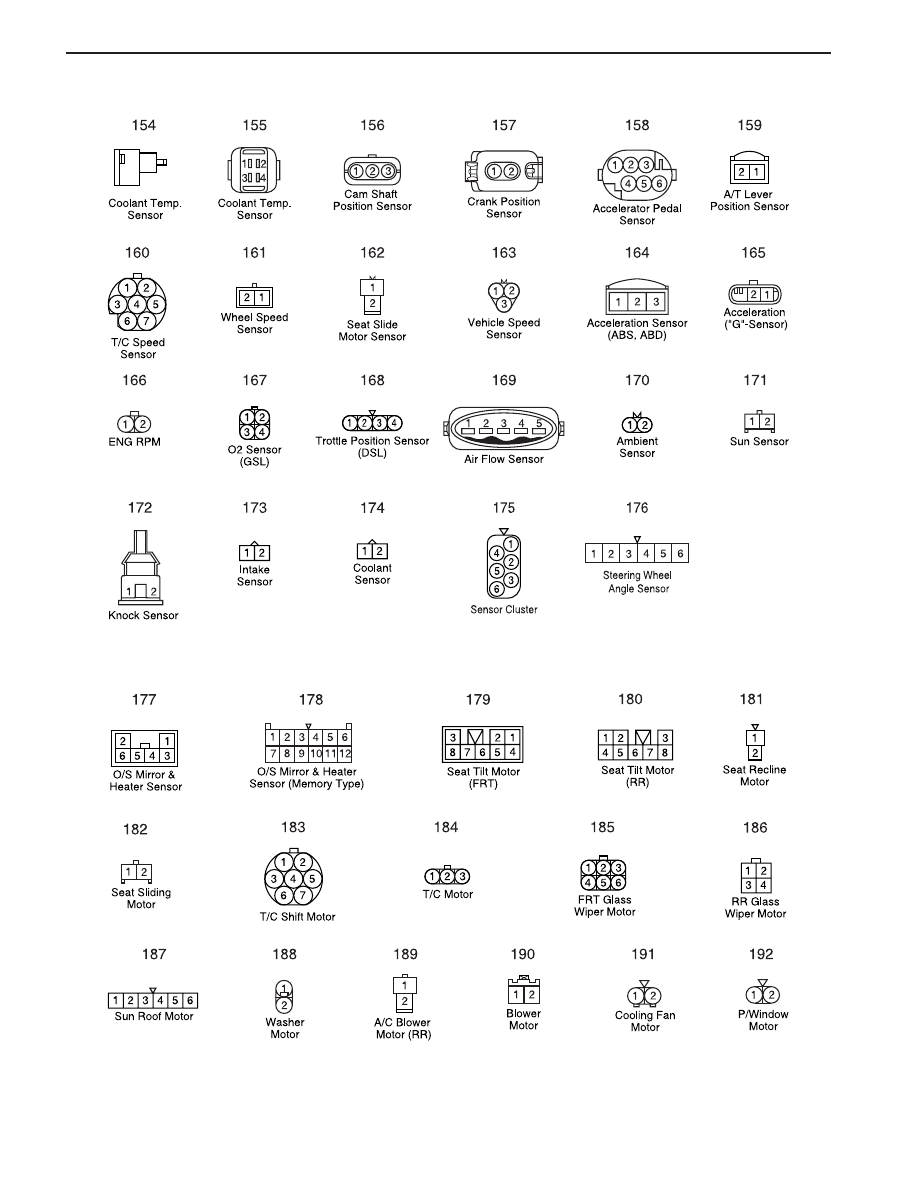

8) SENSOR

9) MOTOR

POSITION OF CONNECTORS AND GROUNDS  2-33

SSANGYONG  REXTON XDi(RHD)

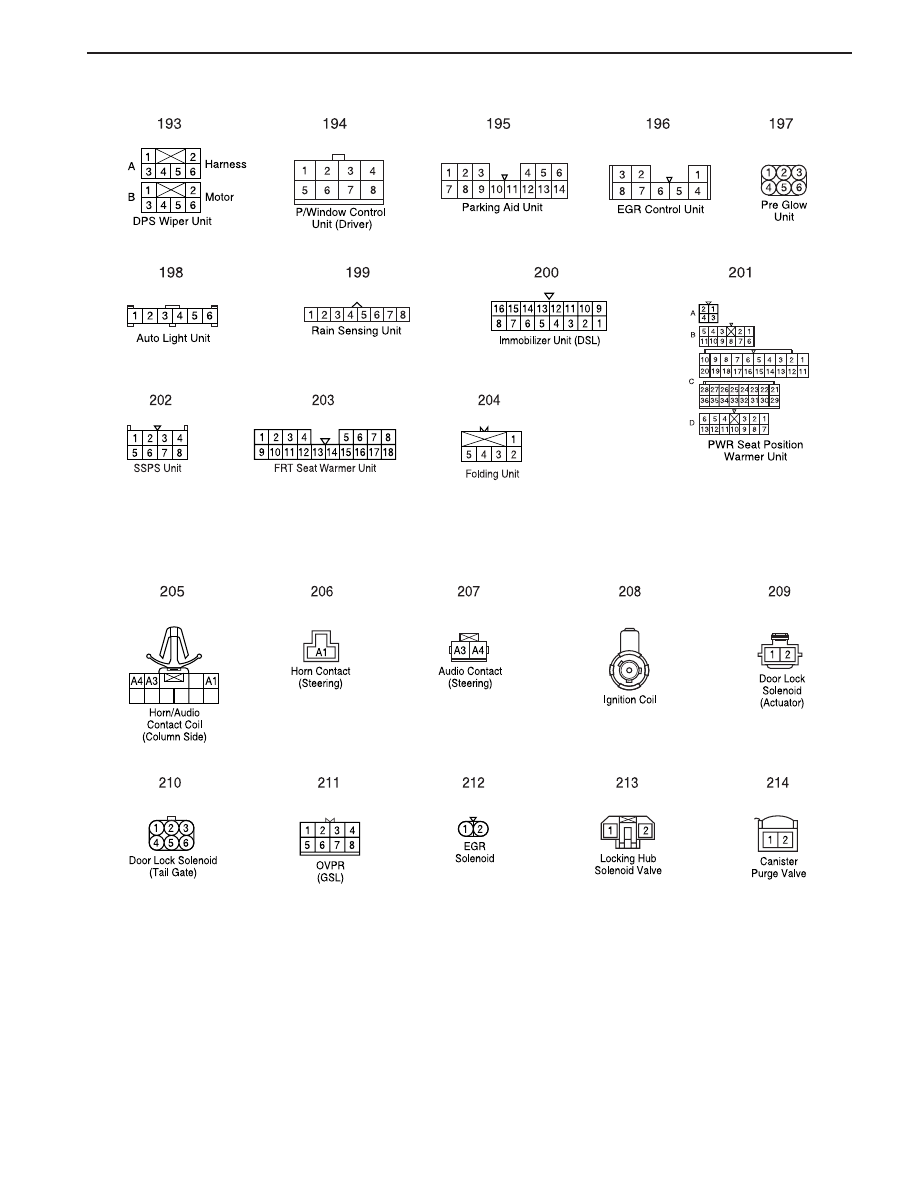

10) UNIT

11) COIL/SOLENOID
