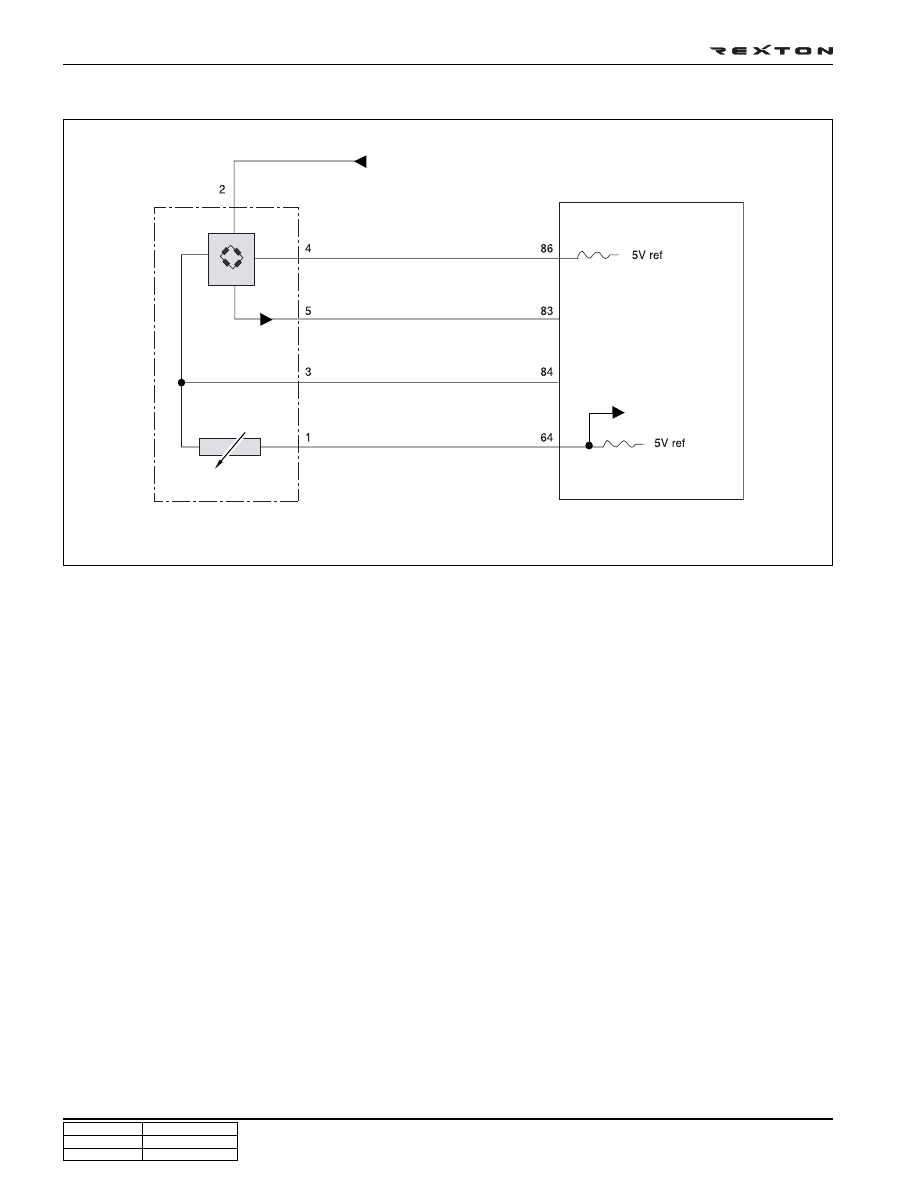

<Circuit diagram of HFM sensor>

Power supply

Intake air
f l o w
sensor

Intake air temperature

sensor

HFM sensor

Signal

Ground

Ground

DI03-11

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

INTAKE SYSTEM

DI ENG SM - 2004.4

Y220_03014

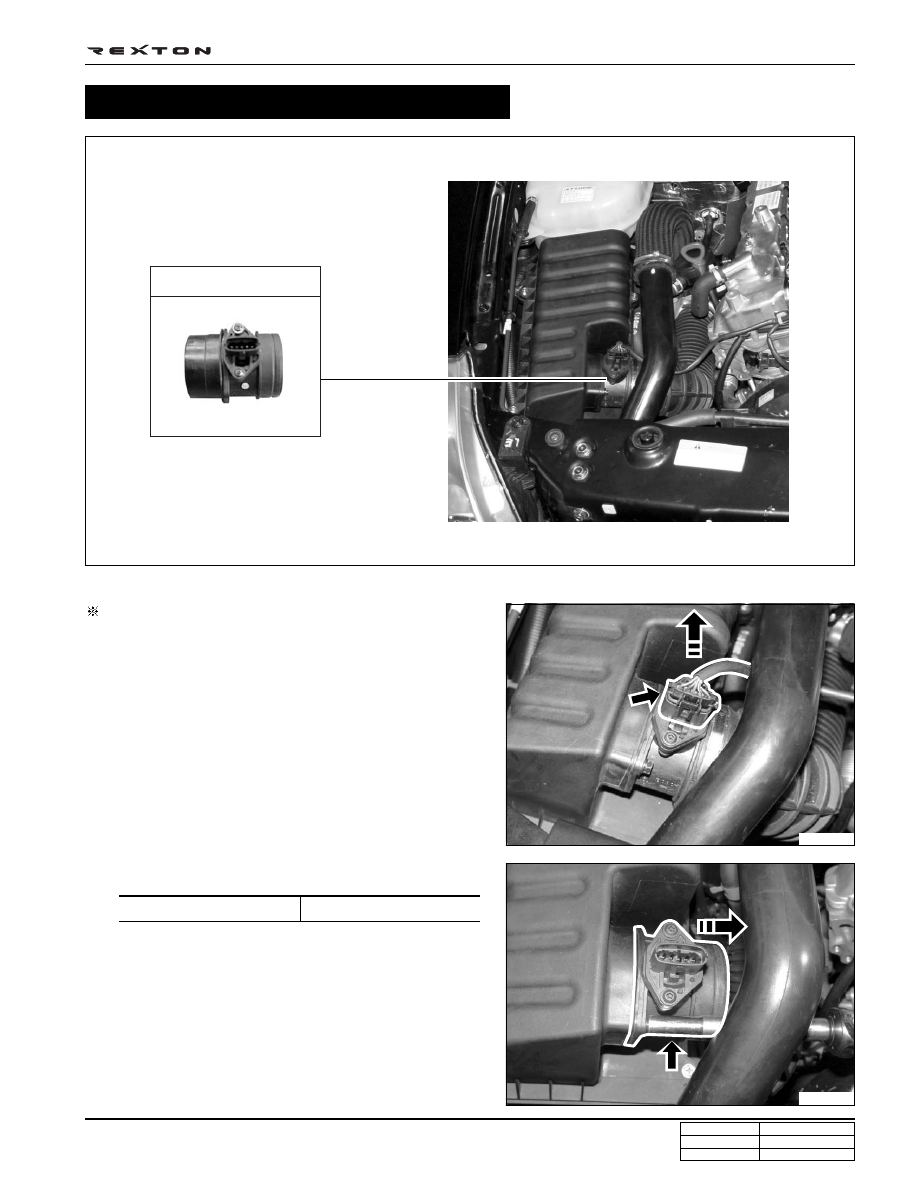

HFM sensor

HFM Sensor - Removal and Installation

Y220_03016

Y220_03015

Preceding Work: Disconnection of negative battery cable

1. Disconnect the negative battery cable.

2. Loosen the clamps on the air cleaner and the turbo

charger and remove the duct.

3. Unscrew the bolts and remove the HFM sensor assembly.

Tightening torque

10 ± 1.0 Nm

DI03-12

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

INTAKE SYSTEM

DI ENG SM - 2004.4

Y220_03017

Y220_03018

Y220_03019

Y220_03020

4. Install in the reverse order of removal.

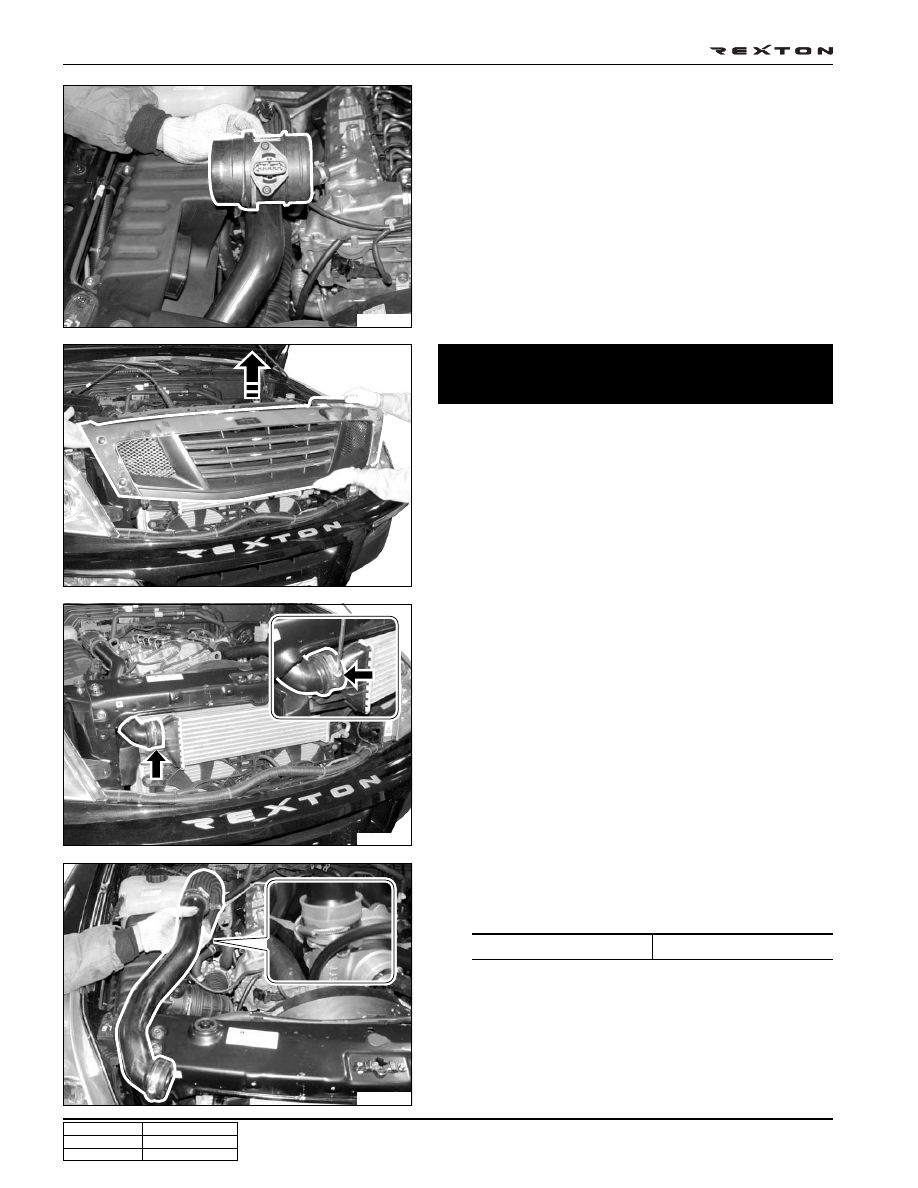

Intake Air Outlet Hose (Turbo Charger)
- Removal and Installation

1. Remove the radiator grille.

2. Loosen the clamp at both sides and remove the outlet

hose.

3. Loosen the clamp on the intake air hose and remove the

intake air hose.

Installation Notice

Notice

Securely fasten the clamps on the pipes and hoses.

Tightening torque

6 ~ 7 Nm

4. Install in the reverse order of removal.

DI03-13

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

INTAKE SYSTEM

DI ENG SM - 2004.4

Y220_03021

Y220_03022

Y220_03023

Y220_03024

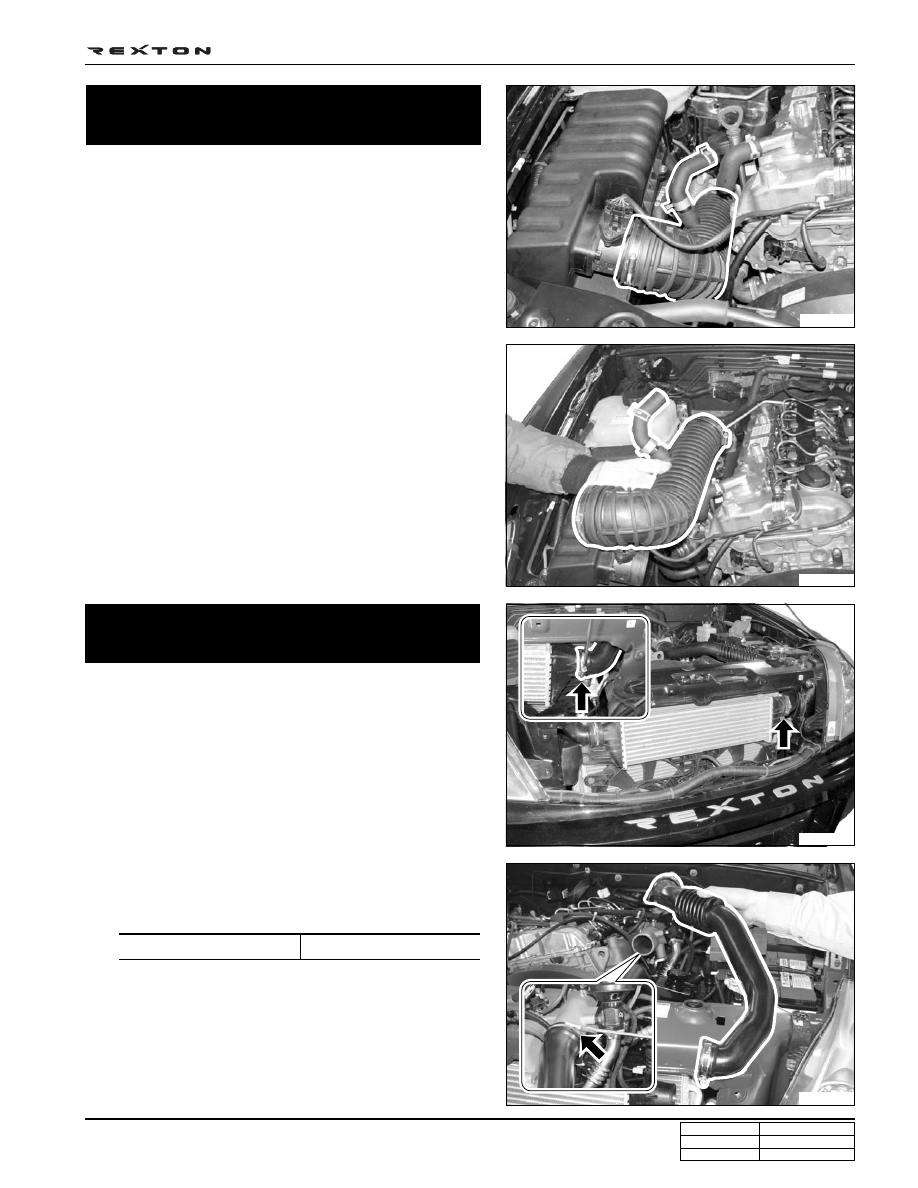

1. Loosen the clamp at intercooler side.

2. Loosen the clamp at turbo charger side.

3. Separate the hose from the oil separator and remove the

intake duct.

4. Install in the reverse order of removal.

Intake Air Inlet Duct (Air Cleaner)
- Removal and Installation

Intake Air Inlet Duct (Intake Manifold)
- Removal and Installation

1. Loosen the clamp on the inlet hose in intercooler.

2. Loosen the clamp at the intake manifold and remove the

inlet hose.

Installation Notice

Tightening torque

6 ~ 7 Nm

3. Install in the reverse order of removal.
