ENGINE ASSEMBLY

DI ENG SM - 2004.4

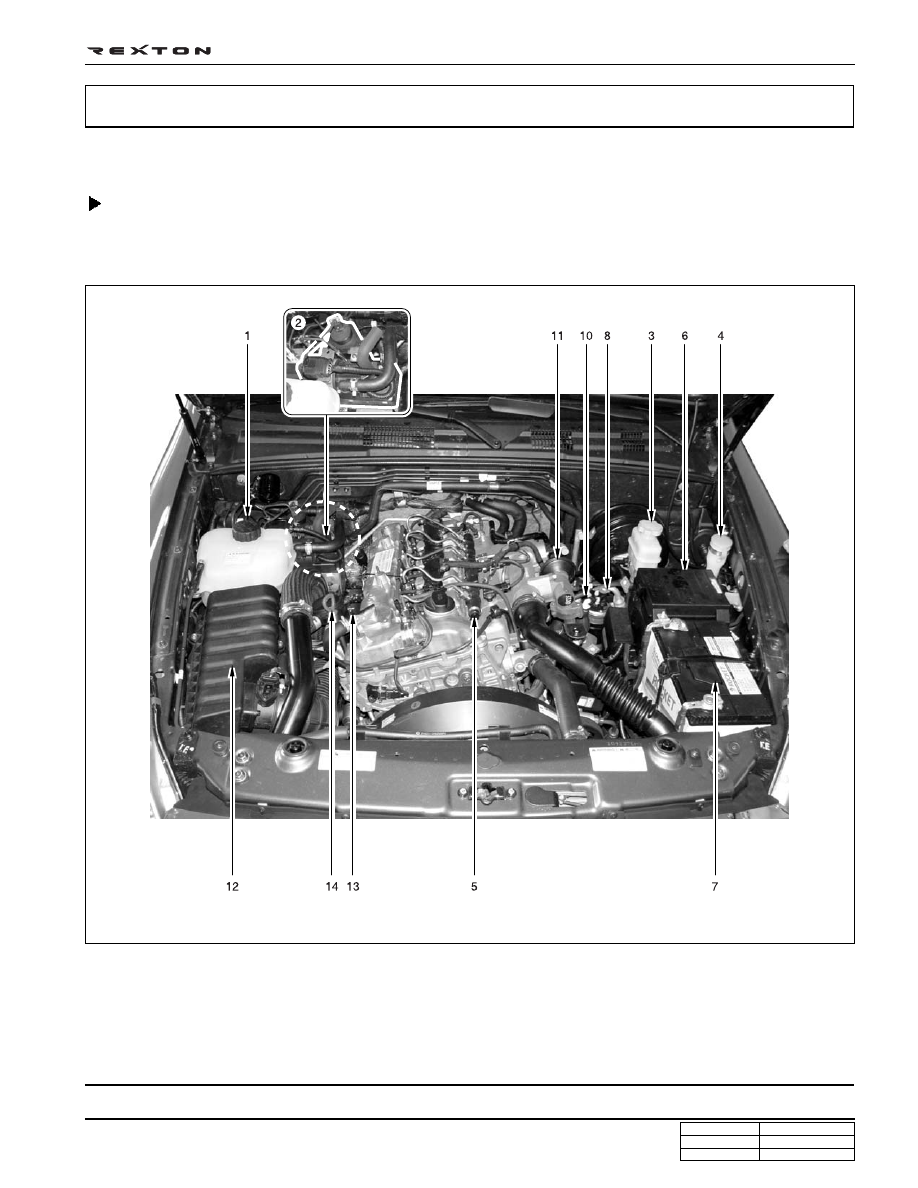

1. Coolant reservoir

2. FFH device

3. Brake fluid reservoir

4. Washer fluid reservoir

5. Common rail

6. Fuse box

7. Battery

8. Fuel filter

9. Power steering pump

10. Priming pump

Y220_01001

STRUCTURE AND FUNCTION DESCRIPTIONS

D27DT ENGINE

Major Components in Engine and Engine Compartment

The advanced electronically controlled D27DT engine that has high pressure fuel system has been introduced to this
vehicle. It satisfies the strict emission regulation and provides improved output and maximum torque.

11. EGR valve

12. Air cleaner assembly

13. Turbo charger

14. Oil dipstick

DI01-4

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE ASSEMBLY

DI ENG SM - 2004.4

Engine Structure

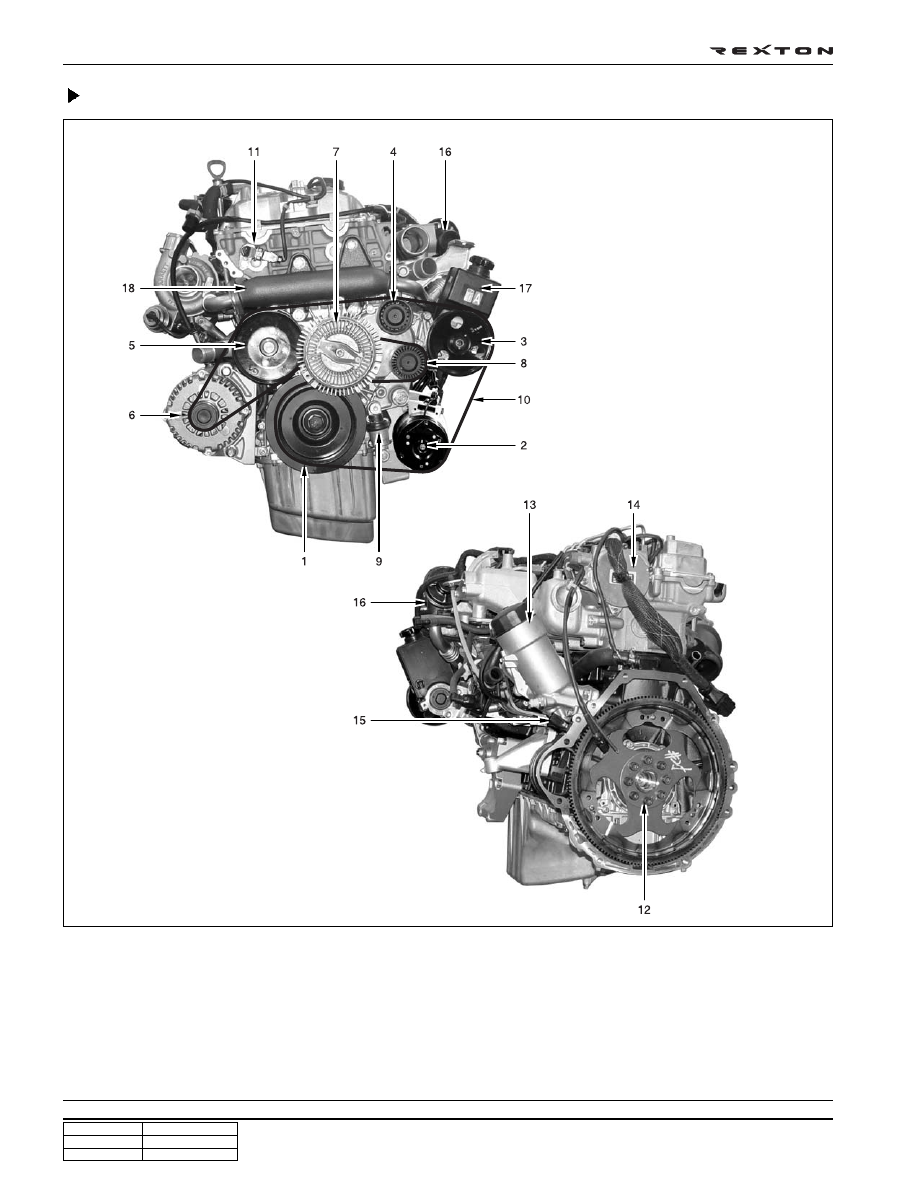

1. TVD (Torsional Vibration Damper)

2. Air conditioner compressor

3. Power steering pump pulley

4. Idle pulley

5. Coolant pump pulley

6. Alternator

Front View

Rear View

7. Viscos fan clutch

8. Auto tensioner pulley

9. Auto tensioner

10. Poly-grooved belt

11. Cam position sensor

12. Drive plate (MT: DMF)

13. Oil filter

14. Vacuum pump

15. Crank position sensor

16. EGR valve

17. Power steering pump

18. EGR to center pipe

Y220_01002

DI01-5

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE ASSEMBLY

DI ENG SM - 2004.4

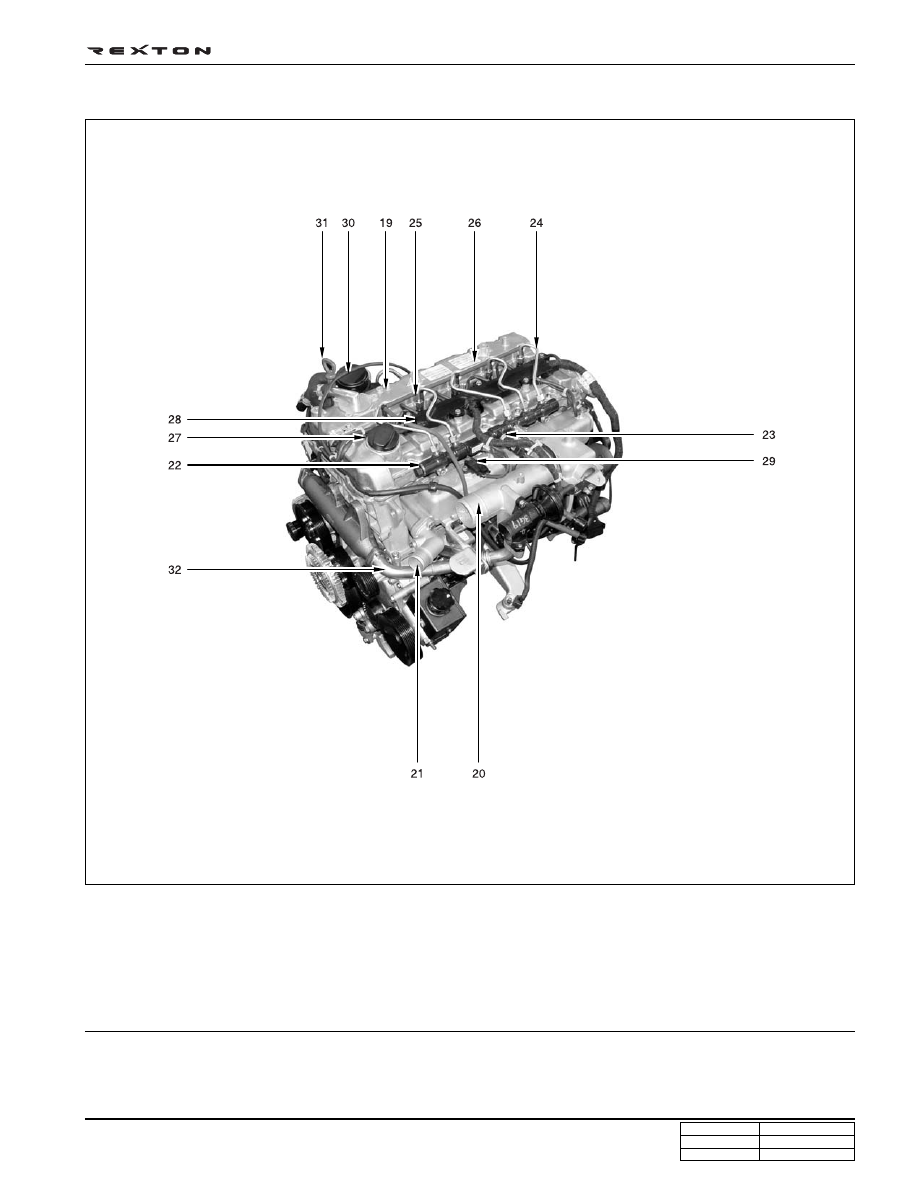

Top View

19. Cylinder head cover

20. Intake manifold

21. Water outlet port

22. Common rail

23. Fuel pressure sensor

24. Fuel pipe

25. Injector

26. Fuel return line

27. Oil filler cap

28. Glow plug

29. Booster pressure sensor

30. PCV valve and oil separator

31. Oil dipstick

32. EGR-LH pipe

Y220_01003
