05-27

8010-01

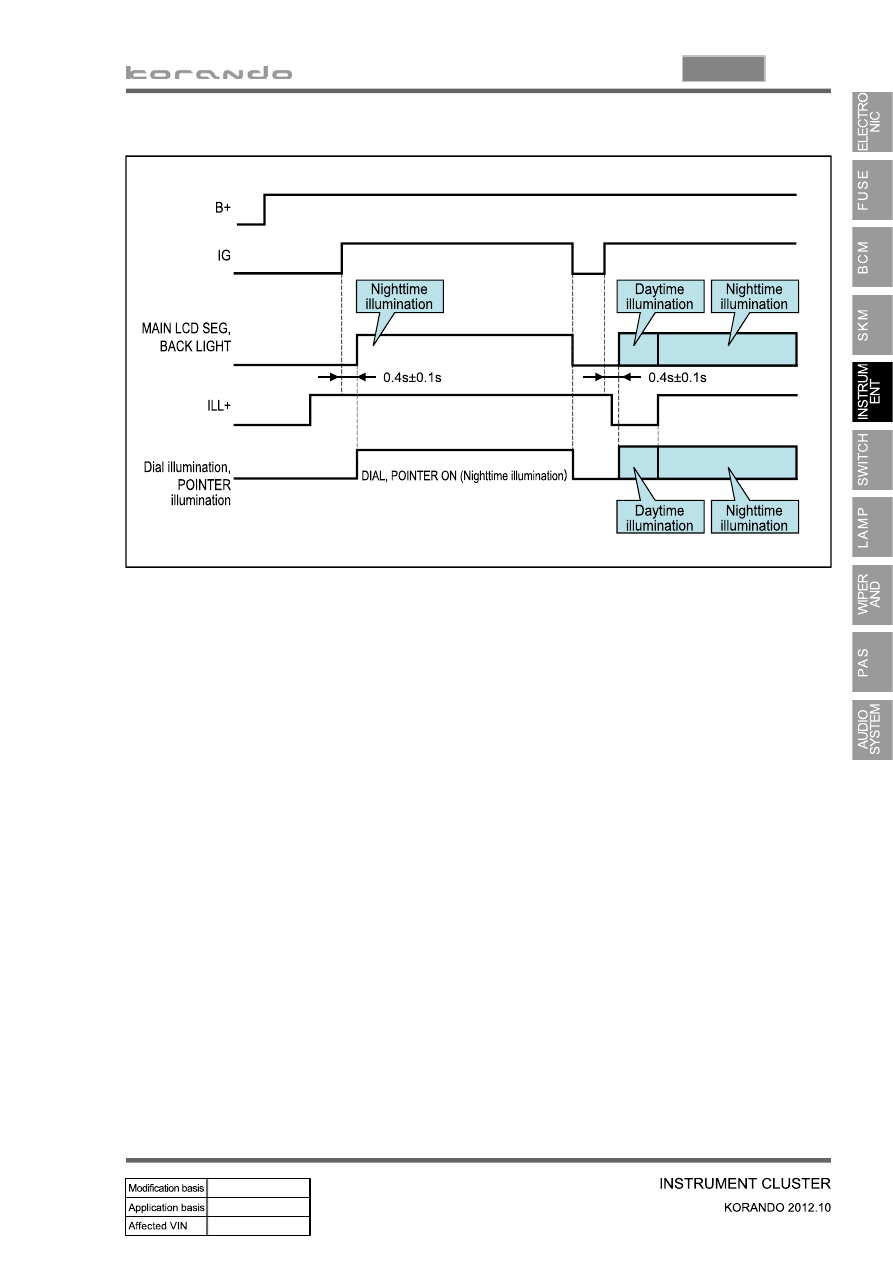

Operations for power supply in STD

▶

The operation input before the LCD backlight is illuminated, right after the ignition is turned OFF or ON,

is ignored.
The LCD backlight and other lamps are illuminated 0.4 ±0.1 second after the ignition ON is

detected.

The LCD display, LCD backlight, dial lamp and indicator lamp are turned on or off by the ignition

switch ON/OFF operation.

-

-

-

05-28

Brightness in SVC

▶

(2) Illumination Level

Brightness in STD

▶

Operating power

Illumination level

Main LCD

Dial pointer

Day

Night

Day

Night

B+

(B-CAN Wake UP)

-

OFF

OFF

OFF

OFF

IGN1

Level 1

100%

20%

100%

20%

Level 2

100%

30%

100%

30%

Level 3

100%

40%

100%

40%

Level 4

100%

50%

100%

50%

Level 5

100%

60%

100%

60%

Level 6

100%

70%

100%

70%

Operating power

Illumination

previous

DOT LCD

ODO, GAGE LCD

Dial

pointer

Day

Night

Day

Night

Day

Night

B+

(B-CAN

Wake

UP)

After

-

Level 6

Level 6

OFF (however, level 6 for initial
operation with B+ & IGN1 ON)

After

1st time

Maintains

previous

level

Maintains

previous

level

OFF (however, maintains previous level
for initial operation with B+ & IGN1 ON)

IGN1

Level 1

25%

5%

25%

5%

25%

5%

Level 2

40%

12%

40%

12%

40%

12%

Level 3

55%

19%

55%

19%

55%

19%

Level 4

70%

26%

70%

26%

70%

26%

Level 5

85%

33%

85%

33%

85%

33%

Level 6

100%

40%

100%

40%

100%

40%

05-29

8010-01

(1) SVC

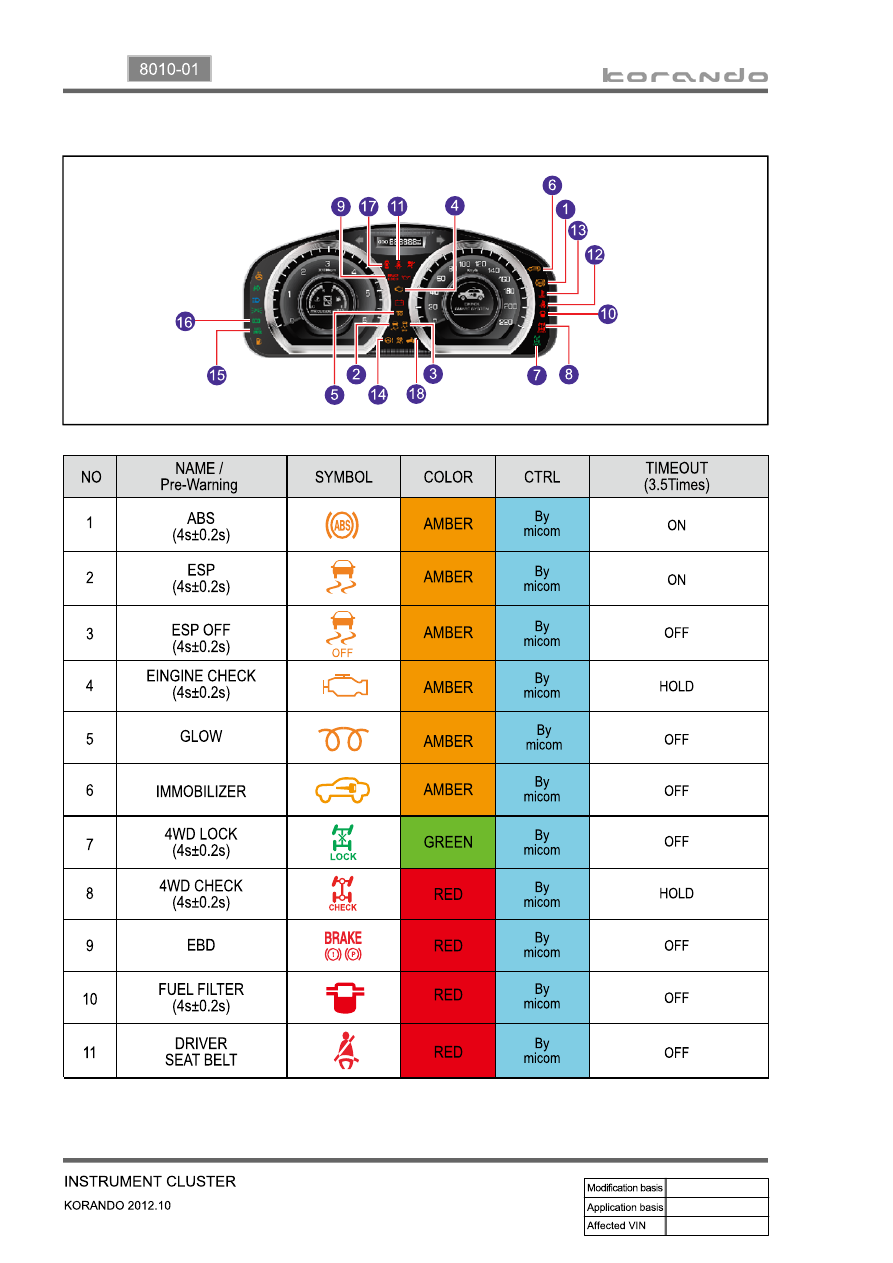

Symbols in SVC

▶

6) System Analysis

05-30

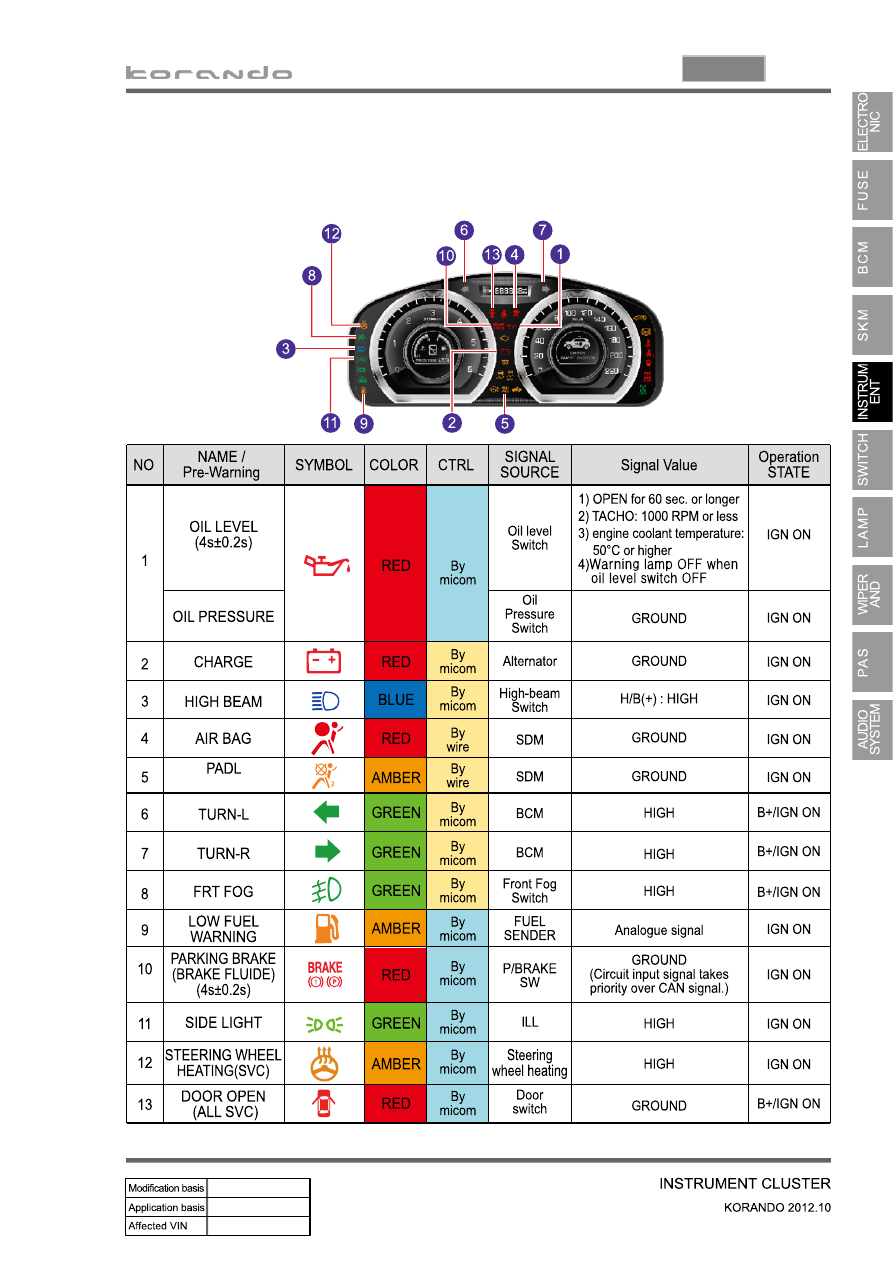

Symbols in SVC (via CAN)

▶
