SsangYong Korando II (1996-2006 year). Service manual - part 388

MANUAL & SEMIAUTO-HVAC  7C-21

SSANGYONG  MY2002

KAA7C240

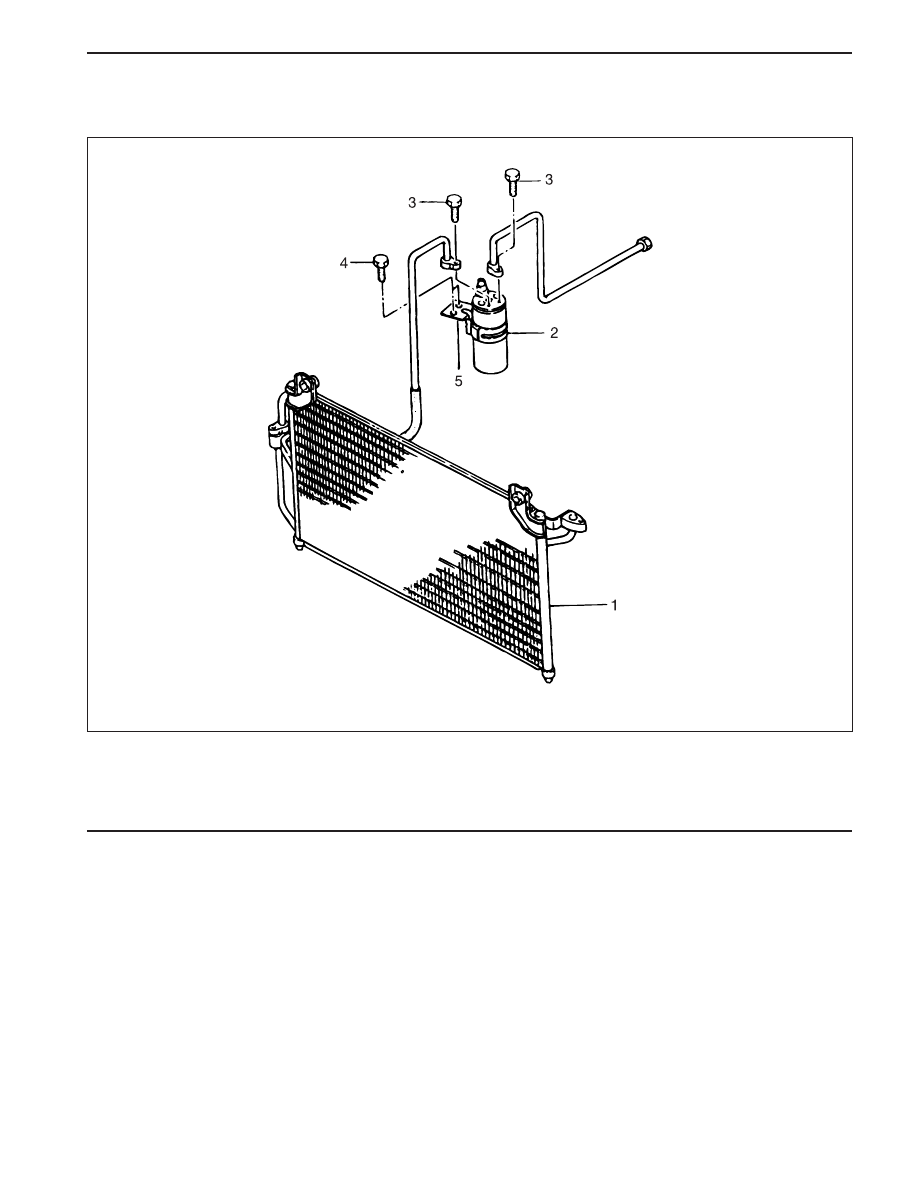

1 Condenser
2 Receiver Drier
3 Bolt ................................ 4 - 6 N•m (35 - 53 lb-in)

4 Bolt ................................ 5 - 8 N•m (44 - 71 lb-in)
5 Bracket

RECEIVER DRIER

SSANGYONG  MY2002

7C-22  MANUAL & SEMIAUTO-HVAC

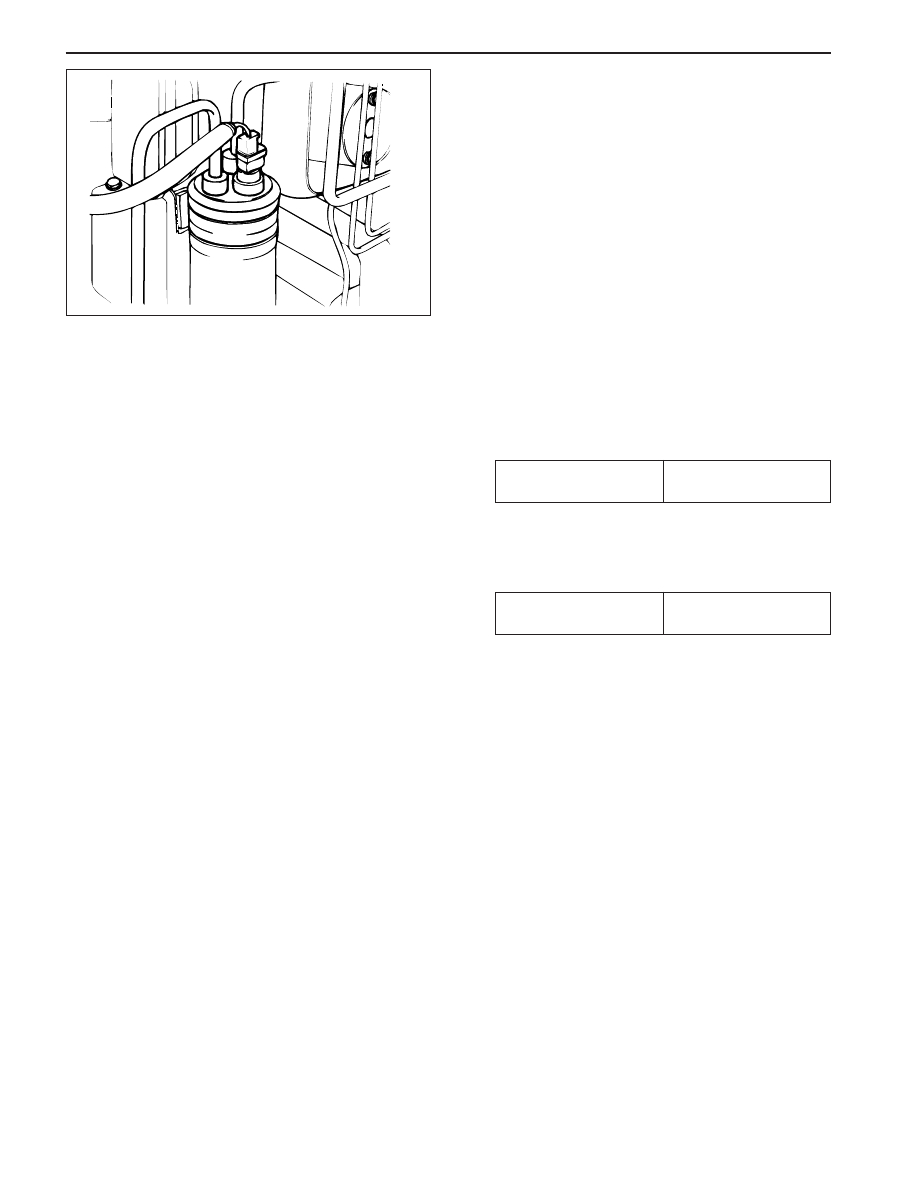

3. Disconnect the inlet and outlet pipes of receiver

drier.

Notice: When installing, check the O-ring and
apply the compressor oil.

Installation Notice

4. Remove the bracket bolt and then remove the

receiver drier.

Installation Notice

5. Installation should follow the removal procedure

in the reverse order.

KAA7C250

Removal & Installation Procedure

1. Disconnect the negative(-) terminal from the

battery.

2. Discharge refrigerant from the system.

N o t i c e :  By connecting a manifold gauge
connection hose to High/Low pressure line,
discharge the refrigerant.

Tightening Torque

4 - 6 N•m

(35 - 53 lb-in)

Tightening Torque

5 - 8 N•m

(44 - 71 lb-in)

MANUAL & SEMIAUTO-HVAC  7C-23

SSANGYONG  MY2002

KAA7C260

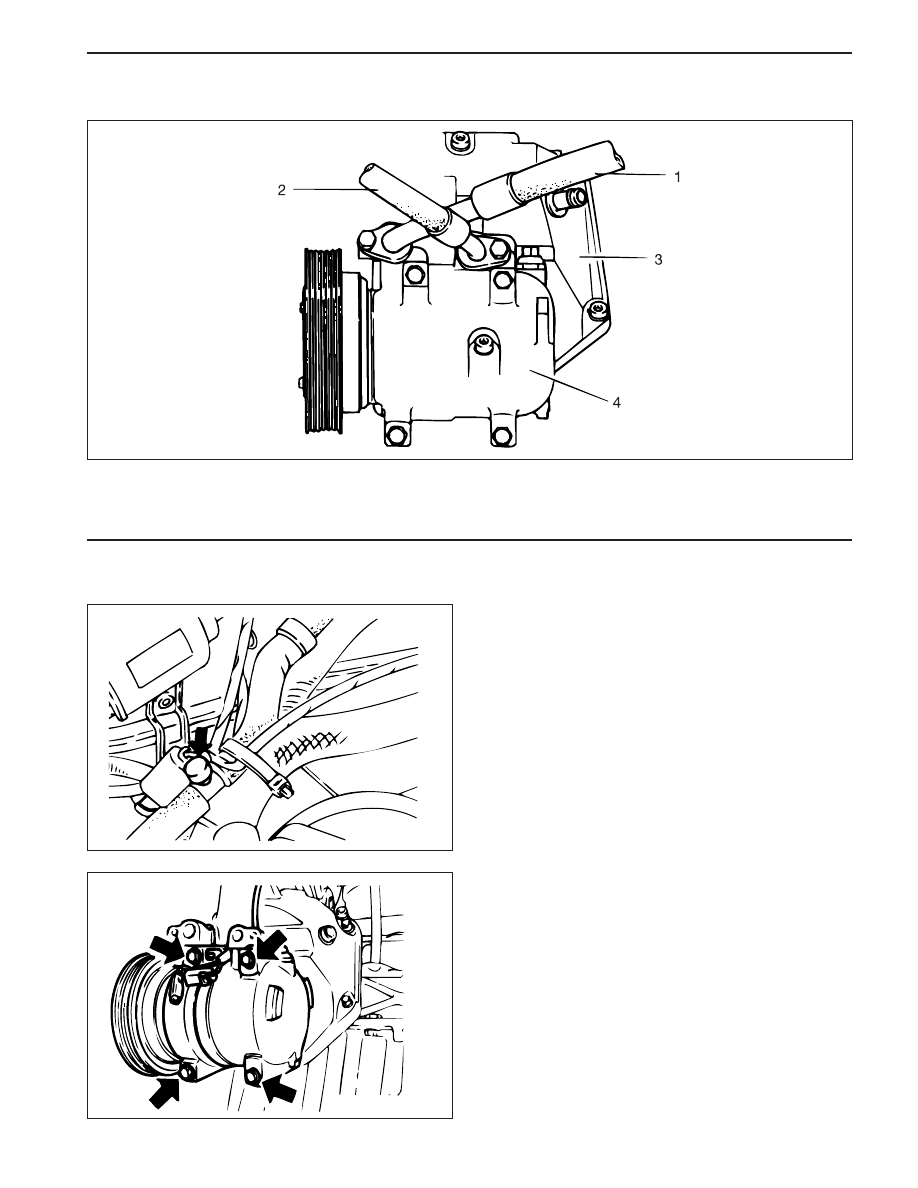

1 Compressor Bracket
2 High Pressure Hose

3 Low Pressure Hose
4 Compressor

AIR-CONDITIONER COMPRESSOR

Removal & Installation Procedure

1. Disconnect the negative (-) terminal from the

battery.

2. Discharge refrigerant from the system.

N o t i c e :   B y   c o n n e c t i n g   a   m a n i f o l d   g a u g e
connection hose to High/Low pressure line,
discharge the refrigerant.

3. Disconnect the high/low pressure pipe and wire

connectors.

4. Remove the mounting bolt from the compressor

bracket and remove compressor assembly.

Notice: Place the removed compressor in vertical
position.

5. Installation should follow the removal procedure

in the reverse order.

KAA7C270

KAA7C280

SSANGYONG  MY2002

7C-24  MANUAL & SEMIAUTO-HVAC

KAA7C290

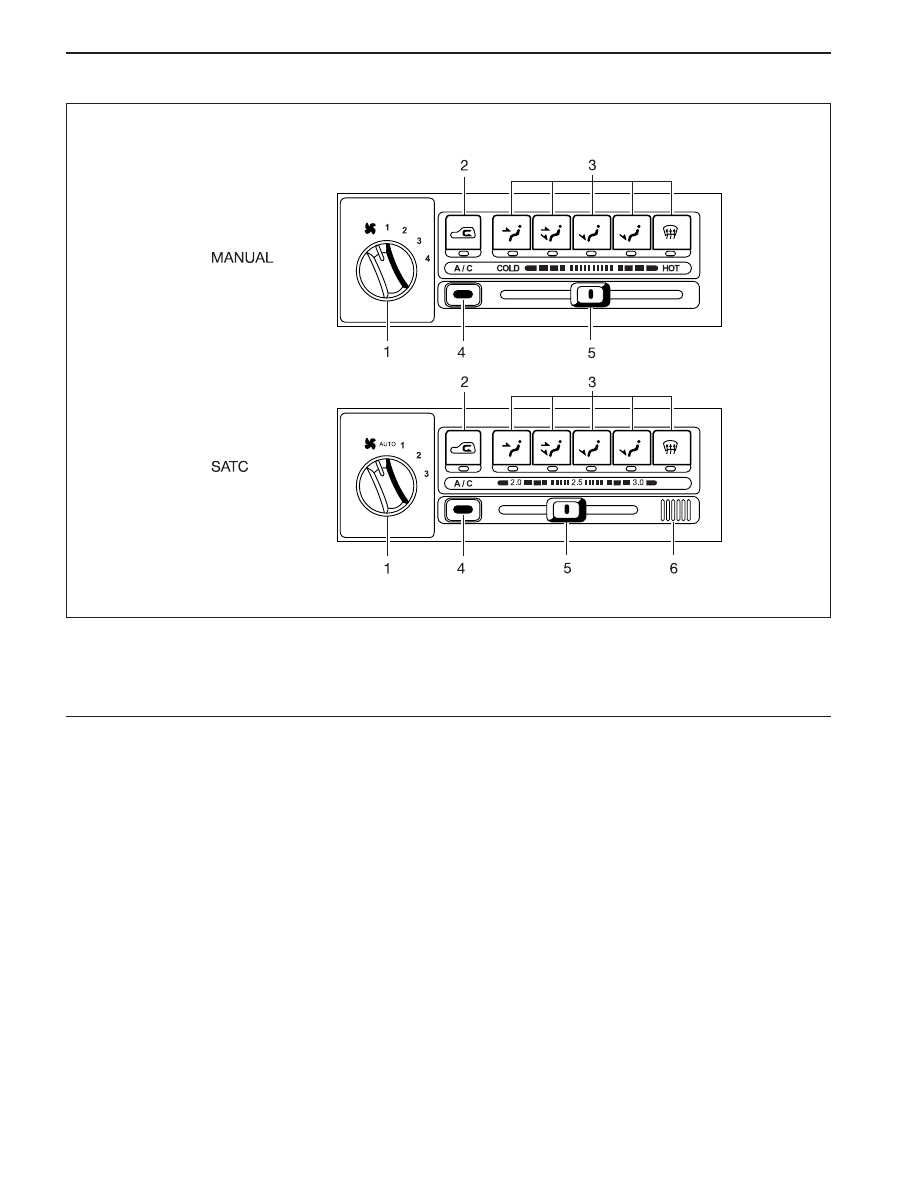

1 Blower Switch
2 Recirculation Switch
3 Mode Switch

4 A/C Switch
5 Temperature Control Lever
6 In-vehicle Sensor

HEATER AND AIR CONDITIONER CONTROL BOX
