SsangYong Korando II (1996-2006 year). Service manual - part 382

HEATING AND VENTILATION SYSTEM  7A-25

SSANGYONG  MY2002

SPECIFICATIONS

HEATER TERMERATURE SPECIFICATION

N • m

5

5

5

5

Lb-Ft

-

-

-

-

Heater/Air Distributor Case Retaining Bolt

Heater/Air Distributor Case-to-Blower Unit Connecting

Duct Nut

Heater/Air Distributor Case-to-Defroster Connecting

Duct Retaining Bolts

I/P Center Bracket Bolts

Lb-In

44

44

44

44

Application

Heater Outlet Air Temperature

54 °C (129 °F)

59 °C (138 °F)

64 °C (147 °F)

68 °C (154 °F)

-18 °C (0 °F)

-4 °C (25°F)

10 °C (50 °F)

24 °C (75 °F)

Ambient Air Temperature

FASTENER TIGHTENING SPECIFICATIONS

HEATER UNIT

Description

54 °C (129 °F)

59 °C (138 °F)

64 °C (147 °F)

68 °C (154 °F)

-18 °C (0 °F)

-4 °C (25°F)

10 °C (50 °F)

24 °C (75 °F)

Application

SSANGYONG  MY2002

7A-26  HEATING AND VENTILATION SYSTEM

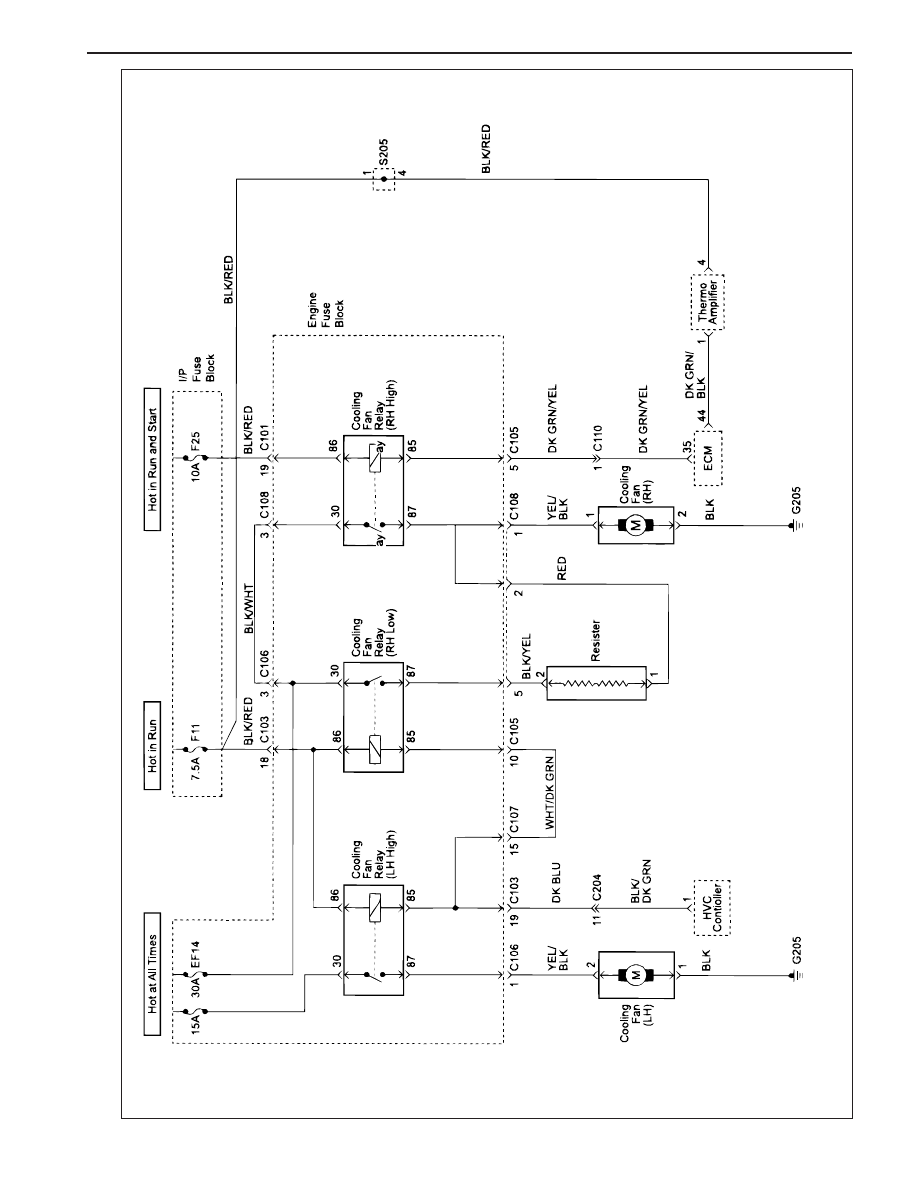

NON-A/C WIRING DIAGRAMS (1 OF 2)

SCHEMATIC AND ROUTING DIAGRAMS

KAA7A200

HEATING AND VENTILATION SYSTEM  7A-27

SSANGYONG  MY2002

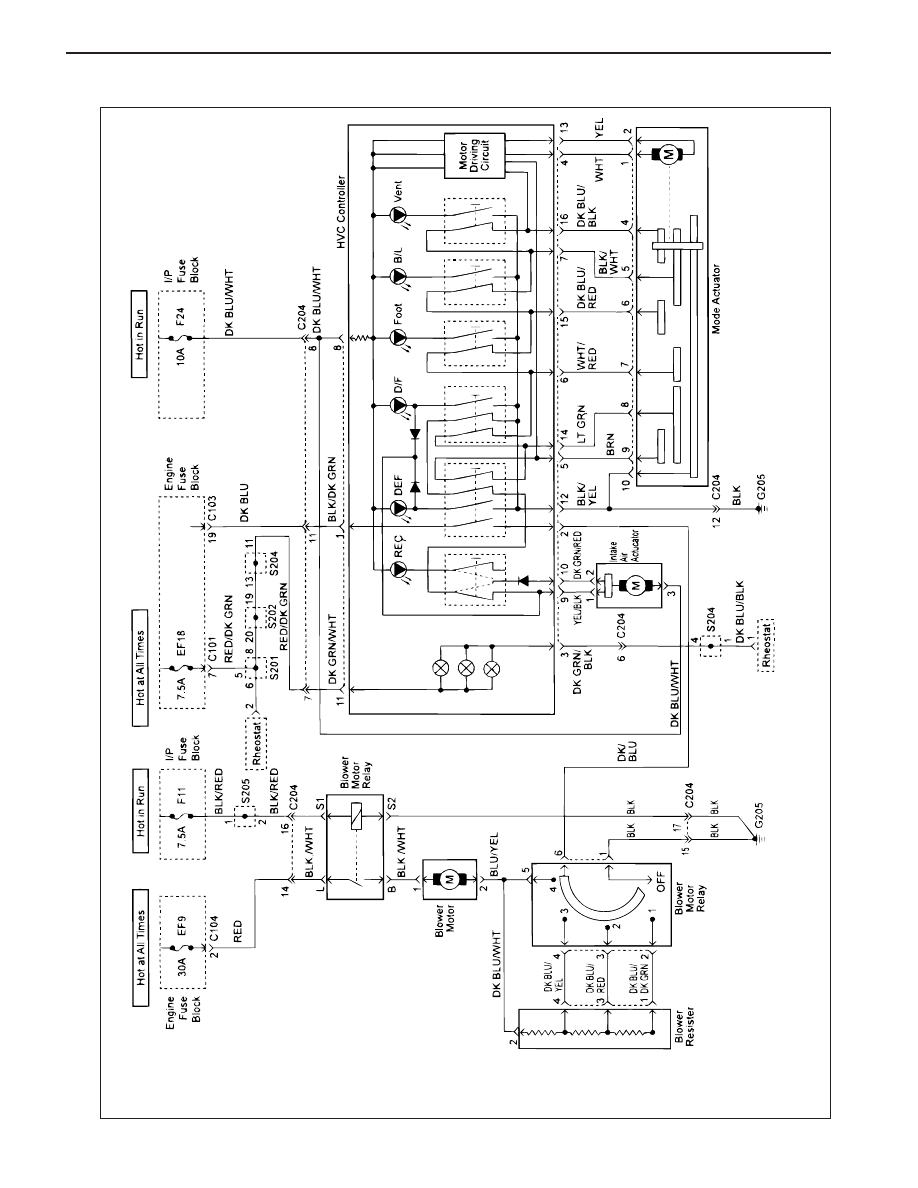

NON-A/C WIRING DIAGRAMS (2 OF 2)

KAA7A210

SSANGYONG  MY2002

7A-28  HEATING AND VENTILATION SYSTEM

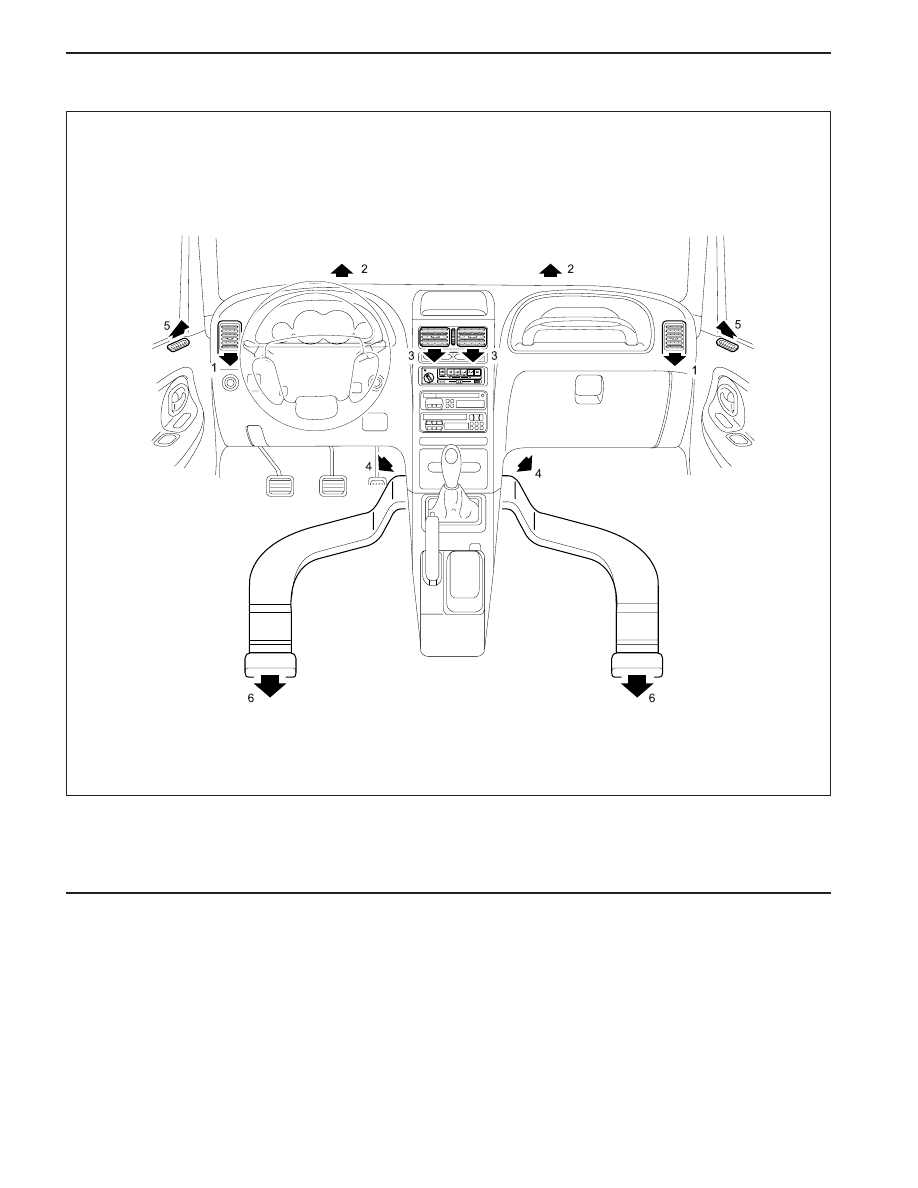

AIRFLOW THROUGH VENTS

KAA7A220

1 Side Ventilation Vents (Face Position)
2 Front windshiel Defroster Vents
3 Conter Ventilation Vents (Face Position)

4 Ventilation Vents (Face Position)
5 Side Door Window Defroster Vents
6 Rear Ventilation Vents
