Renault Talisman (2016 year). Manual - part 14

3.26

PASSENGER COMPARTMENT STORAGE, FITTINGS

(2/3)

Grab handle 11

This offers support and can be held

when the vehicle is being driven.
Do not use it for getting into or out of

the vehicle.

Clothes hooks 12

Centre console storage

compartment 7 and 8

Press control 5 and raise armrest 6.

Storage compartment 10

When the armrest 6 is open, depending

on the vehicle, press button 9 to access

the ventilated and cooled storage com-

partment 10.

When turning corners, accelerating or braking, ensure that the receptacle

being held by the cup holder is not dislodged.
There is a risk of burning if hot liquid escapes.

3.27

Ski hatch 19

If you want to transport long objects

(skis etc.) in the luggage compartment,

lower armrest 16, press flap 19 and fold

it backwards.

PASSENGER COMPARTMENT STORAGE, FITTINGS

(3/3)

Ensure that no hard, heavy

or pointed objects are

placed in the “open” sto-

rage compartments in such

a way that they may fall onto pas-

sengers during sudden turning or

braking.

Rear door storage

compartment 13

Front seat storage

compartments 14

Central rear armrest 16

Cup holders 15
Lower the central rear armrest 16.

Rear armrest storage 17
Lower the central rear armrest and

raise the cover 18.

Do not place any objects,

especially heavy or hard

objects, on the parcel shelf.

These may pose a risk to

the vehicle occupants if the driver

has to brake suddenly or if the vehi-

cle is involved in an accident.

3.28

ASHTRAY/CIGAR LIGHTER/ACCESSORIES SOCKET

Ashtray location 2

Cigarette lighter

With the ignition on, push the cover 1 or

raise the armrest 3 to use the cigarette

lighter, depending on the vehicle. Pull

it. After use, replace it without pushing

it all the way in.

Accessories socket

You can use the cigarette lighter or one

of the sockets 4. They are provided for

connecting accessories approved by

our Technical Department.

Connect accessories with

a maximum power of

120 watts (12 V) only.

When several accessory

sockets are used at the same time,

the total power of the connected

accessories must not exceed

180 watts.

Fire hazard.

If your vehicle is not fitted with a

cigar lighter and an ashtray, these

can be obtained from an authorised

dealer.

3.29

Centre seat headrest C

storage position

Press tab 2 and lower the headrest

completely.
When the headrest is set at the

lowest position, this is for storage

only. It should not be in this position

when a seat is occupied.

REAR HEADRESTS

Position for use A

Raise the headrest as far as possible to

use it in the high position. Check that it

is correctly locked.

Storage position B

Press the button 1 and lower the head-

rest completely.
When the headrest is set at the

lowest position, this is for storage

only. It should not be in this position

when a seat is occupied.

The headrest is a safety

component; check that it is

fitted and in the correct po-

sition. The top of the head-

rest should be as close as possible

to the top of the head.

3.30

To manually fold down the

seatbacks

Ensure that the front seats are far

enough forward.
Raise the side headrests to the highest

position and lower the central headrest

fully.
Pull the control 1 and lower the seat-

back A.

REAR BENCH SEAT

(1/2)

To raise the seatback

To replace the seatback, proceed in the

reverse order to removal.
Refit the seatback and click it back into

place.

For safety reasons, carry

out any adjustments when

the vehicle is not being

driven.

The configuration of the

two-seat bench with the

small seatback A pulled

down, does not allow the

central seat to be used as it would

be impossible to buckle the seat belt

(belt buckles inaccessible).

When refitting the seat-

back, make sure it is cor-

rectly locked in place.

If seat covers are fitted,

make sure these do not prevent the

seatback latch from locking in.

Make sure that the seat belts are

positioned correctly.

Reposition the headrests.

When moving the rear

seats, ensure that nothing

obstructs the anchorage

points (passenger’s arm or

leg, a pet, gravel, cloth, toys, etc.).

Before folding down any side rear seat,

fasten the seat belt buckle from the seat

concerned into its corresponding catch.
This will prevent the seat belt becoming

trapped when the seat is returned to its

position for use.
In all cases, check that the seat belts

are operating correctly.

3.31

To automatically fold down

the seatbacks (flat position)

From the boot, pulling the control 2 en-

ables you to automatically unlock the

rear bench seatbacks to get a flat floor.

REAR BENCH SEAT

(2/2)

When moving the rear

seats, ensure that nothing

obstructs the anchorage

points (passenger’s arm or

leg, a pet, gravel, cloth, toys, etc.).

Conditions of use
– Vehicle stationary;

– boot lid open;

– rear seat belts locked.

Operating fault
If all user conditions have been ful-

filled and the folding action still fails to

operate, please contact an authorised

dealer.

3.32

Depending on the vehicle, there are va-

rious ways to operate the boot lid:
– via the external boot lid control;
– using the hands-free function.

LUGGAGE COMPARTMENT: 4 door versions

(1/3)

Ensure that nobody is close

to the moving parts when

opening/closing the boot lid.
Risk of injury.

When opening or closing the boot

lid, ensure that nothing interferes

with the manoeuvre.

As a safety precaution,

the doors should only be

opened or closed when the

vehicle is stationary.

Risk of injury.

Via the external boot lid

control

To open

With the doors unlocked, press

button 1. The boot lid opens fully and

automatically.
Note: before opening the boot lid,

ensure that the surrounding space is

sufficient to permit operation of the boot

lid.

To close

Lower the boot lid using the handle

inside the boot to assist you.

3.33

LUGGAGE COMPARTMENT: 4 door versions

(2/3)

Using the hands-free function

The hands-free function grants access

to the boot or allows it to be closed

while you have your hands full.

With the RENAULT card on your

person and the ignition turned off, make

a movement with your foot forwards/

backwards within the range of the sen-

sors 2.

The sensor detects the approach and

then the removal of your foot and trig-

gers the opening of the boot lid.
Do not keep your foot in the air. Carry

out the movement without stopping.

Activation/deactivation of the

hands-free function

Using the multifunction screen, select

menu “vehicle”, “User settings” then

“Use handsfree card: open/close”.

Select «ON" or "OFF" to activate or

deactivate the function.

Usage features of the hands-free

function

– the hands-free function is no longer

available after a few days of lack of

movement of the vehicle, or after

around 15 minutes if the vehicle is

unlocked. To reactivate it, use the

unlocking button on the RENAULT

card.

– The «Hands-free» function is only

available if the vehicle is stationary

and the engine is switched off (and

not on standby with the Stop and

Start function).

– The hands-free feature may not

work if the vehicle is equipped with

a towbar or is in an area with high

electromagnetic radiation.

Precautions during use
Before opening the tailgate, ensure

that the surrounding space is suffi-

cient to permit operation of the tailgate.

Otherwise, stop the movement of the

boot lid before it makes contact.
Make sure that the sensors are not

obscured (by dirt, mud, snow, road salt

etc.).

Note
In very cold weather conditions, the au-

tomatic opening may not operate if the

trunk lid joints are frozen.

Disable the «hands-free»

function before washing the

vehicle manually or han-

dling the emergency spare

wheel or the towbar.
Risk of accidental opening or clo-

sing of the tailgate which may

cause injury.

3.34

Opening manually from

inside the vehicle

If it is impossible to unlock the tailgate,

it can be done manually from inside:
– access the luggage compartment by

folding forward the seatback(s) of

the rear bench seat;

– slide the tab 3 to the right;
– push the boot lid to open it.

LUGGAGE COMPARTMENT: 4 door versions

(3/3)

Ensure that nobody is close

to the moving parts when

opening/closing the boot lid.
Risk of injury.

As a safety precaution,

the doors should only be

opened or closed when the

vehicle is stationary.

Risk of injury.

3.35

LUGGAGE COMPARTMENT: estate version

(1/2)

Opening/Closing

To open
With the doors unlocked, press the

button 1 and lift the boot lid.

To close
Lower the boot lid, using the interior

handle 2.

Special note on vehicles with

a motorised tailgate

Please refer to the information on the

“Automatic tailgate” in Section 3.

The attaching of any carry-

ing device (bike rack, lug-

gage box, etc.) resting on

the luggage compartment

lid is prohibited. To install a carrying

device on your vehicle, contact an

Approved Dealer.

3.36

LUGGAGE COMPARTMENT: estate version

(2/2)

Opening the doors manually

from the inside

If it is impossible to unlock the tailgate,

it can be done manually from inside:
– access the luggage compartment by

folding forward the seatback(s) of

the rear bench seat;

– Unclip the trim at 3;

– slide the tab 4 to the right or, de-

pending on the vehicle, the tab 5;

– push the boot lid to open it.

3.37

If fitted on the vehicle, the tailgate locks

and unlocks at the same time as the

doors.
Depending on the vehicle, you have se-

veral different ways to manoeuvre the

tailgate:
– using the RENAULT card remote

control;

–  using the controls on the tailgate;
–  using the dashboard control;
–  using the hands-free function.

AUTOMATIC TAILGATE

(1/5)

Conditions of use

– Immobilise the vehicle.
– If there is any ice or snow prevent-

ing the tailgate from opening, this ice

or snow must be removed to free the

tailgate.

– In the event that the battery is dis-

charged or if it is changed, the tail-

gate should be closed (manually

if necessary) to restart the tailgate

motor.

Ensure that nobody is close

to the moving parts when

opening/closing the tail-

gate.

Risk of injury.

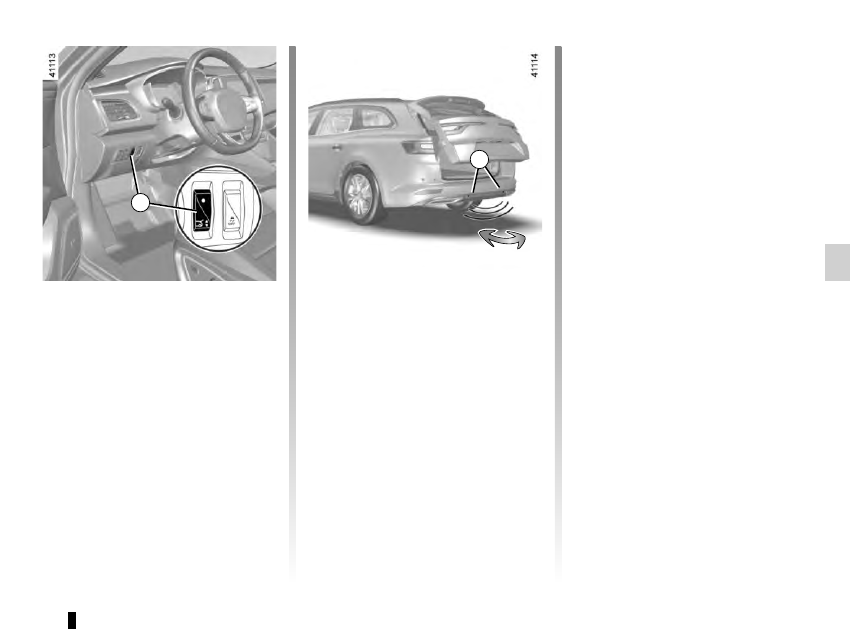

Opening/Closing

Activating the automatic tailgate ope-

ning or closing using the dashboard

control or using the RENAULT card

causes three beeps to sound just

before the tailgate begins to move.

When opening or closing the tail-

gate, ensure that nothing interferes

with the manoeuvre.

To avoid damaging the tailgate

system, do not manually force the

tailgate to open or close while it is

moving.

The attaching of any

carrying device (bike rack,

luggage box, etc.) resting

on the luggage compart-

ment lid is prohibited. To install a

carrying device on your vehicle,

contact an Approved Dealer.

3.38

AUTOMATIC TAILGATE

(2/5)

Using the tailgate interior closing

control
Press control 3.

Using the tailgate exterior opening

control
Press control 2.

Using the RENAULT card remote

control
With the ignition off, press and hold

switch 1 on the RENAULT card.

As a safety precaution,

the doors should only be

opened or closed when the

vehicle is stationary.

Risk of injury.

3.39

Do not keep your foot in the air. Carry

out the movement without stopping.
Note: With the tailgate open, after de-

tecting a closure control, it waits around

3 seconds before triggering the closure

(a beep is emitted every second).

Using the dashboard control

Press and hold switch 4.

Using the hands-free function

The hands-free function grants access

to the boot or allows it to be closed

while you have your hands full.

With the RENAULT card on your person

and with the ignition off, perform a for-

wards/backwards movement with your

foot in the area delimited by the sen-

sors 5.

The sensor detects the approach and

removal of your foot and triggers the

opening or closing of the tailgate.

AUTOMATIC TAILGATE

(3/5)

Activation/deactivation of the

hands-free function
Using the multifunction screen, select

menu “Vehicle”, “User settings” then

“Use handsfree card: open/close”.

Select “ON” or “OFF” to activate or de-

activate the function.

Usage features of the hands-free

function
– the hands-free function is no longer

available after a few days of lack of

movement of the vehicle, or after

around 15 minutes if the vehicle is

unlocked. To reactivate it, use the

unlocking button on the RENAULT

card.

– The “Hands-free” function is only

available if the vehicle is stationary

and the engine is switched off (and

not on standby with the Stop and

Start function).

– The «hands-free» feature may not

work if the vehicle is equipped with a

towbar or is in an area of high elec-

tromagnetic radiation.

3.40

AUTOMATIC TAILGATE

(4/5)

Stopping the tailgate

manoeuvre

The automatic tailgate manoeuvre can

be stopped at any time by a short press

on one of the controls. Depending on

the opening position, the tailgate hatch

can however continue to be opened

manually.
If the tailgate is stationary in the inter-

mediate position, your next press will

move the tailgate in the opposite direc-

tion to when you stopped it.

Manual mode

After stopping the tailgate, you can per-

form the manoeuvre manually if you

wish.
You can switch to automatic movement

at any time by pressing one of the con-

trols.

Obstacle detection

When the tailgate window encounters

an obstacle (presence of an object or

person) when it is moving, it stops.

Depending on the opening position, the

tailgate hatch can however continue to

be opened manually.
Press the tailgate opening/closing con-

trol to reperform the tailgate movement

in the same direction as before encoun-

tering the obstacle.

Limiting the tailgate opening

angle

You can adjust the maximum tailgate

opening height It will always stop at the

chosen position:

– open the tailgate to an intermediate

position;

– manually adjust the tailgate to the

chosen position;

– press the automatic tailgate control 3

for more than 3 seconds to save the

position.

Two beeps will sound to notify you

that the position has been saved.

The obstacle detection is an

aid to opening and closing

the tailgate, it does not in

any way replace the user’s

care or responsibility.

3.41

AUTOMATIC TAILGATE

(5/5)

Operating faults

If you activate the automatic tailgate

continuously for around a minute (se-

quence of opening and closing), it will

stop in order to avoid overheating. The

operation will return to normal after

about a minute.
The automatic tailgate will not operate

if the battery is on low charge. In this

case, operate the automatic tailgate

with the engine started.

Note
In very cold weather conditions, the au-

tomatic opening may not operate if the

trunk lid joints are frozen.

Precautions during use

Before opening/closing the tailgate,

ensure that the surrounding space is

sufficient to allow the tailgate to ope-

rate. If not, stop the tailgate movement

with the external tailgate control and

hold the tailgate in position by hand

(the tailgate may continue to open ma-

nually).
If the tailgate is moving and the engine

is started, the movement will stop for a

seconds before continuing.
Avoid multiple manual stops during the

automatic tailgate movement (risk of

damaging the tailgate system).
Make sure that the sensors are not

obscured (by dirt, mud, snow, road salt

etc.).

Driver’s responsibility

when parking or stopping

the vehicle
Never leave your vehicle

with a child, an adult who is not self-

sufficient or a pet inside or at the

rear of the tailgate, even for a short

while.
They may pose a risk to themselves

or to others by starting the engine,

activating equipment such as the

electric windows, the automatic

tailgate or by locking the doors.
RISK OF DEATH OR SERIOUS

INJURY.

Disable the «hands-free» function before washing the vehicle manually

or handling the emergency spare wheel or the towbar.
Risk of accidental opening or closing of the tailgate which may

cause injury.

Content .. 12 13 14 15 ..
