4-32

Heater and air conditioner, and audio system

CD:

CD with MP3 or WMA:

SEEK/TRACK/FILE button:

When the

button (located on the left side) is

pushed while a CD is being played, the present track
will be advanced and move to the next track. Push
the

button several times to skip forward tracks.

The CD will advance the number of times the button is
pushed. When the last track of the CD is forwarded,
the first track will be played.

When the

button is pushed while a CD is being

played, the present track will start over from the
beginning of the current track. Push the

button

several times to skip back tracks. The CD will rewind
the number of times the button is pushed. When the
first track of the CD is rewound, the last track will be
played.

TUNE/FF·REW/FOLDER button:

When the

button (located on the

right side) is pushed and held while a CD is being
played, the CD will be played while forwarding or
rewinding. When the button is released, the CD will
return to the normal play speed.

When the

button or

is pushed while a

CD with MP3 or WMA is being played, the first track in
the next or the previous folder will be played.

button:

When the

button is pushed while a CD is being

played, the first 10 seconds of all the tracks will be
played.

When the

button is pushed again, the CD will

return to normal play from the track which is playing.

(Repeat) button:

To change the play settings, push the

button to

select the mode.

CD:

RPT DISC

? RPT TRACK

CD with MP3 or WMA:

RPT DISC

? RPT FOLDER ? RPT TRACK

RPT DISC:

All the tracks of the CD will be played continuously in
sequential order. The display indicates no symbol
mark. While the

button is pushed, the display

indicates “RPT DISC”.

RPT TRACK:

The selected track of the CD will be played con-
tinuously. While the

button is pushed, the display

indicates “RPT TRACK”.

RPT FOLDER:

All the tracks of selected folder will be played
continuously in sequential order (CD with MP3 or
WMA only). While the

button is pushed, the

display indicates “RPT FOLDER”.

(Random) button:

To change the play sequence, push the

button to

select the mode.

CD:

RDM DISC

? RPT DISC

CD with MP3 or WMA:

RDM DISC

? RDM FOLDER ? RPT DISC

RPT DISC:

All the tracks of the CD will be played continuously in
sequential order. The display indicates no symbol
mark. While the

button is pushed, the display

indicates “RPT DISC”.

RDM DISC:

All the tracks or folders (CD with MP3 or WMA only) of
the CD will be played continuously in random order.
While the

button is pushed, the display indicates

“RDM DISC”.

RDM FOLDER:

All the tracks of the selected folder will be played
continuously in random order (CD with MP3 or WMA
only). While the

button is pushed, the display

indicates “RDM FOLDER”.

(Scroll) button:

When the title is displayed but it is a long one, the
whole title is not shown in the display. In this case,
push the button to scroll the title. When the title is
scrolled to the end of it, the display will stop moving
and return to the first condition.

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

MUTE button:

Press the

button to pause the track.

CD EJECT button:

To eject a CD, push the CD EJECT

button.

When the

button is pushed twice, the CD will be

ejected further, and the CD can be removed with ease.

If a CD is ejected by pushing the

button, and it is

not taken out from the loading slot, the CD will
automatically be reloaded to the slot to protect the CD
(12 cm discs only).

AUX button:

The AUX IN jack is located on the audio unit. The AUX
IN audio input jack accepts any standard analog audio
input such as from a portable cassette tape, CD player,
MP3 player or laptop computers.

Push the AUX button to play a compatible device when
it is plugged into the AUX IN jack.

RENAULT strongly recommends using a stereo mini
plug cable when connecting your music device to the
audio system. Music may not play properly when a
monaural cable is used.

CAUTION:

Do not allow the cable or an external device
connected to the AUX terminal to affect your
driving.

WARNING:

Depending on the external device, please
note that the volume may be louder or
quieter than that of the external device.

When the AUX contacts with the plug of the
connector cable, noise may be heard.

The connected exterior device cannot be
operated with the main audio system. The
volume and sound quality can be adjusted.

The song title in the external device cannot
be displayed on the audio display.

For the power source of the external device,
use the special battery. The external device
cannot be charged with the AUX terminal.
Noise may be heard if the CD, radio etc. is
operated while charging the battery with the
power socket of the vehicle.

FM-AM radio operation

JVH0012X

The audio system operates when the ignition switch is
in the “ACC” or “ON” position.

Frequency range and step change (for Central/
South America):
To change the frequency range and step specification
of the radio, perform the following operations.

Turn the audio unit off by pushing the POWER
button.

Turn the audio unit on by pushing the POWER
button while pushing the radio memory buttons

and the

button.

For Central/South America specification, the display
indicates “AM 530 kHz”.

For the other specification, the display indicates “AM
531 kHz”.

If you experience difficulties in changing radio speci-
fication, contact a RENAULT dealer.

button:

When the

button is pushed while the audio

system is off, the audio system will turn on and the
radio will turn on.

When the

button is pushed while another audio

source is playing, the another audio source will turn off
and the radio will turn on.

To change the radio bands, push the

button until

the desired band is displayed.
.

? FM1 ? FM2

The FM stereo indicator, “ST” will display during FM
stereo reception. When the stereo broadcast signal is
weak, the radio will automatically change from stereo
to monaural reception.

Heater and air conditioner, and audio system

4-33

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

4-34

Heater and air conditioner, and audio system

TUNE/FF·REW/FOLDER button:

When adjusting the broadcasting station frequency
manually, push the

button until the

desired frequency is achieved.

When adjusting the broadcasting station frequency
automatically, push the

button.

When the system detects a broadcasting station, it
will stop at the station.

SEEK button:

When adjusting the broadcasting station frequency
automatically, push the

button. When the

system detects a broadcasting station, it will stop at
the station.

button:

When the

button is pushed, the system will seek

and stop at the detected broadcasting station for 5
seconds, and then it will start to seek for the next
broadcasting station.

Push the

button in this 5-second period to stop

seeking.

Radio memory button:
The audio system can store up to 12 FM station
frequencies (for FM1 and FM2) and 6 AM station
frequencies.

To store the station frequency:

Tune to the desired broadcasting station fre-
quency by using the

button.

Push and hold a memory button (1 - 6) until a
beep sounds.

The switch number and frequency will appear on
the display when the memory is stored properly.

Perform steps 1 - 3 for all other memory buttons.

Push a memory button (1 - 6) to select a desired
memory.

If the battery cable is disconnected, or if the audio fuse
blows, the radio memory will be erased. In such a case,
reset the desired stations.

(Automatic Preset) button:

The audio system can store up to 6 FM station
frequencies and 6 AM station frequencies.

To store the station frequency automatically, push and
hold the

button until a beep sounds. The station

will be automatically stored in the “AUTO.P” memory.
The display indicates “AP-**”.

Push the

button to select a desired memory.

MUTE button:

Press the

button to mute the sound. Press again

to restore the sound.

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

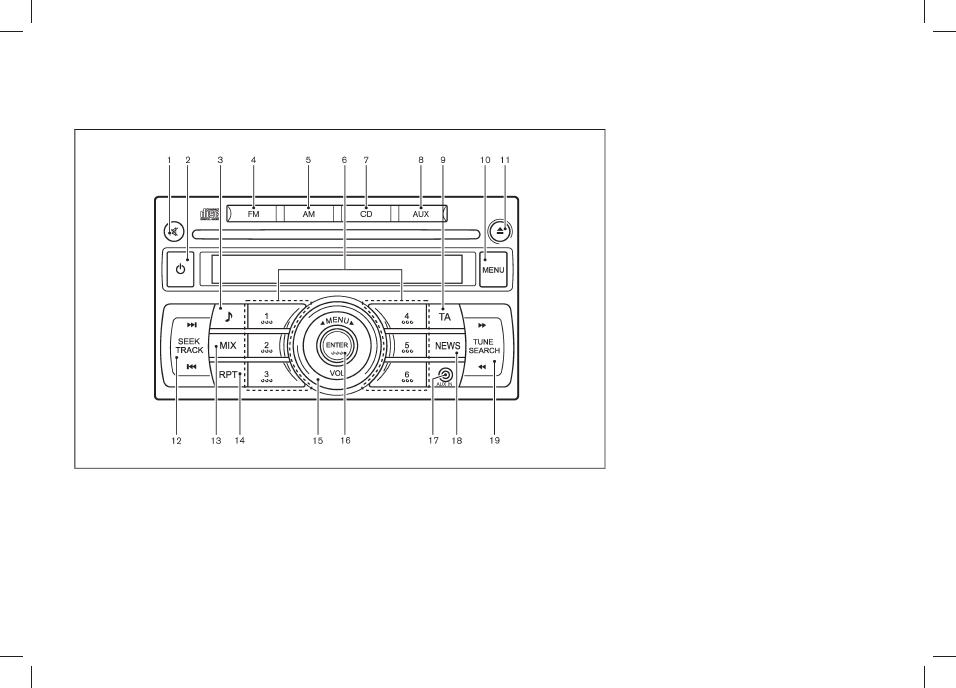

LW-MW-FM RADIO WITH COMPACT DISC (CD) PLAYER (Type E)

SAA2379

MUTE button

POWER ON/OFF button

Sound preference button

FM band select button

AM band select button

Radio memory buttons

CD button

AUX button

TA (Traffic Announcement) button

10.

MENU button

11.

CD EJECT button

12.

SEEK/TRACK button

13.

MIX (Mix play) button

14.

RPT (Repeat) button

15.

VOLUME control/MENU select dial

16.

ENTER button

17.

AUX IN (auxiliary input) jack

18.

NEWS button

19.

TUNE/SEARCH button

Heater and air conditioner, and audio system

4-35

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

4-36

Heater and air conditioner, and audio system

Anti-theft system (if equipped)

This unit can only be activated when the ignition switch
for Anti-Theft System is in the “ACC” or “ON” position.

Each radio is uniquely matched to the vehicle’s
immobilizer and therefore cannot be transferred to
any other vehicle.

Audio main operation

The audio system operates when the ignition switch is
in the “ACC” or “ON” position.

POWER ON/OFF button:
To turn on the audio system, push the POWER ON/
OFF button.
.

The system will turn on in the mode, (radio or CD)
which was used immediately before the system
was last turned off.

If there is no CD loaded, the radio will be turned
on.

To turn off the audio system, push the POWER ON/
OFF button.

Volume control:
To control the volume, turn the VOLUME control dial.

Turn the VOLUME control dial clockwise to increase
the audio volume.

Turn the VOLUME control dial counterclockwise to
decrease the audio volume.

Sound preference button:

To enter the audio mode (radio or CD), push the
button.

To change the audio settings (BASS, TREBLE, FADE,
BALANCE, EQ), push the

button or ENTER

button to select the mode.

BASS

? TREBLE ? BALANCE ? FADE ? EQ ?

BASS

To adjust each audio setting, turn the MENU/VOL
control dial clockwise or counterclockwise.

BASS: (

í) to decrease / (+) to increase

TREB(LE): (

í) to decrease / (+) to increase

BAL(ANCE): (R) to adjust to the right / (L) to adjust to
the left

FADE(R): (F) to adjust to the front / (R) to adjust to the
rear

EQ (Equalizer): Use this control to change the preset
sound mode for CD play.

Turn the MENU/VOL dial clockwise or counterclock-
wise. The mode will change as follows:

OFF ⇔ ENHANCE ⇔ OFF

If the audio settings mode is unchanged for approxi-
mately 5 seconds, the audio settings mode will
automatically return to the normal mode.

Clock display:
Turning on/off the clock display

To turn on or off the clock display, perform the
following operations.

Push the MENU button while the audio system is
on.

Turn the VOLUME control dial until "CLOCK"
appears on the display.

Push the ENTER button. ("CLOCK OFF" or
"CLOCK ON" is displayed.)

To turn on the clock display, turn the VOLUME
control dial till "CLOCK ON" is displayed. To turn
off the clock display, turn the VOLUME control dial
till "CLOCK OFF" is displayed, and push ENTER.

Clock adjustment

To adjust the time of the clock, perform the following
operations.

Push the ENTER button while "CLOCK ON" is
displayed.

The hour display will flash.

Turn the VOLUME control dial to adjust the hour.

Push the ENTER button. The minute display will
flash.

Turn the VOLUME control dial to adjust the
minute.

Push the ENTER button to complete the clock
adjustment.

Mute button:

Push the MUTE button to mute the audio system.
MUTE appears on the display. To unmute, use any one
of the following options:

Push the MUTE button again.

Turn the VOLUME control dial.

Push the CD, FM or AM button.

Push the AUX button.

AUX button:

The AUX IN jack is located on the audio unit. The AUX
IN audio input jack accepts any standard analog audio
input such as from a portable cassette tape player, CD
player, MP3 player or laptop computer.

Push the AUX button to play a compatible device when
it is plugged into the AUX IN jack.

RENAULT strongly recommends using a stereo mini
plug cable when connecting your music device to the
audio system. Music may not play properly when a

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

monaural cable is used.

CD player operation

SAA2380

The audio system operates when the ignition switch is
in the “ACC” or “ON” position.

Loading:
Insert a CD into the slot with the label side facing up.
The CD will be guided automatically into the slot and
will start playing. If the radio is already playing, it will
automatically turn off, and the CD will start playing.

CAUTION:

Do not force the CD into the slot. This could
damage the player.

After loading the CD, the number of tracks and the
playtime will appear on the display.

CD button:

When the

button is pushed while the audio

system is off and a CD is loaded, the audio system will
turn on and a CD will start playing automatically. If the
radio is already playing, it will automatically turn off and
the CD will start playing.

FF (Fast Forward), REW (Rewind)

button:

Push and hold the FF or REW button while a CD is
being played to fast-forward or rewind though the
track. When the button is released, the CD will return
to the normal play speed.

TRACK UP/ DOWN button:

Push the track up button while a CD is being played to
skip forward to the next track. The CD will advance the
number of times the button is pushed. When the last
track of the CD is skipped, the first track will be played.

Push the track down button while a CD is being played
to start the present track again from the beginning.
Push the track down button several times to skip back
to the previous track. The CD will skip tracks backward
the number of times the button is pushed. When the
first track of the CD is skipped, the last track will be
played.

Repeat button:

Push the

button repeatedly to change the play

mode as follows:

RPT (REPEAT) TRACK

? RPT (REPEAT) ALL ? RPT

(REPEAT) TRACK

RPT TRACK:

The selected track will be played repeatedly.

RPT ALL:

All the tracks on the CD will be played in sequential
order.

MIX button:

Push the

button repeatedly to change the play

mode as follows:

MIX DISC

? RPT (REPEAT) ALL ? MIX DISC

MIX DISC:

All the tracks on the CD will be played in a random
order.

RPT ALL:

All the tracks on the CD will be played in sequential
order.

CD EJECT button:

When the

button is pushed while a CD is loaded,

the CD will be ejected.

When the

button is pushed twice, the CD will be

ejected further, and the CD can be removed easily.

If a CD is ejected by pushing the

button, and it is

not taken out from the loading slot, the CD will
automatically be reloaded to the slot to protect the CD.

LW-MW-FM radio operation

SAA2380

Heater and air conditioner, and audio system

4-37

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

4-38

Heater and air conditioner, and audio system

The audio system operates when the ignition switch is
in the “ACC” or “ON” position.

FM-AM button:

When the

button is pushed while the audio

system is off, the audio system and the radio will turn
on. When the

button is pushed while the CD

player is already operating, it will automatically turn off
and the radio will turn on.

To change the radio band, push the

button

until the preferred band appears.

For FM
FM 1

? FM 2 ? FM T

For AM
MW

? LW ? MW

During FM reception, when the

button is pushed

for longer than 1.5 seconds, stations are searched for
and the 6 stations of the FM T band. The sound is
muted until the auto store operation is completed,
upon which preset channel 1 is automatically tuned in.

TUNE button:

When adjusting the broadcasting station frequency
manually, push the

button until the

preferred frequency is obtained.

The frequency changes in steps of 100 kHz on the FM
band, 9 kHz on the MW band, and 3 kHz on the LW
band.

SEEK button:

When adjusting the broadcasting station frequency
automatically, push the

button. When the

system detects a broadcasting station, it will stop at
that station.

Radio memory buttons:

The audio system can store up to 18 FM station
frequencies (six in each of FM 1, FM 2 and FM T), 6
MW and 6 LW station frequencies.

To store the station frequency manually:

Tune to the preferred broadcasting station fre-
quency by using the

button.

Push and hold a radio memory button

until a beep sounds. (The radio mutes when the
memory button is pushed.)

The channel indicator will be displayed and the
radio mute will be cancelled, indicating that the
memory is stored properly.

Perform steps 1 - 3 for all other memory buttons.

If the battery cable is disconnected, or if the audio fuse
blows, the radio memory will be erased. If this occurs,
reset the desired stations.

Radio data system (RDS)

Alternative Frequency (AF):
.

The AF function operates in the FM (radio) and CD
modes.

When the AF mode is set to “ON” in the user
setup menu mode, the AF indicator illuminates.

For activation or deactivation, use the MENU button.
(Details are explained later in this section.)
.

Automatic switching function
This function compares the strengths of the
signals of all the stations on the AF list and
selects the station with the optimum reception
conditions.

Program Information (PI) search
Program Information (PI) search begins automati-

cally if no suitable station is found with the above
automatic switching function. The PI search
function checks each RDS station with the same
PI code. During this time the sound is muted and
“PI SEARCH” is displayed. The PI search opera-
tion stops when a suitable station is found. If no
station is found once all the frequencies have been
searched, the radio returns to the previous
frequency.

Enhanced Other Network (EON) data update
(This function also operates when the AF
mode is off.)
When EON data is being received, this enables
automatic retuning of other preset stations on the
same network. Also, network linked services can
be used. The EON indicator turns on during
reception of RDS EON stations in the FM mode.

RDS functions:
.

Programme Service (PS) function (station
name display function)
When an RDS station is tuned in with seek or
manual tuning, RDS data is received and the
Program Service (PS) name is displayed.

Emergency broadcast interrupt function
(ALARM INTERRUPTION

— EBU SPEC FOR

INFO)
When the radio receives PTY code 31 (an
emergency broadcast code), the sound is inter-
rupted, the emergency broadcast is heard, and
“PTY31 ALARM” is displayed. The volume level at
this time is the same as that for traffic announce-
ments. Once the emergency broadcast is finished,
the unit immediately returns to the previous
source.

REG (Regional) mode
Some local radio stations are linked together

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

according to their region because they only offer
limited coverage due to their limited number of
transmitters. If the signal from one station be-
comes weak while you are driving around, RDS
mode will switch to another local station in the
region with a stronger signal.
When the REG mode is activated in the FM band
and the radio receiver is tuned to a local radio
station, it will keep receiving this radio station
without switching to another local station. For
activation or deactivation, use the MENU button.
(Details are explained later in this section.)

Traffic Announcement (TA):
.

The TA function operates in the FM and CD
modes.

The TA mode is turned on or off when the TA
button is pushed for less than 2 seconds.

The TA mode operates regardless of whether the
AF mode is on or off.

“TA ON” is displayed when the TA mode is turned
on, and the TA indicator turns on. “TA OFF” is
displayed when the TA mode is turned off, and the
TA indicator turns off.

The following functions operate when the TA mode is
on:
.

Traffic announcement interrupt function
When a traffic announcement is received, the
announcement is tuned in and the volume
increases to the set level.
Once the traffic announcement is finished, the unit
returns to the source which was set before the
traffic announcement started, and the volume
returns to the previous level. For EON stations,
the radio is interrupted by another EON station
with traffic announcements.
The traffic announcement interrupt mode is

cancelled if the TA button is pushed during a
traffic announcement. The TA mode returns to the
standby mode and the audio unit returns to the
previous source.

News mode

When the NEWS button is pushed for longer than 2
seconds in the FM mode, the news function is
activated. “NEWS” is displayed for 3 seconds and
the NEWS indicator appears on the display.

When the news function is activated, the radio
receives a news code from the FM broadcasting news
station and the actual playing mode will be interrupted.
Once the news broadcast is finished, the unit returns
to the previous mode.

In some countries or regions, this service is not
available or the signal is too weak to be received.

News standby mode

The news standby mode can be activated in
the FM or CD mode.

A news interruption will be announced and
“NEWS” will be displayed when the radio
detects the news code from the tuned station
or EON stations. The display will then change
to the PS name of the interrupting station.

When pushing the NEWS button for longer
than 2 seconds, the news standby mode is
turned off and the indicator disappears from
the display.

News interruption mode

When the NEWS button is pushed during the
news interruption mode, the radio returns to the
previous source. However, the news standby
mode is maintained.

When the

button is pushed during the

news interruption mode, the radio changes to

the CD mode. However, the news standby
mode is maintained.

If the radio band is changed to the MW or LW,
the news standby mode will be turned off.

MENU button:

To configure Alternative Frequency, Regional and
Language settings, perform the following procedure:

Push and hold the MENU button for at least 1.5
seconds.

Turn the VOLUME control dial clockwise or
counterclockwise. The display message will
change as follows:

AF ⇔ REG ⇔ LANGUAGE ⇔ AF

To activate or deactivate the AF and REG mode,
briefly push the ENTER button when AF or REG
appears on the display and turn the VOLUME
control dial clockwise or counterclockwise to
switch between the off or on position. After
selection, push the ENTER button to confirm the
settings.
— When the AF mode is enabled, the audio unit

will automatically re-tune to a stronger fre-
quency if the radio signal becomes weak.

— When the REG mode is enabled, the audio unit

will maintain and maintain the station which is
broadcasting local (regional) programmes.

To change the display language, briefly push the
ENTER button when LANGUAGE appears on the
display then turn the MENU/VOL dial clockwise or
counterclockwise to select the appropriate lan-
guage setting.
ENGLISH ⇔ DUTCH ⇔ FRENCH ⇔ SPANISH

⇔ GERMAN ⇔ ITALIAN ⇔ PORTUGUESE ⇔
ENGLISH

Heater and air conditioner, and audio system

4-39

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

4-40

Heater and air conditioner, and audio system

After selecting the preferred language, push the
ENTER button to exit the menu.

To configure the SPEED volume and BEEP settings,
perform the following procedure:

Push the MENU button.

Turn the Volume control dial clockwise or counter-
clockwise. The display message will change as
follows:

SPEED VOL ⇔ CLOCK ⇔ BEEP

When SPEED VOL appears on the display, briefly
push the ENTER button then turn the VOLUME
control dial clockwise or counterclockwise to
adjust the level of the volume.
Adjusting the setting to 0 (zero) turns off the
speed volume feature. Increasing the speed
volume setting results in the audio volume
increasing more rapidly with vehicle speed. Push
the ENTER button again to save the setting.

When BEEP appears on the display, briefly push
the ENTER button and then turn the VOLUME
control dial clockwise or counterclockwise to
switch the beep sound on or off. Push the ENTER
button again to save the setting.

After the preferred levels have been set, push the
MENU button to exit the menu or wait at least for 10
seconds without pressing any buttons.

For clock adjustments, see “Audio main operation”
(P.4-36).

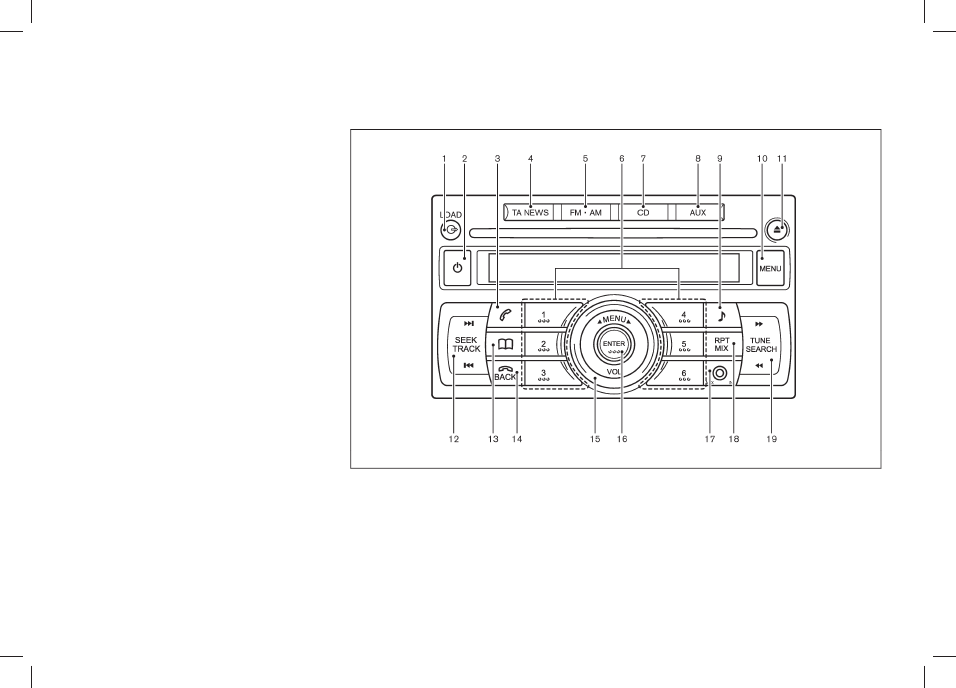

LW-MW-FM RADIO WITH COMPACT DISC (CD) CHANGER (Type F)

JVH0044X

CD LOAD button

POWER ON/OFF button

PHONE SEND button

TA (Traffic Announcement)/NEWS button

Radio band select button

Radio memory/CD select buttons

CD button

AUX button

Sound preference button

10.

MENU button

11.

CD EJECT button

12.

SEEK/TRACK button

13.

PHONE BOOK button

14.

PHONE END/BACK button

15.

VOLUME control/MENU select knob

16.

ENTER button

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

17.

AUX IN (auxiliary input) jack

18.

RPT (Repeat)/MIX (Mix play) button

19.

TUNE/SEARCH button

Anti-theft system (if equipped)

This unit can only be activated when the ignition switch
for Anti-Theft System is in the “ACC” or “ON” position.

Each radio is uniquely matched to the vehicle’s
immobilizer and therefore cannot be transferred to
any other vehicle.

Audio main operation

The audio system operates when the ignition switch is
in the “ACC” or “ON” position.

POWER ON/OFF button:
To turn on the audio system, push the POWER ON/
OFF button.
.

The system will turn on in the mode, (radio or CD)
which was used immediately before the system
was last turned off.

If there is no CD loaded, the radio will be turned
on.

To turn off the audio system, push the POWER ON/
OFF button.

Volume control:
To control the volume, turn the VOLUME control dial.

Turn the VOLUME control dial clockwise to increase
the audio volume.

Turn the VOLUME control dial counterclockwise to
decrease the audio volume.

Sound preference button:

To enter the audio mode (radio or CD), push the
button. When no CD is loaded, the audio system will
automatically switch to the radio mode.

To change the audio settings (BASS, TREBLE,
FADER, BALANCE, EQ), push the

button or

ENTER button to select the mode.

BASS

? TREBLE ? BALANCE ? FADER ? EQ ?

BASS

To adjust each audio setting, turn the MENU/VOL
control dial clockwise or counterclockwise.

BASS: (

í) to decrease / (+) to increase

TREB(LE): (

í) to decrease / (+) to increase

BAL(ANCE): (R) to adjust to the right / (L) to adjust to
the left

FADE(R): (F) to adjust to the front / (R) to adjust to the
rear

EQ (Equalizer): Use this control to change the preset
sound mode for CD play.

Turn the MENU/VOL dial clockwise or counterclock-
wise. The mode will change as follows:

OFF ⇔ ENHANCE ⇔ OFF

If the audio settings mode is unchanged for approxi-
mately 8 seconds, the audio settings mode will
automatically return to the normal mode.

Clock display:
Turning on/off the clock display

To turn on or off the clock display, perform the
following operations.

Push the MENU button while the audio system is
on. ("PHONE SETUP" is displayed.)

Turn the VOLUME control knob until "CLOCK"
appears on the display.

Push the ENTER button. ("CLOCK OFF" or
"CLOCK ON" is displayed.)

To turn on the clock display, turn the VOLUME
control knob till "CLOCK ON" is displayed. To turn
off the clock display, turn the VOLUME control
knob till "CLOCK OFF" is displayed, and push
ENTER.

Clock adjustment

To adjust the time of the clock, perform the following
operations.

Push the ENTER button while "CLOCK ON" is
displayed.

The hour display will flash.

Turn the VOLUME control knob to adjust the hour.

Push the ENTER button. The minute display will
flash.

Turn the VOLUME control knob to adjust the
minute.

Push the ENTER button to complete the clock
adjustment.

AUX button:

Push the AUX button to play a compatible device when
it is plugged into the AUX IN jack.

RENAULT strongly recommends using a stereo mini
plug cable when connecting your music device to the
audio system. Music may not play properly when a

Heater and air conditioner, and audio system

4-41

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

4-42

Heater and air conditioner, and audio system

monaural cable is used.

CD changer operation

JVH0045X

The audio system operates when the ignition switch is
in the “ACC” or “ON” position.

CD LOAD button:

When the

button is pushed, the CD loading slot

will open and the loading position will be displayed.

Insert the CD into the slot with the label side facing up.
The CD will be guided automatically into the slot and
will start playing. If the radio is already playing, it will
automatically turn off and the CD will start playing.

CAUTION:

Do not force the compact disc into the slot.
This could damage the player.

Do not use 8 cm (3.1 in) discs.

After loading the CD, the slot number and CD track will
appear on the display.

To load a CD in the CD changer:

Push the

button for less than 1.5 seconds.

Select the loading slot by pushing the CD select
button. If no slot is selected, the CD changer will
automatically select an available slot.

Insert the CD into the slot.

To load 6 CDs in the CD changer:

Push the

button for more than 1.5 seconds.

Insert a CD into the slot.

When the next loading slot number illuminates on
the display, insert the next CD into the slot.

To load 6 CDs in the CD changer:

Push the

button for more than 1.5 seconds.

Insert the CD into the slot.

When the next loading slot number illuminates on
the display, insert the next CD into the slot.

The slot number indicator appears on the display when
the CDs are loaded in the CD changer and the audio
system is turned on.

CD PLAY button:

When the

button is pushed while the audio

system is off and CDs are loaded, the audio system will
turn on and the CD will start to play automatically. If the
radio is already operating, it will automatically turn off
and the CD will start playing.

FF (Fast Forward), REW (Rewind)

button:

Push the

(fast forward) or

(rewind) button

while a CD is being played to fast-forward or rewind
through the track. When the button is released, the CD
will return to normal play speed.

TRACK UP/

DOWN button:

Push the

button while a CD is being played to

skip forward to the next track. The CD will skip tracks
forward the number of times the button is pushed.
When the last track of the CD is skipped, the first track
will be played.

Push the

button while a CD is being played to

start the present track again from the beginning. Push
the

button several times to skip back to the

previous track. The CD will skip tracks backward the
number of times the button is pushed. When the first
track of the CD is skipped, the last track will be played.

CD select buttons:

To change to another CD loaded in the CD changer,
push the corresponding CD select button. When a CD
is selected, the selected CD will be automatically
played from the first track.

RPT (Repeat)·MIX button:

Push the

button repeatedly to change the play

mode as follows:

RPT (REPEAT) TRACK

? RPT (REPEAT) DISC ?

MIX DISC

? MIX ALL ? RPT (REPEAT) ALL ? RPT

(REPEAT) TRACK

RPT TRACK:

The CD changer plays the current track con-
tinuously.

RPT DISC:

The CD changer repeats the disc currently being
playing.

MIX ALL:

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

All the tracks on all of the CDs will be played in a
random order.

MIX DISC:

The CD changer plays all the tracks from one
disc once in a random order.

RPT ALL:

All the tracks of all the CDs will be played
continuously in sequential order.

CD EJECT button:

When the

button is pushed for less than 1.5

seconds while CDs are loaded, the previously played
CD will be ejected.

When the

button is pushed for less than 1.5

seconds while a CD is being played, the CD being
played will be ejected, and the next CD will be played.

When the

button is pushed for more than 1.5

seconds while CDs are loaded, all of the CDs in the
CD changer will be ejected.

If a CD is ejected by pushing the

button, and it is

not taken out from the loading slot within 15 seconds,
the CD will automatically be reloaded into the slot to
protect the CD.

If an error message appears on the display, push the

button.

When the ignition switch is in the “OFF” or “LOCK”
position, it is possible to eject all the CDs. However,
the audio unit will not be activated.

LW-MW-FM radio operation

JVH0045X

The audio system operates when the ignition switch is
in the “ACC” or “ON” position.

FM-AM button:

When the

button is pushed while the audio

system is off, the audio system and the radio will turn
on. When the

button is pushed while the CD

player is already operating, it will automatically turn off
and the radio will turn on.

To change the radio band, push the

button until

the preferred band appears.

FM 1

? FM 2 ? FM T ? MW ? LW

During FM reception, when the

button is pushed

TUNE button:

When adjusting the broadcasting station frequency
manually, push the

button until the preferred

frequency is obtained.

The frequency changes in steps of 100 kHz on the FM
band, 9 kHz on the MW band, and 3 kHz on the LW
band.

SEEK button:

When adjusting the broadcasting station frequency
automatically, push the

button. When the

system detects a broadcasting station, it will stop at
that station.

Radio memory buttons:

The audio system can store up to 18 FM station
frequencies (six in each of FM 1, FM 2 and FM T), 6
MW and 6 LW station frequencies.

To store the station frequency manually:

Tune to the preferred broadcasting station fre-
quency by using the

button.

Push and hold a radio memory button

until a beep sounds. (The radio mutes when the
memory button is pushed.)

The channel indicator will be displayed and the
radio mute will be cancelled, indicating that the
memory is stored properly.

Perform steps 1 - 3 for all other memory buttons.

If the battery cable is disconnected, or if the audio fuse
blows, the radio memory will be erased. If this occurs,
reset the desired stations.

Heater and air conditioner, and audio system

4-43

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

4-44

Heater and air conditioner, and audio system

Radio data system (RDS)

Alternative Frequency (AF):
.

The AF function operates in the FM (radio) and CD
modes.

When the AF mode is set to “ON” in the user
setup menu mode, the AF indicator illuminates.

For activation or deactivation, use the MENU button.
(Details are explained later in this section.)
.

Automatic switching function
This function compares the strengths of the
signals of all the stations on the AF list and
selects the station with the optimum reception
conditions.

Program Information (PI) search
Program Information (PI) search begins automati-
cally if no suitable station is found with the above
automatic switching function. The PI search
function checks each RDS station with the same
PI code. During this time the sound is muted and
“PI SEARCH” is displayed. The PI search opera-
tion stops when a suitable station is found. If no
station is found once all the frequencies have been
searched, the radio returns to the previous
frequency.

RDS functions:
.

Programme Service (PS) function (station
name display function)
When an RDS station is tuned in with seek or
manual tuning, the RDS data is received and the
Program Service (PS) name is displayed.

Emergency broadcast interrupt function
(ALARM INTERRUPTION

— EBU SPEC FOR

REG (Regional) mode
Some local radio stations are linked together
according to their region because they only offer
limited coverage due to their limited number of
transmitters. If the signal from one station be-
comes weak while you are driving around, RDS
mode will switch to another local station in the
region with a stronger signal.
When the REG mode is activated in the FM band
and the radio receiver is tuned to a local radio
station, it will keep receiving this radio station
without switching to another local station. For
activation or deactivation, use the MENU button.
(Details are explained later in this section.).

Traffic Announcement (TA):
.

The TA function operates in the FM and CD
modes.

The TA mode is turned on or off when the TA/
NEWS button is pushed for less than 2 seconds.

The TA mode operates regardless of whether the
AF mode is on or off.

“TA ON” is displayed when the TA mode is turned
on, and the TA indicator turns on. “TA OFF” is
displayed when the TA mode is turned off, and the
TA indicator turns off.

The following functions operate when the TA mode is
on:
.

News mode

When the NEWS button is pushed or the TA/NEWS
button is pushed for longer than 2 seconds in the FM
mode, the news function is activated. “NEWS” is
displayed for 3 seconds and the NEWS indicator
appears on the display.

When the news function is activated, the radio
receives a news code from the FM broadcasting news

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

station and the actual playing mode will be interrupted.
Once the news broadcast is finished, the unit returns
to the previous mode.

In some countries or regions, this service is not
available or the signal is too weak to be received.

News standby mode

The news standby mode can be activated in
the FM or CD mode.

When pushing the TA/NEWS button for longer
than 2 seconds, the news standby mode is
turned off and the indicator disappears from
the display.

News interruption mode

When the TA/NEWS button is pushed during
the news interruption mode, the radio returns to
the previous source. However, the news
standby mode is maintained.

When the

button is pushed during the

news interruption mode, the radio changes to
the CD mode. However, the news standby
mode is maintained.

If the radio band is changed to the MW or LW,
the news standby mode will be turned off.

MENU button:

To configure Alternative Frequency, Regional and
Language settings, perform the following procedure:

Push and hold the MENU button for at least 1.5
seconds.

Turn the MENU/VOL dial clockwise or counter-
clockwise. The display message will change as
follows:

AF ⇔ REG ⇔ LANGUAGE ⇔ AF

To activate or deactivate the AF and REG mode,
briefly push the ENTER button when AF or REG
appears on the display and turn the MENU/VOL
dial clockwise or counterclockwise to switch
between the off or on position. After selection,
push the ENTER button to confirm the settings.
— When the AF mode is enabled, the audio unit

will automatically re-tune to a stronger fre-
quency if the radio signal becomes weak.

— When the REG mode is enabled, the audio unit

will maintain and maintain the station which is
broadcasting local (regional) programmes.

⇔ GERMAN ⇔ ITALIAN ⇔ PORTUGUESE ⇔
ENGLISH
After selecting the preferred language, push the
ENTER button to exit the menu.

To configure the SPEED volume and BEEP settings,
perform the following procedure:

Push the MENU button.

Turn the MENU/VOL dial clockwise or counter-
clockwise. The display message will change as
follows:

PHONE SETUP ⇔ SPEED VOL ⇔ CLOCK ⇔
BEEP ⇔ PHONE SETUP

For phone operation, see “Bluetooth

Hands-Free

Phone System (if equipped for model without
navigation system)” (P.4-56).

When SPEED VOL appears on the display, briefly
push on the ENTER button then turn the MENU/
VOL dial clockwise or counterclockwise to adjust
the level of the volume.
Adjusting the setting to 0 (zero) turns off the
speed volume feature. Increasing the speed
volume setting results in the audio volume
increasing more rapidly with vehicle speed. Push
the ENTER button again to save the setting.

When BEEP appears on the display, briefly push
the ENTER button and then turn the MENU/VOL
dial clockwise or counterclockwise to switch the
beep sound on or off. Push the ENTER button
again to save the setting.

After the preferred levels have been set, push the
MENU button to exit the menu or wait at least for 10
seconds without pressing any buttons.

Heater and air conditioner, and audio system

4-45

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

4-46

Heater and air conditioner, and audio system

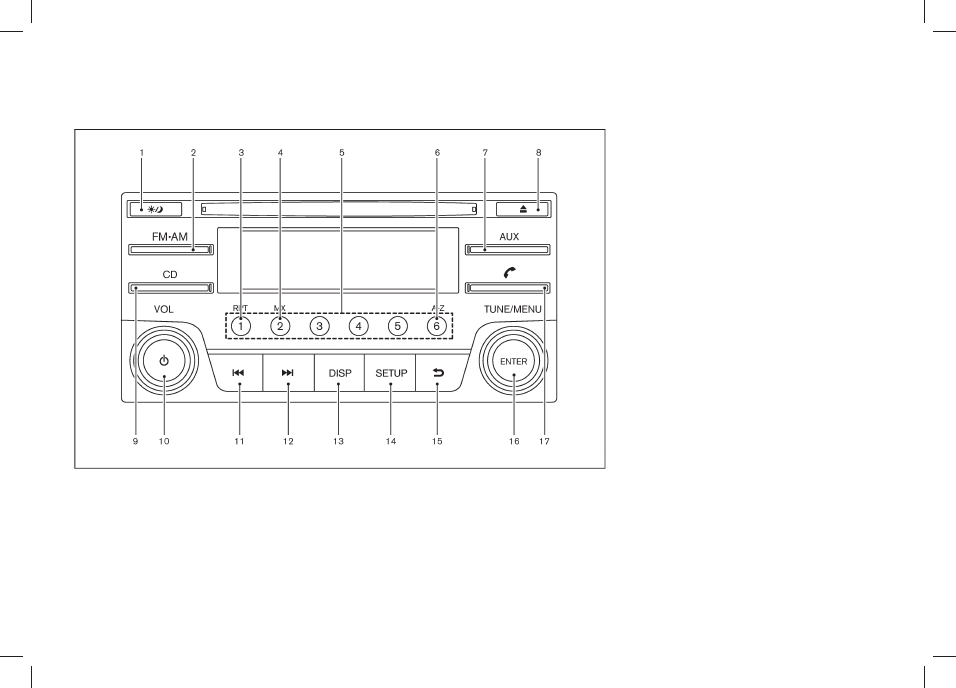

FM-AM RADIO WITH COMPACT DISC (CD) PLAYER (Type G)

JVH0508X

Day/Night button

FM·AM band select button

RPT button

MIX button

Radio memory buttons

A-Z button

AUX button

CD eject button

CD button

10.

Power/VOL dial

11.

Rewind button

12.

Fast Forward button

13.

DISP button

14.

SETUP button

15.

Back button

16.

TUNE/MENU/ENTER dial

17.

Phone button

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

Audio main operation

The audio system operates when the ignition switch is
in the “ACC” or “ON” position.

Power/VOL dial:

Power ON/OFF:

To turn on the audio system, push the

dial.

The system will turn on in the mode, which was
used immediately before the system was turned
off.

If a CD is inserted or a USB and/or an AUX device
is connected when the system is turned off, and if
the system is turned on again with the devices
removed or disconnected, the radio will turn on.

To turn off the audio system, push the

dial.

Volume control:

To control the volume, turn the

dial.

Turn the

dial clockwise to make the sound louder.

Turn the

dial counterclockwise to make the sound

quieter.

SETUP button:

To configure Audio, Clock, Bluetooth, Language or
Scroll direction settings, perform the following proce-
dure:

Push the

button.

Push the TUNE/MENU/ENTER dial.

Turn the TUNE/MENU/ENTER dial clockwise or
counterclockwise. The setting menu will be dis-
played in the following order:

Audio ⇔ Clock ⇔ Bluetooth ⇔ Language ⇔
Scroll Direction

After the desired levels have been set, either push the

button repeatedly, push the

button, or wait

for several seconds without pushing any buttons to exit
the menu screen.

Audio adjustments:
Push the

button to enter the setup menu screen

and then select “Audio”.

Each time the TUNE/MENU/ENTER dial is pushed, the
mode will change as follows:

BASS

? TREBLE ? BALANCE ? FADE ? AUX

VOL

? SPD VOL (if equipped) ? Audio (setup menu

screen)

? BASS

Turn the TUNE/MENU/ENTER dial clockwise or
counterclockwise to adjust the following items and
push the TUNE/MENU/ENTER dial to confirm.

Bass control:

Use this control to enhance or attenuate the bass
response sound.

Treble control:

Use this control to enhance or attenuate the treble.

Balance control:

Use this control to adjust the balance of the volume
between the left and right speakers.

Fader control:

Use this control to adjust the balance of the volume
between the front and rear speakers (if equipped).

AUX VOL (Auxiliary volume) control:

Use this control to adjust the volume output from the
auxiliary source.

SPD VOL (Speed volume) control (if equipped):

This mode controls the volume output from the
speakers automatically in relation to vehicle speed.

Adjusting the setting to “0” (zero) turns off the speed

volume feature.

Clock setting:
Push the

button to enter the setup menu screen

and then select “Clock”.

Turn the TUNE/MENU/ENTER dial, the mode will
change as follows:

Set Time ⇔ ON/OFF ⇔ Clock Format ⇔ Set Time

Set Time:

Select “Set Time” then adjust the clock as follows:

The hour display will start flashing. Turn the TUNE/
MENU/ENTER dial to adjust the hour and push the
TUNE/MENU/ENTER dial. The minute display will start
flashing. Turn the TUNE/MENU/ENTER dial to adjust
the minute and push the TUNE/MENU/ENTER dial to
finish the clock adjustment.

ON/OFF:

Set the clock display to on or off when the audio unit is
turned off. If set in the “ON” position, the clock will be
displayed when the audio unit is turned off either by
pushing the

dial or when the ignition switch is

placed in the “OFF” position.

Clock Format:

Switch the clock display between 24-hour and 12-
hour clock mode.

Bluetooth setting:
It is possible to set the Bluetooth settings. (See
“Bluetooth

audio player operation” (P.4-52).)

Language setting:
Push the

button to enter the setup menu screen

and then select “Language”.

Select the appropriate language and push the TUNE/
MENU/ENTER dial. Upon completion, the screen will
automatically adopt the language setting.

Heater and air conditioner, and audio system

4-47

&RQGLWLRQ

Renault Pulse (2012 year). Manual - part 10
