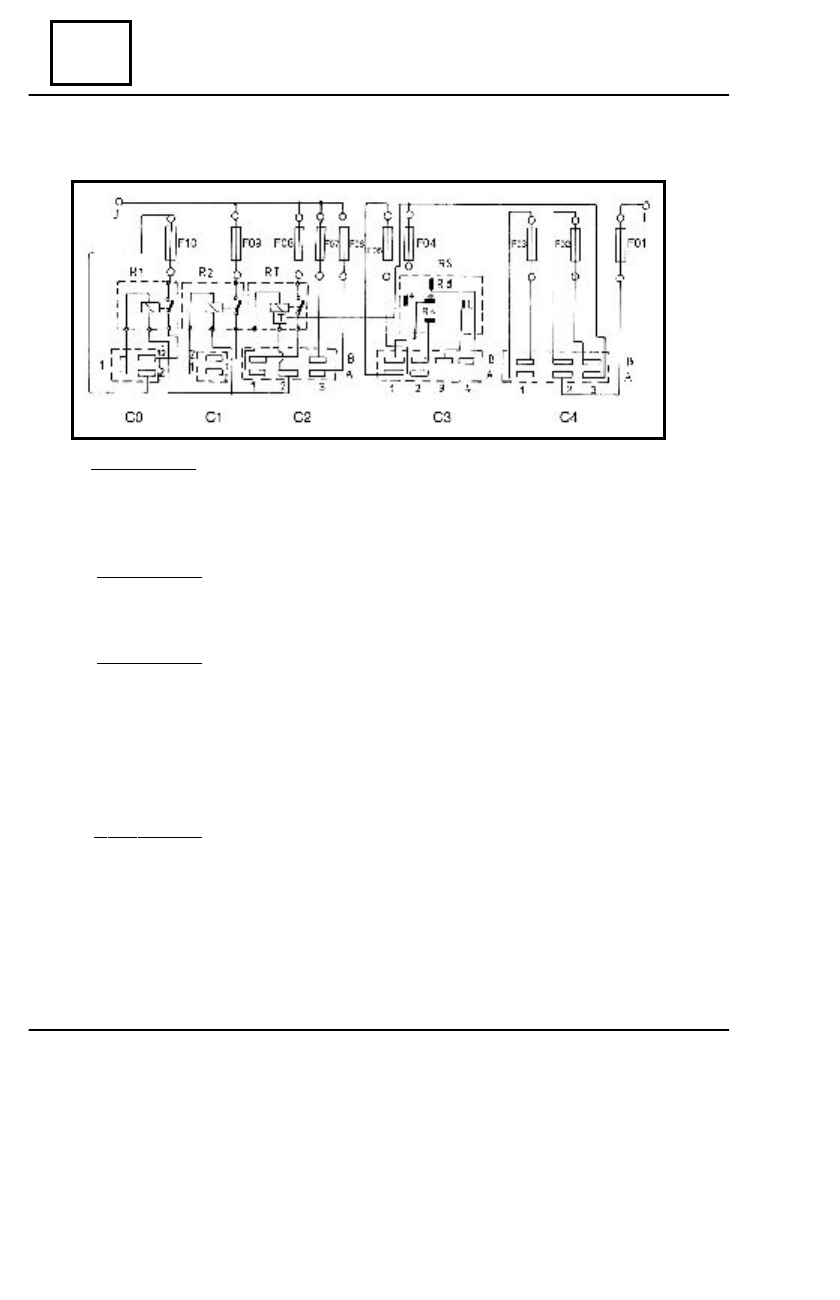

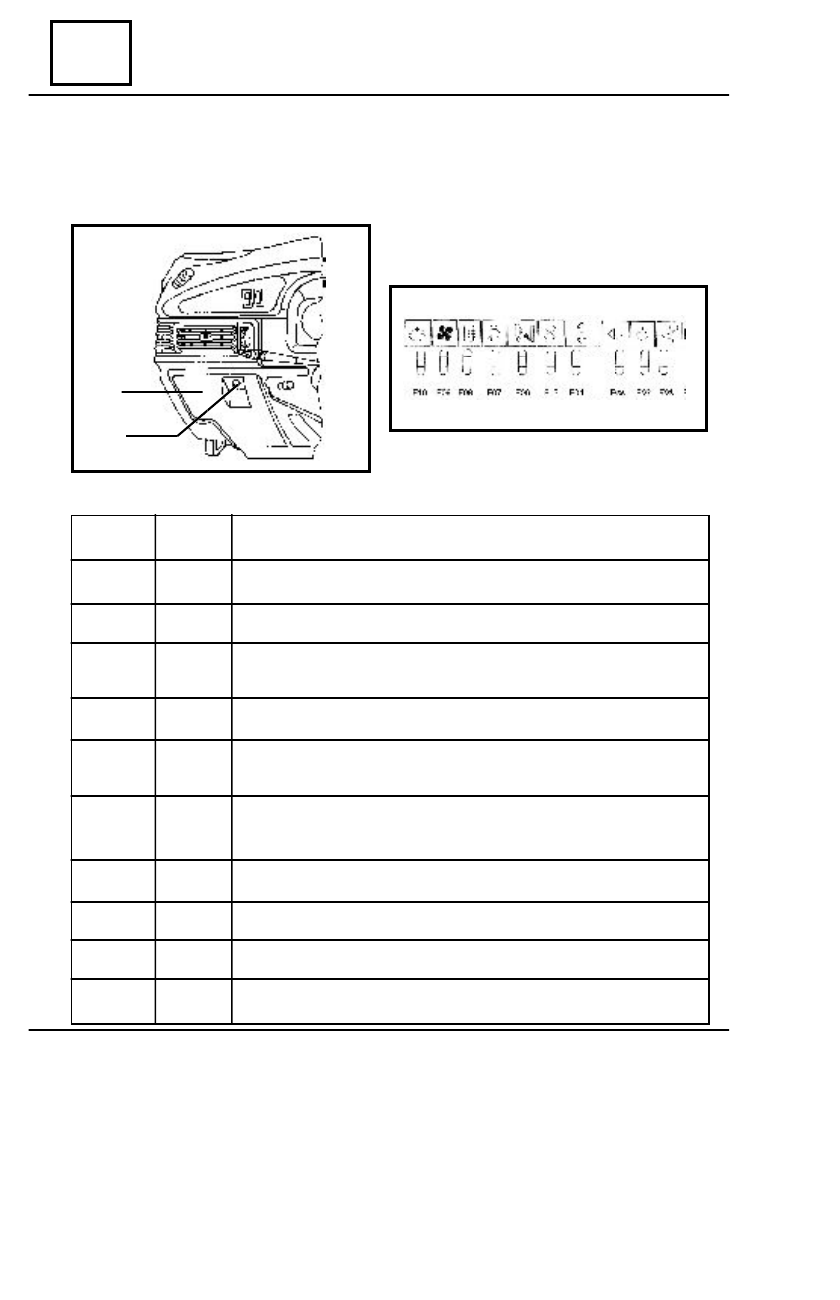

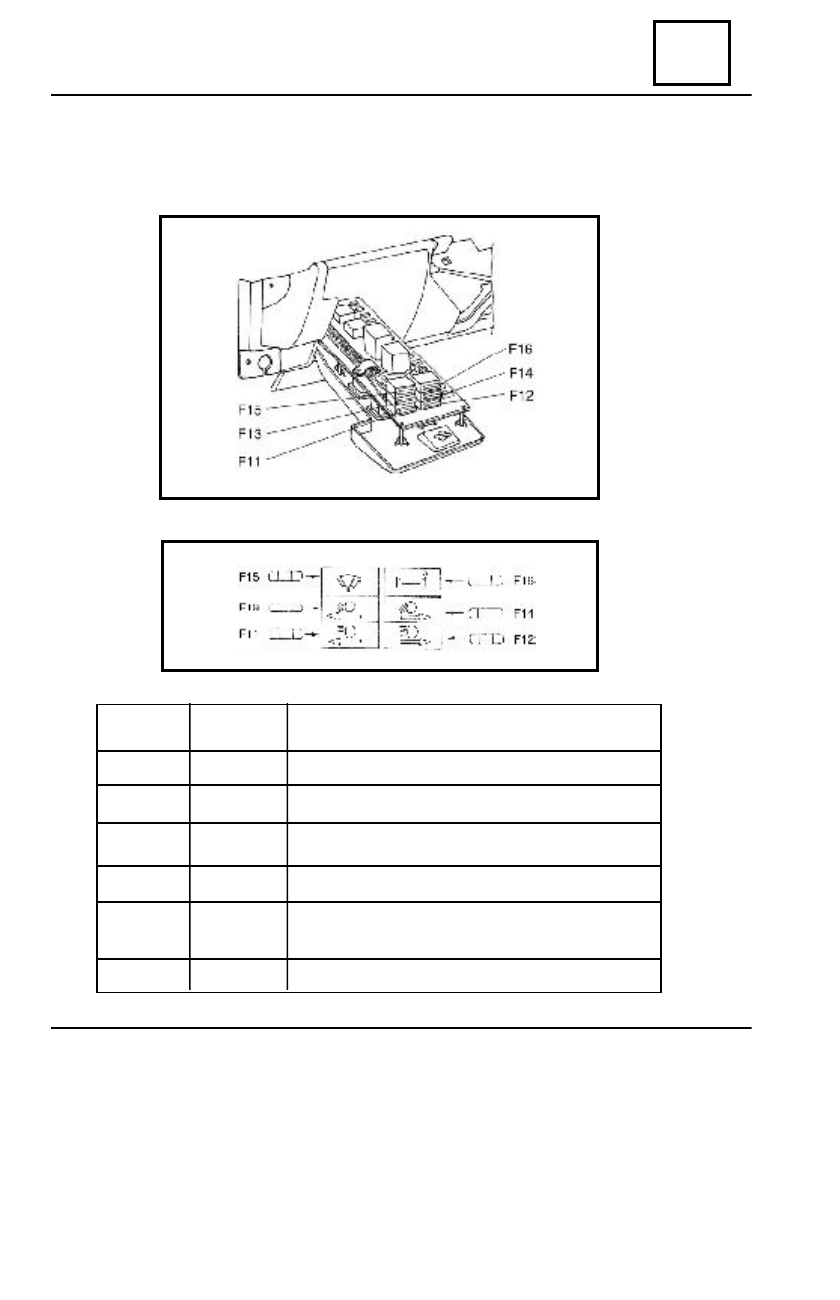

89B ELECTRIC DIAGRAMS 89B - 8 ( after 01.06.2001) The cockpit fuse box is placed left side under dashboard, being attached on the interior side of the door(1). To access the fuses, turn the knob (2), then open up the door towards exterior. The fuses are protecting the following electric circuits: FUSE NUMBER FUSE PROTECTED CIRCUIT Clock, radio, STOP contact, climate blower relay control Reverse driving contact UCE decoder, speed transducer, instrument panel supply, diagnostic socket, AC starting button, UCE anti-intrusion Hazard and turning signaling lights Front/rear parking lights, lighting: switches, instrument panel, climate control, documents compartment, lighter, ashtray, radio. Lighter, clock, instrument panel ( anti-starting indicator), front right ceiling lamp, UCE anti-intrusion, a nti-intrusion indicator, diagnostic socket. UCE decoder, FLASH relay, anti-starting bushing Rear window defrosting Climate blower Left fog lamp F01 F02 F03 F04 F05 F06 F07 F08 F09 F10 15A 5A 15A 7,5A 5A 15A 15A 20A 15A 5A 1 2 COCKPIT FUSE BOX |
