19 - 4

19

COOLING - EXHAUST  - FUEL TANK

Components:
1.

Engine

2.

Radiator

3.

De-gassing pot

4.

Air-warming device

5.

Thermostat stand

6.

Nipple ø 3

7.

Draining screw

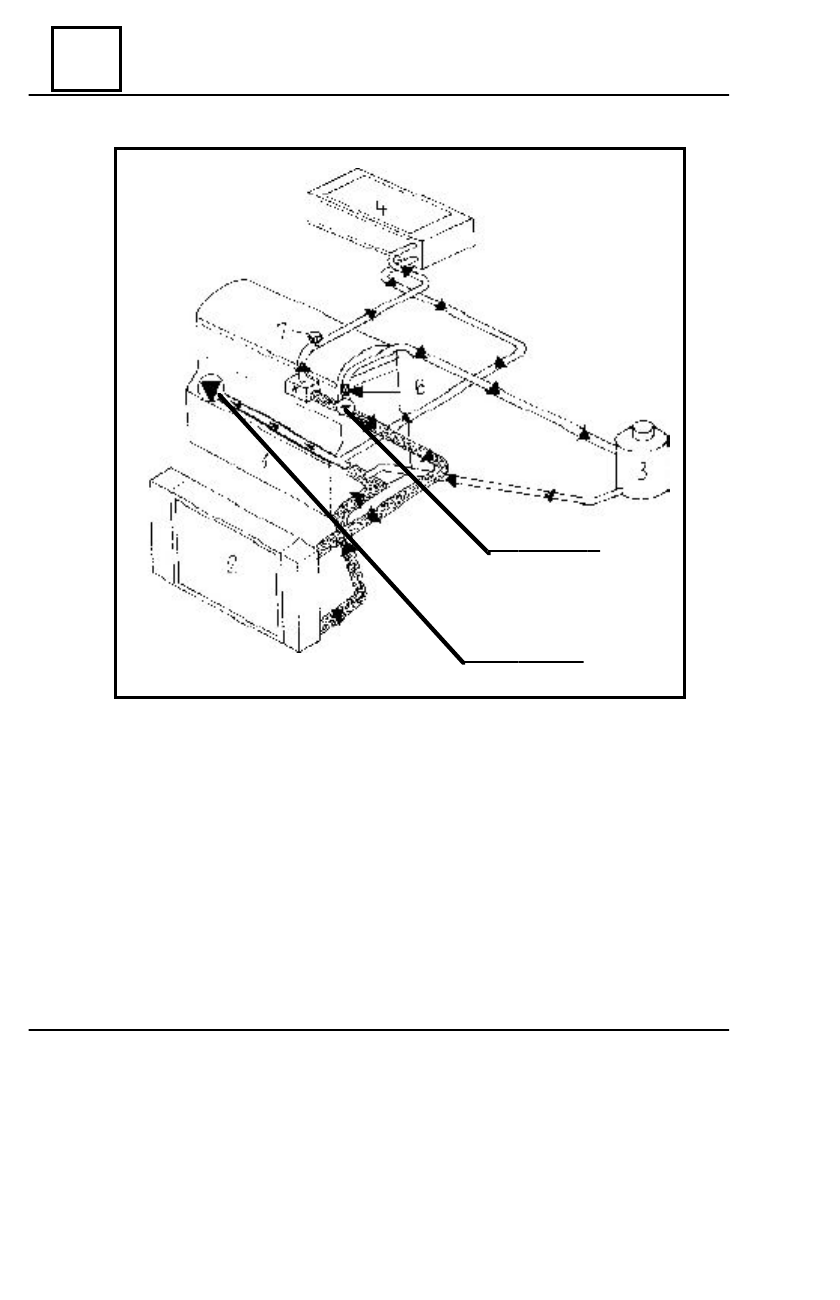

THE SCHEMA

Thermostat

Water  pump

19 - 5

19

COOLING - EXHAUST  - FUEL TANK

D

ISMONTING

The battery is disconnected.
The tubes of the radiator are stopped up with the MOT 453 devices.
Dismount the hoses from the radiator by means of the elastic collar pliers MOT 1202-01.
The two screws of the stand are taken off the upper traverse of the radiator and the radiator

is taken off.

The radiator is emptied and the cooling liquid is retrieved.

R

EMOUNTING

Check the existence of the supporting bushings.
The radiator is mounted.
The jacks for the fixing on the radiator are mounted, as well as the radiator stands, and the

fixing screws are fastened (0,57 daN).

The MOT 453 devices are taken off.
The tubes that have been taken off are mounted back and the collars are tightened.
Note : When mounting, line up the marks from the hoses and the related parts.
The battery is connected.
The filling and the draining of the cooling circuit is done.

Tightening moments:
- the screws for the radiator stands (M6- 2 pieces) - 0,57 daN.

RADIATOR

SPECIAL TOOLS

MOT 1202 - 01

Pliers for  elastic collars

MOT 453

Tubes’ plug

19 - 6

19

COOLING - EXHAUST  - FUEL TANK

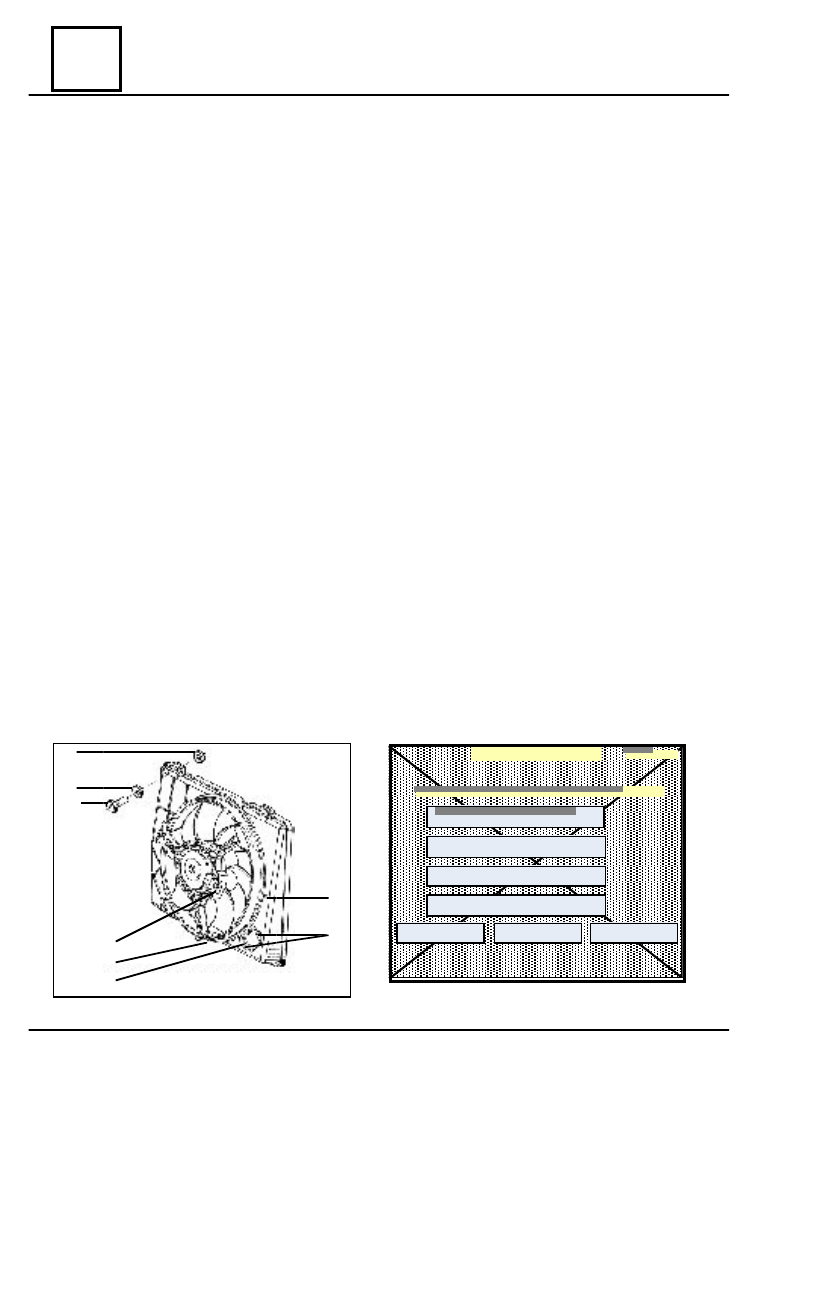

COOLING FAN REPLACEMENT

for vehicles with air conditioning

1

6

5

3

2

4

7

8

DISMOUNTING

Disconnect the (-) plug of the battery.
Disconnect the cooling fan connector (5).
Disconnect the cooling fan resistance connector (1). Mark the mounting position iden-

tification of the two connectors.

Detach the wiring from clip (6).
Cut the clip attaching the wiring on the cooling fan assembly in point (7).
Dismount the four-attachement screws (3) of the cooling fan on the radiator, recovering the

washers (2) and (4).

Remove the cooling fan assembly.

REMOUNTING

Check the condition of the fan propeller, cooling fan electric motor, washers.
Tighten the attachement screw (3) of the assembly.
Replace the clip from point (7).
Mount the wiring of the cooling fan assembly taking into the consideration the mount-

ing position marked before dismounting. This is to be fixed by means of a clip in point (7)
and will pass trough the clip (6).

Connect the cooling fan resistance connector (1).
Connect the cooling fan connector (5). Observe the mounting position identification of

the two connectors.

Connect the battery plug (-). In case the vehicle is equipped with progammable radio-

cassettes, electronic clock, etc, these are to be  reset before returning the vehicle to the client.

Check the cooling fan operation: start the vehicle engine and disconnect the water

temperature sensor. The cooling fan must start. Reconnect the water temperature sensor,
then by means of the CLIP tester, erase the memorized failure related to the water tem-
perature sensor.

FAILURES

ERASING

19 - 7

19

COOLING - EXHAUST  - FUEL TANK

COOLING FAN DIAGNOSTIC

for vehicles with air conditioning
