Dacia Pick-Up 1304/1305/1307. Service manual - part 115

LOWER INTERNAL ACCESSORIES

57

57 - 6

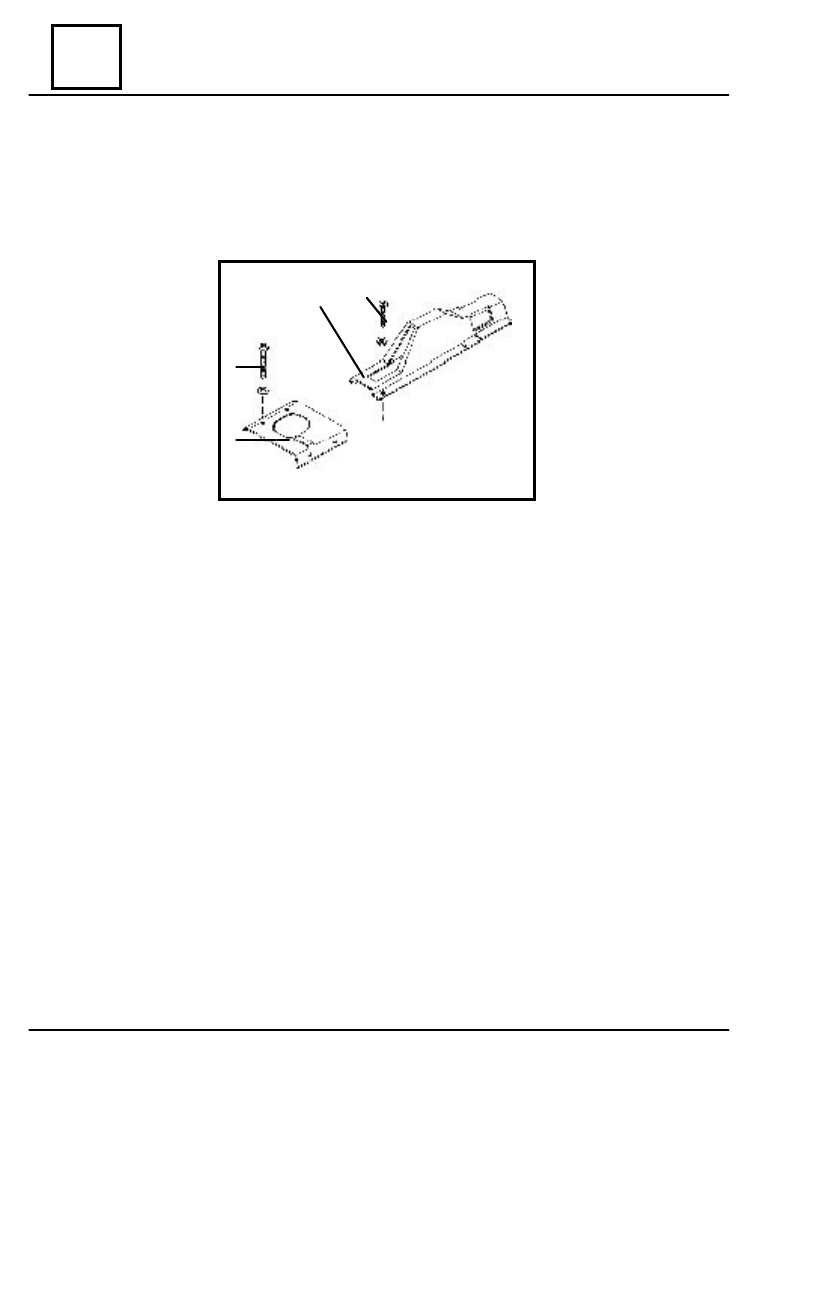

      THE HANDBRAKE CASIN AND GEARBOX LEVER ORNAMENT

D

ISMO UNTING

Dismounting the screws (1) and release the gearbox lever ornament (2).
Dismounting the screws (3) and release the handbrake casing (4).

R

EMO UNTING

Perform the dismounting operations in reverse order.

1

2

4

3

57

LOWER INTERNAL ACCESSORIES

57 - 7

D

ISMO UNTING

Dismount the protector support (1).
Dismount the rubber buffer (2).
Detach from clips the sun visors rod from the inside rear view mirror support.
Release the inside rear view mirror (3) by dismounting the attachment screws (4).

R

EMO UNTING

Perform the dismounting operations in reverse order.

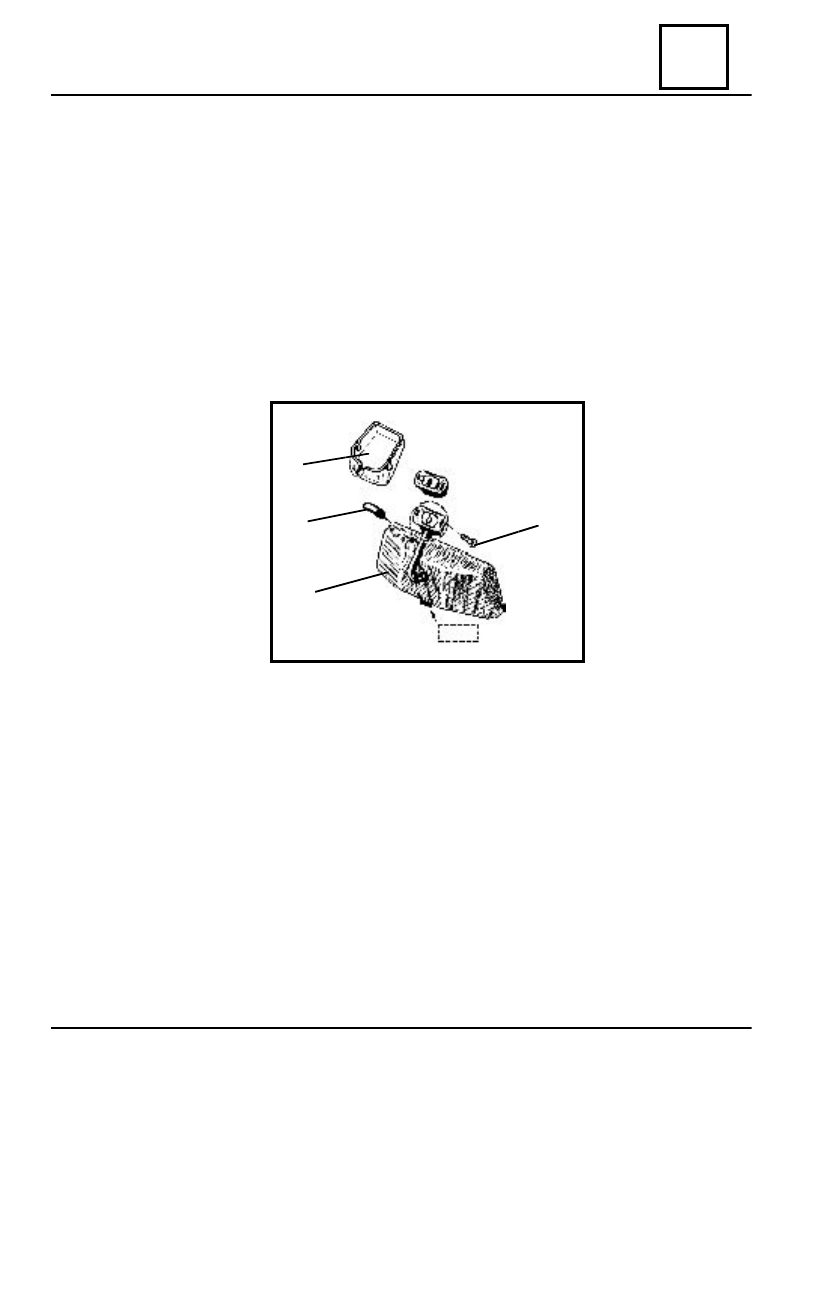

INSIDE REAR VIEW MIRROR

1

1

2

3

4

LOWER INTERNAL ACCESSORIES

57

57 - 8

D

ISMO UNTING

Take out  inside rear view support protector.
Detach the sun visors (2) rod  from the inside rear view mirror support.
Release the sun visors (2) by dismount the attachment screws (1).

R

EMO UNTING

Perform the dismounting operations in reverse order.

1

2

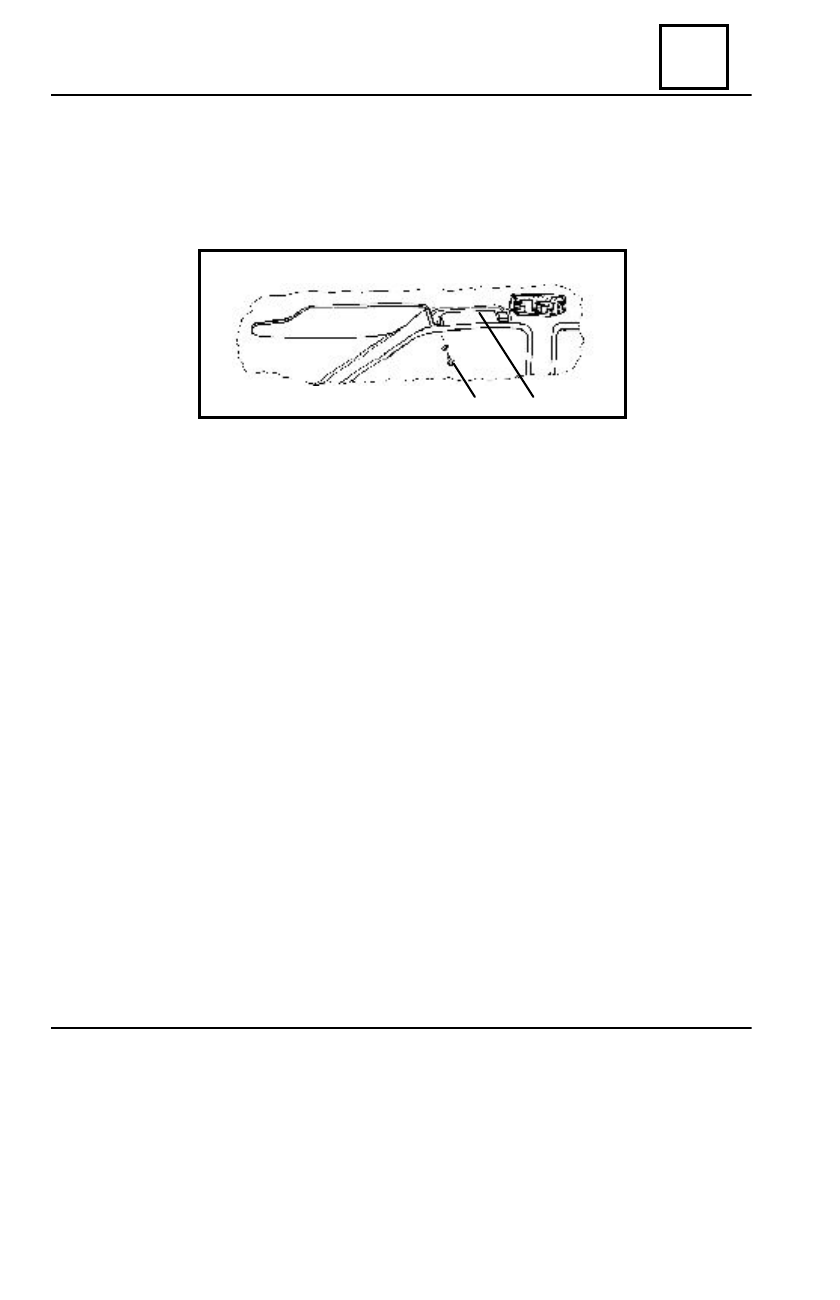

SUN VISORS

57

LOWER INTERNAL ACCESSORIES

57 - 9

R

EMO UNTING

Perform the dismounting operations in reverse order.

2

1

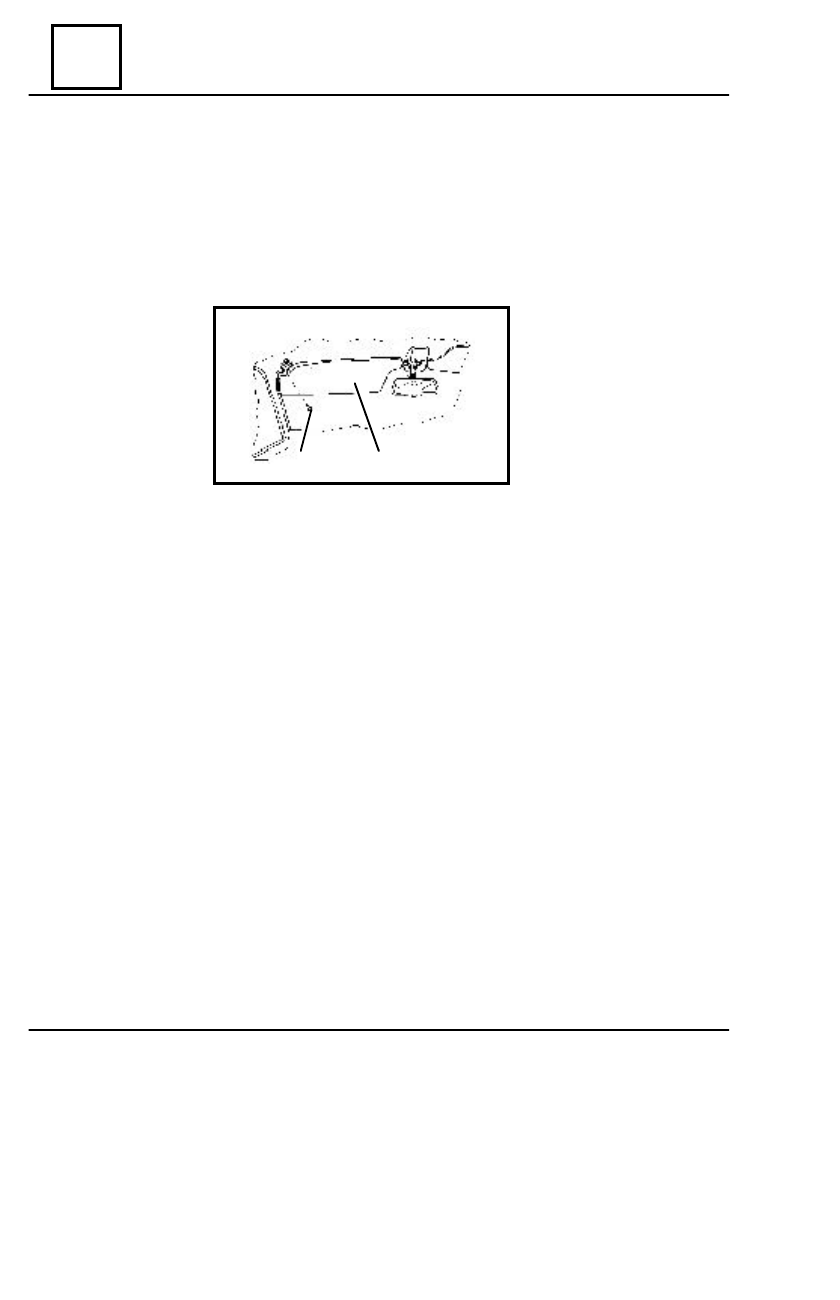

TURN HANDLES

D

ISMO UNTING

Dismount the turn handles (1) attachment screws (2) from the stretcher.
Dismount the turn handles.
