ENGINE AND LOWER ENGINE UNITS
R
EMOUNTING

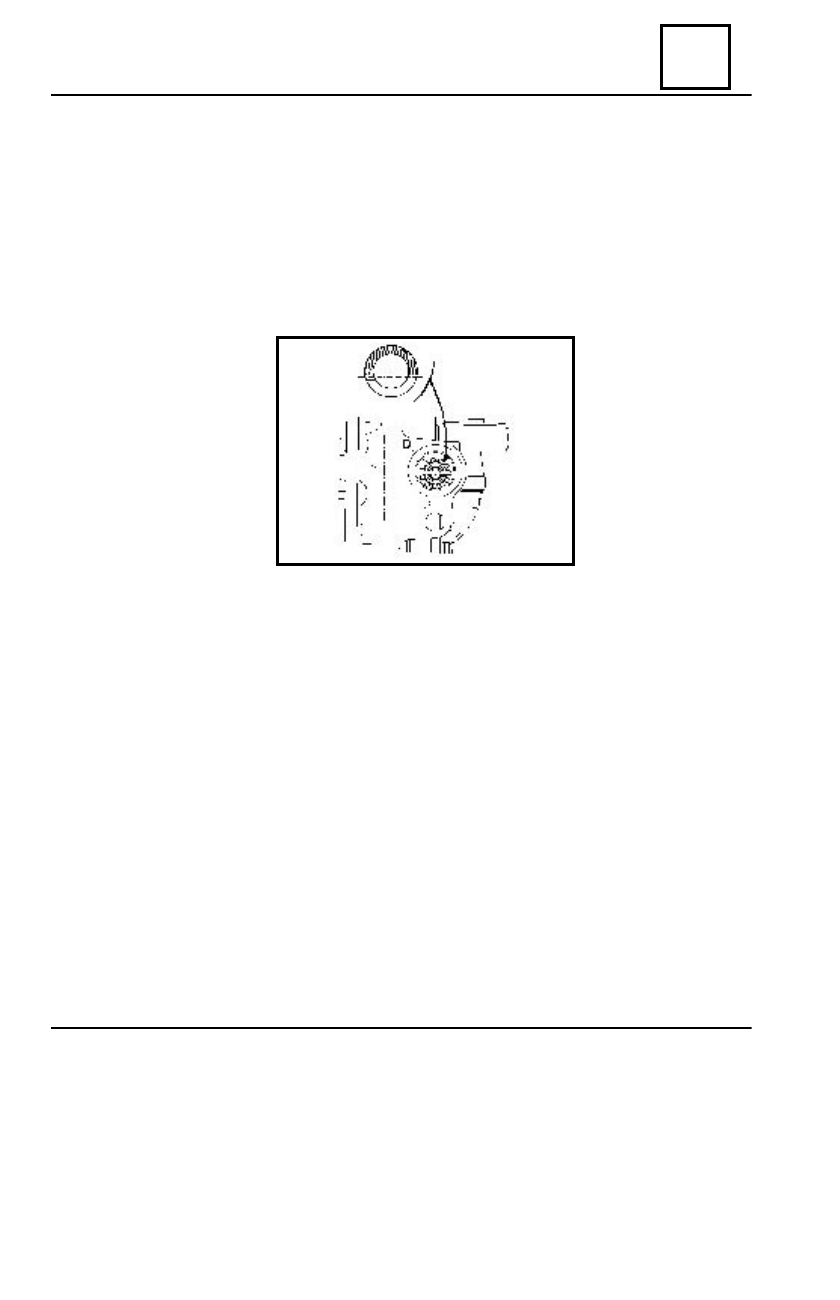

Mount on the new camshaft : the disk key,a new attachement clip,a new cross piece;tapp the
cross piece with a rod until it comes into contact with the camshaft shoulder).
Mount the camshaft pinion and tighten the screw at the moment of 3 daNm using.

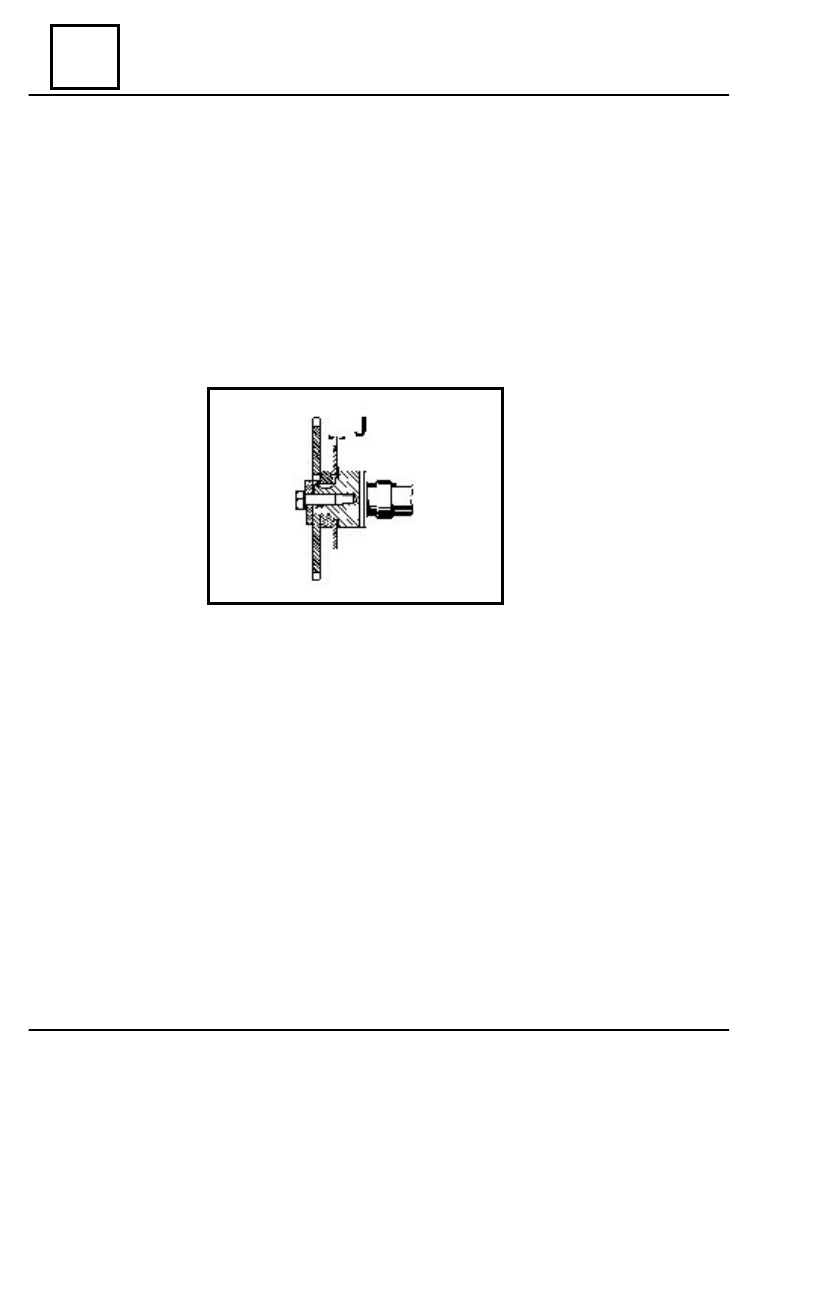

Check the attachement clip clearance ( J ) ; the clearance must be between 0,06 and 0,11
mm.
If clearance is not the required one, replace the clip.
Dismount the camshaft pinion.
Lubricate with oil the camshaft and mount it in its place.
Tighten the screws of camshaft clip fixing at a 2 daNm moment.

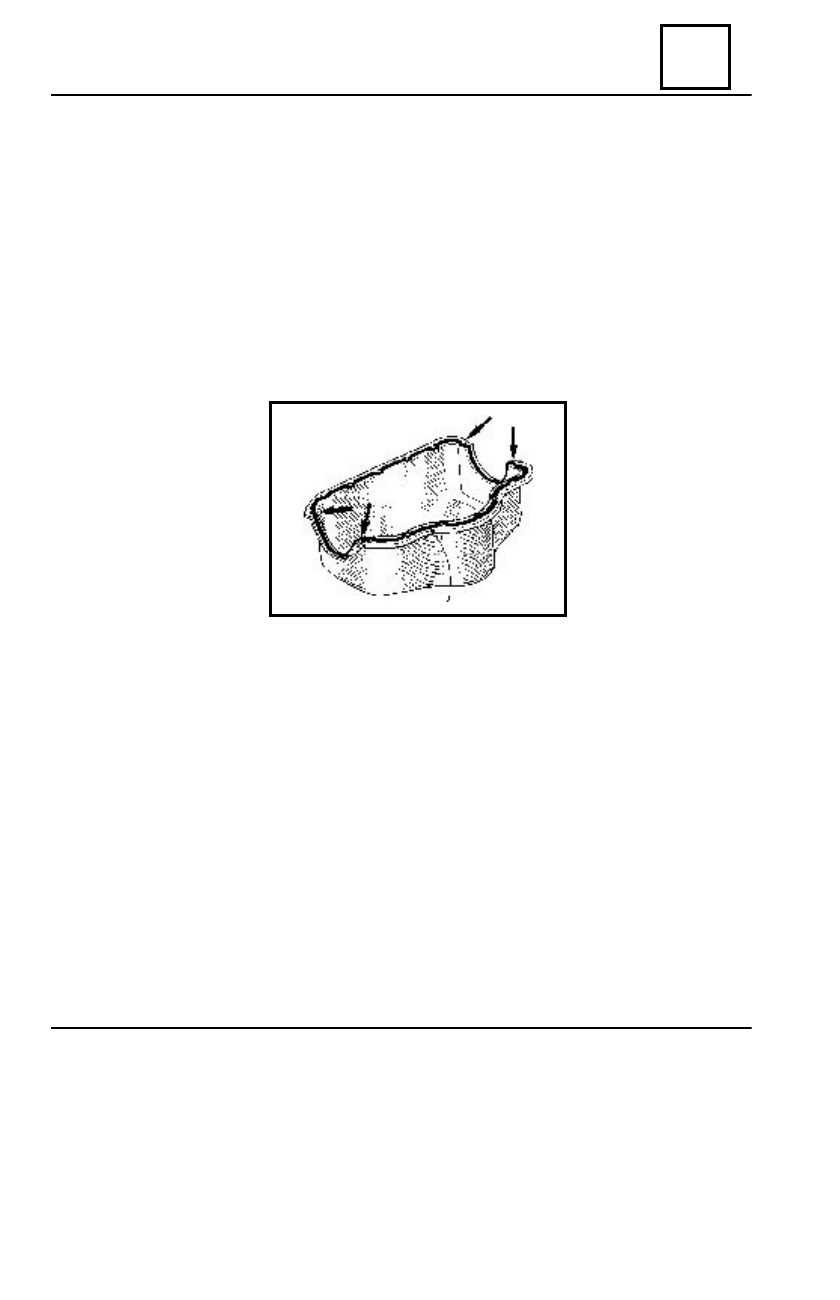

Remount: the camshaft pinion and the distribution chain,the distribution chain tightener, the
distribution cap with a new gasket or sealant material,the crankshaft pulley,the water pump pulley
and the fan,the oil sump with new gaskets or sealant material for engines assembled after

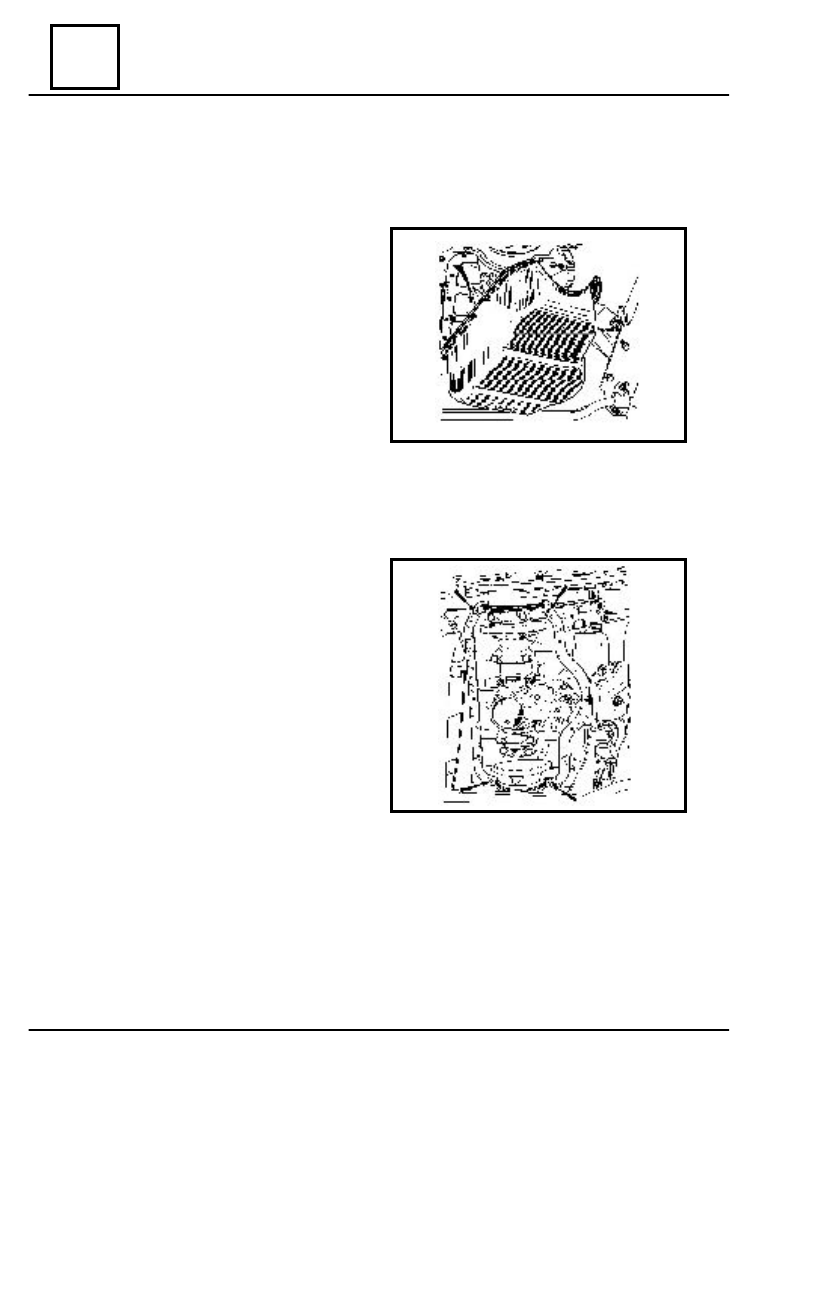

01.06.1996,the elastic bushings attachement nuts on stabilizer rod,the crossbar between the
longitudinal girders and the engine shield.
CAMSHAFT
