Peugeot 4007 (2012 year). Manual - part 1

PEUGEOT's SERVICE BOX Internet site permits easy

and free consultation of your vehicle documentation

on line.

Access the latest information available.

Connect to http://public.servicebox.peugeot.com:

Simple and user friendly, SERVICE BOX allows you

access:

● to your Handbook,

● to previous Vehicle documentation.

Please note the following point:

The fi tting of electrical equipment or accessories which are not recommended by PEUGEOT may result in a failure of

your vehicle's electronic system. Please note this specifi c warning. It is advisable to contact a PEUGEOT dealer to be

shown the recommended equipment and accessories.

select your language,

click on the link in the "Private customer access"

zone to consult the Vehicle documentation,

A window opens giving access to all of the handbooks...

select your vehicle,

choose its body type then the date of publication

of the handbook,

fi nally, click on the item which is of interest to you.

Thank you for choosing a 4007, a sound

investment and a symbol of confi dence,

passion and inspiration.

Each model may only be fi tted with

some of the equipment mentioned in

this handbook, depending on the speci-

fi cation, the models, the versions and

the characteristics particular to the

country in which it is sold.

Page reference:

this symbol accompanies advice

relating to protection of the envi-

ronment.

this symbol invites you to refer

to the pages which provide de-

tails of the function.

Warning:

this symbol marks warnings which

it is essential to observe for your

own safety, for the safety of others

or to avoid any risk of damaging

your vehicle.

this symbol draws your attention

to additional information for better

use of your vehicle.

Key

Protection of the environment:

Information:

This handbook has been designed to en-

able you to make the most of your 4007.
On the fi rst few pages, you will fi nd a

detailed summary, followed by a quick

reference guide intended to make it

easier for you to become familiar with

your vehicle.

All of the details specifi c to your 4007,

comfort, safety, driving, are then pre-

sented in this handbook so as to in-

crease your appreciation of the vehicle

and to help you benefi t from it in full.

CONTENTS

INSTRUMENTS and

CONTROLS 21

Ventilation 44
Automatic air conditioning

Front seats

Rear seats

Rear bench seat

Mirrors 61
Steering wheel adjustment

Front fi ttings

Rear fi ttings

Boot fi ttings

COMFORT 44

Remote control key

Electric windows

Doors 79
Tailgate 80
Lower tailgate

Sunroof 82
Fuel tank

ACCESS 73

Lighting stalk

Daytime running lamps

Automatic illumination of
headlamps 88
Headlamp adjustment

Wiper controls

Automatic rain sensitive wipers 91
Courtesy lamps

VISIBILITY 86

Child seats

ISOFIX mountings

Child lock

101

CHILD SAFETY 94 Î 101

Direction indicators

102

Hazard warning lamps

102

Horn 102
Braking assistance systems

103

Trajectory control systems

104

Front seat belts

105

Airbags 108

SAFETY 102

111

Instrument panel

Warning lamps

Instrument panel displays

Information on the instrument
panel screen

Distance recorders

Service indicator

Trip computer

Setting menu

Monochrome screen

Colour screen

Lighting rheostat

FAMILIARISATION 4

CONTENTS

Parking brake

112

Manual gearbox

112

CVT gearbox

113

DCS gearbox

115

Four wheel drive system

119

Cruise control

121

Audible rear parking sensors 123
Reversing camera

124

DRIVING 112

124

Bonnet 126
Running out of fuel

126

Petrol engine

127

Diesel engine

128

Checking levels

129

Checks 130

CHECKS 125

131

Changing a wheel

132

Changing a bulb

137

Changing a fuse

144

Battery 149
Changing a wiper blade

151

Towing 152
Towing a trailer

154

Fitting roof bars

155

Accessories 156

PRACTICAL

INFORMATION 132

156

Engines 157
Weights 158
Dimensions 159
Identifi cation markings

160

TECHNICAL

DATA 157

161

Audio CD system

162

CD changer

173

Error messages

175

Audio-Telematic System

176

Navigation 178
DVD mode

206

Hands-free telephone

214

AUDIO EQUIPMENT and

TELEMATICS 162

221

VISUAL

SEARCH 222

228

ALPHABETICAL

INDEX 229

232

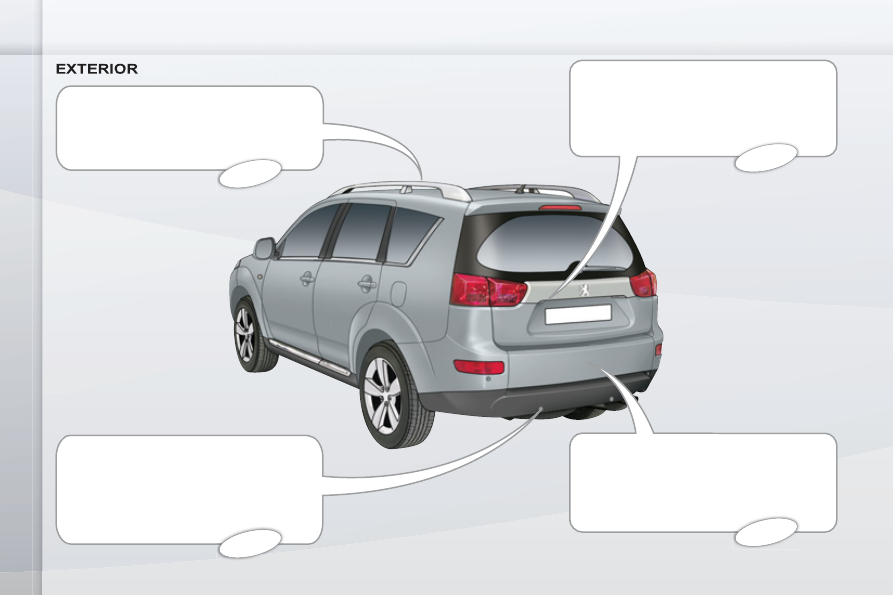

FAMILIARISATION

Sunroof

This roof improves the ventilation and

light in the passenger compartment.

123

Audible rear parking sensors

This system warns you if an obstacle

is detected behind the vehicle when

reversing.

Reversing camera

This system is activated automati-

cally when reverse gear is engaged

providing a visual image on the colour

screen.

Lower tailgate

This lower tailgate provides remarkable

accessibility and makes the loading of

bulky objects easier.

124

FAMILIARISATION

Fuel tank

A. Opening the fuel fi ller fl ap.
B. Removing the fuel fi ller cap.

1. Locking the vehicle.
2. Unlocking the vehicle.

Remote control key

   A.   Unfolding/folding the key.
  B.   Unlocking the vehicle.
  C.   Locking the vehicle.

Manual central locking control

OPENING

When refi tting the cap, insert the

upper part fi rst turning it to the

right.

Capacity of the tank: approximately

60 litres.

FAMILIARISATION

Opening
) After unlocking the vehicle using the

remote control or the key, press the

handle A and raise the tailgate.

Tailgate

Lower tailgate

Opening
) Push the handle C to the right and

tilt the tailgate D gently.

The maximum authorised weight

on the lower tailgate when open

is 200 kg .

Spare wheel and tools

Access to the spare wheel
) Remove the plastic cover E to gain

access to the spare wheel fi xing

system.

OPENING

132

Closing
) Pull the handle B downwards.

Closing
) Raise the tailgate D , push it to close

it, then check that it is latched cor-

rectly.

Access to the tools
The tools are stored in the storage com-

partment F in the boot right-hand trim.

FAMILIARISATION

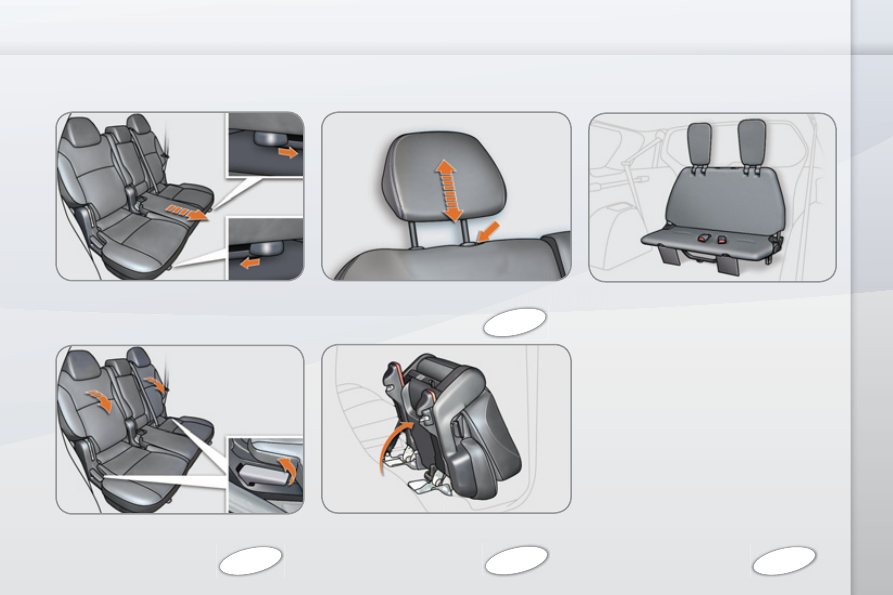

SEAT CONFIGURATIONS

Rear seats (row 2)

Forwards-backwards adjustment

Seat back angle adjustment

Head restraint height adjustment

Access to the third row (7-seat version)

Rear bench seat (row 3)

The rear bench seat can be folded. It is

stowed in a location in the fl oor of the

vehicle.

FAMILIARISATION

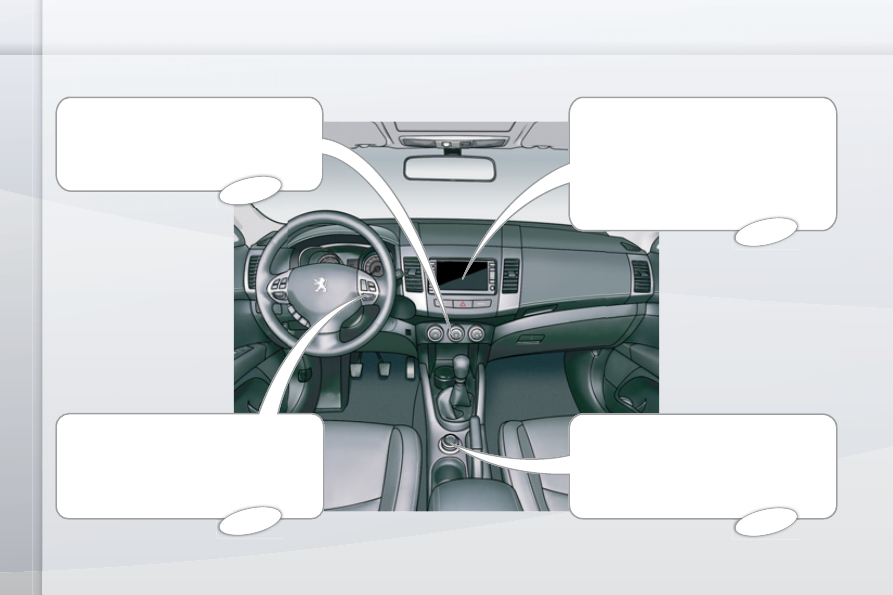

INTERIOR

Digital air conditioning

This automatic air conditioning system

maintains the desired level of com-

fort and adequate air circulation in the

passenger compartment.

Cruise control

This system automatically maintains

the vehicle speed at the value pro-

grammed by the driver, without use of

the accelerator pedal.

Audio and communication

systems

These systems benefi t from the lat-

est technology: MP3 compatible audio

system, Bluetooth hands-free tele-

phone, colour screen...

Four wheel drive system with

electronic control

This system permits the selection of a

transmission mode to suit the driving

conditions.

121

162

119

FAMILIARISATION

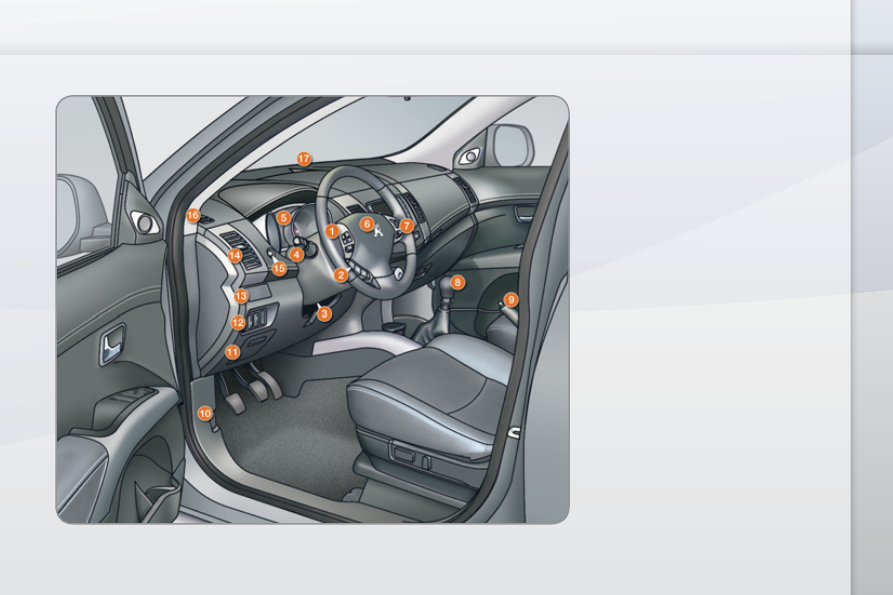

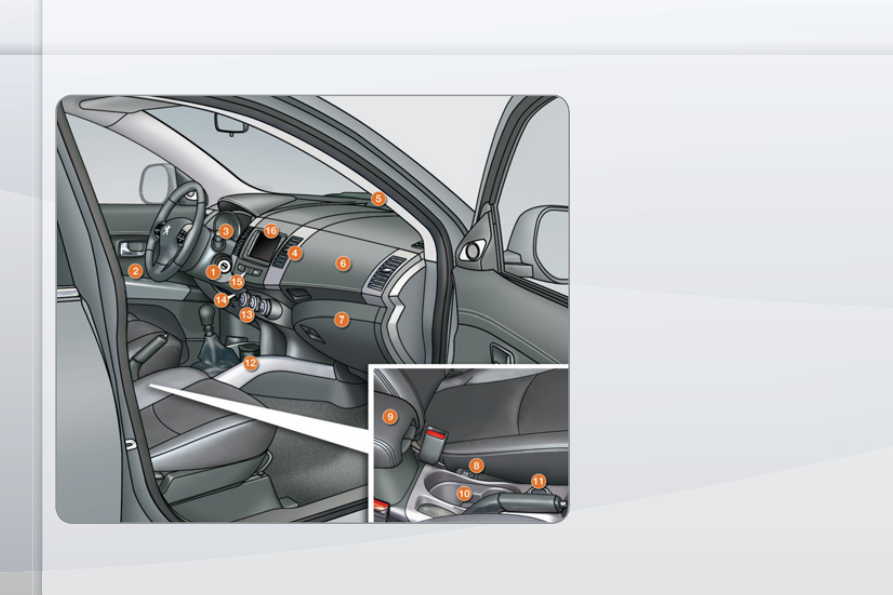

INSTRUMENTS AND CONTROLS

   1.   Audio system controls.
  2.  Telephone controls.
  3.   Steering wheel adjustment control.
  4.   Lighting and direction indicator

control stalk.

Headlamp wash control.

  5.  Instrument panel.
  6.   Driver's air bag.
Horn.
  7.   Cruise control switches.
  8.  Gear lever.
  9.  Parking brake.
  10.  Bonnet release lever.
  11.  Enclosed storage compartment.
Fusebox.
  12.  Headlamp height adjustment.

Deactivation of the ASC system.

Deactivation of the audible parking

sensors.

  13.  Cup  holder.
  14.  Side adjustable air vent.
  15.  Information  button.
  16.  Window demisting/defrosting vent.
  17.  Windscreen  demisting/defrosting

vent.

FAMILIARISATION

INSTRUMENTS AND CONTROLS

1. Steering lock and ignition.
2. Door mirror controls.

Electric window and rear electric

window deactivation controls.

3. Front and rear wipers/screenwash

control stalk.

  4.   Central adjustable air vents.
  5.  Sunshine sensor.
  6.   Cooled upper glove box.
  7.   Lockable lower glove box.

Passenger's airbag deactivation.

8. Heated seat controls.
9. Armrest with storage

compartments.

12 volt socket (120 W max).

10. Cup holder.
11. Four wheel drive system position

selector.

12. Removable ashtray/

12 volt socket (120 W max).

  13.  Digital air conditioning controls.
  14.  Temperature  sensor.
  15.  Hazard warning lamps switch.
  16.  Colour screen/Audio system.

FAMILIARISATION

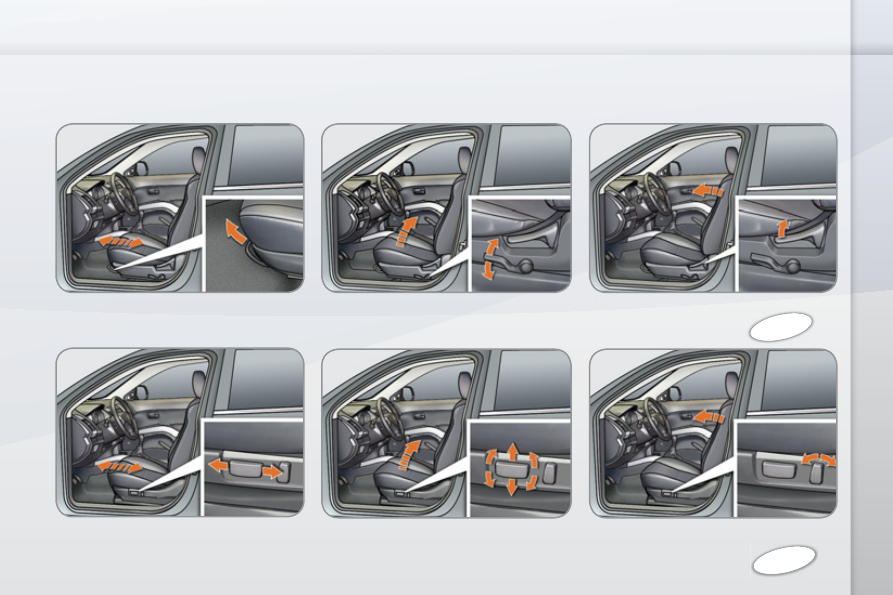

SITTING COMFORTABLY

Front seats

Forwards-backwards

Driver's seat cushion height and angle

Seat back angle

Manual adjustments

Electric adjustments (driver's seat only)

Forwards-backwards

Seat cushion height and angle

Seat back angle

FAMILIARISATION

SITTING COMFORTABLY

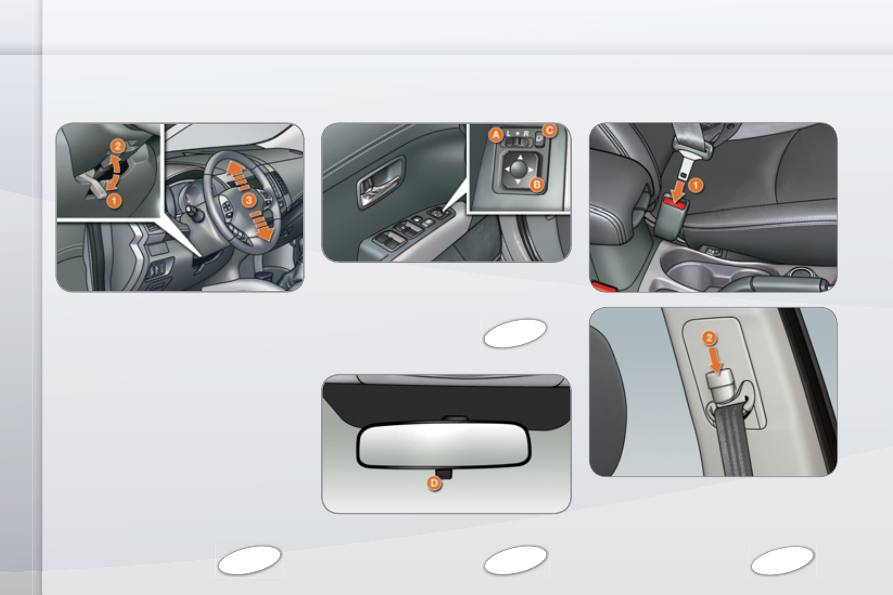

   1.   Releasing the lever.
  2.   Locking the lever.
  3.   Adjustment of the height of the steering

wheel.

Manual steering wheel height

adjustment

Door mirror adjustment

  A.   Selection of the mirror.
  B.   Adjustment of the position of the mirror.
  C.  Folding/Unfolding.

Rear view mirror adjustment

D. Control for selection of the "day/night"

position of the mirror.

Front seat belt

1. Fastening.
2. Height adjustment.

105

FAMILIARISATION

SITTING COMFORTABLY

Ignition switch

   1.    LOCK  position.
  2.    ACC  position.
  3.    ON  position.
  4.    START  position.

Electric window controls

  1.  Driver's electric window control.
  2.  Passenger's electric window control.
  3.  Rear right electric window control.
  4.  Rear left electric window control.

Also...
5. Deactivation of the front pas-

senger and rear electric win-

dow controls.

Sunroof controls

  1.  Opening control.
  2.  Closing control.
  3.  Partial opening control.

Also...
3. Also allows sunroof opening/

closing to be stopped at any

time.

A heavy object (key fob...), attached

to the key and weighing down on

its shaft in the ignition switch, could

cause a malfunction.

FAMILIARISATION

SEEING CLEARLY

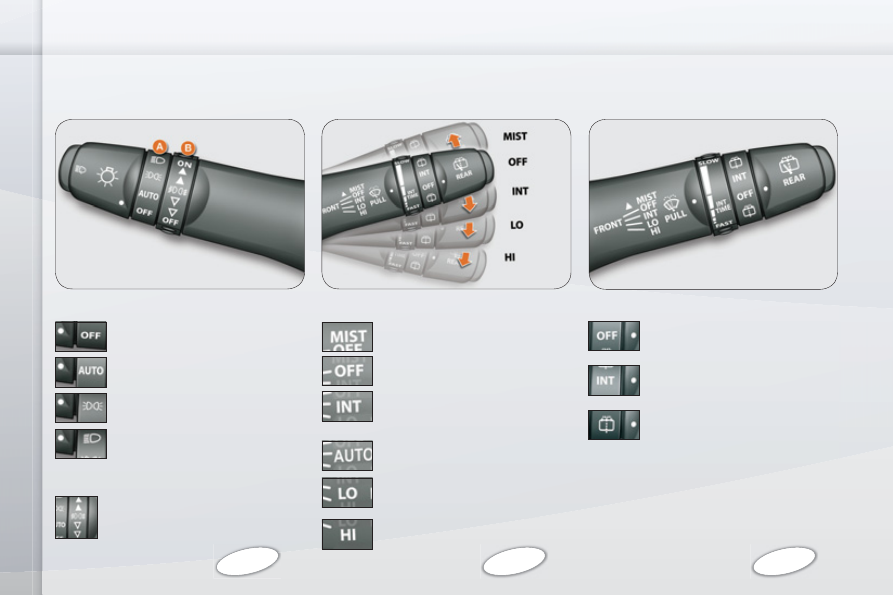

Lighting

Ring A

Ring B

Windscreen wipers

Wipers

Rear wiper

Front foglamps and rear foglamps.

Lighting off.

Automatic illumination of head-

lamps.

Sidelamps.

Dipped or main beam head-

lamps.

Single wipe.

Park.

Intermittent (speed which can

be adjusted manually).

Fast.

Park.

Intermittent wipe.

Wiping with screen wash.

Slow.

Automatic rain sensitive (speed

which can be adjusted manually).
