Peugeot 3008 (2017 year). Manual

Driving

207

3008-2_en_Chap06_conduite_ed01-2016

Deactivating automatic operation

In some situations, such as very cold weather
or towing (caravan, recovery), it may be
necessary to deactivate automatic operation of
the system.
F Start the engine.
F Apply the parking brake with the control

lever, if it is released.

F Take your foot off the brake pedal.
F Push and hold the control lever in the

release direction for at least 10 seconds
and no more than 15 seconds.

F  Release the control lever.
F  Press and hold the brake pedal.
F  Pull the control lever in the apply direction

for 2 seconds.

Deactivation of the automatic functions
is confirmed by illumination of this
indicator lamp in the instrument panel.

F Release the control lever and the brake

pedal.

From this point, the parking brake can only
be applied and released manually using the
control lever.

Repeat this procedure to reactivate automatic
operation.
Reactivation of automatic operation is
confirmed by the indicator lamp in the
instrument panel going off.

Emergency braking

The emergency braking should only be
used in an exceptional situation.

In the event of a failure of the main service
brake or in an exceptional situation (e.g. driver
taken ill, under instruction, etc.), a continuous
pull on the control lever will brake the vehicle.
Braking takes place while the control lever is
being pulled. It is interrupted if the control lever
is released.
The ABS and DSC systems provide stability of
the vehicle during emergency braking.
If the emergency braking malfunctions, the
message "Parking brake control faulty" will be
displayed in the instrument panel.

If the ABS and DSC systems malfunction,
signalled by the illumination of one or both
warning lamps in the instrument panel, then
stability of the vehicle is no longer guaranteed.
In this event, stability must be assured by the
driver by repeating alternate "pull-release"
actions on the control lever until the vehicle is
immobilised.

Driving

208

3008-2_en_Chap06_conduite_ed01-2016

Operating faults

The various alert situations are described in this table.
In the event of a fault with the electric parking brake it is recommended that you contact a PEUGEOT dealer or a qualified workshop without delay.

Situations

Consequences

Display of the message "Parking brake fault" and this warning lamp.

Automatic release is not available.

If you attempt an automatic release, a help message is displayed on
acceleration when the parking brake is applied, prompting you to use
manual release.

Display of the message "Parking brake fault" and these warning lamps.

Secondary braking does not have full power.

If automatic release is not available, a help message is displayed on
acceleration when the parking brake is applied, prompting you to use
manual release.

Display of the message "Parking brake fault" and these warning lamps.

Automatic application is not available: use the control lever.

The electric parking brake can only be used manually.

If automatic release is also not available, a help message is displayed
on acceleration when the parking brake is applied, prompting you to use
manual release.

Display of the message "Parking brake fault" and these warning lamps.

If manual application and release do not work, the control lever is faulty.

The automatic functions must be used in all circumstances: they are
automatically reactivated in the event of failure of the control lever.

You can no longer immobilise the vehicle with the engine running.

Driving

209

3008-2_en_Chap06_conduite_ed01-2016

Situations

Consequences

Display of the message "Parking brake fault" and these warning lamps.

The parking brake is faulty, the manual and automatic functions may not operate.
When stationary, to immobilise your vehicle:
F Pull and hold the control lever for about 7 to 15 seconds, until the

warning lamp comes on in the instrument panel.

If this procedure does not work, you should make your vehicle safe:
F Park on a level surface.
F Engage a gear with a manual gearbox or select position P with an

automatic gearbox.

F If possible, place a chock against one of the wheels.
Call on a PEUGEOT dealer or a qualified workshop.

Display of the message "Parking brake fault" and these warning lamps.

The parking brake does not have its full performance to securely hold
the vehicle in all situations.

You should make your vehicle safe:
F Park on a level surface.
F Engage a gear with a manual gearbox, or select position P with an

automatic gearbox.

F If possible, place a chock against one of the wheels.
Call on a PEUGEOT dealer or a qualified workshop.
The flashing of the P warning lamps on starting the vehicle indicates that the
parking brake is not correctly applied.
As soon as possible, stop the vehicle and try to completely release the
parking brake, using the control lever, with your foot on the brake pedal.

Display of the message "Battery fault" and this warning lamp.

The state of charge of the battery is very low and requires immobilisation
of the vehicle in a safe place: engage a gear with a manual gearbox or
place a chock against one of the wheels.

Once the battery is completely discharged, the controls do not operate:
to release the parking brake, call on a PEUGEOT dealer or a qualified
workshop.

Driving

210

3008-2_en_Chap06_conduite_ed01-2016

6-speed manual gearbox

Engaging reverse gear

Engaging 5

or 6

gear

F Move the lever fully to the right to engage

5th or 6th gear.

Only engage reverse gear when the
vehicle is stationary with the engine at idle.

As a safety precaution and to facilitate
starting of the engine, always select
neutral and depress the clutch pedal.

F Raise the trigger under the knob and move

the gear lever to the left then forwards.

Failure to follow this advice could cause
permanent damage to the gearbox
(inadvertent engagement of 3

gear).

Driving

211

3008-2_en_Chap06_conduite_ed01-2016

Automatic gearbox (EAT6)

P. Park.
For parking the vehicle: the wheels are
blocked.
R. Reverse.
N. Neutral.
For moving the vehicle with the ignition off: for
certain car washing machines, when towing the
vehicle...
D. Automatic drive mode.
The gearbox manages the gear changes
according to the driving style, the profile of the
road and the load in the vehicle.
M. Manual mode.
The driver changes gear using the steering
mounted control paddles.

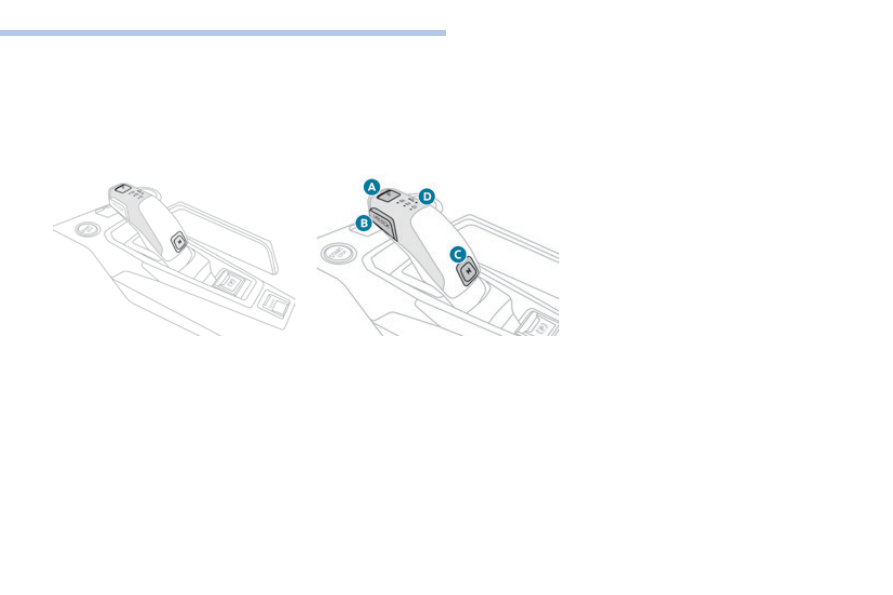

Gearbox selector positions

A. Button

To put the gearbox into P.
B. Unlock button.
To unlock the gearbox and come out of P or
change to R.
This button should be pressed before pressing
the selector.
C. Button

To change from D to permanent manual mode.
D. Display panel showing the operation of the

gearbox P, R, N, D.

Push selector

Six-speed automatic gearbox with push selector. It also offers a manual mode with steering mounted paddle gear changes.

Move the selector by pressing it forward
once or twice (N or R) or rearward (N or D),
if necessary going beyond the point of
resistance.
The selector returns to its initial position when
released.

SPORT

Driving

212

3008-2_en_Chap06_conduite_ed01-2016

Steering mounted control paddles

In M or D mode, the steering mounted control
paddles allow the driver to change gear
manually.
F Pull the right-hand "+" paddle toward you

and release to change up a gear.

F Pull the left-hand "-" paddle toward you

and release to change down a gear.

The steering mounted control paddles
cannot be used to select neutral or to
select or come out of reverse.

"Sport" button

Activating the Sport programme or the
Dynamic pack is not recommended in the
following situations:
-

one of the special modes (other than
standard mode) of Grip control is on,

low fuel level reached,

low AdBlue level reached.

Sport programme

With the engine running, when the programme
associated with the button is active, the
gearbox delays changing up for a more
dynamic driving style.
The programme is automatically deactivated
when the ignition is switched off.

Pressing this button has no effect when
a trailer is connected.

In D mode, pressing this button
activates the Sport programme.
"S" appears in the instrument panel.

Dynamic pack

You can activate or deactivate the function:
-

by pressing this button,

or
-

via the i-Cockpit Amplify function, by
modifying the setting for an ambience in
the touch screen.

For more information on the Dynamic Pack
and the i-Cockpit Amplify function, refer to
the corresponding section.

The indicator lamp in the button is on
when the Dynamic pack is activated.

Driving

213

3008-2_en_Chap06_conduite_ed01-2016

With the ignition on, the state of the gearbox is
displayed in the instrument panel:
P: park.
R: reverse.
N: neutral.
D1...D6: automatic mode.
S: Sport programme or Dynamic pack.
M1...M6: manual mode.
-: instruction not accepted in manual mode.

Displays in the instrument panel

If the driver's door is opened with the ignition
on, a message is displayed asking you to put
the gearbox into P mode.
The state of the gearbox is displayed in the
instrument panel for a few moments after
switching off the ignition.

With the engine running, if it is necessary to
press the brake pedal or the Unlock button
in order to change mode, an alert message is
displayed in the instrument panel.
Only appropriate attempted changes of mode
are accepted.

Operation

General points

To release the gearbox:
- from

P mode:

F press the brake pedal firmly,
F press the Unlock button,
F while maintaining pressure on the brake

pedal and on the Unlock button, select
another mode.

from neutral N:
F speed below 3 mph (5 km/h),
F press the brake pedal firmly,
F maintaining pressure on the brake pedal,

select another mode.

To engage reverse:
F  speed below 3 mph (5 km/h),
F  press the Unlock button,
F  push forward once or twice.
To change to manual mode:
F with

D mode first selected,

F press the M button; the indicator lamp in

the button comes on.

To come out of manual mode:
F push forward to return to D.
or
F press the M button; the indicator lamp in

the button goes off.

With the engine running and the brakes
released, if R, D or M is selected,
the vehicle moves off, even without
pressing the accelerator pedal.
Never leave children unsupervised
inside the vehicle with the engine
running.

Never press the accelerator and brake
pedals at the same time - Risk of
damage to the gearbox!
In the event of a battery failure, you
must place the chocks supplied with the
vehicle tools against one of the wheels
to immobilise the vehicle.

Driving

214

3008-2_en_Chap06_conduite_ed01-2016

The vehicle must be stationary to switch off the
ignition.
To put the vehicle into free-wheel with the
engine off:
F vehicle stationary, engine running,

select N,

F  switch off the engine,
F  switch the ignition on within five seconds,
F  with your foot on the brake pedal, push the

selector forward or rearward and release to
confirm N and release the electric parking
brake manually,

F switch off the ignition.

If you exceed the period of five seconds, the
gearbox goes into P mode; you must then start
the procedure again from the beginning.

Special aspects of automatic
mode

The gearbox selects the gear that offers
optimum performance, taking account of the
ambient temperature, the profile of the road,
the load on the vehicle and the style of driving.
For maximum acceleration without touching
the selector, press the accelerator fully down
(kick-down). The gearbox changes down
automatically or holds the gear selected until
the maximum engine speed is reached.
When braking, the gearbox changes down
automatically to provide effective engine
braking.
The steering mounted controls allow the driver
to temporarily select a gear, if the road and
engine speed permit.

Special aspects of manual mode

The change from one gear to another takes
place only if the if the road speed and engine
speed permit.
If the engine speed is too high or too low, the
gear selected flashes for a few seconds, then
the gear actually engaged is displayed.

With N engaged, opening the driver's
door results in an audible signal.
Closing the driver's door stops the
signal.

Moving off

From P mode:
F  Press the brake pedal firmly.
F  Start the engine.
F  Maintaining pressure on the brake pedal,

press the Unlock button.

F Push twice rearward going beyond

the point of resistance to select the
automatic D mode, or forward to engage
reverse R.

From neutral N:
F  Press the brake pedal firmly.
F  Start the engine.
F  Maintaining pressure on the brake

pedal, push rearward to select the
automatic D mode, or forward, while
pressing the Unlock button to engage
reverse R.

Then, from P or N:
F Release the brake pedal.
F Accelerate progressively to automatically

release the electric parking brake.

F With the parking brake released, the

vehicle then moves off.

Driving

215

3008-2_en_Chap06_conduite_ed01-2016

In severe wintry conditions (temperature
below -23°C), it is recommended that
the engine be allowed to run for a few
minutes before moving off, to ensure
the correct operation and durability of
the engine and gearbox.

Stopping the vehicle

Whatever the state of the gearbox when the
ignition is switched off, P mode is engaged
automatically, with the exception of N, in which
case P mode will be engaged after a delay of
5 seconds (allowing the change to free-wheel).
Check that P mode has been engaged and
that the electric parking brake was applied
automatically; if not, apply it manually.

Operating faults

Malfunction of the gearbox

Malfunction of the selector

In the event of a minor fault

In the event of a serious fault

Stop as soon as it is safe to do so, away
from the traffic, and call a PEUGEOT
dealer or a qualified workshop.
When the ignition is switched off,
the gearbox goes into P mode
automatically.

You are alerted by the illumination of
this warning lamp.

The corresponding indicator lamps
for the selector panel and the electric
parking brake control lever must
be on, as well as the ones in the
instrument panel.

This is signalled by the illumination of
this warning lamp, accompanied by the
display of a message and an audible
signal, when the ignition is switched on.

The gearbox goes into back-up mode: D mode
stays in third gear, the steering mounted control
paddles are inoperative, M mode is no longer
available. You may feel a pronounced jolt when
engaging reverse. This does not present any
risk for the gearbox.
Do not drive faster than 62 mph (100 km/h),
keeping to the speed limit.
Go to a PEUGEOT dealer or a qualified
workshop.

You are alerted by the illumination of this
warning lamp, accompanied by the display
of a message and an audible signal.

In certain cases, the selector lamps may not
come on, but the state of the gearbox is still
displayed in the instrument panel.
Drive cautiously and go to a PEUGEOT or a
qualified workshop.

Driving

216

3008-2_en_Chap06_conduite_ed01-2016

Hill start assist

On an ascending slope, with the vehicle
stationary, the vehicle is held for a momentarily
when you release the brake pedal:
-

provided you are in first gear or neutral with
a manual gearbox,

provided you are in position D or M with an
automatic gearbox.

Operation

On a descending slope, with the vehicle
stationary and reverse gear engaged, the
vehicle is held momentarily when you
release the brake pedal.

Operating fault

If a fault in the system occurs, these warning
lamps come on. Contact a PEUGEOT dealer
or a qualified workshop to have the system
checked.

System which keeps your vehicle immobilised
temporarily (approximately 2 seconds) when
starting on a gradient, the time it takes to
move your foot from the brake pedal to the
accelerator pedal.

This system only operates when:
-

the vehicle is completely stationary, with
your foot on the brake pedal,

certain gradient conditions are met,

with the driver’s door closed.

The hill start assist system cannot be
deactivated.

Do not leave the vehicle while it is being
held in the hill start assist phase.
If you need to leave the vehicle with the
engine running, apply the parking brake
manually then ensure that the parking
brake warning lamp and the warning
lamp P in the lever of the electric
parking brake control are on fixed (not
flashing).

SPORT

Driving

217

3008-2_en_Chap06_conduite_ed01-2016

Dynamic Pack

This pack adapts:
-

the display colour for the instrument panel,

the acoustic ambience of the engine,

the level of power assistance for the steering,

- acceleration,
-

the management of gear changes with an
automatic gearbox,

the display in the instrument panel of
information on the vehicle's dynamic
parameters.

Activation

F Press and hold this button until

the instrument panel colour
changes (red); the indicator lamp
in the button comes on.

Displays

F Press the end of the wiper control stalk to

display the various dynamic parameters in
the instrument panel.

F Press repeatedly to go from one screen to

another.

You can also display this information with the
"PERSONAL" mode of the instrument panel.

If the indicator lamp flashes, activation
is not possible (for example, if Park
Assist is selected) and the instrument
panel display colour returns to its
normal mode.
If the indicator lamp continues flashing
for a long time, contact a PEUGEOT
dealer or a qualified workshop.

This telemetry information (power
output, turbocharger pressure, torque,
longitudinal and lateral acceleration, ...)
is given as an indication only.

The Dynamic pack is also managed
by the i-Cockpit Amplify function.

For more information on the i-Cockpit Amplify
function, refer to the corresponding section.

Driving

218

3008-2_en_Chap06_conduite_ed01-2016

Gear shift indicator*

Depending on the driving situation and your
vehicle's equipment, the system may advise
you to skip one (or more) gear(s). You can
follow this instruction without engaging the
intermediate gears.
The gear engagement recommendations must
not be considered compulsory. In fact, the
configuration of the road, the amount of traffic
and safety remain determining factors when
choosing the best gear. Therefore, the driver
remains responsible for deciding whether or not
to follow the advice given by the system.
This function cannot be deactivated.

You press the accelerator pedal.

Example:
-

You are in third gear.

The system may suggest that you engage
a higher gear.

The information appears in the instrument
panel in the form of an arrow.

System which reduces fuel consumption by recommending the most appropriate gear.

With an automatic gearbox, the system
is only active in manual mode.

* Depending on engine.

On vehicle fitted with a manual gearbox,
the arrow may be accompanied by the
gear recommended.

The system adapts its gear change
recommendation according to the
driving conditions (slope, load, ...) and
the demands of the driver (power,
acceleration, braking, ...).
The system never suggests:
-

engaging first gear,

engaging reverse gear.

Operation

On BlueHDi Diesel 135 and 150 versions with
manual gearbox, in certain driving conditions
the system may suggest changing into neutral
so that the engine can go into standby (STOP
mode with Stop & Start). In this case,
N is displayed in the instrument panel.

Driving

219

3008-2_en_Chap06_conduite_ed01-2016

Stop & Start

Operation

Going into engine STOP mode

This indicator lamp comes on in the
instrument panel and the engine
goes into standby automatically:

with a manual gearbox, at speeds below
12 mph (20 km/h) or vehicle stationary with
the PureTech 130 petrol and BlueHDi 115
and 120 Diesel versions, when you place
the gear lever in neutral and you release
the clutch pedal,

A time counter calculates the sum of the
periods in STOP mode during a journey. It
resets itself to zero every time the ignition is
switched on with the key or the START/STOP
button.

with an automatic gearbox, vehicle
stationary, when you press the brake pedal
or put the gear selector in N mode.

The Stop & Start system puts the engine
temporarily into standby - STOP mode -
during stops in the traffic (red lights,
traffic jams, ...). The engine restarts
automatically - START mode - as soon as
you want to move off. The restart takes place
instantly, quickly and silently.
Perfect for urban use, the Stop & Start system
reduces fuel consumption and exhaust
emissions as well as the noise level when
stationary.

Never refuel with the engine in
STOP mode; you must switch off the
ignition with the key or the START/
STOP button.

For your comfort, during parking
manoeuvres, STOP mode is not
available for a few seconds after
coming out of reverse gear.
Stop & Start does not affect the
operation of vehicle systems such as
braking, power steering...

Driving

220

3008-2_en_Chap06_conduite_ed01-2016

Going into engine START mode

Special cases: START invoked
automatically

This indicator lamp goes off and the
engine starts automatically:

with a manual gearbox, when you fully
depress the clutch pedal,

with an automatic gearbox:
● gear selector in D or M mode, when you

release the brake pedal,

● or gear selector in N mode and brake

pedal released, when you place the gear
selector in D or M mode,

● or when you engage reverse.

As a safety measure or to maintain comfort
levels in the vehicle, START mode is invoked
automatically when:
-

you open the driver's door,

you unfasten the driver's seat belt,

the speed of the vehicle exceeds 15 mph
(25 km/h) with a manual gearbox (2 mph
(3 km/h) with PureTech 130 petrol and
BlueHDi 115 and 120 Diesel versions),
or 2 mph (3 km/h) with an automatic
gearbox.

the electric parking brake is being applied,

some special conditions (battery charge,
engine temperature, braking assistance,
ambient temperature...) where the engine is
needed for control of a system.

In this case, this indicator lamp flashes
for a few seconds, then goes off.

This operation is perfectly normal.

Special cases: STOP mode not
available

STOP mode is not invoked when:
-

the vehicle is on a steep slop (rising or
falling),

the driver's door is open,

the driver's seat belt is not fastened,

the vehicle has not exceeded 6 mph
(10 km/h) since the last engine start (with
the key or the START/STOP button),

the electric parking brake is applied or
being applied,

the engine is needed to maintain a
comfortable temperature in the passenger
compartment,

demisting is active,

some special conditions (battery charge,
engine temperature, braking assistance,
ambient temperature...) where the engine is
needed to assure control of a system.

In this case, this indicator lamp flashes
for a few seconds then goes off.

This operation is perfectly normal.

Driving

221

3008-2_en_Chap06_conduite_ed01-2016

Deactivation / Reactivation

In certain circumstances, such as the need
to maintain the temperature in the passenger
compartment, it may be useful to deactivate the
Stop & Start system.
The system can be deactivated at any time,
once the ignition is switched on.
If the engine is in STOP mode, it then restarts.
The Stop & Start system is reactivated
automatically every time the ignition is
switched on.

Opening the bonnet
Before doing anything under the
bonnet, deactivate the Stop & Start
system to avoid the risk of injury
related to an automatic change to
START mode.

Driving on flooded roads
Before driving through a flooded road,
it is strongly recommended that you
deactivate the Stop & Start system.
For more information on Driving
advice, particularly on flooded roads,
refer to the corresponding section.

With the button on the
dashboard

Pressing the button again reactivates the
system; the associated indicator lamp goes off.
The indicator lamp in the instrument panel goes
off, accompanied by the display of a message.

F Press this button; the associated indicator

lamp comes on.

Deactivation is confirmed by the illumination
of this indicator lamp and the display of a
message in the instrument panel.

Activation and deactivation of the
function is done in the Driving menu
of the touch screen.

With the touch screen button

Deactivation is confirmed by the illumination
of this indicator lamp and the display of a
message in the instrument panel.

Select the "Driving assistance" tab, then
"Stop & Start".

A new selection reactivates the system.
The indicator lamp in the instrument panel goes
off, accompanied by the display of a message.

Driving

222

3008-2_en_Chap06_conduite_ed01-2016

Operating fault

The Stop & Start system requires a
12 V battery of specific technology and
specification.
All work on this type of battery must be
carried out only by a PEUGEOT dealer
or a qualified workshop.
For more information on the
12 V battery, refer to the corresponding
section.

In the event of a fault with the system,
this warning lamp flashes for a few
moments in the instrument panel,
then remains on, accompanied by the
display of a message.

In the event of a fault in STOP mode,
the vehicle may stall.
All of the instrument panel warning lamps
come on.
It is then necessary to switch off the ignition
and start the engine again with the key or the
"START/STOP" button.

Have it checked by a PEUGEOT dealer or a
qualified workshop.

Peugeot 3008 (2017 year). Manual - part 14
