Peugeot 607 (2007.5). Manual

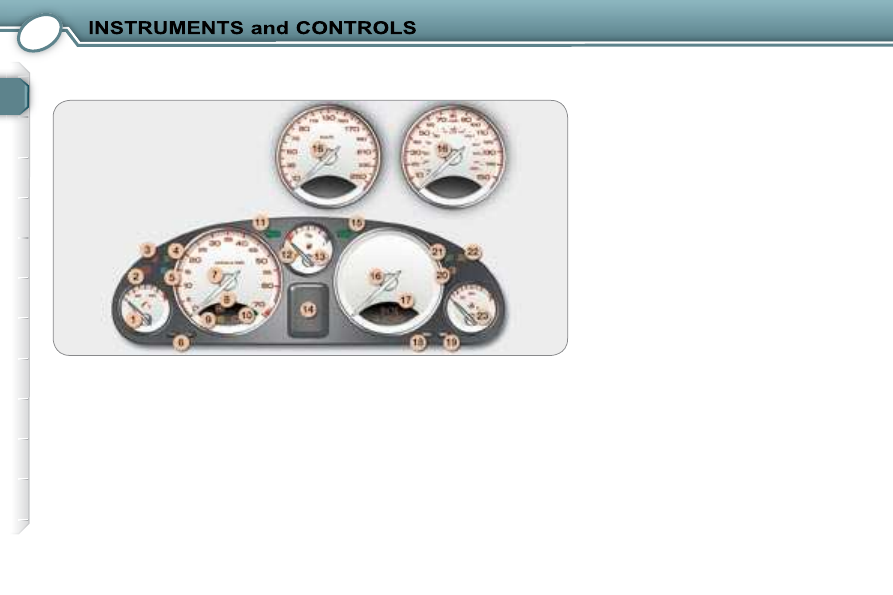

DIESEL MANUAL AND AUTOMATIC GEARBOXES INSTRUMENT
PANEL

Engine oil temperature indicator.

Handbrake, low brake l uid

level and electronic brake force

distribution

warning light.

3. Seat belt not fastened/unfastened

warning light.

Dipped headlamps indicator light.

Main beam headlamps indicator

light.

6. Lighting rheostat buttons.

Rev counter.

8. Anti-lock braking system (ABS)

warning light.

Diesel engine pre-heating warning

light.

10.

Emission control system warning

light.

11. Left direction indicator.
12.

Low fuel level warning light.

13. Fuel gauge.
14.

Functions display screen:

   -   Check.
  -   Engine oil level gauge.
  -   Warning  and  status  indicator

lights.

  -   Cruise control/speed limiter.
  -   Automatic gearbox.
  -   Trip computer.
  -   Satellite navigation system.

15. Right direction indicator.
16.

Speedometer.

17.

Service indicator, total and trip

distance recorders.

18.

Trip distance recorder zero reset

button.

19. Manual check button.
20.

Rear fog lamps indicator light.

21.

Front fog lamps indicator light.

22. Passenger air bag disarmed

warning light * .

23.

Coolant temperature indicator.

* According to country.

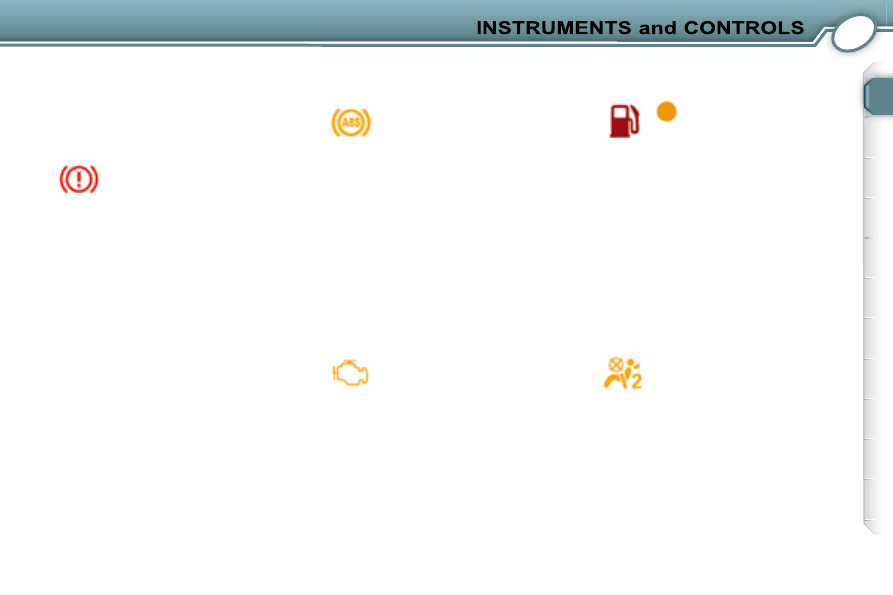

OPERATION WARNING LIGHTS

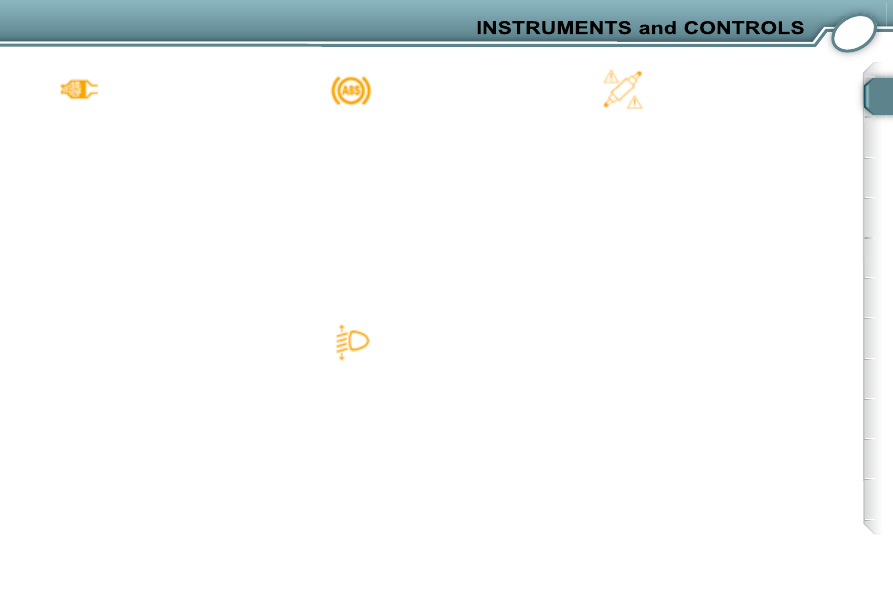

Anti-lock braking system
(ABS) warning light
This should go out after a

few seconds.

If the warning light remains on

or comes on above 8 mph (12 km/h),

accompanied by an audible signal and

a message on the multifunction display,

this indicates a malfunction of the ABS.
However, the vehicle retains conven-

tional servo-assisted braking.

It is linked with the corresponding

warning light on the instrument panel

display.
Contact a PEUGEOT dealer.

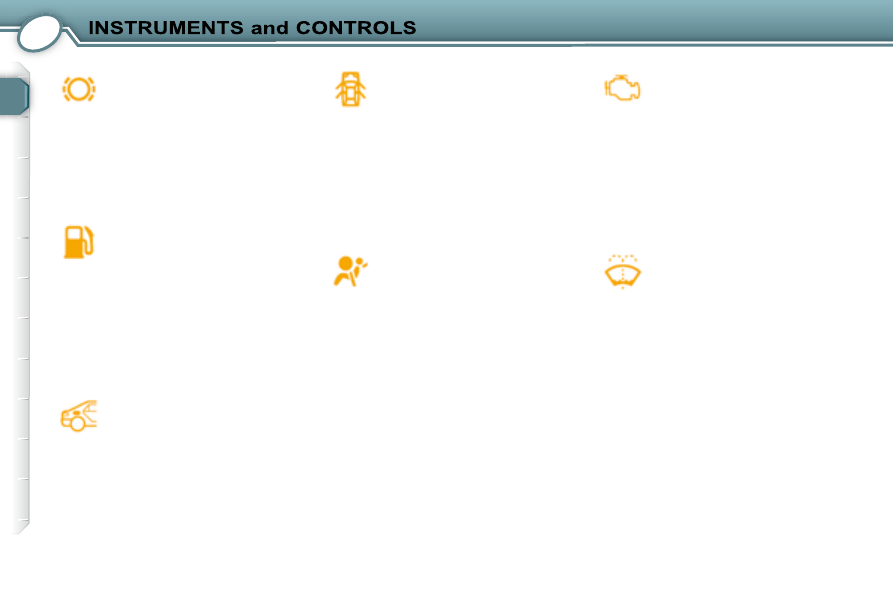

Emission control system
warning light
This should go out a few sec-

onds after the engine starts.
With the engine running, if

the warning light l ashes or comes on

permanently, this indicates a malfunc-

tion of the emission control system.
Contact a PEUGEOT dealer as soon

as possible.

  Passenger air bag
disarmed warning light *
This  should  go  out  after  a

few seconds.

The lighting of this warning light is ac-

companied by a message on the mul-

tifunction display.

If the passenger air bag is disarmed,

the warning light comes on when the

ignition is switched on and remains on

throughout the duration of disarming.
In all cases, if the warning light l ash-

es, contact a PEUGEOT dealer.

Low fuel level
warning light
This should go out af-

ter a few seconds.
The lighting of this

warning light is accompanied by an

audible signal and a message on the

multifunction display.

It is linked with the corresponding

warning light on the instrument panel

display.

When the warning light comes on, you

have enough fuel left to drive approxi-

mately 30 miles (50 km) (the capacity of

the fuel tank is approximately 80 litres).

Handbrake, low brake

l uid level and electronic

brake force distribution
warning light
This light should go out after

a few seconds.

If the warning light remains on, or if it

comes on when the engine is running,

it indicates:

- an excessive drop in the brake l u-

id level, if linked with the low brake

l uid level warning light on the in-

strument panel display,

a malfunction of the electronic

brake force distribution, if linked

with the STOP warning light on the

instrument panel display,

- an applied or incorrectly released

handbrake, when the vehicle is

moving, if linked with the hand-

brake warning light on the instru-

ment panel display.

In the i rst two cases, stop immedi-

ately. Contact a PEUGEOT dealer.

* According to country.

With the ignition on, initially, the
following warning lights illuminate
on the instrument panel:

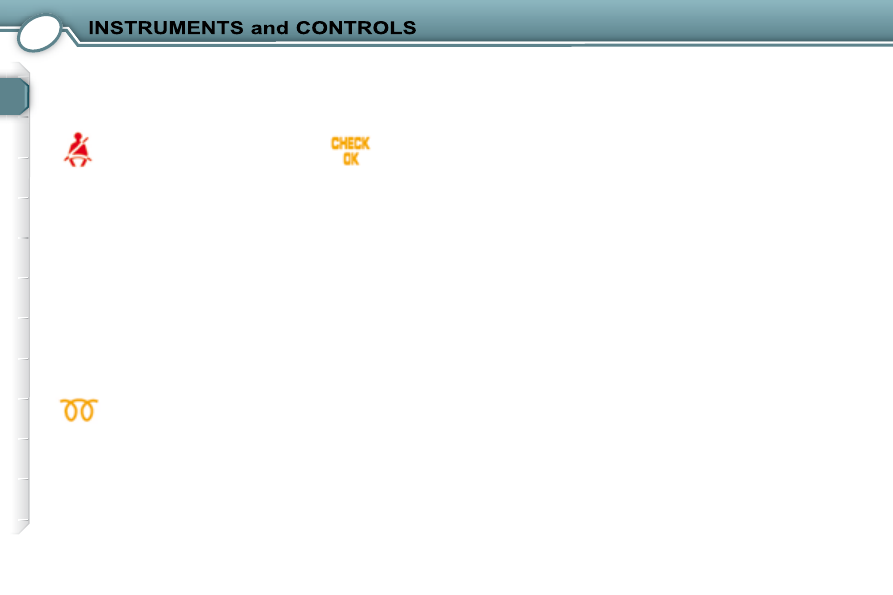

Seat belt not fastened/
unfastened warning light
With the vehicle stationary,

when the ignition is switched

on, the warning light comes

on if the driver and/or the front

passenger has not fastened his seat belt.

From approximately 12 mph (20 km/h)

and for two minutes, the warning light

l ashes accompanied by an increas-

ingly loud audible signal. Once these

two minutes have elapsed, the warn-

ing light remains on until the driver or

front passenger fastens his seat belt.

When the vehicle is moving, the warn-

ing light comes on if the driver or one

of the front or rear passengers unfas-

tens his seat belt.

Diesel engine pre-heating
warning light
If the temperature is sufi -

cient, the warning light does

not come on and you can

start without waiting.

If the warning light comes on, wait

until it goes out before operating the

starter.

  If no malfunction has been
detected:   the   CHECK  OK
indicator  light  comes  on  af-

ter two seconds (following a

black screen), in the absence

of indicator lights showing the status

of vehicle functions. If these indicator

lights are present, the CHECK OK in-

dicator light will come on after these.
  You may start your vehicle.
  If  a  "minor"  malfunction  has  been
detected:

the warning light for the

faulty function comes on. Certain in-

dicator lights showing the status of

vehicle functions may also come on,

followed by the CHECK OK indicator

light.
You can start your vehicle;

however,

contact a PEUGEOT dealer as soon

as possible.
If a "major" malfunction has been
detected:

the corresponding warning

light comes on. Certain indicator lights

showing the status of vehicle functions

may  also  come  on.  The   CHECK  OK
indicator light does not come on.
  Do not start your vehicle.
Contact a PEUGEOT dealer.

Following this, the following
information appears on the
instrument panel display:

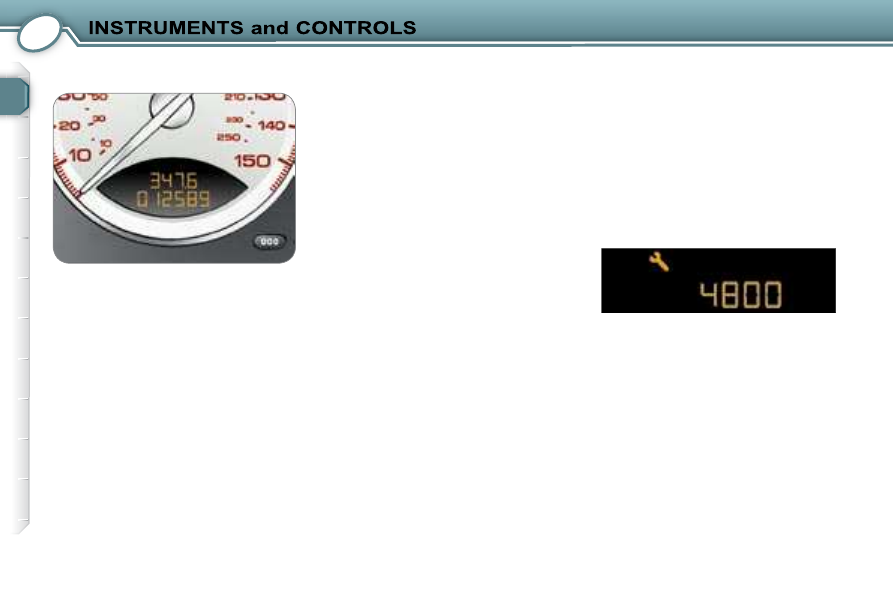

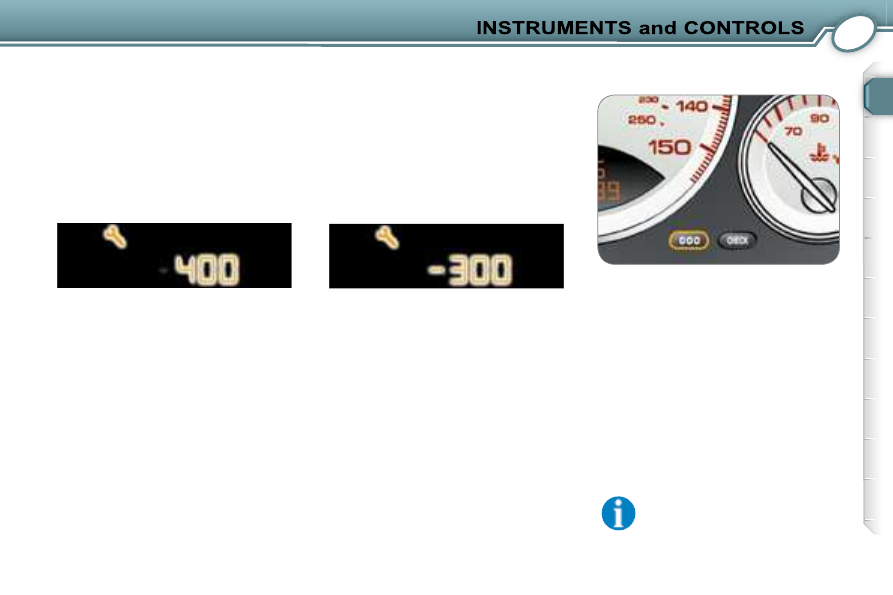

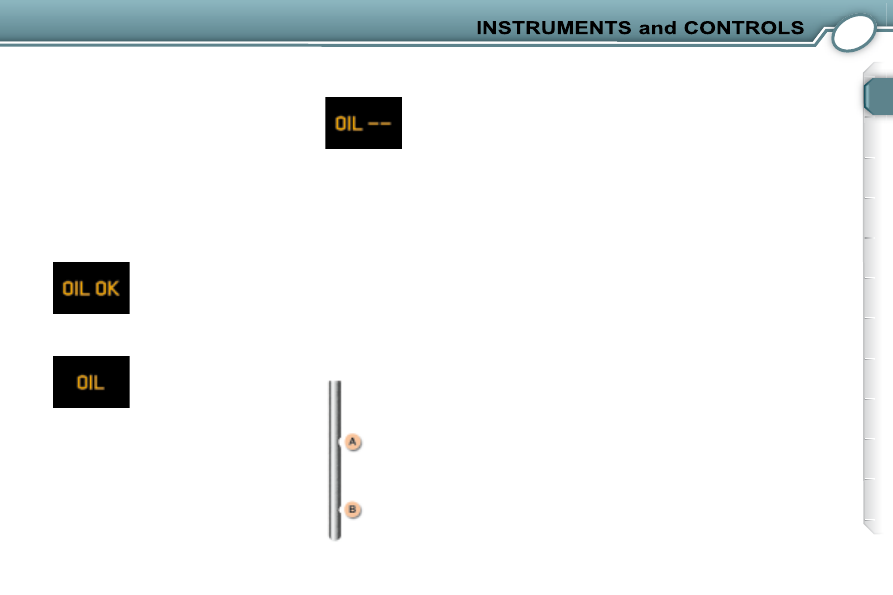

The engine oil level appears for ap-

proximately 7 seconds; at the same

time, the service indicator appears on

the display located in the speedometer

dial for approximately 7 seconds.

Then, the status of the tyre pressures is

indicated for approximately 5 seconds.

With the ignition on, the vehicle
carries out an automatic
test which appears on the
instrument panel display:

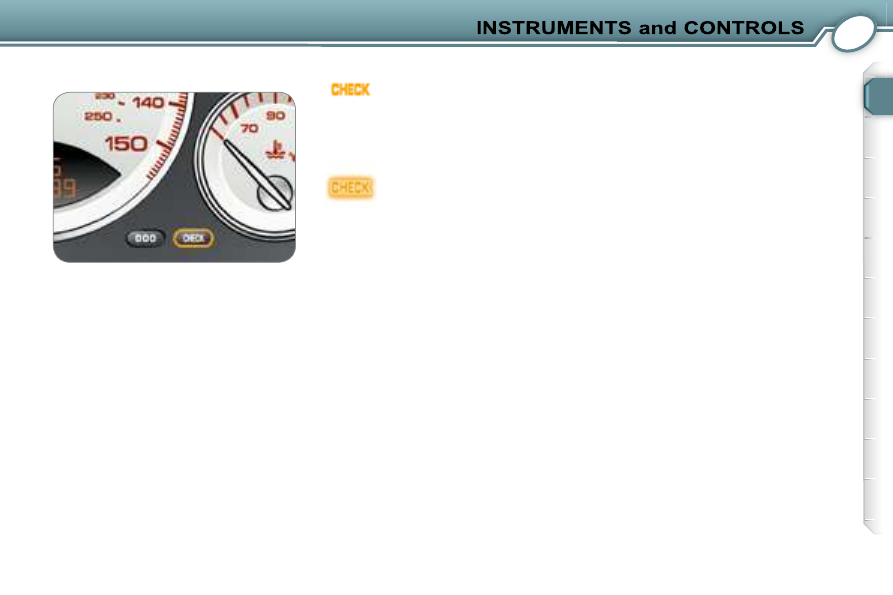

Manual test of the vehicle

Entering CHECK mode
indicator light
This comes on following

pressing of the "CHECK"

button.

Exiting CHECK mode
indicator light
This comes on at the end of
the CHECK mode.

With the engine running
and the vehicle moving, the
instrument panel display
temporarily shows:

- warning lights, when a fault occurs,

- vehicle function status indicator

lights, when a change occurs.

The display of certain warning lights
may be accompanied by an audible
signal and a message on the multi-
function display.

 Press the "CHECK" button on the

instrument panel.

You can start a test of the vehicle man-

ually, at any time, with the ignition on,

engine running or vehicle moving.

This enables you to know:

- the warnings present,

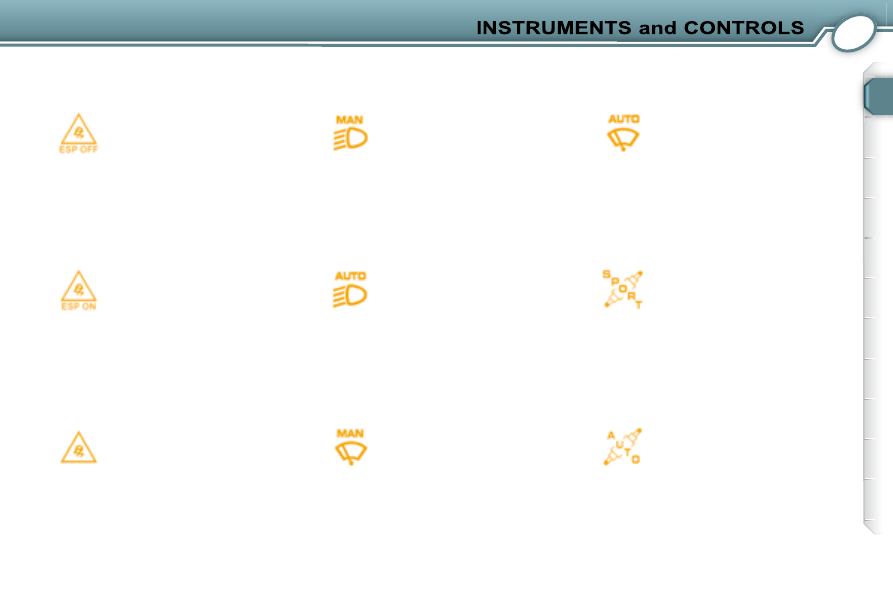

- the status of the functions which

can be activated or deactivated (au-

tomatic wipers, automatic switching

on of the lights, ESP, ...).

The associated warning lights are

displayed in succession on the instru-

ment panel display.

If a warning or a change of status oc-

curs during the CHECK

mode, the

corresponding warning light(s) are

displayed during this mode and the

CHECK

will cease .

Low brake l uid level and

electronic brake force
distribution warning light
This is linked to the warn-

ing light on the instrument

panel.

Display of this warning light, accompa-

nied by an audible signal and a message

on the multifunction display, indicates an

excessive drop in the brake l uid level

or a malfunction of the electronic brake
force distribution.
Linked with the  STOP  warning light.
  Stop immediately in both cases.
Contact a PEUGEOT dealer.

Handbrake warning light
Linked with the warning light

on the instrument panel.

Display of this warning light,

when the vehicle is moving, accompa-

nied by an audible signal and a message

on the multifunction display, indicates

that the handbrake is applied or has not

been released correctly.

Coolant temperature
warning light
This warning light is accom-

panied by an audible signal

and a message on the multi-

function display.
It is linked to the STOP

warning light.

Stop immediately.

Puncture warning light
This warning light comes on

accompanied by an audible

signal and a message on the

multifunction display locating

the punctured wheel.

It is linked to the STOP

warning light.

Stop immediately.
Change the damaged wheel.

Have it repaired by a PEUGEOT dealer.

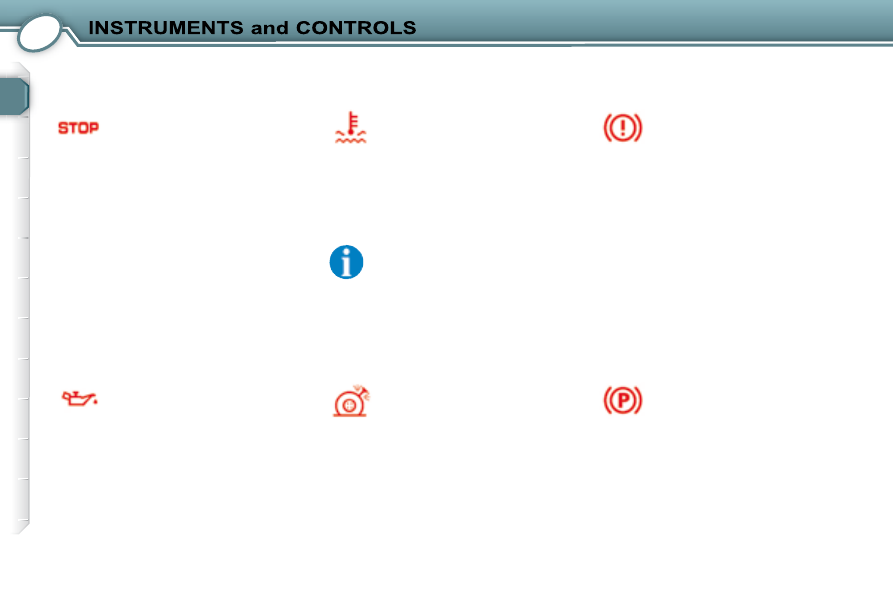

STOP warning light
This is displayed following

the engine oil pressure

coolant temperature

, punc-

tured wheel

, low brake

l uid level or electronic brake force

distribution

warning lights with which

it is linked.
Stop immediately.
Contact a PEUGEOT dealer.

Engine oil pressure
warning light
This warning light is accom-

panied by an audible signal

and a message on the multi-

function display.

It is linked to the STOP

warning light.

Stop immediately if this comes on

when the engine is running.
Contact a PEUGEOT dealer as soon

as possible.

List of warning lights

Wait for the engine to cool

before topping up the level, if

necessary.

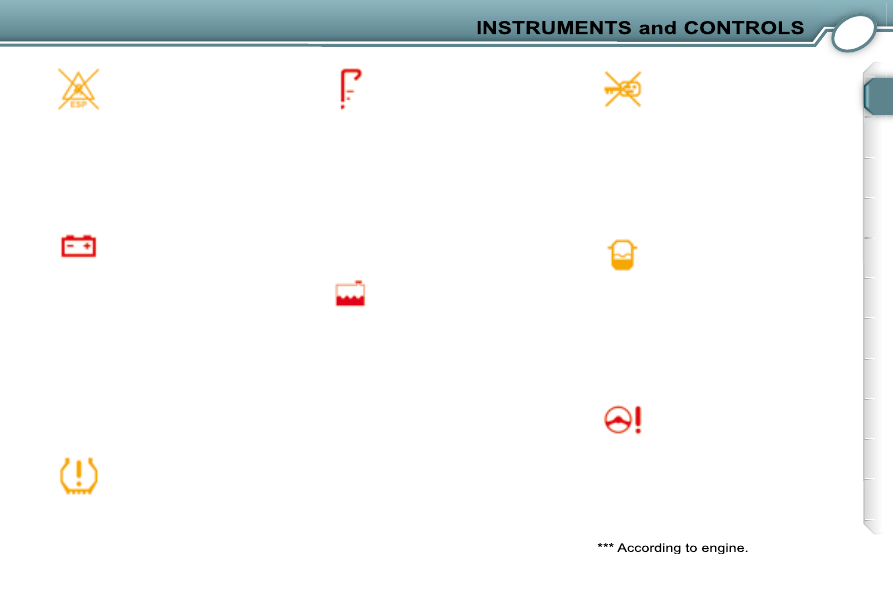

Dynamic stability control
(ESP/ASR) warning light
Display of this warning light,

accompanied by an audible

signal and a message on

the multifunction display, indicates an

ESP/ASR system malfunction.
Contact a PEUGEOT dealer.

Battery charge warning
light

Display of this warning light,

when the engine is running, accompa-

nied by an audible signal and a message

on the multifunction display, indicates:

- faulty operation of the charging cir-

cuit,

- loose battery or starter terminals,

- a cut or slack alternator belt,
-

an alternator fault.

Contact a PEUGEOT dealer.

Tyre under-inl ation

warning light
Display of this warning light

is accompanied by an audi-

ble signal and a message on

the multifunction display locating the

under-inl ated wheel.

Have the tyre pressure checked as

soon as possible.

Engine oil level warning
light
Display of this warning light

is accompanied by an audi-

ble signal and a message on

the multifunction display.

It indicates that the oil level is too low.

Check the level using the dipstick.

If the level is too low, remove the cap

and top it up.

Low coolant level warning
light
Display of this warning light

is accompanied by an audi-

ble signal and a message on

the multifunction display.
Stop immediately.
Warning:

wait for the engine to cool

before topping up, if necessary.

The cooling system is pressurised.

In the event of breakdown and to pre-

vent the risk of scalding, unscrew the

cap by two notches to allow the pres-

sure to drop.

When the pressure has dropped, re-

move the cap and top up the level.
Contact a PEUGEOT dealer.

Electronic immobiliser
warning light
Display of this warning light

is accompanied by an audi-

ble signal and a message on

the multifunction display.

It indicates a malfunction of the elec-
tronic immobiliser system.
Contact a PEUGEOT dealer.

Water in diesel i lter

warning light **
Display of this warning light

is accompanied by an audi-

ble signal and a message on

the multifunction display.

There is a risk of damage to the injec-

tion system.
Contact a PEUGEOT dealer as soon

as possible.

Power steering warning
light ***
This indicates a power steer-

ing fault.

It is linked with the STOP warning

light.
Stop immediately.
Contact a PEUGEOT dealer.

** According to country.

  Emission control system
warning light
Display  of  this  warning  light,

accompanied by an audible

signal and a message on the

multifunction display, indicates a mal-

function of the emission control system.
Contact a PEUGEOT dealer as soon

as possible.

Low windscreen/headlamp
wash level warning light
Display of this warning light

is accompanied by an audi-

ble signal and a message on

the multifunction display.

It is indicated when the ignition is

switched on and when the wipers stalk

is pressed.

Fill the windscreen/headlamp wash

reservoir the next time you stop.

Door/boot open warning light
Display of this warning light

in orange, with the engine

running, is accompanied by

a diagram on the multifunc-

tion display, showing which opening

has not been closed correctly.
Display of this warning light in red,

when the vehicle is moving, is ac-

companied by an audible signal and

a diagram on the multifunction display

showing which opening has not been

closed correctly.

Air bags and pre-
tensioners warning light
Display of this warning light

is accompanied by an audi-

ble signal and a message on

the multifunction display.
It indicates an anomaly of one of the

front, side or curtain air bags or of the

front pre-tensioning seat belts.
Contact your PEUGEOT dealer.

Front brake pad wear
warning light
Display of this warning light

is accompanied by an audi-

ble signal and a message on

the multifunction display.

For your safety, have the pads re-

placed by a PEUGEOT dealer as soon

as the warning light comes on.

Low fuel level warning
light
This is linked with the warn-

ing light on the instrument

panel.

Display of this warning light is ac-

companied by an audible signal and a

message on the multifunction display.

When the warning light comes on, you

have enough fuel to drive approxi-

mately 30 miles (50 km). The tank ca-

pacity is approximately 80 litres.

Fuel cap warning light
Display of this warning light

in orange, when the engine

is running, is accompanied

by a diagram on the multi-

function display.

Display of this warning light in red,

when the vehicle is moving, is accom-

panied by an audible signal and a dia-

gram on the multifunction display.

It comes on if the fuel tank cap is not

correctly screwed on or is missing.

Anti-lock braking system
(ABS) warning light
This is linked to the warn-

ing light on the instrument

panel.

Display of this warning light is ac-

companied by an audible signal and a

message on the multifunction display.

If the warning light remains on, or

comes on at over 8 mph (12 km/h), this

indicates a malfunction of the ABS.
However, the vehicle retains conven-

tional servo-assisted braking.
Contact a PEUGEOT dealer.

Automatic headlamp
adjustment warning light
Display of this warning light

is accompanied by an audi-

ble signal and a message on

the multifunction display.
It comes on if there is a malfunction of

the system on vehicles i tted with xe-

non bulbs.
Contact a PEUGEOT dealer.

Electronically controlled
suspension warning light
Display of this warning light

is accompanied by an audi-

ble signal and a message on

the multifunction display.

It comes on when there is a malfunc-

tion of the electronically controlled

suspension.
Select the automatic mode and con-
tact a PEUGEOT dealer.

Particulate emission i lter

saturation warning light
(Diesel)
Display of this warning light

is accompanied by an audi-

ble signal and a message on

the multifunction display.

When it comes on with the engine

running, this indicates the start of

saturation of the particulate emission

i lter (exceptionally long periods of

town type driving conditions: reduced

speed, long tailbacks...).

To regenerate the i lter, you are ad-

vised to drive as soon as possible

and when trafi c conditions permit at a

speed of 35 mph (60 km/h) or more for

at least i ve minutes (until the warning

light goes out).
If the light remains on, contact a PEUGEOT

dealer.
When it comes on when the vehicle is

moving, it indicates a lack of diesel ad-

ditive in the reservoir for burning of the

particles.
Contact a PEUGEOT dealer.
Note:

after prolonged operation of

the vehicle at a very low speed or at

idle, you may sometimes notice steam

coming from the exhaust during ac-

celeration. This has no effect on the

performance of the vehicle or on the

environment.

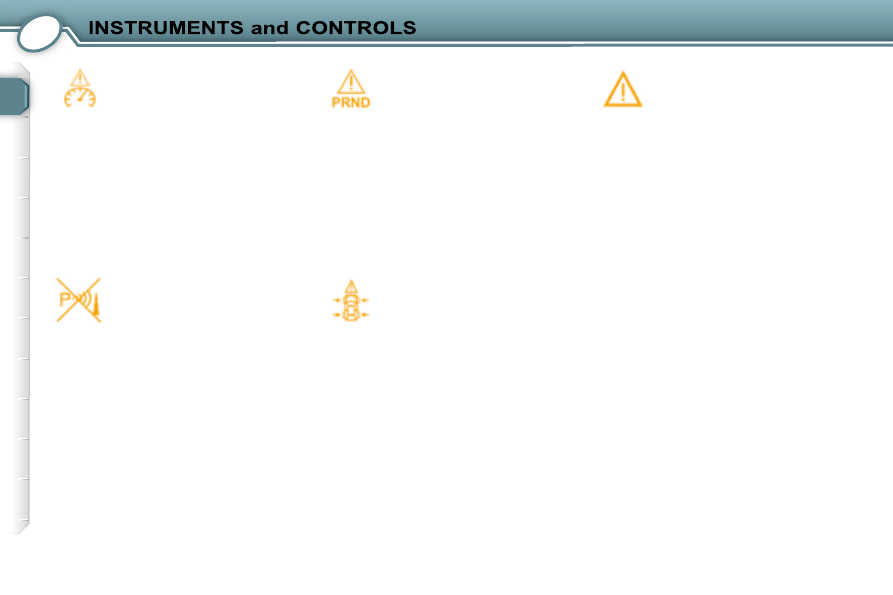

Service warning light
Display of this warning light,

accompanied by an audible

signal and a message on the

multifunction display, indi-

cates either:

- a l at remote control battery,
-

an engine management system

fault.In the i rst case, replace the

remote control battery.

In the second case, contact a PEUGEOT

dealer as soon as possible.

Tyre under-inl ation

system warning light
Display of this warning light

is accompanied by an au-

dible signal and a message

on the multifunction display indicating

and locating the cause of the warning:

- a l at under-inl ation sensor battery,

- a faulty under-inl ation sensor,

- a missing under-inl ation sensor.
Contact a PEUGEOT dealer.

Automatic gearbox
warning light
Display of this warning light

is accompanied by an audi-

ble signal and a message on

the multifunction display.

It comes on if there is an abnormality

in the automatic gearbox.

The gearbox will continue to operate in

downgrade mode (locked in 3rd gear).
Contact a PEUGEOT dealer.

Speed control system
warning light
Display of this warning light

is accompanied by an audi-

ble signal and a message on

the multifunction display.

It comes on if there is a malfunction of

the cruise control or speed limiter.
Contact a PEUGEOT dealer.

Parking assistance
system warning light
Display of this warning light

is accompanied by an audi-

ble signal and a message on

the multifunction display.

In reverse gear or in forward gear at

a speed below 6 mph (10 km/h), it

comes on if there is a malfunction of

the parking assistance system.
Contact a PEUGEOT dealer.

Dynamic stability control
(ESP/ASR) system
activation indicator light
Display of this indicator light

when the system is activated

is accompanied by a message on the

multifunction display.

Dynamic stability control
(ESP/ASR) system
disarming indicator light
Display of this indicator light

when the system is disarmed

is accompanied by a message on the

multifunction display.

Automatic headlamps
disarmed indicator light
Display of this indicator light

is accompanied by a mes-

sage on the multifunction

display.

The light comes on when the function

is disarmed.

Automatic headlamps
indicator light
Display of this light is accom-

panied by a message on the

multifunction display.

The indicator light comes on when the

function is activated.

List of status indicator lights

Dynamic stability control
(ESP/ASR) system
operation indicator light
This comes on when the sys-

tem starts to function.

Automatic windscreen
wiper disarmed indicator
light
Display of this light is accom-

panied by a message on the

multifunction display.

The indicator light comes on when the

function is disarmed.

Automatic windscreen
wiper indicator light
Display of this light is accom-

panied by a message on the

multifunction display.

The indicator light comes on when the

function is activated.

SPORT suspension
indicator light
The indicator light comes on

when the SPORT function is

activated.

AUTO suspension
indicator light
The indicator light comes on

when the SPORT function is

disarmed.

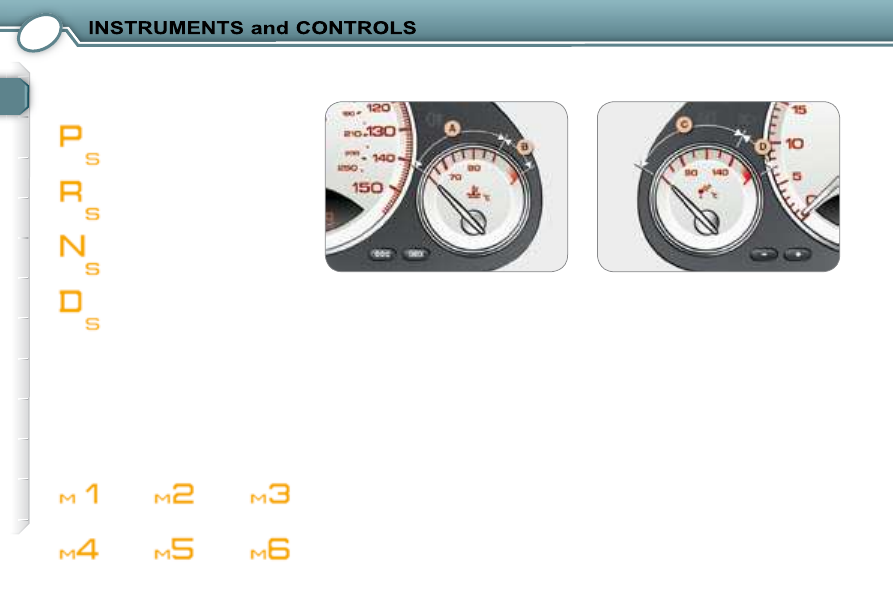

Engine oil temperature
indicator

Coolant temperature indicator

Automatic gearbox lever
position indicator lights

"Park" indicator light

"Manual" indicator lights
These indicator lights correspond to

the six manually operated gears.

"Reverse" indicator light

"Neutral" indicator light

"Drive" indicator light

Note: the letter S

linked to the above

indicator lights corresponds to the

Sport operating programme.

When the needle is in zone A

, the

temperature is correct.
When the needle is in zone B

, the

temperature is too high.
In cases where the coolant temper-
ature warning light comes on

, linked

to the STOP

warning light, you must

stop immediately.
Warning:

wait for the engine to cool

down before topping up the level, if

necessary.
Because the cooling system is pres-

surised, to prevent the risk of scalding,

turn the cap two notches to allow the

pressure to drop.

When the pressure has dropped, re-

move the cap and top up the level.
Contact a PEUGEOT dealer.

When the needle is in zone C

, the

temperature is correct.
When the needle is in zone D

, the

temperature is too high.
Reduce your speed to lower the
temperature.

Engine oil temperature
indicator

Coolant temperature indicator

Automatic gearbox lever
position indicator lights

"Park" indicator light

"Manual" indicator lights
These indicator lights correspond to

the six manually operated gears.

"Reverse" indicator light

"Neutral" indicator light

"Drive" indicator light

Note: the letter S

linked to the above

indicator lights corresponds to the

Sport operating programme.

When the needle is in zone A

, the

temperature is correct.
When the needle is in zone B

, the

temperature is too high.
In cases where the coolant temper-
ature warning light comes on

, linked

to the STOP

warning light, you must

stop immediately.
Warning:

wait for the engine to cool

down before topping up the level, if

necessary.
Because the cooling system is pres-

surised, to prevent the risk of scalding,

turn the cap two notches to allow the

pressure to drop.

When the pressure has dropped, re-

move the cap and top up the level.
Contact a PEUGEOT dealer.

When the needle is in zone C

, the

temperature is correct.
When the needle is in zone D

, the

temperature is too high.
Reduce your speed to lower the
temperature.

Engine oil level indicator

When the ignition is switched on, the

engine oil level is indicated on the

instrument panel display for approxi-

mately 7 seconds.
This level is indicated at the same

time as the service information which

appears on the display located in the

speedometer dial.

Oil level correct

Lack of oil

Flashing indicates a lack

of oil which may damage

the engine.
If the lack of oil is con-

i rmed by checking using

the dipstick, it is imperative that the

level is topped up.

Check the oil level using

the dipstick.

If the level is correct,

the l ashing indicates an

engine oil level gauge

malfunction.
Contact a PEUGEOT dealer.
The level observed on the dipstick is

only valid if the vehicle is parked on

level ground and the engine has been

off for more than 15 minutes.

Dipstick

There are 2 level marks on the

dipstick:

- never exceed level A,

- in position B, top up the

level via the oil i ller cap,

using the type of oil suited

to your engine.

= max.

B = min.

Oil level gauge fault

INSTRUMENT PANEL DISPLAY

SERVICE INDICATOR

This is a visual reminder of when the

next service is due. This service is to

be carried out according to the manu-

facturer's servicing schedule.

The point at which the service is due is

calculated from the last indicator zero re-

set. It is determined by two parameters:

- the distance travelled,

- the time elapsed since the last

service.

Note: the distance remaining before

the next service is due may be weight-

ed by the time factor.
The service information appears on

the display, located in the speedo-me-

ter dial, at the same time as the en-

gine oil level on the instrument panel

display.

Operation

As soon as the ignition is switched on

and for 7 seconds, the spanner sym-

bolising the servicing operations is lit.

The trip recorder display shows the

distance remaining (in round i gures)

before the next service.
Example:

4,800 miles/km remain be-

fore the next service is due. When the

ignition comes on and for 7 seconds

the display indicates:

7 seconds after the ignition is switched

on, the total distance recorder resumes

normal operation and the display

shows the total and trip distances.

After switching on the ignition, two

functions are shown in succession:

- service indicator,
-

total distance recorder (total and

trip distances).

Note:

the total and trip distances are

displayed for 30 seconds when the

ignition is switched off, on opening the

driver’s door, as well as on locking and

unlocking the vehicle.

INSTRUMENT PANEL DISPLAY

SERVICE INDICATOR

This is a visual reminder of when the

next service is due. This service is to

be carried out according to the manu-

facturer's servicing schedule.

The point at which the service is due is

calculated from the last indicator zero re-

set. It is determined by two parameters:

- the distance travelled,

- the time elapsed since the last

service.

Note: the distance remaining before

the next service is due may be weight-

ed by the time factor.
The service information appears on

the display, located in the speedo-me-

ter dial, at the same time as the en-

gine oil level on the instrument panel

display.

Operation

As soon as the ignition is switched on

and for 7 seconds, the spanner sym-

bolising the servicing operations is lit.

The trip recorder display shows the

distance remaining (in round i gures)

before the next service.
Example:

4,800 miles/km remain be-

fore the next service is due. When the

ignition comes on and for 7 seconds

the display indicates:

7 seconds after the ignition is switched

on, the total distance recorder resumes

normal operation and the display

shows the total and trip distances.

After switching on the ignition, two

functions are shown in succession:

- service indicator,
-

total distance recorder (total and

trip distances).

Note:

the total and trip distances are

displayed for 30 seconds when the

ignition is switched off, on opening the

driver’s door, as well as on locking and

unlocking the vehicle.

  The  distance  remaining  before  the
next  service  is  less  than  500  miles
(1,000 km).
Each  time  the  ignition  is  switched  on

and for 7 seconds, the spanner and

the distance l ash.
Example: 900 miles/km remain before

the next service is due.

When switching on the ignition and for

7 seconds, the display shows:

7 seconds after the ignition is switched

on, the total distance recorder resumes

normal operation and the spanner re-

mains lit.
This indicates that a service should be

carried out shortly. The display shows

the total and trip distances.

7 seconds after the ignition is switched

on, the total distance recorder resumes

normal operation and the spanner re-

mains lit. The display shows the total

and trip distances.
Note:

the spanner may also be lit if the

two-year interval has been exceeded.

Service indicator zero re-set

The service is overdue. .
Each time the ignition is switched on

and for 7 seconds, the spanner and

the excess distance l ash.
Example:

the service is overdue by

300 miles/km. The service should be

carried out very shortly.

When the ignition is switched on and

for 7 seconds, the display shows:

Your PEUGEOT dealer carries out this

operation after each service.

However, if you carry out the service

yourself, the re-set procedure is as

follows:


Switch off the ignition,



Press and hold the trip recorder

re-set button,



Switch on the ignition.

The display begins a countdown.

When the display shows "=0" , release

the button; the spanner disappears.

After this operation, if you

wish to disconnect the battery,

lock the vehicle and wait for at

least i ve minutes, otherwise

the zero re-set will not be registered.

Peugeot 607 (2007.5). Manual - part 2
