FAMILIARISATION

1.6 litre 16V BioFlex engine

This technology enables this engine to

run on unleaded petrol, ethanol E85 or a

mixture of both of these fuels.

 72

ASR and ESP systems

This equipment is linked to guarantee

the directional stability of the vehicle

within the limits of the laws of physics.

 91

Visual and audible rear parking
assistance

When reversing, this equipment warns

you of obstacles detected behind the
vehicle.

 107

Tyre under-inflation detection

This equipment monitors the pressure in

each tyre and warns you in the event of

a puncture or under-inl ation.

 89

FAMILIARISATION

Fuel tank

  From the outside

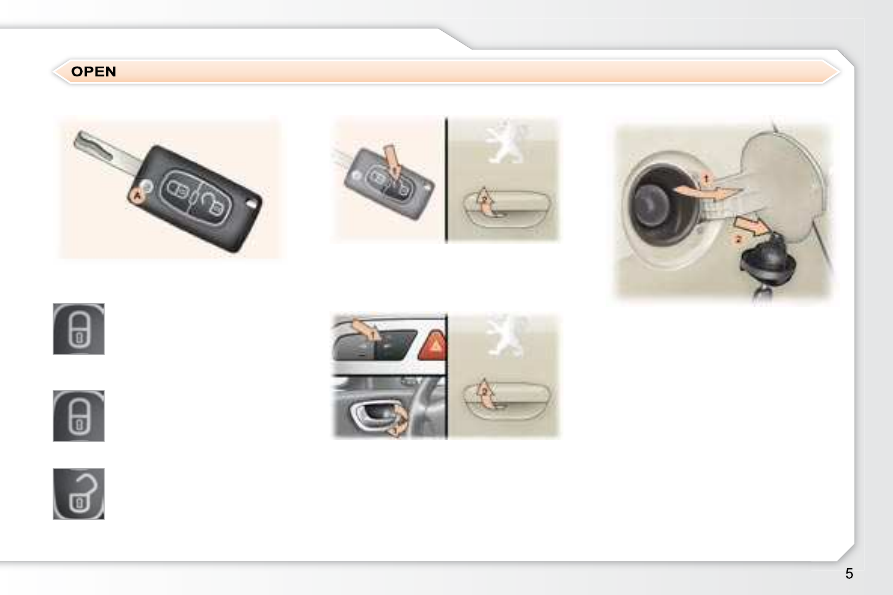

   1.   Unlocking of the doors and boot.
  2.

Opening of the tailgate.

Remote control key

A. Unfolding / Folding of the key.

Boot

Opening of the fuel i ller l ap.

Opening and hooking of the fuel

tank cap.

Capacity of the fuel tank: approximately

60 litres.

 72

Normal locking
(a single press) (i xed lighting

of the direction indicators).

Deadlocking of the
vehicle
(two consecutive presses)

(i xed lighting of the

direction indicators).

Unlocking of the vehicle
(rapid l ashing of the direction

indicators).

 63

From the inside
1. Unlocking using the interior

central control or the interior

opening control on the front

doors.

Opening of the tailgate.

 70

FAMILIARISATION

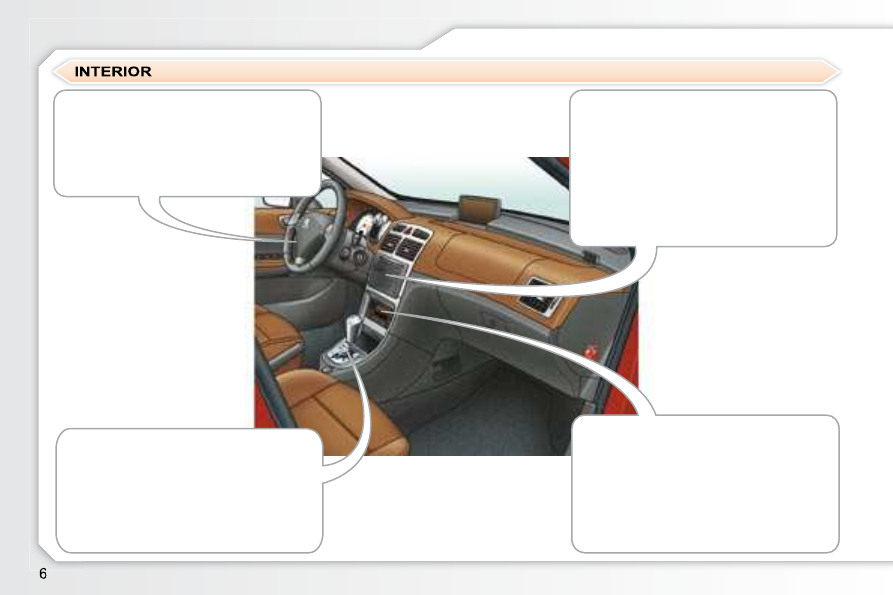

Dual-zone automatic air
conditioning

This equipment permits the setting of a

different comfort level for the driver and

front passenger. It then controls this lev-

el automatically in relation to the exterior
climatic conditions.

 48

Automatic gearbox

This equipment guarantees perfect

driving by combining a fully automatic

mode, associated with two special pro-

grammes, and a manual mode.

 98

Cruise control/speed limiter

These two functions allow you to control

the speed of the vehicle in relation to the

value that you have programmed.

 101, 103

Audio and communication
systems

This equipment benei ts from the latest

technology: MP3 compatible RD4 au-

dio equipment, Bluetooth hands-free kit,

RT4 GPS audio/telephone, JBL audio

system.

RT4  155

RD4  184

FAMILIARISATION

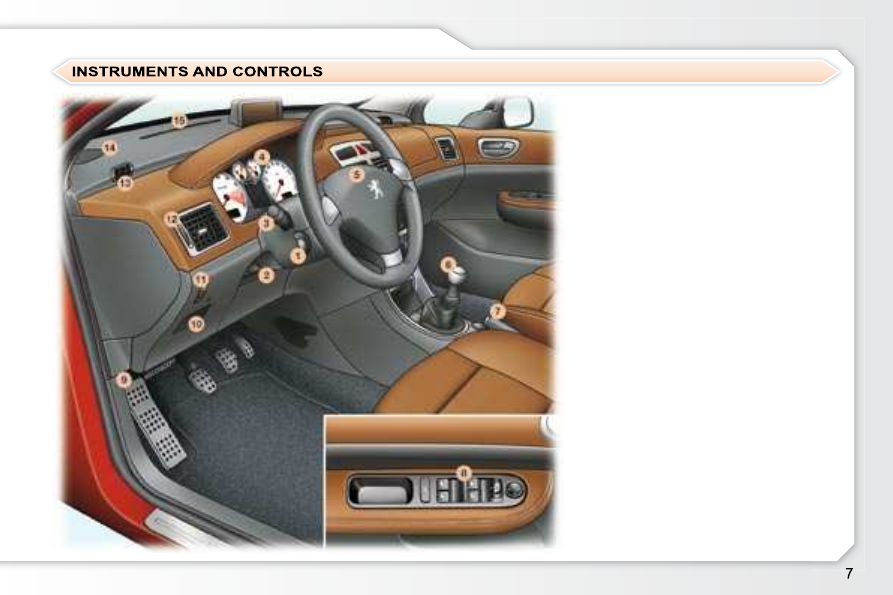

Cruise control / speed

limiter switch.

Steering wheel adjustments

control.

3. Lights and direction indicators

controls.

Instrument panel.

5. Driver's air bag.

Horn.

  6.   Gear lever.
  7.   Handbrake.
  8.   Electric mirror controls.

Electric window controls.

Rear electric windows

deactivation control.

  9.   Bonnet release.
  10.  Fuse box.
  11.

Headlamp height adjustment.

12.

Side adjustable and

closing vent.

13.

Front door window

de-icing vent.

14.

Speaker (tweeter).

15.

Windscreen de-icing vents.

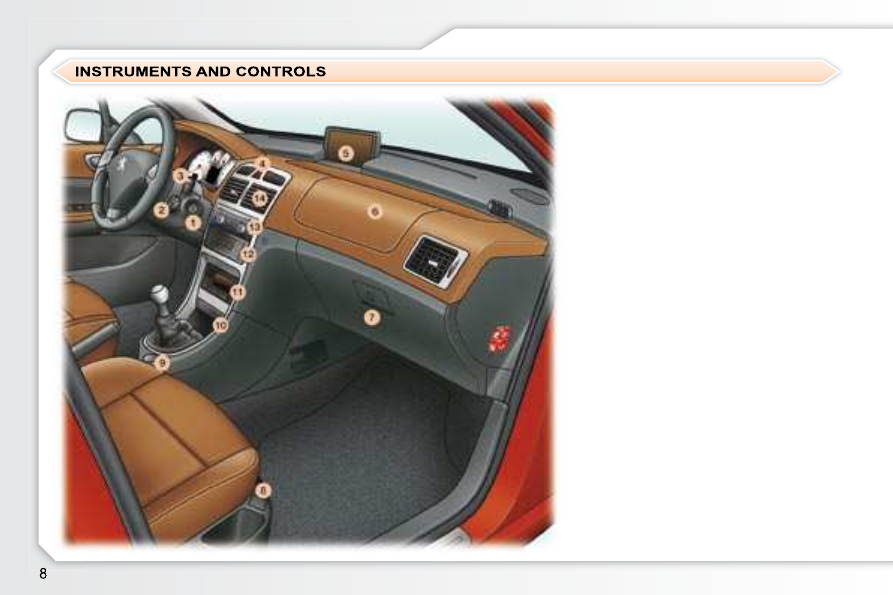

FAMILIARISATION

1. Steering lock and ignition.
2.

Steering wheel audio equipment

control.

Wipers / wash-wipe / trip

computer control.

4. Alarm button.

Central locking button.

Hazard warning lights

button.

Dynamic stability control
(ESP/ASR) button.

Multifunction display.

6. Passenger air bag.
7. Glove box / Audio/video

sockets.

  8.   Heated seat controls.
  9.   12 volt socket.
  10.  Front ashtray.
  11.  Heating / Air conditioning

controls.

12. CD changer.
13. Audio RD4 or RT4 GPS

audio/telephone.

14.

Central adjustable and closing

vents.

FAMILIARISATION

5. Head restraint height and

angle adjustment.

6. Removable front armrest

(5-door).

Storage drawer.

8. Heated seat control.

Never drive with the head re-

straints removed.

 53



When stationary, pull the control

to unlock the steering wheel.



Adjust the height and depth of

the steering wheel.



Lock by pushing the control A

fully.

 52

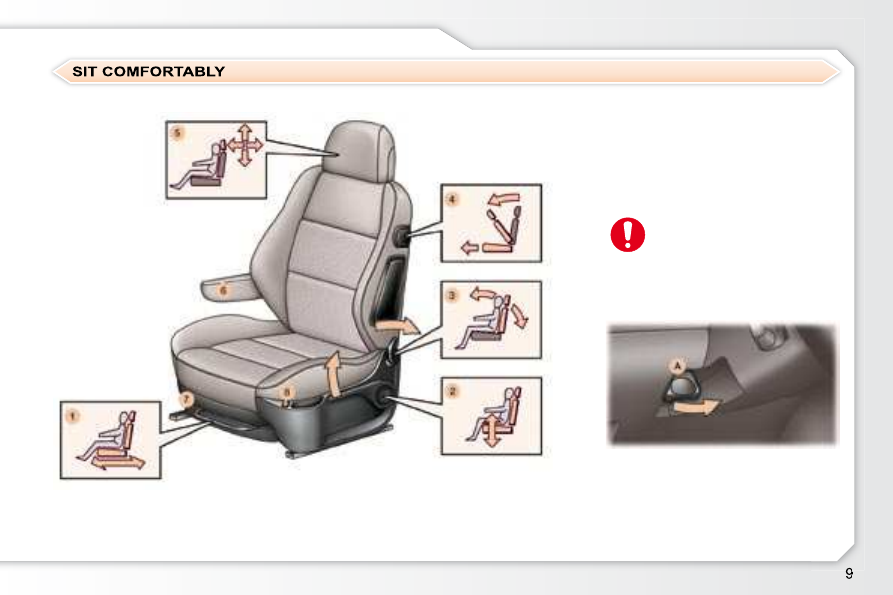

Front seat adjustment

Forwards-backwards adjustment.

Driver or passenger seat height

adjustment.

3. Seat back angle

adjustment.

4. Access to rear seats

(3-door).

Steering wheel adjustment

FAMILIARISATION

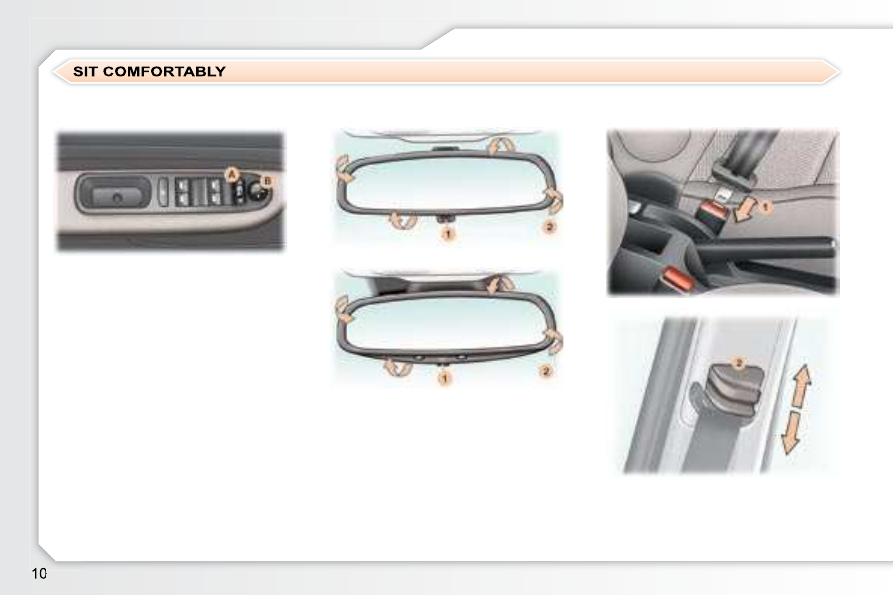

Interior mirror adjustment

Front seat belts

 Place the control A on the

right or on the left to select the

mirror to be adjusted.

 Move the control B in all four

directions to adjust.

 Return the control A to the

central position.

When parking, the mirrors can be

folded electrically, by pulling the con-

trol A

rearwards, or automatically on

locking the vehicle using the remote
control or the key.

 51

Selection of the "day" position of

the mirror.

2. Directing of the mirror.

 52

1. Fastening.
2.

Height adjustment.

 92

Electric mirror adjustment

FAMILIARISATION

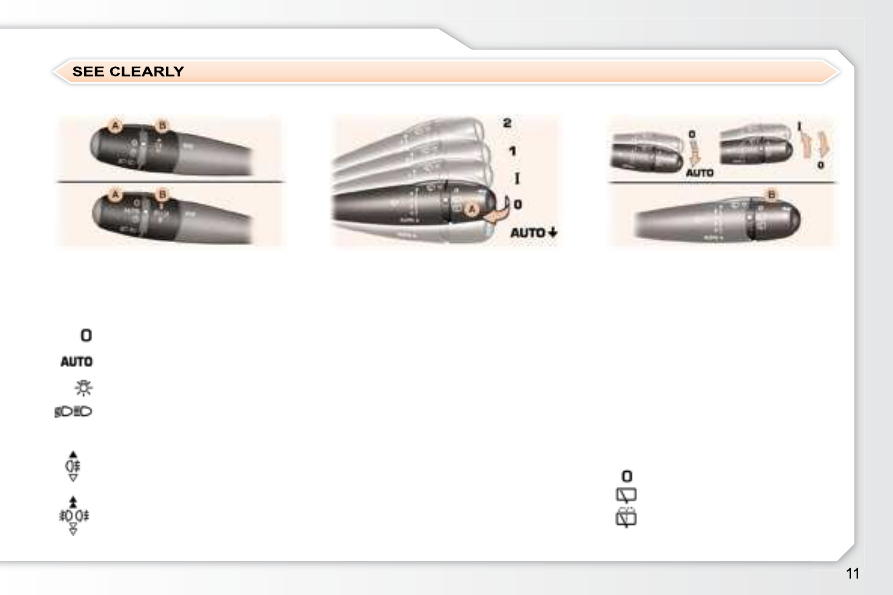

Control A: windscreen wipers
2

Fast wipe.

Normal wipe.

Intermittent wipe.

0 Park.
AUTO

Automatic wiping or single

wipe.

Wash-wipe: pull the control towards

you.

Ring A: front and rear lights

Lights off.
Automatic switching on of the

lights.

Side lights.

Rear fog lamp.

Front and rear fog lamps.

 73

Dipped / main beam headlamps.

Ring B: fog lamps

Ring B: rear wiper

Park.
Intermittent wipe.
Wash-wipe.

 76

The position is displayed on the in-

strument panel by the corresponding

indicator light.

Wipers

Switching off "AUTO" mode
Push the control up and return it to

position "0" .
If the ignition has been off for more

than approximately one minute, the

automatic wiping must be reactivated.

Lights

Switching on "AUTO" mode
Push the control down and release it.

–

FAMILIARISATION

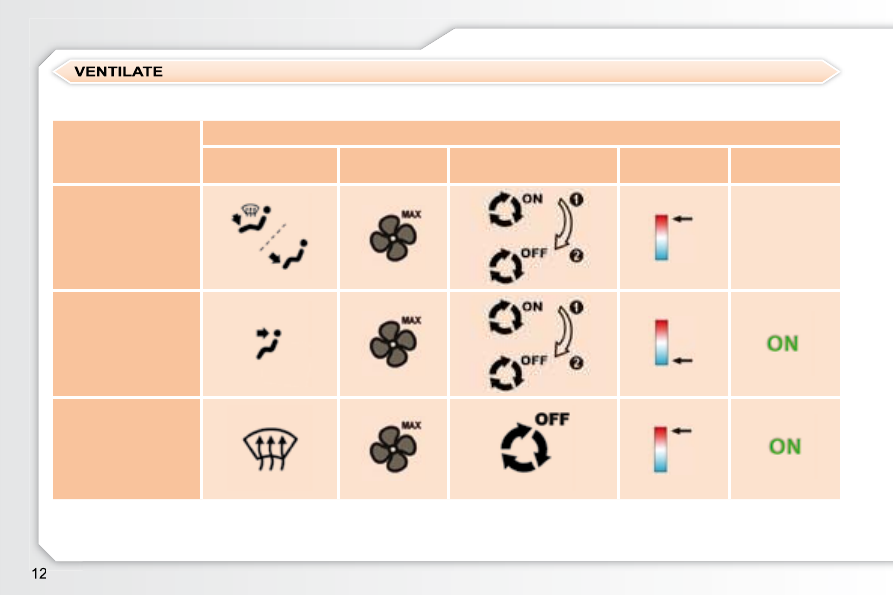

I require...

Heating or Manual Air Conditioning

Air distribution

Air l ow

Air recirculation /

Intake of exterior air

Temperature

Manual A/C

HOT

COLD

DEMISTING

DE-ICING

Automatic air conditioning: use of the fully automatic mode by pressing the "AUTO" button is recommended.

Recommended interior settings

FAMILIARISATION

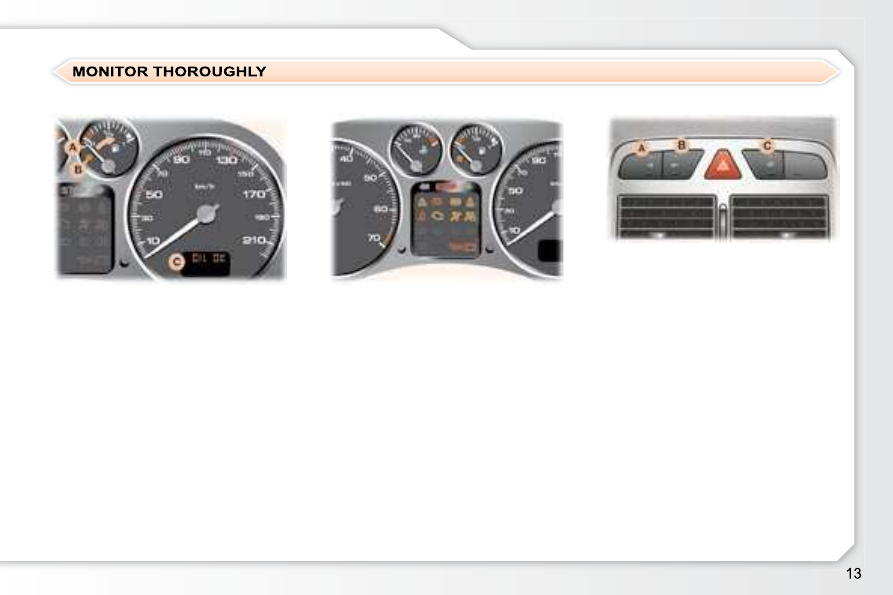

A. When the ignition is on, the

needle should indicate the level
of fuel remaining.

B. When the engine is running, the

associated low level warning

light should switch off.

C. When the ignition is on, the oil

level indicator should display

"OIL OK"

for a few seconds.

If the levels are not correct, top up as

necessary.

 17

1. When the ignition is on, the

orange and red warning lights

come on.

2. When the engine is running,

these warning lights should

switch off.

If warning lights remain on, refer to

the page concerned.

 20

If an indicator light is on, this indicates

the status of the corresponding function.

A. Deactivation of the interior

protection alarm.

 66

B. Central locking.

 68

C. Deactivation of the ESP/ASR

system.

 91

Instrument panel

Warning lights

Controls bar

FAMILIARISATION

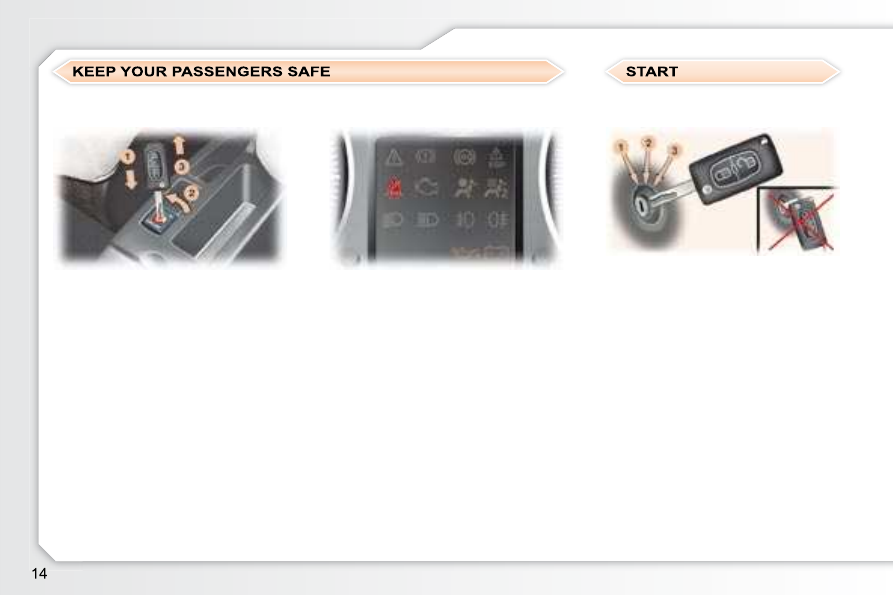

1. Insertion of the key.
2.

Selection of the position: "OFF"

(disarming), with "rear facing"

child seat,

"ON"

(activation), with front

passenger or "forward facing"

child seat.

Removal of the key keeping the

switch in this position.

 95

A. When the ignition is on, the

warning light comes on if the

driver has not fastened
his seat belt.

When the engine is running with

the doors closed, the warning

light switches off automatically

after 30 seconds.

Below 12 mph (20 km/h), the

warning light comes on

continuously if the seat belt is
unfastened.

Above 12 mph (20 km/h),

the warning light l ashes for

2 minutes accompanied by an

audible signal of increasing
volume.

 92

1. Stop

position.

2. Ignition

position.

3. Starting

position.

 64

Passenger's front air bag

Front seat belt not fastened /
unfastened

Ignition switch

FAMILIARISATION

Speed limiter mode

Selection / Off.

Decreasing of the programmed

value.

Increasing of the programmed

value.

Speed limiter On / Off.

The values must be set with the en-

gine running.

 101

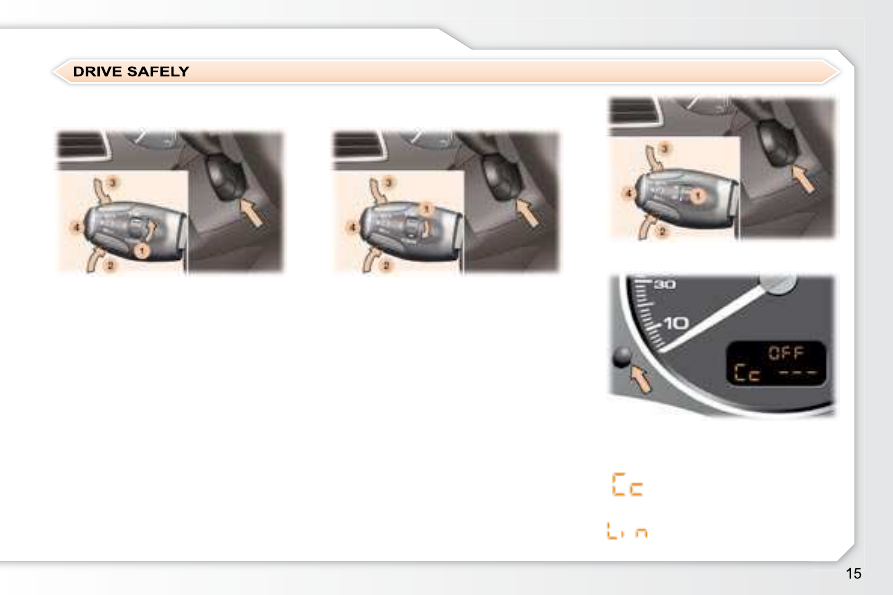

1. Cruise control mode

Selection / Off.

Programming of a speed /

Decreasing of the programmed

value.

Programming of a speed /

Increasing of the programmed

value.

4. Cruise control Off / Resume.
In order to be programmed or activated,

the vehicle speed must be higher than

25 mph (40 km/h), with at least fourth

gear engaged on the manual gearbox
(second for the automatic gearbox).

 103, 105

The cruise control or speed limiter

mode appears on the instrument

panel when it is selected.

Display on the instrument panel

Cruise control

Speed limiter

SPEED LIMITER "LIMIT"

Cruise control "CRUISE"

FAMILIARISATION

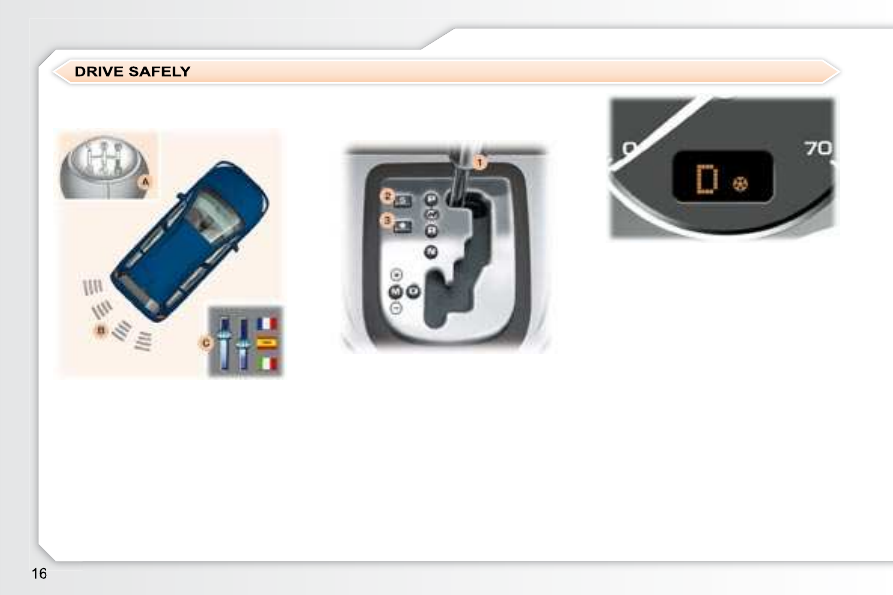

   1.   Gear lever.
  2.    "SPORT"  button.
  3.    "SNOW"  button.

Position selection gate
Move the lever in the gate to select

a position.

Once a position has been selected,

the corresponding indicator light is

displayed on the instrument panel

screen.

Switching on.

B. Detection.
C. Activation / Deacti vation.

(via the multifunction display

coni guration menu).

 107

  Display on the instrument panel
  P :  Park.
  R :  Reverse.
  N :  Neutral.
  D :  Drive.
  M :  Manual mode.
  S :

Sport programme.

 :

Snow programme.

1 2 3 4 5 * 6 * : gears engaged.

* According to version.

Moving off
With the handbrake applied, select

position P or N .

Switch on the ignition.

With the engine running, in position

P  or  N ,  with your foot on the brake
pedal, release the handbrake.
Select position  R ,  D  or  M .

Gradually release the brake pedal;

the vehicle moves off immediately.

 98

Visual and audible rear
parking assistance

"PORSCHE TIPTRONIC
SYSTEM" automatic gearbox

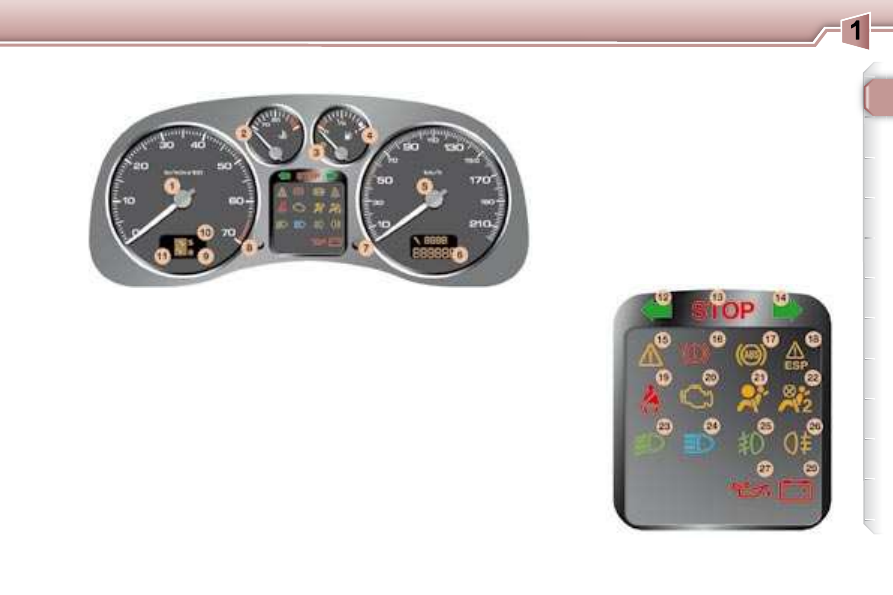

INSTRUMENTS and CONTROLS

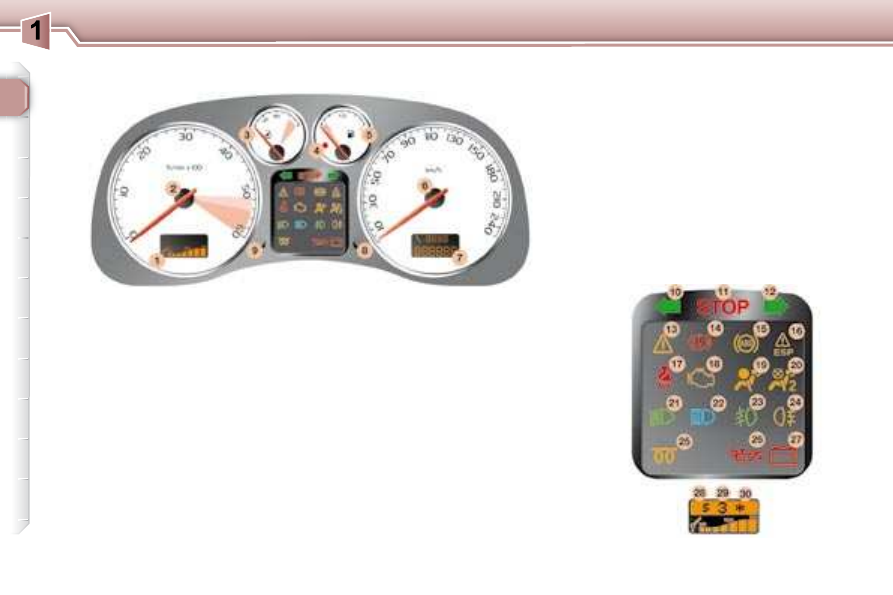

1. Rev counter.

2. Coolant temperature

indicator.

3. Low fuel level warning light.

4. Fuel gauge.

5. Speedometer.

6. Service indicator, oil level

indicator, distance recorder and
cruise control/speed limiter.

7. Trip recorder zero reset

button.

8. Lighting rheostat button.

9. Left-hand direction indicator.

10. Central STOP warning

light.

  11.  Right-hand direction indicator.
  12.  Service warning light.
  13.

Handbrake, brake l uid level and

electronic brake force distribution
warning light (REF).

14. Anti-lock braking system (ABS)

warning light.

15. Electronic stability control

(ESP/ASR) warning light.

16. Driver's seat belt not fastened

warning light.

17. Emission control system warning

light.

18. Air bags warning light.
19. Passenger air bag disarmed

indicator light * .

20. Dipped beam headlamps

indicator light.

21. Main beam headlamps indicator

light.

  22.  Front fog lamps indicator light.
  23.  Rear fog lamp indicator light.
  24.  Diesel engine preheating light.
  25.  Engine oil pressure warning

light * .

26. Battery charge warning light * .

PETROL/DIESEL INSTRUMENT PANELS: MANUAL GEARBOX

* According to country.

INSTRUMENTS and CONTROLS

1. Engine oil temperature indicator.

2. Rev counter.

3. Coolant temperature indicator.

4. Low fuel level warning light.

5. Fuel gauge.

6. Speedometer.

7. Service indicator, oil level

indicator, distance recorder and
cruise control/speed limiter.

8. Trip recorder zero reset button.

9. Lighting rheostat button.

10. Left-hand direction indicator.

11. Central STOP warning light.

12. Right-hand direction indicator.

13. Service warning light.

14.

Handbrake, brake l uid level and

electronic brake force distribution
warning light (REF).

15. Anti-lock braking system (ABS)

warning light.

16. Electronic stability control

(ESP/ASR) warning light.

17. Driver's seat belt not fastened

warning light.

18. Emission control system warning

light.

19. Air bags warning light.

20. Passenger air bag disarmed

indicator light * .

21. Dipped beam headlamps indicator

light.

22. Main beam headlamps indicator

light.

  23.  Front fog lamps indicator light.
  24.  Rear fog lamp indicator light.
  25.  Diesel engine preheating light.
  26.  Engine oil pressure warning

light * .

  27.  Battery charge warning light *  .
  28.  Sport programme indicator light.
  29.  Gear lever position indicator.
  30.  Snow programme indicator light.

PETROL/DIESEL SPORT INSTRUMENT PANEL DIALS:
MANUAL/AUTOMATIC GEARBOX

* According to country.

INSTRUMENTS and CONTROLS

1. Rev counter.

2. Coolant temperature indicator.

3. Low fuel level warning light.

4. Fuel gauge.

5. Speedometer.

6. Service indicator, oil level

indicator, distance recorder and
cruise control/speed limiter.

7. Trip recorder zero reset

button.

8. Lighting rheostat button.

9. Snow programme

indicator light.

10. Sport programme indicator light.

11. Gear lever position indicator.

12. Left-hand direction indicator.

13. Central STOP warning light.

14. Right-hand direction indicator.

15. Service warning light.

16.

Handbrake, brake l uid level and

electronic brake force distribution
warning light (REF).

17. Anti-lock braking system (ABS)

warning light.

18. Electronic stability control

(ESP/ASR) warning light.

19. Driver's seat belt not fastened

warning light.

20. Emission control system warning

light.

21. Air bags warning light.

22. Passenger air bag disarmed

indicator light * .

23. Dipped beam headlamps

indicator light.

24. Main beam headlamps indicator

light.

  25.  Front fog lamps indicator light.
  26.  Rear fog lamp indicator light.
  27.  Engine oil pressure warning

light * .

28. Battery charge warning light* .

PETROL INSTRUMENT PANEL DIALS: AUTOMATIC GEARBOX

* According to country.

Content .. 1 2 3 ..
