Peugeot 206 S Dag (2008 year). Manual - part 4

COMFORT

54 -

ADVICE ON CHILD
SEATS

The incorrect installation
of a child seat in a vehicle

compromises the child's protection in
the event of an accident.
Remember to fasten the seat belts or

the child seat harnesses keeping the
slack

in relation to the child's body to

a minimum, even for short journeys.
For optimum installation of the "for-
ward facing" child seat, ensure that

the back of the child seat is in contact

with the back of the vehicle's seat

and that the head restraint does not
cause any discomfort.
If the head restraint has to be re-

moved, ensure that it is stored or
attached securely to prevent it from

being thrown around the vehicle in

the event of sharp braking.

Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied

by other children, cannot be used or

are absent.

Disarm the passenger air bag when

a "rear facing" child seat is installed
on the front seat. Otherwise, the child

would risk being seriously injured or

killed if the air bag were to inﬂ ate.

Installing a booster seat
The chest part of the seat belt must

be positioned on the child's shoulder

without touching the neck.
Ensure that the lap part of the seat

belt passes correctly over the child's

thighs.
PEUGEOT recommends the use of

a booster seat which has a back, ﬁ t-

ted with a seat belt guide at shoulder

level.

As a safety precaution, do not leave:
-

one or more children alone and
unsupervised in a vehicle,

a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,

the keys within reach of children
inside the vehicle.

To prevent accidental opening of the
doors, use the "Child lock".
Take care not to open the rear win-

dows by more than one third.
To protect young children from the

rays of the sun, ﬁ t side blinds on the

rear windows.

COMFORT -

Passenger air bag OFF

CHILD SEATS RECOMMENDED BY PEUGEOT

PEUGEOT offers a complete range of recommended child seats which are
secured using a three point seat belt :

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg

"ROMER Baby-Safe Plus"

Installed in the rear-facing position

Groups 1, 2 and 3: from 9 to 36 kg

"KIDDY Life"

For the safety of young children

(from 9 to 18 kg), PEUGEOT

recommends use of the

restraining cushion.

Groups 2 and 3: from 15 to 36 kg

"RECARO

Start''

"KLIPPAN

Optima"

From the age of 6 years

(approximately 22 kg),

the booster is used

on its own.

COMFORT

50 -

LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT

In accordance with the European regulation (Directive 2000/3), this table indicates the options for the installation of child seats

secured using the seat belt and universally approved (a), depending on the weight of the child and the seat in the vehicle.

Weight of child/ indicative age

Seat

Less than 13 kg

(groups 0 (b) and 0+)
Up to 1 year approx

From 9 to 18 kg

(group 1)

From 1 to 3 years

From 15 to 25 kg

(group 2)

approx From 3 to

6 years approx

From 22 to 36 kg

(group 3)

From 6 to 10 years

approx

Front passenger
seat (c)
Fixed seat, Height

adjustable seat

Rear side seat

Rear centre
seat (d)
Three-point

seat belt

COMFORT -

(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.

(b) Group 0: from birth to 10 kg.

(d) It is not possible to install the "BRITAX Babysure" (L1) child seat on the rear centre seat.

U: Seat suitable for the installation of a child seat, attached with the seat belt and homologated as "universal".

"Rear facing" and "Forward facing" child seats.

UF: Seat suitable for the installation of a child seat, attached with the seat belt and homologated as "universal".

"Forward facing" child seats only.

X: Seat not suitable for the installation of a child seat from the group of weights indicated.

COMFORT

52 -

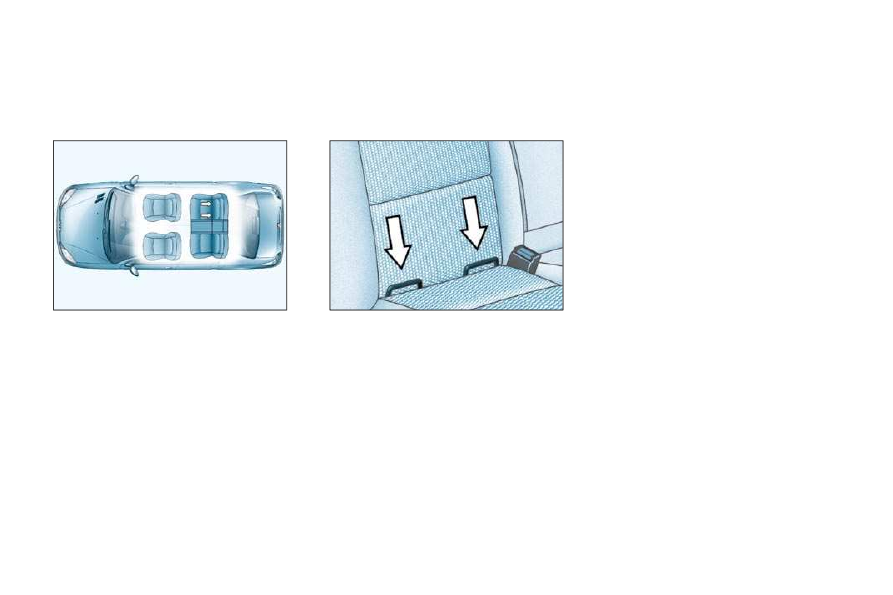

These are two rings located between

the seat back and the seat cushion.

"ISOFIX" MOUNTINGS

This seat is ﬁ tted with ISOFIX mount-

ings.

The ISOFIX child seats

are ﬁ tted

with two locks which are secured
easily on these rings.
This ISOFIX mounting system gua-

rantees reliable, safe and fast ﬁ tting

of the child seat in your vehicle.
If a child is not installed in a vehicle
correctly, the child's protection in the

event of a collision will be compro-

mised.

COMFORT -

ISOFIX CHILD SEATS RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE

ISOFIX KIDDY

ISOFIX RÖMER Duo

Group 0+: from birth to 13 kg

Group 1: from 9 to 18 kg

Installed in the rear facing position.

Installed in the forwards facing position. Installed in the forwards facing position only.

The body of the child seat must be in

contact with the back of the vehicle's

front seat.

It is essential that the vehicle's front
seat is adjusted to the intermediate lon-
gitudinal position.

Secured without the top strap.
Three child seat body angles: sitting,

reclining and lying positions.
Adjust  the  vehicle's  front  seat  so  that
the  child's  feet  do  not  touch  the  seat

back.

These child seats can also be used on

seats which are not ﬁ tted with ISOFIX

mountings.

In this case, it is essential that they are

secured to the vehicle's seat by means

of the three point seat belt.

Follow the instructions for ﬁ tting the

child seat indicated in the seat manu-
facturer's installation guide.

ACCESS -

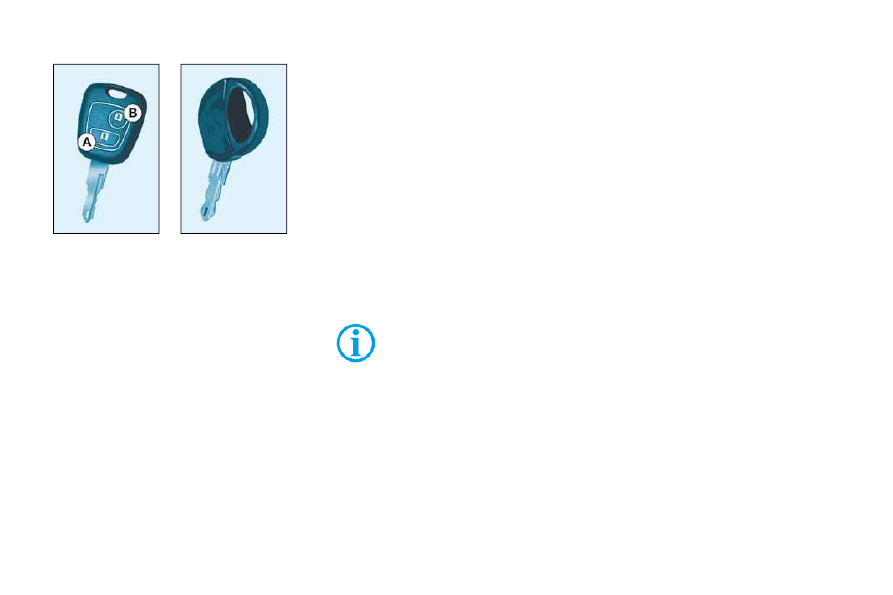

THE KEYS

The keys allow you to independ-
ently operate the lock on the driver’s

door, the fuel ﬁ ller cap, the child lock,

the steering lock and to switch on the
ignition.

Locking
Press button A to lock the vehicle.
This is conﬁ rmed by ﬁ xed lighting of

the direction indicators for approxi-

mately two seconds.

   Locating your vehicle
To  locate  your  vehicle,  if  you  have
locked it, in a car park:
      press button  A , the courtesy lights

come on and the direction indica-

tors ﬂ ash for a few seconds.

Changing the remote control
battery

Battery ref.: CR 2016/3 volts.
Warning that the battery is ﬂ at is giv-

en by an audible signal.
To replace the battery, remove the

screw then unclip the casing using a
coin at the ring.
If the remote control does not work

after the battery has been changed,

reprogramme the remote control.

Do not discard the remote control

batteries, they contain metals which

are harmful to the environment.

Take them to a PEUGEOT dealer,

or to any other approved collection
point.

Key in ignition

A buzzer sounds on opening the driv-
er’s door, if the key has been left in
the ignition.

Programming the remote
control

      Switch off the ignition.
     Switch the ignition on again.
     Press button  A

immediately for a

few seconds.



Switch off the ignition and remove

the remote control key from the

ignition lock. The remote control

is now working again.

Central locking and unlocking
The keys allow you to lock or unlock

the doors and boot, from the driver’s

door.
If one of the doors or the boot is open,
the central locking does not work.

The remote control

This performs the same functions as

the key, at a distance.

Unlocking
Press button B to unlock the vehicle.
This is conﬁ rmed by the rapid ﬂ ash-

ing of the direction indicators.

Avoid pressing the buttons

of your remote control out

of range of your vehicle.
You risk causing it not to

work and the remote control

would then have to be reprogrammed

(see corresponding section).

ACCESS

56 -

ELECTRONIC ENGINE
IMMOBILISER

This locks the engine control sys-

tem as soon as the ignition has been

switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code

must be recognised for starting to be

possible.
  If  the  system  does  not  function
correctly,   the  central  locking  button
indicator  light,  situated  in  the  centre

of the fascia, ﬂ ashes rapidly when the

ignition is switched on (2nd notch).
In this case your vehicle will not
start.
Contact a PEUGEOT dealer as soon

as possible.

Make a careful note of the

number of each key. This

number is coded on the la-

bel attached to the key.

The high frequency remote control is

a sensitive system; do not operate it

while it is in your pocket as there is a

possibility that it may unlock the ve-

hicle, without you being aware of it.
The remote control does not operate

when the key is in the ignition, even

when the ignition is switched off, ex-

cept for reprogramming.

Driving with the doors locked may

make access to the passenger com-

partment by the emergency services

more difﬁ cult in an emergency.
As a safety precaution (with children

on board), remove the key from the

ignition when you leave the vehicle,

even for a short time.

Do not repeatedly press the buttons

of your remote control out of range

of your vehicle.
You run the risk of stopping it from

working and the remote control

would have to be reprogrammed.
When purchasing a second-hand

vehicle, have the key codes mem-

orised by a PEUGEOT dealer, to

ensure  that  the  keys  in  your  pos-
session  are  the  only  ones  which
can start the vehicle.
Do  not  make  any  modiﬁ cations  to

the electronic engine immobiliser

system.

If the keys are lost
Visit a PEUGEOT dealer with the

vehicle’s V5 registration certiﬁ cate

and your personal identiﬁ cation

documents.

The PEUGEOT network will be

able to retrieve the key code and
the transponder code to order a re-

placement key.

ACCESS -

DOORS

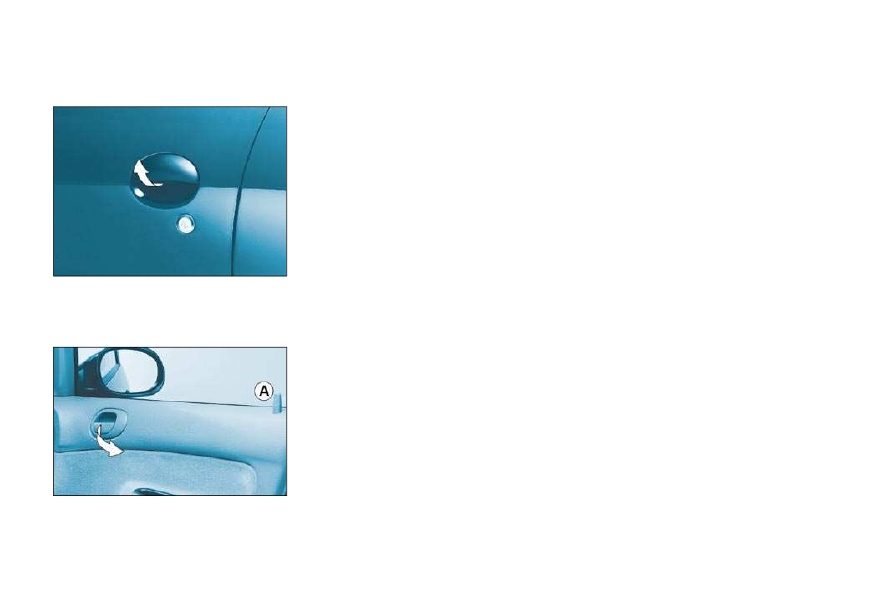

Opening the doors from outside

Opening the doors from inside

  "Door open" warning
  With  the  engine  running,   you  are
warned if a door is not shut properly
by an audible signal.
  When the vehicle is moving,  if the
courtesy  light  button  is  in  the  "light-
ing  on  opening  a  door"  position,  the

courtesy light ﬂ ashes.

Locking from inside

  With central locking
To lock, press button  A .
Locking one of the front doors locks
the front and rear doors and the tail-
gate.
On  the  rear  doors,  the  button  only

locks the door in question.

  Unlocking from inside
To  unlock,  pull  button   A   or  operate
the handle.

  Without central locking
To  lock,  press  button   A .  The  button
locks the door in question.
The button on the driver’s door locks
the door and the boot.

ACCESS

58 -

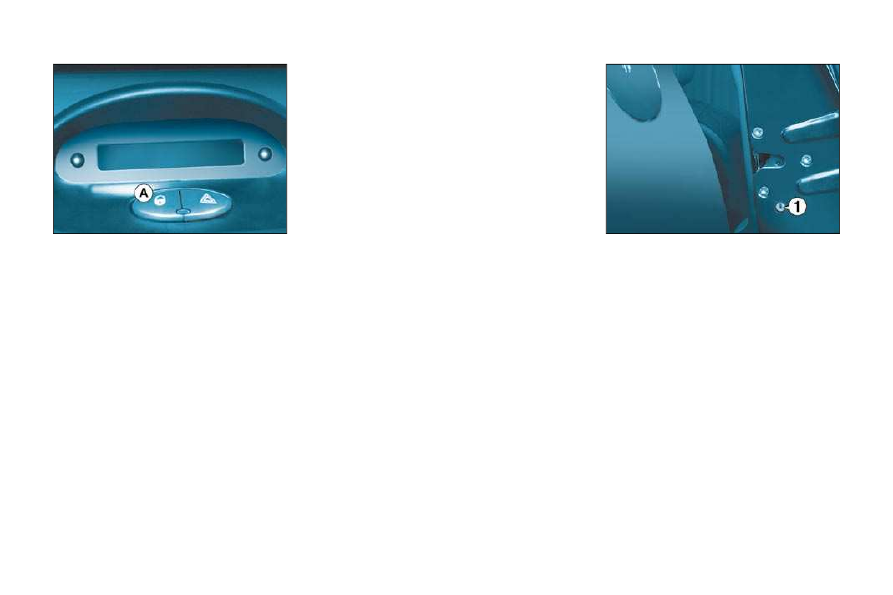

CHILD SAFETY LOCK

On each rear door this prevents

opening of the door from the inside.
Turn switch 1 a quarter turn using the
ignition key.
Check the status of this function be-
fore each journey.
This system is independent of the

central locking.
Always remove the ignition key when

leaving the vehicle.

Locking/Unlocking from the
inside
Pressing button A

permits

  To switch on
Press and hold button  A .
Activation  of  the  function  is  accom-

panied by an audible signal.

  To switch off
Press and hold button  A .
  Notes:   if  one  of  the  doors  is  open,

locking from the inside and automatic

central locking are not possible.
If the boot is open, automatic central

locking of the doors is active.

locking/unlocking of the doors.
Automatic central locking of the

doors
The doors can lock automatically

when you are driving (at a speed of

more than 6 mph (10 km/h)). Above

6 mph (10 km/h), press button A brief-

ly to unlock the doors temporarily.
You can activate or deactivate this
function.

ACCESS

58 -

CHILD SAFETY LOCK

On each rear door this prevents

opening of the door from the inside.
Turn switch 1 a quarter turn using the
ignition key.
Check the status of this function be-
fore each journey.
This system is independent of the

central locking.
Always remove the ignition key when

leaving the vehicle.

Locking/Unlocking from the
inside
Pressing button A

permits

  To switch on
Press and hold button  A .
Activation  of  the  function  is  accom-

panied by an audible signal.

  To switch off
Press and hold button  A .
  Notes:   if  one  of  the  doors  is  open,

locking from the inside and automatic

central locking are not possible.
If the boot is open, automatic central

locking of the doors is active.

locking/unlocking of the doors.
Automatic central locking of the

doors
The doors can lock automatically

when you are driving (at a speed of

more than 6 mph (10 km/h)). Above

6 mph (10 km/h), press button A brief-

ly to unlock the doors temporarily.
You can activate or deactivate this
function.

ACCESS -

LOCKING/UNLOCKING OF
THE BOOT

  "Boot open" warning
  When the engine is running , if the
boot  is  not  closed  correctly  you  are
warned by an audible signal.
  When the vehicle is moving , if the
boot is not closed correctly the cour-

tesy light ﬂ ashes if its button is in this

position.

OPENING THE BOOT

To open the boot, press the lock.
The lighting is activated on open-
ing the boot.

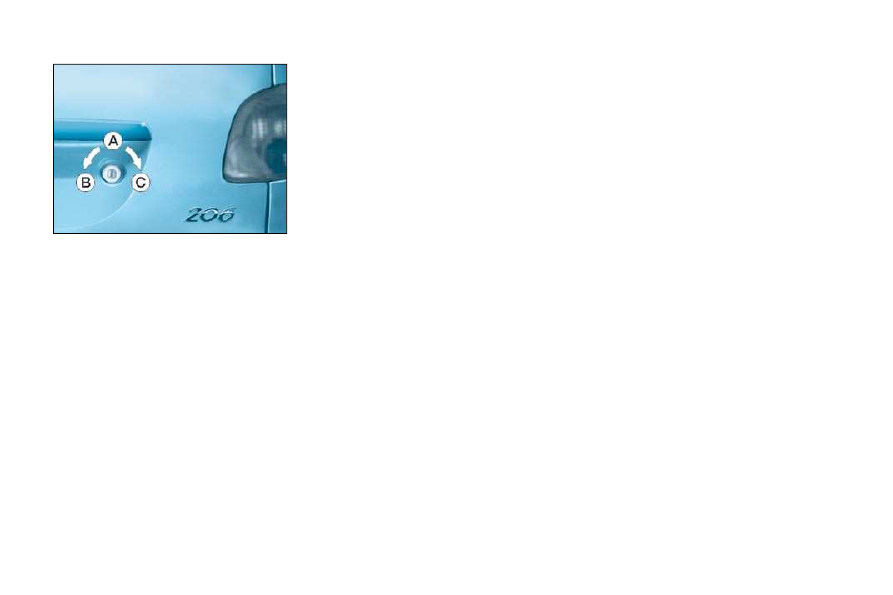

With the key
Lock the boot by turning the key in

the lock (from A to C ).

Unlock the boot by turning the key in

the lock (from A to B ).

With the central locking
Locking and unlocking of the boot is

simultaneous with the doors.

ACCESS

60 -

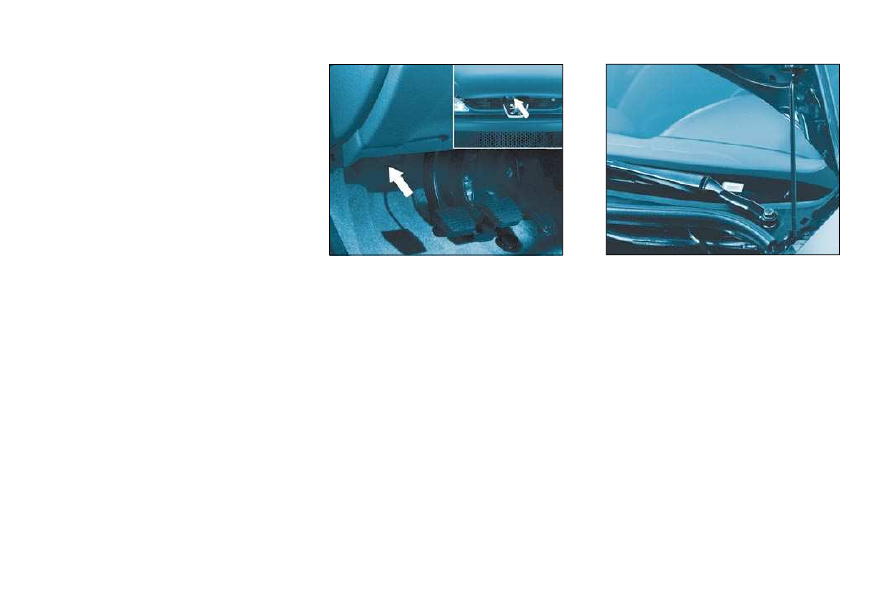

OPENING THE BONNET

Inside the vehicle: pull the handle on
the left-hand side, under the fascia.

BONNET STRUT

Secure  the  strut  to  hold  the  bonnet
open.
Before  closing  the  bonnet,  replace
the strut in its housing.

FILLING THE FUEL TANK

The tank must be ﬁ lled with fuel with

the engine switched off .
Insert the key then turn it to the left.
Remove the cap.
A label indicates which type of fuel to
use.
If you ﬁ ll your tank, do not continue

after the third cut-off of the pump

nozzle. This could result in vehicle

malfunctions.
The capacity of the tank is approxi-
mately 50 litres.

  To close
Lower  the  bonnet  and  release  it  at
the end of its travel.
Check that the bonnet is locked.

Outside the vehicle: lift the catch
and raise the bonnet.

VISIBILITY -

LIGHTS STALK

  Dipped/Main beam change
Pull the stalk towards you.
  Note:   with  the  ignition  off,  when  the
driver’s  door  is  opened,  a  buzzer
sounds if you have left your lights on.

Vehicles ﬁ tted with front fog

lamps and a rear fog lamp (ring C)

Side lights

Dipped/Main beam
headlamps

Rear fog lamp

Front fog lamps (ﬁ rst rotation

of the ring forwards)

Front and rear fog
lamps (2nd rotation of
the ring forwards).

Note: to switch off the rear fog lamp
and the front fog lamps, turn the ring
backwards twice in succession.

Vehicles ﬁ tted with a rear fog

lamp (ring B)

This  only  operates  with  the  dipped/
main beam headlamps.
  Note:   when  the  lights  are  switched
off, the rear fog lamp and the dipped
headlamps  remain  on  (turn  the  ring
backwards  to  switch  off  the  rear  fog
lamp.  The  dipped  headlamps  and
side lights then switch off).

The  front  fog  lamps  operate  with  the  side
lights and the dipped headlamps.
When  the  main  beam  headlamps  are
switched on, the front fog lamps are switched
off.  They  are  switched  on  again  when  the
main beam headlamps are switched off.

Lights off

Front fog lamps and rear fog

lamp

Rotate the ring forwards to switch on
and backwards to switch off. The sta-

tus is conﬁ rmed by the indicator light

on the instrument panel.

Front and rear lights

Selection is by turning ring A .

  Note:   when  the  lights  are  switched
off manually, the front fog lamps, the
rear fog lamp and the side lights re-
main  on  (turn  the  ring  backwards  to
switch  off  the  front  fog  lamps.  The
side lights then switch off).

VISIBILITY

62 -

WINDSCREEN WIPER STALK

   Windscreen wash
Pull the wiper stalk towards you. The
windscreen  wash,  then  the  wind-
screen  wipers,  operate  for  a  speci-

ﬁ ed time.

Direction indicators (ﬂ ashers)

Left : downwards.

Right : upwards.

In  good  or  rainy  weather,
both  day  and  night,  the
front  fog  lamps  and  the
rear fog lamp are dazzling

and are prohibited.
Do not forget to switch them off
when they are no longer needed.

  "Follow me home" lighting
When  you  leave  your  vehicle,  the
side  lights  and  dipped  headlamps
can  be  left  on  for  approximately
30 seconds.
To do this:
   -

place the key in the

STOP position,

place the lights stalk in the 0 position,

- ﬂ ash the headlamps,
-

get out of the vehicle and lock it.

Manual windscreen wipers

  2   Fast wipe (heavy rain).
  1   Normal wipe (moderate rain).
  l

Intermittent wipe.

0 Off.
 Single wipe

(press downwards).

In  the   I ntermittent  position,  the  wip-
ing  speed  is  in  proportion  to  the  ve-
hicle speed.

The command must be reactivat-

ed whenever the ignition has been

switched off for more than one

minute:
    move the stalk to any position,
     then move it back to the required

position.

VISIBILITY

62 -

WINDSCREEN WIPER STALK

   Windscreen wash
Pull the wiper stalk towards you. The
windscreen  wash,  then  the  wind-
screen  wipers,  operate  for  a  speci-

ﬁ ed time.

Direction indicators (ﬂ ashers)

Left : downwards.

Right : upwards.

In  good  or  rainy  weather,
both  day  and  night,  the
front  fog  lamps  and  the
rear fog lamp are dazzling

and are prohibited.
Do not forget to switch them off
when they are no longer needed.

  "Follow me home" lighting
When  you  leave  your  vehicle,  the
side  lights  and  dipped  headlamps
can  be  left  on  for  approximately
30 seconds.
To do this:
   -

place the key in the

STOP position,

place the lights stalk in the 0 position,

- ﬂ ash the headlamps,
-

get out of the vehicle and lock it.

Manual windscreen wipers

  2   Fast wipe (heavy rain).
  1   Normal wipe (moderate rain).
  l

Intermittent wipe.

0 Off.
 Single wipe

(press downwards).

In  the   I ntermittent  position,  the  wip-
ing  speed  is  in  proportion  to  the  ve-
hicle speed.

The command must be reactivat-

ed whenever the ignition has been

switched off for more than one

minute:
    move the stalk to any position,
     then move it back to the required

position.

Content .. 2 3 4 5 ..
