Peugeot 306 C Dag (2001 year). Manual

YOUR 306 CABRIOLET IN DETAIL

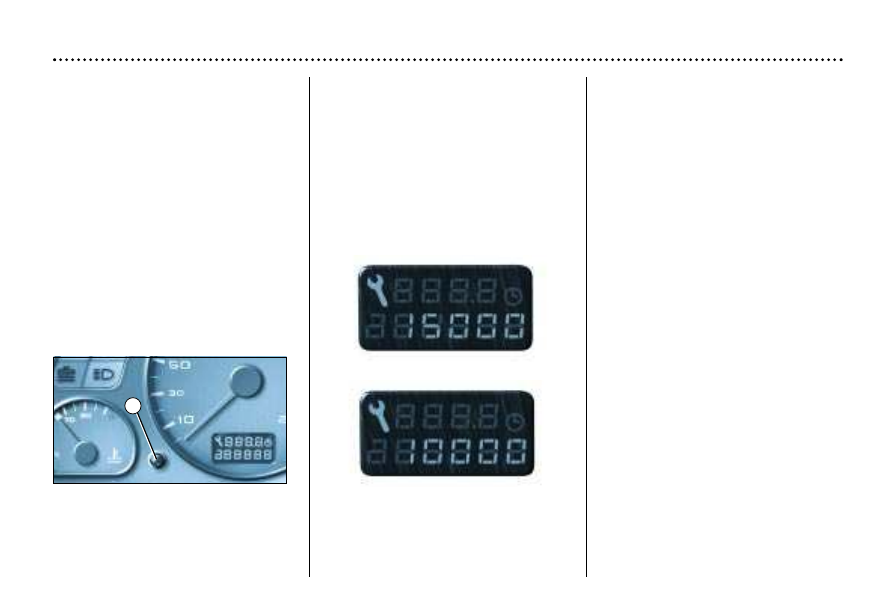

- Switch on the ignition.
- The display begins a 10 second

countdown.

- Release the button before the

countdown finishes.

- The service interval is displayed.
- Each brief press of button 1 alter-

nates the service intervals.

To change the service interval
- Switch off the ignition.
- Press and hold button 1.

Example:

- When the chosen service interval

is displayed, press button 1 for
10 seconds (countdown) to confirm.

Reset

Your PEUGEOT dealer carries out this
operation after each service.
However, if you service the vehicle
yourself, reset as follows:

- Switch off the ignition.
- Press and hold button 1.
- Switch on the ignition.
- The display begins a 10 second

countdown.

- Keep button 1

pressed for

10 seconds.

- The display shows [= 0] and the

service symbol disappears.

Service intervals

If your vehicle is used in certain
particularly difficult conditions it is
necessary to follow the "Arduous
conditions" servicing schedule, which
involves shorter intervals between
services (see your Warranty and
Maintenance Record booklet).

Comment: If the time limit between
two services is reached before the
relevant mileage limit, the service
spanner symbol will light up and the
display will show 0.

MAINTENANCE OF YOUR 306 CABRIOLET

SPECIAL FEATURES

Some of your vehicle’s vital components have specific servicing schedules.

The airbags and the pretensioning seat belts must be replaced every 10 years.
The brake fluid must be replaced every 40,000 miles (60,000 km) or every 2 years.
The pollen filter must be checked at each visit to the PEUGEOT dealer (intermediate visits and regular services).

NB: the coolant does not need to be renewed.

Arduous conditions of use

If the vehicle is used under certain particularly arduous conditions:

• Continuous door-to-door use.
• Town use (e.g. taxi).
• Repeated short journeys, with the engine cold in low temperatures,

Or in long stays under the following conditions:

• Hot countries with temperatures often above 30 °C.
• Cold countries with temperatures often below minus 15 °C.
• Countries with a dusty atmosphere.
• Countries whose lubricants or fuels do not conform to our recommendations.

It is necessary to follow an “Arduous conditions” service schedule which includes special operations and shorter service
intervals:

• Every 12,000 miles (20 000 km) or every year.

TYPES OF SERVICE

Each vehicle has its own servicing cycle, defined by the manufacturer in accordance with each vehicle’s specific
technical features.
This cycle consists of alternating 2 types of service A and C, intermediate visits, and a few additional operations depending
on your vehicle ; these correspond to key stages in the life of your 306.
Services of type B are designed for less recent vehicles.
Your dealer will indicate the type and content of the next service when the first service is carried out, and at each sub-
sequent service.

MAINTENANCE OF YOUR 306 CABRIOLET

MILES (KM)

20,000 (30 000)

40,000 (60 000)

60,000 (90 000)

80,000 (120 000)

1st service at

6,000 miles (10 000 km)*

or 6 months*

The validity of the

Warranty depends

on this service.

100,000 (150 000)

120,000 (180 000)

140,000 (210 000)

160,000 (240 000)

180,000 (270 000)

Intermediate visit

* Whichever comes first

Automatic gearbox oil level every 40,000 miles (60,000km)
Brake fluid replacement every 2 years or every 40,000 miles (60,000km).
These operations are carried out with synthetic based oil; Fuel Economy oil or
synthetic oil can also be used.

THE MAINTENANCE CYCLE FOR YOUR PETROL 306 CABRIOLET

Service every 20,000 miles (30 000 km) or 2 years

+ timing belt replacement

MAINTENANCE OF YOUR 306 CABRIOLET

PEUGEOT SERVICING LEVELS A AND C

: All driving conditions

: Specific conditions

Level

Operations

Description of operations for 1st service

Services

Intermediate visit

DRAIN AND REFILL

- Engine drain and refill.

- Oil filter.

- Fuel filter (Petrol).

- Air filter element.

- Spark plugs (Petrol).

- Engine oil (check + top up).

- Manual gearbox oil (check + top up).

- Battery (check + top up) if plug is removable.

LEVEL

- Front/rear windscreen wash (check + top up).

- Coolant (check + top up).

- Brake fluid (check + top up).

- Power steering fluid (check + top up according to specification).

- Operation of lights and indicators.

- Condition of glass, headlamp and light lenses and mirrors.

- Horn.

- Windscreen washer jets.

- Condition of wiper blades.

- Condition and tension of ancillary drive belts.

- Handbrake.

- Condition of hydraulic circuits (hoses and covers), check for leaks.

CHECK

- Condition of rubber boots and gaiters.

- Brake pad wear.

- Clearances, hubs, rods, ball joints, flxible mountings.

- Sealing of dampers.

- Wear of rear linings.

- Condition and pressure of tyres (including spare wheel).

- Emission control check according to current legislation (Petrol).

- Pollen filter check (according to specification).

- Visual check of the whole vehicle by a PEUGEOT dealer.

SERVICE

- Courtesy vehicle

ROAD TEST

REPLACEMENT

TOTAL

IRL

TIV

7000

10W

TIV

9000

CTIV

9000

30*

TZ 7000

15W

10W

30*

7000

10W

TZ 9000

30*

TRADE NAMES OF APPROVED AND RECOMMENDED LUBRICANTS IN EUROPE (1)

(1) Minimum quality level: petrol: ACEAA3 and API SH/SJ - ACEA = Association des Constructeurs Européens Automobiles (Association of European Automobile Manufacturers) - API = American Petroleum Institute.

If oil is used which does not conform to the ACEAA3-B3 standards, this requires the "Arduous conditions" servicing schedule to be followed, which involves shorter intervals between services

* This Energy Saving oil may only be used in engines specifically designed for it (from 2000 Model Year).

P E T R O L

20W

15W

10W

TOTAL

MAINTENANCE OF YOUR 306 CABRIOLET

RECOMMENDATIONS FOR

APPROVED LUBRICANTS

The oils which appear in the table
opposite are suitable for most pur-
poses.

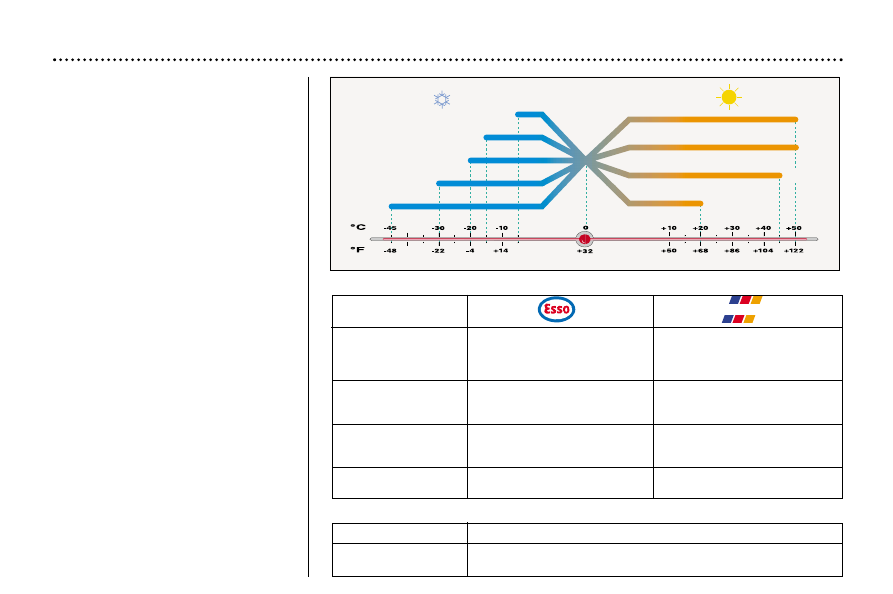

The diagram opposite states the
optimum range of viscosity depen-
ding on the temperatures at which the
oils are to be used.

It is also possible to use synthetic oils
of 'superior quality.

In the absence of semi-synthetic or
synthetic oils, oils of API SH/SJ may
be used by following the 'Arduous
Conditions' maintenance schedule
which specifies shorter intervals.

Do not hesitate to ask for advice from
a PEUGEOT dealer to maintain
driving pleasure and to minimise the
maintenance cost of your vehicle.

For countries outside Europe, please
contact a local PEUGEOT dealer.

ESSENTIAL

Manual

ESSO GEAR OIL BV

TOTAL TRANSMISSION BV

gearbox

75W-80 PR 9736.41

75W-80

Automatic

ESSENTIAL

gearbox AL4

ATF 4HP20-AL4

PR 9736.22

Automatic

ESSO ATF D

TOTAL FLUIDE AT42

gearbox

PR 9730.94

4 HP-14

Power steering

ESSO ATF D

TOTAL FLUIDE AT42

PR 9730.94

Brake fluid

PEUGEOT DOT4

Coolant

PROCOR TM108 / GLYSANTIN G33 or REVKOGEL 2000

ESSENTIAL Protection to minus 35 °C

Other approved products

20 19

18 17

YOUR 306 CABRIOLET IN DETAIL

Low coolant level.

Headlight main beam.

Headlight dipped beam.

Speedometer.

Left indicator.

Low oil pressure warning light.

Handbrake, brake fluid low level and
electronic brake force distribution.

Battery charge.

Right indicator.

10 Rev counter.

11 Front fog lamps.

12 Brake pad wear warning light*.

13 Rear fog lamp.

14 ABS: anti-lock braking system*.

15 Fuel gauge.

16 Low fuel level.

17 STOP warning.

18 Seat belt not fastened warning

light*.

19 Side airbags warning light*.

20 Front airbags warning light* and

disarming of passenger airbag*

21 Autodiagnostics*.

22 Trip recorder and service indicator.

23 Trip zero reset and clock setting.

24 Coolant temperature gauge.

* According to specification or country.

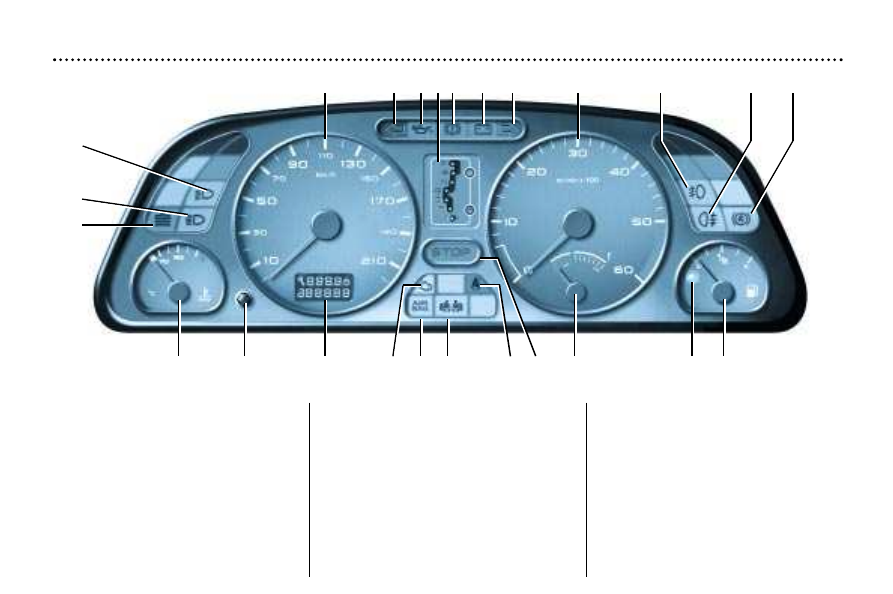

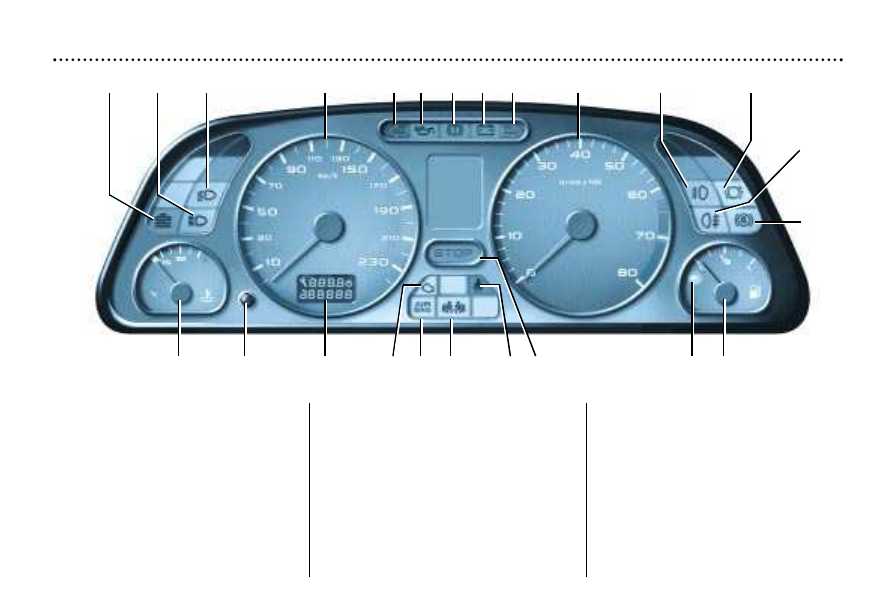

INSTRUMENT PANEL

6 7 8

22 21 20

19 18

YOUR 306 CABRIOLET IN DETAIL

Low coolant level*.

Headlight main beam.

Headlight dipped beam.

Speedometer.

Left indicator.

Low oil pressure warning light.

Gear indicator (automatic gear-
box).

Handbrake, brake fluid low level
and electronic brake force distrib-
ution.

Battery charge.

10 Right indicator.

11 Rev counter.

12 Front fog lamps*.

13 Rear fog lamp.

14 ABS: anti-lock braking system*.

15 Fuel gauge.

16 Low fuel level.

17 Oil level.

18 STOP warning.

19 Seat belt not fastened warning light*.

20 Side airbags warning light*.

21 Front airbags warning light* and

disarming of passenger airbag*

22 Autodiagnostics*.

23 Trip recorder and service

indicator.

24 Trip zero reset and clock setting.

25 Coolant temperature gauge.

* According to specification.

INSTRUMENT PANEL

YOUR 306 CABRIOLET IN DETAIL

A warning light which remains perma-
nently lit indicates that the unit con-
cerned is not operating correctly. Do
not ignore this warning: contact a
PEUGEOT dealer as soon as possi-
ble.

* According to specification.

Handbrake warning light,
brake fluid low level and
electronic brake force dis-
tribution
Indicates either:

- that the handbrake is on or has not

been released correctly,

- an excessive drop in the brake fluid

level (if the light remains lit even with
the handbrake released),

- lit at the same time as the ABS war-

ning light, it indicates a malfunction of
the braking system.

Stop immediately.
Contact a PEUGEOT dealer.

STOP warning light

(Together with the oil
pressure warning light)
You must stop.

Contact a PEUGEOT dealer.

Oil pressure warning

light

Together with the STOP
warning light.

You must stop.
Indicates either:
- oil pressure is too low
- a lack of oil in the lubricating circuit
Top up the oil level if necessary.
Contact a PEUGEOT dealer.

Battery charge

warning light

Indicates either:
- faulty operation of the

battery charging circuit

- loose battery or starter terminals
- a broken or loose alternator drive belt
- an alternator fault
Contact a PEUGEOT dealer.

Low coolant level warning
light*
You must stop.
Wait until the engine cools
before topping up.

The cooling circuit is pressurised.
When opening to top up, turn the cap
to the first notch to let the pressure
drop.
Contact a PEUGEOT dealer.

Engine autodiagnostic

warning light*

This comes on each time the
ignition is switched on. If it
comes on when driving, this

indicates faulty operation of the injec-
tion, ignition or emission control
system.
There is a risk of damage to the cat-
alytic converter if your vehicle is
fitted with one.
Contact a PEUGEOT dealer.

Low fuel warning light
Indicates that there are
approximately 1.3 gallons
(6 litres) of fuel remaining
in the fuel tank.

(The capacity of the tank is approxi-
mately 50 litres).

INSTRUMENTS AND CONTROLS

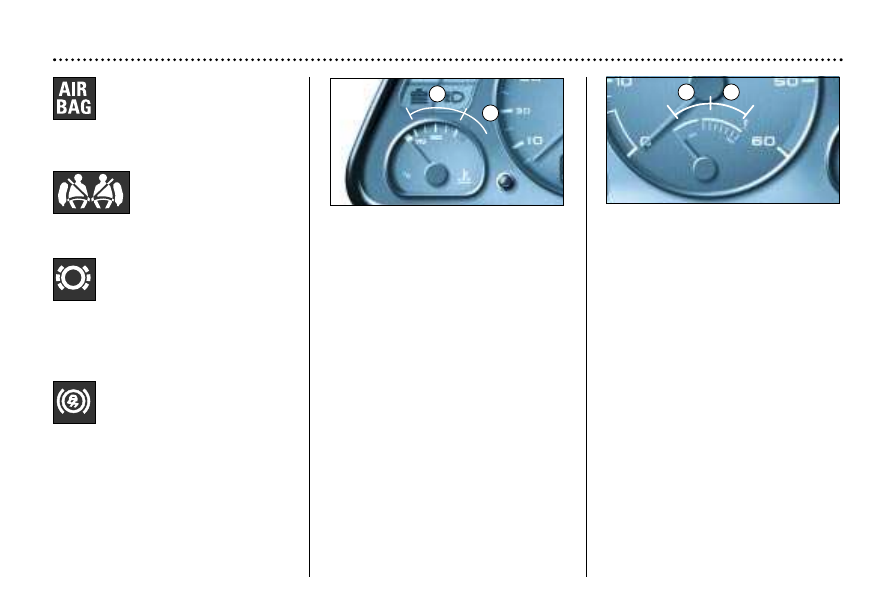

Oil gauge*

When the ignition is on, this indicates
the oil level:
The reading is only valid if the vehicle
is on level ground and the engine has
been switched off for 10 minutes.
- needle in zone C, the oil level is

correct

- needle in zone D, check the oil level

using the dipstick and top up if nec-
essary.

Never exceed the maximum level on
the dipstick.
The oil level indicator switches off
approximately 15 seconds after start-
ing the engine.

Coolant temperature gauge

- needle in zone A, the temperature

is correct.

- needle in zone B, the temperature

is too high.

The STOP warning light comes on.
You must stop.
Contact a PEUGEOT dealer.

YOUR 306 CABRIOLET IN DETAIL

Anti-lock braking

system (ABS) warning

light

It comes on for 3 seconds

each time the ignition is switched on.
If it comes on at over 8 m.p.h.
(12 km/h.) it indicates a malfunction
of the ABS.
However, the vehicle retains conven-
tional servo-assisted braking.
Contact a PEUGEOT dealer.

Front airbags* and

disarming the

passenger air bag*

For operation, see section on
AIR BAGS.

Side airbags**

For operation, see
section on AIR BAGS.

* According to specification.

Front brake pad wear

warning light*

For your safety, change the
brake pads when the
warning light comes on.

Contact a PEUGEOT dealer.

Oil gauge*

correct

- needle in zone D, check the oil level

using the dipstick and top up if nec-
essary.

Never exceed the maximum level on
the dipstick.
The oil level indicator switches off
approximately 15 seconds after start-
ing the engine.

Coolant temperature gauge

- needle in zone A, the temperature

is correct.

- needle in zone B, the temperature

is too high.

The STOP warning light comes on.
You must stop.
Contact a PEUGEOT dealer.

YOUR 306 CABRIOLET IN DETAIL

Anti-lock braking

system (ABS) warning

light

It comes on for 3 seconds

Front airbags* and

disarming the

passenger air bag*

For operation, see section on
AIR BAGS.

Side airbags**

For operation, see
section on AIR BAGS.

* According to specification.

Front brake pad wear

warning light*

For your safety, change the
brake pads when the
warning light comes on.

Contact a PEUGEOT dealer.

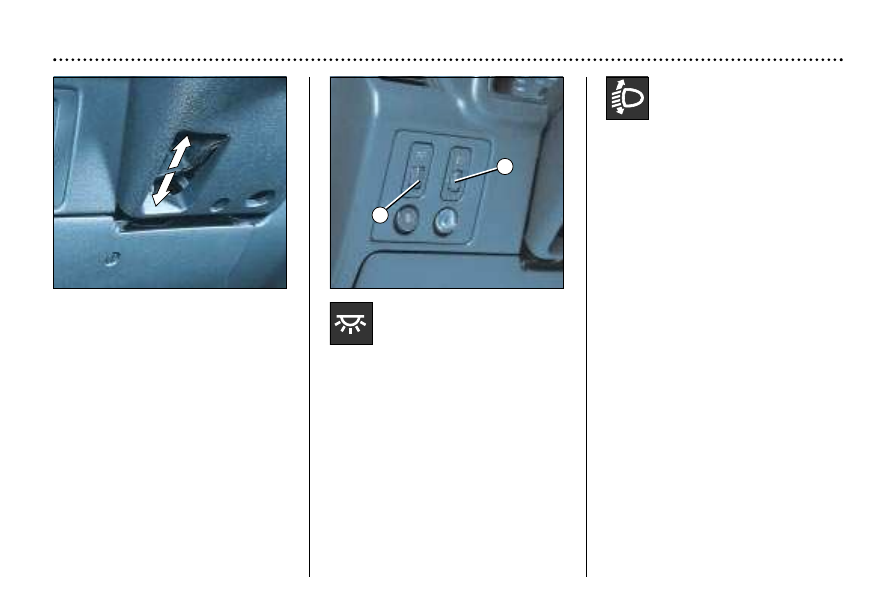

Adjusting the height of the

steering wheel

Push the handle to unlock the
steering wheel.
Adjust the steering wheel to the
desired height and pull the handle to
lock it into position.

YOUR 306 CABRIOLET IN DETAIL

1 - Lighting rheostat*

Dim or brighten the instru-
ment panel lighting by turning
the knob.

This only operates when the exterior
lights are on.

2 - Headlight height

adjustment*

Depending on the vehicle’s
load, it is advisable to adjust

the headlight beam.

0 - 1 or 2 people in the front seats.

- - 3 people.

1 - 4 people.

2 - 4 people + maximum authorised

load.

3 - Driver + maximum authorised

load.

This adjustment can only be carried
out with the lighting stalk in the
dipped/main beam headlights posi-
tion.
Initial setting: 0.

* According to specification.

Using the centre handle and a side
handle, fold down the front of the
hood, position the side handle hooks
in their housings and secure the two
handles.

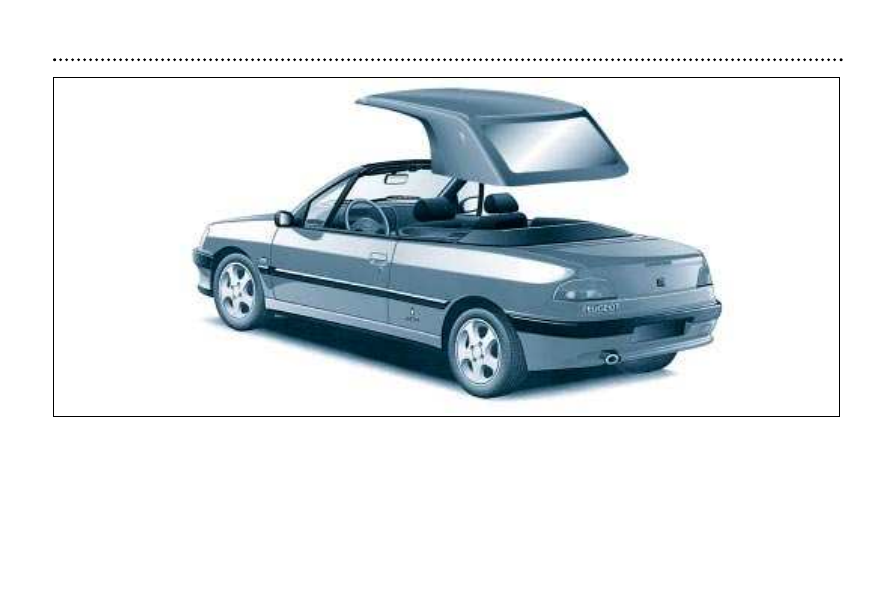

ELECTRIC HOOD: CLOSING

Inside the vehicle:

- Turn the ignition key to position M

(engine not running, oil pressure
warning light on) and lower the
front windows.

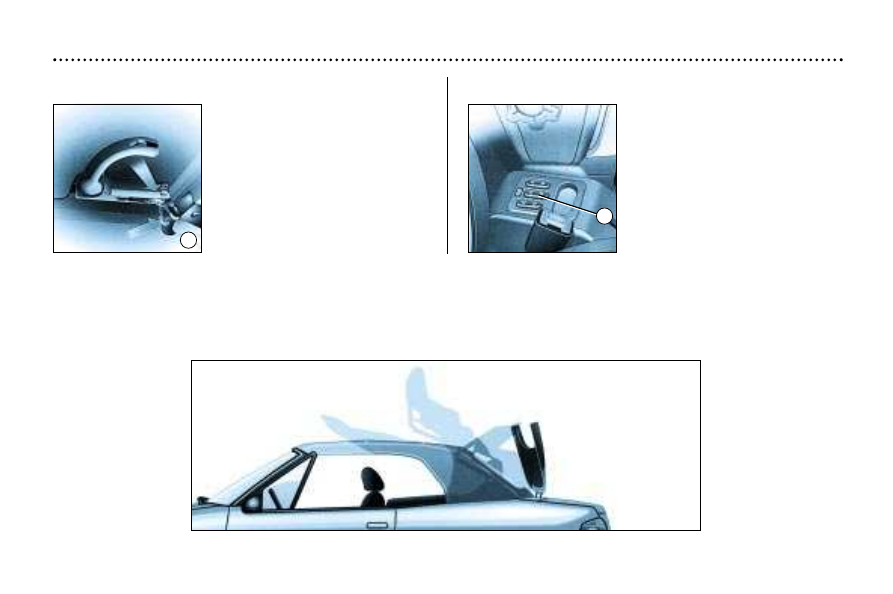

- Press the switch 4 on the central

console until the operation has
been completed (hood unfolded
until it stops not quite flush with the
windscreen).

As a safety precaution,
opening and closing
operations must be car-
ried out when stationary.
Driving with the hood

cover open is prohibited.
If the boot is not closed, the hood
cannot be opened or raised.
If the front of the hood is not
raised, the hood cannot be
opened.
Do not carry out too many opera-
tions in succession as there is a
risk that the battery may become
flat.
Do not place anything in the com-
partment reserved for storing the
hood as there is a risk of damage.
Before opening the hood:
- Ensure that the hood and rear

screen are clean.

- Ensure that the hood is dry, oth-

erwise the compression it is
subjected to when it is folded
will result in marks or even
stains caused by moisture over
time.

YOUR 306 CABRIOLET IN DETAIL

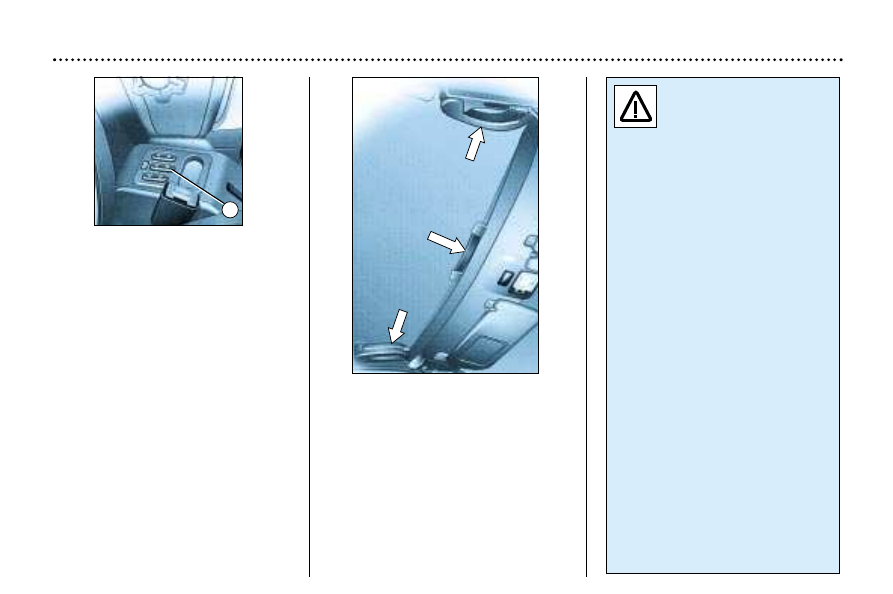

- From inside the vehicle, using the

centre handle and a side handle,
fold down the front of the hood,
position the side handle hooks in
their housings and secure the two
handles.

If the fault persists, contact your
PEUGEOT dealer.

If an electrical fault occurs while

the hood is open, it is possible

to close it manually.

Using the side handle 1, close the

hood and unfold it to the point of

resistance.

- Close the rear of the hood.
- Close the hood cover and secure it

by turning the wheelbrace B a
quarter turn anti-clockwise.

- Fold down the rear of the hood on

the hood cover.

YOUR 306 CABRIOLET IN DETAIL

ELECTRIC HOOD:
MANUAL CLOSING

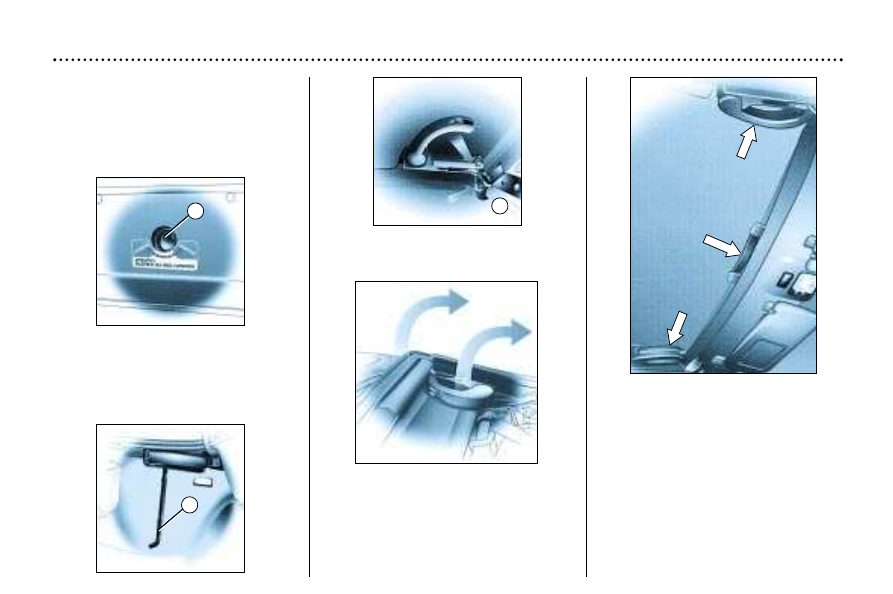

Open the boot, remove the cap A.
Using the wheelbrace B, turn a quar-
ter turn clockwise in order to release
the hood cover and open it.

Peugeot 306 C Dag (2001 year). Manual - part 2
